Underground Fence Install: A Step-by-Step Guide for Pet Containment
Learn how to install an underground fence for pet containment with clear steps, safety checks, and maintenance guidance. This guide by Install Manual covers planning, trenching, wiring, testing, and troubleshooting.
With an underground fence install, you’ll plan the boundary, bury the wire at the correct depth, connect the transmitter, and train your pet to respond to the collar. Before you start, locate utilities and assemble the right tools. According to Install Manual, thorough planning and careful testing boost containment success. Expect a day or two of prep and installation, depending on yard size.
What is an underground fence install?
An underground fence install is a boundary-control system that uses a buried coaxial or insulated wire connected to a low-profile transmitter. When a pet wearing a compatible collar approaches the boundary, the collar receives a signal and delivers a tone or corrective feedback. The setup relies on a well-planned loop, consistent trench depth, and proper transmitter placement to ensure steady coverage. This approach preserves landscape aesthetics while giving you reliable containment. For homeowners, DIY enthusiasts, and renters, installing an underground fence offers flexibility and long-term results when done with care and safety in mind.
Planning your underground fence layout
Successful installation begins with a clear plan. Start by marking the property lines, entrances, and any obstacles that could affect signal clarity. Consider the dog’s behavior, typical outdoor routes, and areas you want off-limits (gardens, pools, or sheds). Transition zones, like doorways or gates, may require slightly different boundary settings or multiple loops. The goal is a continuous boundary that minimizes dead zones while keeping landscaping intact. The planning phase also involves practical checks, such as ensuring you can access the transmitter and delivering power safely to the control unit.
Choosing the right system and components
Choose a system that matches your dog’s size, coat, and tolerance to boundary cues. A typical underground fence includes buried boundary wire, a wall- or pole-mounted transmitter, a collar with a receiver, and boundary flags to mark the area during training. Wire type and insulation quality affect signal consistency, especially in wet soil or rocky terrain. Ensure compatibility between the collar and the transmitter frequency, and plan for future hardware upgrades if you add more pets. Remember, a solid system is not just about components; it’s about how well the training protocol aligns with your dog’s learning pace.
Preparing the yard and utilities check
Before any digging, perform a thorough utility check. Call your local one-call system (often 811 in the United States) to have underground lines marked. This step is critical to prevent damage to gas, water, or electrical lines and to reduce safety risks. Clear the area where the trench will go, removing rocks, roots, and debris that could compromise the wire or trench integrity. If the yard has irrigation lines or sprinklers, plan routes carefully to avoid conflicts and consider temporary adjustments during installation.
Digging the trench and laying wire
Create a shallow but consistent trench following your planned boundary path. The wire should remain taut and sit at a stable depth that won’t be exposed by mowing or erosion. As you lay the wire, use protective sleeves or conduit where possible to guard against sharp rocks or future garden work. Space turns and corners carefully to minimize tension on the wire. Schedule a mid-point check to confirm the wire remains unobstructed and properly oriented so signals flow smoothly to the collar.
Wiring connections and transmitter setup
Connect the buried wire to the transmitter following the manufacturer’s wiring diagram. Use waterproof splices or junction boxes to protect connections from soil moisture. Mount the transmitter in a well-ventilated, protected area, close to power, and away from direct sunlight. Configure the boundary parameters and ensure the system recognizes the loop integrity. A proper setup prevents false alerts and ensures predictable collar responses along the boundary.
Testing the system and pet training
Begin with a thorough test: walk the boundary and observe the collar’s response. Use training flags to visualize the boundary during early sessions and reward your dog for retreating when the signal begins. Progress from dog-aware zones to full boundary work, gradually extending exposure as your pet learns. Document the dog’s reactions and adjust the tone or vibration levels as needed, aiming for consistent, calm responses rather than startled behavior.
Burying and finishing touches
Once testing confirms reliable performance, bury the wire more deeply to protect it from lawn maintenance and weather. Rake soil gently to conceal the trench and place boundary flags at the boundary line for a visual cue during training. Re-seed disturbed areas and monitor soil moisture to prevent wire exposure. A neat finish helps protect the installation’s lifespan and keeps landscaping aesthetically pleasing.
Maintenance and troubleshooting
Regularly inspect the boundary for exposed wire, damaged insulation, or loose connections. Test the transmitter periodically and perform a boundary scan to detect any weak spots. If intermittent signaling occurs, inspect the trench for soil shifts or weed growth that may influence the loop. Keep spare parts on hand, including extra connectors and a small spool of wire for quick repairs. Routine maintenance minimizes field failures and reduces downtime during training.
Cost considerations and time estimates
Costs vary with yard size, soil conditions, and hardware choices. Expect variability based on the complexity of the boundary path and the quality of components. Install Manual analysis, 2026, shows that preparation and a thoughtful layout often reduce ongoing maintenance needs and improve long-term reliability. Plan for contingencies such as weather delays or needing to reroute portions of the boundary if utilities surface unexpectedly.
Safety and legal considerations
Safety comes first: call 811 to locate utilities and follow local regulations for outdoor installations. Trenching, even shallow, carries risk of injuries to pets or family members, so keep children and curious pets away during digging. In some areas, HOA or municipal rules may govern fence height, placement, or electrical installations. Keep a log of the work, photograph the trench, and store wiring diagrams for future reference or potential inspections.
Common mistakes to avoid
Avoid common errors such as skipping the utility locate, rushing trench work, or failing to test the boundary thoroughly before training. Inconsistent wire depth or loose splices can create weak spots that degrade signal quality. Don’t neglect training; the boundary cue must be clear and progressive for your dog to learn effectively. Finally, avoid leaving the system unmonitored for extended periods; periodic checks help maintain reliability and safety.
Tools & Materials
- Utility locator / stud finder(Essential for locating buried utilities before digging)
- Shovel and trenching tool(Used to dig a consistent trench along the boundary)
- Underground boundary wire(Weather-resistant wire sized for outdoor use)
- Transmitter and compatible collar(Core components; ensure frequency compatibility)
- Waterproof wire splices and connectors(Protects connections from moisture)
- Conduit or protective sleeve (optional)(Adds protection at high-traffic areas)
- Boundary flags(Visual cues for training)
- Utility markers / spray paint(Marks along the boundary path)
- Tape measure(Ensures correct boundary length and turns)
- Gloves and safety glasses(Personal protection during digging)
- Waterproof outdoor outlet cover (if needed)(Protects power connections)
- Spare wire and small tools kit(For quick repairs and adjustments)

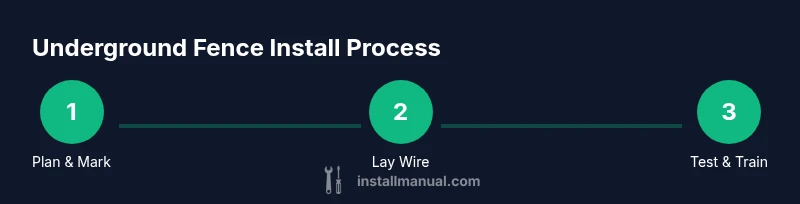

Steps
Estimated time: 1-2 days
- 1
Plan boundary and permissions
Define the exact boundary you want to contain. Check for any local rules or HOA guidelines and obtain any necessary permissions. This step reduces backtracking and ensures everyone understands the layout.
Tip: Mark corners with temporary stakes to visualize the loop before trenching. - 2
Locate utilities
Call the local call-before-you-dig service and let them mark underground lines. Never skip this step—damage to utilities is a safety risk and can cause service interruptions.
Tip: Ask for a written locate map and verify markings in multiple passes. - 3
Choose the system and components
Select a boundary wire that suits your yard, and ensure the transmitter aligns with the collar frequency. Confirm compatibility and warranty terms before purchase.
Tip: Keep the transmitter indoors or in a shaded, ventilated area to preserve electronics. - 4
Plan trench routing
Draft the trench path along the boundary with minimal turns to reduce wire strain. Note any obstacles and plan detours that won’t compromise containment.
Tip: Use string lines or spray chalk to keep the route straight. - 5
Dig the trench and lay wire
Dig a shallow trench following your plan and place the wire along the route. Avoid sharp bends and ensure the wire rests flat to prevent future damage.
Tip: If the soil is rocky, use a narrow trenching tool to prevent wire kinks. - 6
Secure and protect wiring
Secure the wire with eco-friendly stakes or tape and use protective conduit where needed. Prepare for weather exposure and ground movement.
Tip: Seal exposed joints with weatherproof, flexible sealant. - 7
Connect the transmitter
Mount the transmitter in a dry, accessible location and connect the buried wire per the diagram. Verify the loop is complete before testing.
Tip: Keep spare connectors handy for quick field repairs. - 8
Initial testing and calibration
Power up the system and test the boundary with training flags. Tune the control settings to balance deterrence with gentle training.
Tip: Document the boundary distance where signals begin for reference. - 9
Train your dog
Begin with short sessions near the boundary, using rewards to reinforce retreat when the signal starts. Gradually extend exposure as confidence builds.
Tip: Consistency is key; short, frequent sessions work best. - 10
Finalize burial and finish
Bury the wire more deeply in high-traffic areas and conceal the trench with soil or mulch. Restore landscaping and re-seed where needed.
Tip: Add new boundary flags as you adjust the training area. - 11
Ongoing testing and maintenance
Schedule periodic checks of wire integrity and transmitter function. Address issues promptly to prevent gaps in containment.
Tip: Keep a small repair kit on hand for quick fixes. - 12
Documentation and safety review
Save the layout map, component specs, and any local permit information. Review safety implications with family members and pets annually.
Tip: Photograph the final layout for future reference.
Got Questions?
Do I need permission to install an underground dog fence where I live?
Permissions depend on local rules and HOA policies. Check with your city code office or HOA, and obtain any required approvals before digging. Many communities allow fencing that complies with setback and height restrictions.
Check local rules and HOA requirements before digging to avoid surprises.
How deep should the buried boundary wire be?
Depth guidance varies by soil and landscape, but aim for a stable, protected placement that won’t be disturbed by mowing or weed trimmers. Avoid exposing the wire by planting or watering zones and consider protective conduit in high-traffic areas.
Aim for a protected, stable placement that won’t be disturbed during maintenance.
Can I reuse irrigation lines for the fence boundary?
Reusing irrigation lines is usually discouraged because irrigation tubing isn’t designed for electrical insulation or long-term outdoor wear. Use dedicated boundary wire or protective conduit where possible to ensure signal integrity.
Use proper boundary wire and conduit rather than irrigation lines.
What maintenance is required after installation?
Periodically inspect the wire and connections for wear, test the transmitter, and verify the boundary cues during training. Weather, lawn care, and yard changes can affect performance, so plan routine checks.
Regularly inspect the wire and test the system to prevent gaps.
How long does training take to complete?
Training time varies with the dog’s temperament and prior training. Plan for several short sessions over days or weeks, gradually increasing boundary exposure while rewarding calm behavior.
It varies, but expect multiple short sessions over days or weeks.
Is an underground fence suitable for all dog breeds?
Underground fences can work for many breeds with proper training, but some dogs may require additional reinforcement or alternative containment methods. Always assess your dog’s behavior and consult a professional if unsure.
Most dogs adapt with training, but some may need extra support.
Watch Video
Main Points
- Plan boundary and verify utilities before any digging.
- Choose compatible system components and calibrate carefully.
- Train your dog with consistent, reward-based sessions.
- Maintain the boundary and perform regular checks.
- Follow local codes and seek professional help if unsure.
