Roof Install: A Complete Step-by-Step Guide
A safety-first, step-by-step roof install guide covering planning, materials, underlayment, flashing, ventilation, and finishing. Learn to assess structure and complete a high-quality roof installation.
You will complete a safe, code-compliant roof install by assessing the roof deck, selecting materials, installing underlayment, laying shingles or panels, flashing, and venting, then finishing with an inspection. Required prerequisites include proper fall protection, weather window, and essential tools.
Preparing for a Roof Install: Planning, Codes, and Safety
Successful roof installation begins long before the first nail. Start by surveying the existing roof structure, attic space, and ceiling joists to determine load capacity and any needed repairs. Check local building codes and permit requirements, as they vary by city and state. If you're working on a rental property, coordinate with the landlord or property manager. A permit process often includes plan review, inspections at multiple stages, and adherence to wind, snow load, and fire rating standards. According to Install Manual, documenting material choices and a realistic timeline reduces change orders and rework.
Before you pick materials, set a safety plan. Roof work is inherently risky, so make sure you have fall protection, a stable ladder setup, and weather windows that minimize slip hazards. Ensure you have a clear work area, waste containment, and a dedicated helper to assist with movements and material handling. Insurance coverage is worth reviewing and upgrading if necessary for a DIY project. With planning, you minimize delays and protect your home and crew.
Choosing Materials and Underlayment: Shingles, Underlayment, and Venting
When selecting roofing materials, consider climate, budget, and aesthetics. Asphalt shingles are common for cost-effective builds, while metal and tile offer longevity and performance in different climates. Underlayment acts as a secondary barrier and can be synthetic or felt; choose a product that provides moisture resistance and tear strength. Ventilation prevents heat buildup and moisture accumulation; plan soffit, ridge, and turbine vents accordingly. Insulation in the attic also affects energy efficiency. The Install Manual team notes that combining appropriate underlayment with proper ventilation reduces long-term wear and potential leaks. Factor in local wind pressures and fire ratings when choosing materials, and confirm warranty requirements with the manufacturer.
Roof System Components: Decking, Underlayment, Shingles, Flashing, Vents
A roof system consists of several layers, each performing a specific function. The deck or sheathing provides the structural foundation and must be sound and dry. Underlayment protects against moisture before shingles or panels are installed. Shingles or metal panels form the weather barrier, while flashing around chimneys, vents, and transitions seals joints against water intrusion. Roof vents regulate airflow to prevent condensation and ice dams. Inspect each component during installation and replace damaged decking, torn underlayment, or corroded flashing to maintain integrity. The right combination of materials and proper installation minimizes leaks and extends roof life. Install Manual emphasizes checking for proper alignment and overlap patterns to ensure a consistent seal.
Roof Installation Scenarios: Pitched vs Flat Roofs, Venting, and Climate Considerations
Pitched roofs shed water more easily and support traditional shingle layouts, while flat roofs require careful membrane systems and drainage planning. Venting strategy differs by design and local climate; ensure adequate intake and exhaust to prevent moisture buildup. In snowy regions, consider higher snow load and insulation to prevent ice dams. The installation approach should adapt to local regulations for load distribution and wind uplift. The Install Manual team recommends coordinating with a professional if you are unsure about load calculations or structural changes.
Weather Considerations and Scheduling: Temperature, Wind, Rain, and Delays
Weather determines when you can safely operate on a roof. Plan for dry, mild days with low wind; avoid high heat periods that can warp materials or burn work crews. Always check for forecasted rain or snow and avoid installation just before a storm. Humidity and dew point influence adhesive performance and underlayment bonding. If you must pause, cover exposed areas to prevent moisture intrusion and plan for a suitable restart window that minimizes waste and delays. The Install Manual guidance stresses patience and weather-aware scheduling to protect the project timeline and building envelope.
Quality Checks and Finishing Touches: Flashing, Sealing, and Inspection
Quality control begins at the start of installation and continues through the finishing phase. Verify that all deck boards are solid, clean, and dry before the underlayment goes down. As you move to flashing, ensure all kick-out points and terminations are sealed with compatible sealants and metal flashing is overlapped correctly to shed water. When installing vents, flash around openings with corrosion-resistant materials and seal joints to prevent leaks. Finally, perform a thorough inspection for loose nails, torn underlayment, and gaps in flashing, and correct any deficiencies before you call the job complete. The goal is a durable, watertight roof that performs under wind and weather.
Authority Sources and Further Reading
For authoritative guidance on roof installation, safety, and best practices, consult reputable sources such as OSHA roofing safety guidelines, DOE insulation resources, and industry associations. OSHA provides essential safety standards for working at height and handling materials on rooftops. The Department of Energy’s energy-saving resources discuss insulation, ventilation, and moisture control that impact roof performance. Industry organizations offer installation best practices and code-compliant techniques tailored to different roof types. These sources help homeowners and contractors stay up to date with safety and quality expectations. Install Manual also recommends reviewing manufacturer installation manuals for the specific roofing system you choose to ensure compliance and warranty protection. OSHA: https://www.osha.gov/roofing; DOE Insulation: https://www.energy.gov/energysaver/insulation; NRCA: https://www.nrca.net
Tools & Materials
- Fall protection harness(Full-body harness with secure anchor points)
- Industrial ladder(Extension ladder 28 ft+ with stabilizer)
- Roofing hammer or hatchet(Magnetic nail starter and utility blade)
- Pry bar(8-12 inch for removing old materials)
- Utility knife(Extra blades; sharp for clean cuts)
- Tape measure(25 ft minimum; mark and verify dimensions)
- Chalk line(Marks straight lines for shingle rows)
- Nails and fasteners(Roofing nails sized per material; corrosion-resistant)
- Underlayment(Synthetic preferred; weatherproof membrane)
- Decking/plywood(Replace only if compromised; ensure solid substrate)
- Shingles or roof panels(Material type chosen for climate and budget)
- Caulking/roofing cement(Seal joints and flashing corners)
- Caulk gun(For sealant application)
- Safety goggles(Eye protection during cutting and nailing)
- Gloves(Protect hands from sharp edges)
- Roofing squares (optional)(For measurement and layout checks)

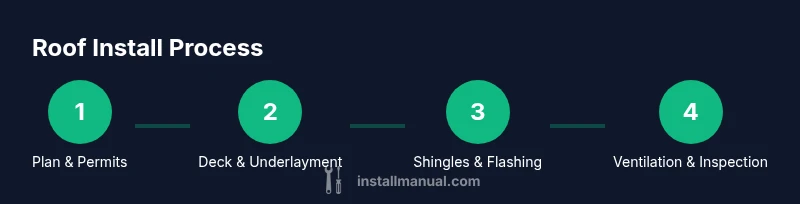

Steps
Estimated time: 2-5 days
- 1
Assess structure and permits
Begin with a structural assessment of the roof deck, attic space, and joists. Check local permitting requirements and obtain approvals before starting. Document plans and materials to avoid last-minute changes, and confirm that loads, wind, and fire ratings meet code.
Tip: Ask for a permit in writing and keep copies of approvals on site. - 2
Prepare the site and safety gear
Set up a stable work area with fall protection, guardrails, and a clear path for transporting materials. Verify ladder placement on level ground and secure all tools and debris to prevent trips.
Tip: Do a dry run of hoisting materials with a partner before lifting large bundles. - 3
Remove old roofing material
Carefully strip old shingles or panels, starting at the end of a course. Remove nails with a pry bar and dispose of waste according to local regulations. Inspect the deck for rot or damage as you go.
Tip: Take breaks to avoid fatigue; never pry with force that could damage the deck. - 4
Inspect and repair decking
Check for warped or damaged boards and replace as needed. Ensure the deck is clean and dry, providing a solid base for underlayment. Reinforce any soft spots to prevent future leaks.
Tip: Use exterior-grade plywood and fasten securely to prevent squeaks. - 5
Install underlayment and vents
Lay the underlayment per manufacturer guidelines with proper overlap. Plan for vent placement to promote airflow and prevent moisture buildup. Cut openings precisely for vents and roof penetrations.
Tip: Follow seam overlaps and fastener patterns exactly as specified. - 6
Install starter course, drip edge, and shingles
Install the starter course along eaves to ensure proper wind resistance. Attach drip edge to direct water away from the fascia. Begin laying shingles/panels from the bottom edge, moving upward in even rows.
Tip: Keep a straight line using chalk guides and check alignment frequently. - 7
Flashings and penetrations
Apply flashing around chimneys, vents, and stack penetrations. Seal joints with compatible sealants and ensure water-tight connections at all terminations. Inspect nailed areas for security and seal gaps.
Tip: Use corrosion-resistant flashing materials and sealant compatible with shingles. - 8
Ventilation, final inspection, and cleanup
Install soffit and ridge vents as planned to maintain airflow. Conduct a thorough on-roof and ground-level inspection for loose nails, protrusions, and gaps. Clean the site, remove waste, and verify warranty documentation with the manufacturer.
Tip: Document photos of the completed installation for records and warranties.
Got Questions?
Do I need a permit for roof installation?
Most jurisdictions require a permit for roof work that involves structural changes or significant material replacements. Consult your local building department to confirm requirements and inspection milestones. Having approvals helps protect warranties and ensures code compliance.
Most jurisdictions require a permit for roof work that changes the structure or materials. Check with your local building department to confirm requirements and inspections.
Can I install a roof myself or should I hire a professional?
DIY roof installation is possible for skilled homeowners with proper safety gear and experience. However, roofing is hazardous and specialized training often yields better results and warranty protection. Weigh your risk tolerance, budget, and local regulations before deciding.
DIY is possible for skilled homeowners, but roofing is hazardous. Consider your risk tolerance and warranties before proceeding.
What safety gear is essential for roof work?
Essential safety gear includes a fall protection harness, non-slip footwear, safety glasses, gloves, and a properly secured ladder. Use warning lines and guardrails where required and avoid working alone on high-risk sections.
Wear fall protection, gloves, safety glasses, and a secure ladder. Don’t work alone on elevated sections.
How long does a typical roof installation take?
Duration depends on roof size, slope, materials, and weather. A typical residential roof may span several days, with more time required for complex layouts or multi-story homes. Schedule weather windows and plan for contingencies.
Most residential roofs take several days, depending on size and complexity. Weather can extend timelines.
What are common causes of leaks after installation?
Leaks usually stem from improper flashing, poorly sealed joints, or damaged underlayment. Ensure all penetrations are flashed correctly and that edges and valleys are sealed to prevent water intrusion. Regular inspections help catch issues early.
Leaks often come from flashing or seals not being tight. Inspect joints and flashing regularly.
How do I know when the roof deck needs replacement?
Replace decking if you find extensive rot, soft spots, or structural damage. A sound deck is critical for a long-lasting roof. If replacement is required, address it before applying underlayment to ensure a solid foundation.
Replace decking if you find rot or soft spots; a solid deck is essential for a durable roof.
Watch Video
Main Points
- Plan permits, timelines, and materials upfront
- Choose suitable underlayment and ensure ventilation
- Inspect decking and replace damaged boards
- Finish with proper flashing and a thorough inspection
