Paver Patio How to Install: A Complete DIY Guide
Learn how to install a durable paver patio with a clear, step-by-step approach—from planning and base prep to laying, edging, and finishing.
By following this guide, you will complete a durable, attractive paver patio install from planning to finishing touches. Begin with site assessment and design, then prepare a stable base, lay the pavers with proper spacing, and seal or edge as needed. This step-by-step approach minimizes shifting and wobble while delivering a patio that lasts for years.
Planning your paver patio: goals, layout, and permits
Before you lift a shovel, define what the space should do. Do you want a low-maintenance entertaining area, a surface that drains well from rain, or a patio that complements your landscape? A clear plan reduces hassles later and helps you estimate materials and costs. According to Install Manual, planning a paver patio begins with understanding local drainage and permits. Start by mapping the area with stakes and string to create your rough rectangle or square. Note any slopes that will affect drainage and consider sun exposure, wind, and accessibility from doors. Check local building codes and homeowner association rules; many municipalities require setbacks and permits for patios over a certain size. Create a simple design sketch that includes paver patterns (running bond, herringbone, or stacked) and planned borders. If you’re aiming for a multi-level design, plan transitions between grades and how you’ll handle steps or ramps. Finally, decide on the aesthetic—color, texture, and joint material—and set a realistic budget that includes base materials, edging, sand, and tools. This upfront planning saves time and reduces the risk of costly changes mid-project. To succeed with paver patio how to install, you start with planning.
Measuring and designing the patio space
Accurate measurements prevent material waste and ensure the patio fits your outdoor space and doors. Measure the length and width, plus any setbacks near existing structures, trees, and utilities. Create a working plan that includes the desired pattern (e.g., running bond or herringbone) and a border that defines the space. Consider drainage: ensure one percent or more slope away from foundations for water to shed naturally. A simple sketch with scaled dimensions helps you calculate square footage and order the right number of pavers. Use stakes, string, and chalk lines to outline the layout, and leave room for expansion adjacent to sidewalks, steps, or garden beds. This stage is essential for visual harmony and practical drainage, reducing the need for costly corrections later.
Selecting materials and tools
Choosing the right pavers affects durability, aesthetics, and maintenance. Concrete pavers are affordable and come in many colors and textures, while natural stone offers a premium look but higher cost. For residential patios, aim for pavers at least 2.5–3.5 inches thick to handle foot traffic and freeze-thaw cycles. Bedding sand and polymeric sand help stabilize joints and resist weed growth; edge restraints keep pavers from spreading. Tools you’ll need include a de-jointing saw or wet saw for cuts, a screed board and level, a plate compactor, screeding guides, a rubber mallet, and a measuring tape. Prepare for weather: install on dry days to avoid shifting, and cover materials if rain is forecast. This phase balances aesthetics with practicality while aligning with local conditions and budget.
Excavation and base preparation
Clear the area and remove vegetation to reduce future upheaval. Excavate to create space for a sub-base (crushed stone) and a bedding layer of sand. A well-compacted sub-base provides stability, minimizes settling, and improves drainage. Lay down a geotextile fabric if soil is clay-heavy to separate sub-base from the surrounding soil and reduce mixing. Then spread a layer of crushed stone and compact it thoroughly with a plate compactor. Check for level and slope as you go, using a straight edge and a car-level to ensure even drainage and a flat surface for the base.
Dry layout and edging
With the base prepared, perform a dry run of the paver layout without mortar or joint sand. Place full-size pavers along the planned path to ensure even spacing and edge alignment. Use spacers to maintain consistent joints (typically ⅜ inch to ½ inch). Install edging restraints along the perimeter to prevent movement and to keep joints stable under load. Adjust as needed to keep the pattern continuous and to avoid awkward cuts at borders. This dry layout ensures a tight, uniform appearance and minimizes disturbance once you begin setting pavers.
Laying the pavers: start to finish
Begin laying pavers along a straight edge or using string lines as a guide. Place pavers row by row, checking for level and alignment as you go. Tap each piece gently with a rubber mallet to seat it into the bedding sand. Maintain uniform gaps using spacers and periodically check the overall pattern for consistency. If you need to cross-check, use a carpenter’s square and a long straightedge to verify corners and alignments. Stay mindful of slope direction so water will drain away from structures.
Cutting, fitting, and joints
Inevitably, some pavers will require cuts to fit around obstacles or at borders. Use a wet saw or a handheld masonry saw to make straight or curved cuts with minimal chipping. Dry-fit cut pieces before final placement, then apply bedding sand and push pavers into place. Fill joints with polymeric sand or dry silica sand, sweeping it into all gaps. Compact again to settle the pavers and remove excess sand from the surface. Check that each paver is stable, level, and aligned with the overall pattern.
Compacting, leveling, and finishing touches
After all pavers are in place, use a plate compactor over a layer of joint sand to set the surface and compact the pavers into the bedding. Sweep additional sand into joints and compact again to minimize future settlement. Clean the surface to remove any dust or debris, then apply a sealant if desired for color enhancement and extra protection (note that some sealants require specific climate conditions and paver types). Finally, inspect edges and corners, ensuring everything remains square and well-supported. A well-finished patio resists shifting and keeps weeds at bay.
Authority sources
For additional guidance and local considerations, consult university extension sites and government safety resources. University extensions offer region-specific advice on base preparation, drainage, and materials, while government sites provide general safety standards for outdoor construction. See the following sources for reference: Extension UMN: https://extension.umn.edu, Extension Illinois: https://extension.illinois.edu, OSHA safety guidelines: https://www.osha.gov
Maintenance and longevity tips
To extend the life of your paver patio, reseal joints every few years if you used polymeric sand and keep the surface clean of leaves and dirt. Address weeds or moss promptly to prevent root intrusion and destabilization. Clear drainage paths and ensure there are no dips that collect water. If you notice sinking, recompact and add more joint sand as needed. Regular maintenance helps preserve both the appearance and structural integrity of the patio.
Tools & Materials
- Pavers (concrete or natural stone)(Choose a uniform thickness (2.5–3.5 inches) and pattern consistency.)
- Crushed stone base (sub-base)(Provide drainage and stability; 4–6 inches recommended as a guideline.)
- Bedding sand(Smooths the bed; 1–2 inches typically sufficient.)
- Polymeric sand or joint sand(Stabilizes joints and resists weed growth.)
- Edge restraints (plastic, metal, or concrete)(Keeps pavers from spreading and maintains pattern integrity.)
- Geotextile fabric(Optional underlayment for clay soils to reduce mixing.)
- Plate compactor(Compact base and pavers for a stable, even surface.)
- Screed board or straightedge(Levels bedding sand and base for a flat surface.)
- Wet saw or masonry saw(Cuts pavers for accurate fit around edges.)
- Measuring tape and layout tools(Ensure accurate spacing and pattern alignment.)
- Safety gear (gloves, eye protection)(Protect hands and eyes during cutting and lifting.)
- Water source and hose or spray mister(Helps settle joints and clean dust during installation.)

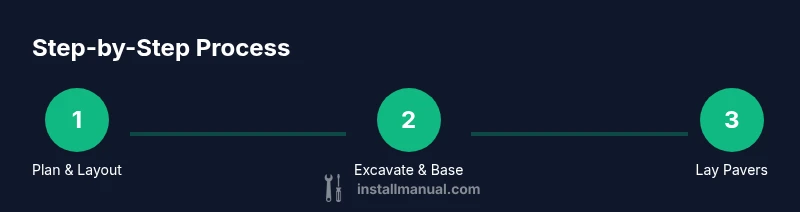

Steps
Estimated time: 4-12 hours
- 1
Survey and mark layout
Identify the patio area, doors, and drainage paths. Mark the perimeter with strings and stakes, ensuring straight edges for a clean layout. Plan pattern orientation to maximize visual appeal and minimize waste.
Tip: Use a chalk line to keep long edges perfectly straight; this saves time during laying. - 2
Clear and excavate
Remove vegetation and debris from the marked area. Excavate enough to accommodate the sub-base, bedding sand, and pavers with room for joints. Avoid leaving soil pockets beneath the paver surface.
Tip: Consider soil type; clay soils may require better drainage or fabric separation. - 3
Install sub-base and geotextile
Lay down geotextile fabric if needed and spread the sub-base material evenly. Compact thoroughly to create a solid, stable foundation that minimizes settling.
Tip: Keep the base level and uniformly compact; use a straightedge to verify evenness as you work. - 4
Create bedding layer
Screed a level bed of bedding sand over the compacted sub-base. Ensure a slight slope away from structures to promote drainage. Replace any low spots with additional sand and relevel.
Tip: Work from the center outward to maintain even depth and prevent lippage. - 5
Lay first course
Place the first row of full-size pavers along a straight edge or string line. Tap into place with a rubber mallet and check alignment with a level and square.
Tip: Keep a consistent joint width using spacers; small deviations snowball into misalignment later. - 6
Continue laying and checking
Proceed row by row, maintaining pattern continuity. Periodically square the layout and verify that pavers remain level across rows.
Tip: Use a batten or straightedge to confirm edge straightness every few feet. - 7
Cut edges and fit around obstacles
Cut pavers as needed to fit around edges, curves, or obstacles with a saw. Dry-fit before final placement, then set.
Tip: Make test cuts on a scrap piece to minimize waste and ensure precision. - 8
Jointing and compaction
Sweep joint sand into all gaps. Run the plate compactor with a protective mat to avoid displacing pavers. Re-sweep and fill any settled joints.
Tip: Avoid over-watering joint sand to prevent premature setting; keep joints dry during installation. - 9
Finish and maintenance
Clean the surface, seal if desired, and apply additional joint sand as needed. Inspect edges and slope; perform a light cleaning to reveal the clean lines of the patio.
Tip: If sealing, choose a product compatible with your paver material and climate.
Got Questions?
Do I need a permit to install a paver patio?
Permit requirements vary by location. Many small residential patios do not require a permit, but check with your city or HOA before starting. If your project affects drainage or involves significant grading, obtain guidance from local authorities.
Permit needs vary by location; check with your city or HOA before you start. If you’re unsure, contact the building department for guidance.
What base depth or materials should I use?
A stable sub-base with compacted crushed stone plus a bedding layer of sand provides durability. The exact depth depends on soil and climate, but ensure adequate support for traffic and drainage.
Use a compacted crushed stone base with a sand bedding layer for durability and drainage.
How should I slope the patio for drainage?
Aim for a gentle slope away from structures to prevent water pooling. A gradual gradient helps drainage without creating trip hazards.
A gentle slope away from buildings is key to good drainage.
Can I do this as a DIY project, or should I hire a pro?
A confident DIY can handle most steps, especially planning, base prep, and laying. If your space is large or has complex drainage, consider a professional to ensure long-term performance.
Yes, many homeowners DIY a patio, but large or complex projects may benefit from a pro.
How long does a typical paver patio installation take?
Most projects take a day or two depending on area size, weather, and crew. Plan for additional time if you need to cut many pavers or install complex patterns.
Most patios take one to two days, depending on size and complexity.
Watch Video
Main Points
- Plan layout and drainage before digging.
- Use a stable base and edging for longevity.
- Lay pavers with consistent gaps and level alignment.
- Brush in joint sand and compact to reduce movement.
- Maintain and protect the patio for lasting beauty.
