Install CV Boot: A Comprehensive How-To Guide
Learn how to install a CV boot safely with a detailed, step-by-step guide. This DIY tutorial covers tools, parts, safety, common issues, and post-install checks to protect your drive shaft.
You will learn how to install a CV boot on a front- or rear-drive vehicle, including boot kit selection, removing the damaged boot, cleaning and inspecting the CV joint, and securing with new clamps and grease. This guide emphasizes safety, correct torque, and proper fitment. Always consult the vehicle service manual for torque specs and bearing clearance to ensure a proper install cv boot.
What is a CV boot and why it matters
A CV boot (constant velocity boot) is a flexible rubber seal that protects the CV joint on a drive shaft. It keeps dirt, moisture, and grit out while retaining essential grease. A torn boot allows contaminants to enter, which can rapidly wear the joint and lead to costly repairs. For homeowners and DIY enthusiasts, learning to install cv boot correctly is a proactive way to extend the life of your axle and avoid roadside failures. The Install Manual team stresses the importance of boot fitment, orientation, and proper sealing, especially on all-wheel-drive setups where CV joints carry higher loads. This section sets the stage for choosing the right boot kit, preparing your workspace, and executing a safe, methodical installation that beginners can follow with confidence.
Safety and preparation before you begin
Safety first: start with a clean, well-lit workspace and secure the vehicle on level ground. Use jack stands and chocks; never rely on a jack alone. Wear safety glasses and gloves to protect against sharp edges, pinch points, and hot components. Disconnect the battery if you’ll be near electrical parts to minimize the risk of shorts. Review your vehicle’s service manual for model-specific steps and torque specs. Gather tools and the boot kit beforehand so you stay organized. A deliberate plan, reinforced by best practices from Install Manual, reduces surprises and helps ensure a successful install cv boot.
Boot kit options and fitment
Boot kits come in inner and outer variants. Select the correct size and joint compatibility based on your CV joint diameter and axle type. Some kits include the boot, clamps, grease, and a stabilizer ring; others require separate grease or clamps. Verify whether your joint uses a wire snap ring, circlip, or a different retention method to pick the right removal tools. Align the kit choice with your vehicle’s year, make, and model. If you’re unsure, consult the service manual or an Install Manual installation guide. A poor boot fit leads to leaks, contamination, and accelerated wear.
Diagnosis: wear, damage, and when to replace
After removing the wheel to expose the boot area, inspect the CV joint for excessive play, torn bands, or grease leakage. If you notice rust, deep scoring, or significant play, boot replacement alone may not restore function—you may need a full CV joint replacement. A torn boot often signals contaminant ingress, but confirm grease presence and check for debris before deciding. If in doubt, replace the boot kit and inspect the joint for damage to avoid premature failure.
Maintenance and inspection tips after installation
Post-install, spin the wheel by hand to check for binding or unusual noises, and recheck clamp tightness after a brief test drive. Look for grease seepage or cracks within the boot during the first thousand miles or after a few weeks of heavy driving conditions. Ensure the boot remains seated properly to prevent rubbing against suspension components. Regular boot inspections during routine maintenance help catch issues early and protect the drive train.
Common mistakes to avoid during installation
Avoid reusing torn clamps or dirty boots; contaminated grease shortens joint life. Do not overfill the boot with grease—too much can push grease out and create leaks. Don’t rush; a hurried installation increases the risk of misalignment, boot pinch, or leaks. Never work around hot exhaust components; allow parts to cool to prevent burns and material damage. Finally, use the correct clamp type specified for your boot kit to ensure a reliable seal.
Additional considerations for AWD or heavy-load vehicles
All-wheel-drive and heavy-load applications demand extra care: inspect all CV boots on all axles and replace in pairs if you replace one side. If possible, replace inner and outer boots together to maintain even wear. Follow the boot kit’s instructions exactly, particularly for nonstandard clamp methods or asymmetric boot designs, and consider consulting a professional if you encounter unusual hardware or tight clearances.
Tools & Materials
- CV boot kit (inner and/or outer boot, clamps, grease)(Choose size by CV joint diameter and axle type; kit should include clamps and grease)
- Jack and jack stands(Use on level ground; chock wheels for safety)
- Socket set and wrenches(Metric sizes commonly 8-14 mm; verify per vehicle)
- Torque wrench(For axle nut and clamp torque specs as per manual)
- Snap ring pliers / circlip pliers(Needed to remove/install retention rings on the joint)
- Grease and degreaser(CV joint grease; brake cleaner or degreaser to prep surfaces)
- Rags, disposable gloves, and containers(Keep workspace clean and prevent cross-contamination)
- Marker tape or labels(Label orientation of components to aid reassembly)
- Optional: seal puller or pry tool(For stubborn boots or rings)
- Drain pan(Catch old grease during removal)

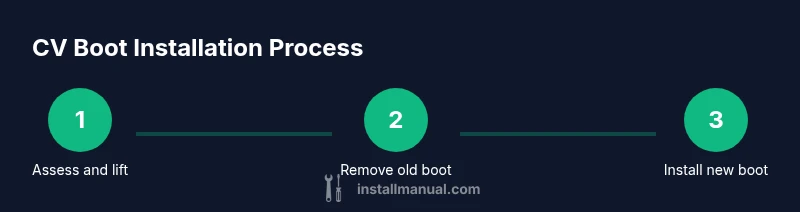

Steps
Estimated time: 2-4 hours
- 1
Assess vehicle and prepare workspace
Begin by parking on level ground, engaging the parking brake, and lifting the vehicle with a jack. Place jack stands under the frame for support and unplug electrical connections if needed. Organize tools and boot kit within reach to minimize interruptions.
Tip: Label screws and parts as you remove them to simplify reassembly. - 2
Raise and support the vehicle securely
Use the jack to lift the vehicle and position jack stands on solid ground. Confirm the wheel is off the ground and stable before proceeding. Place wheel chocks on the opposite side for extra safety.
Tip: Never rely on the jack alone to hold the vehicle. - 3
Expose CV joint and boot area
Remove the wheel and any surrounding shielding to reveal the CV joint and boot. If your model has a hub or axle nut, loosen it only after the joint is safely accessible. Clear debris from the area to prevent contamination.
Tip: Keep track of all small parts as you remove them. - 4
Remove old boot and clamps
Loosen and remove boot clamps, then slide off the torn boot. Remove any retaining rings or circlips that secure the boot to the joint. Wipe away old grease with a degreaser and inspect the joint for wear.
Tip: Take care not to nick the CV joint surface during boot removal. - 5
Inspect CV joint for wear
Check for excessive play, scoring, or corrosion on the joint. If the joint shows significant damage, boot replacement may not be sufficient. Replace the joint if needed before reassembly.
Tip: If you’re unsure about joint condition, compare it to a new or spare unit. - 6
Prepare and fit the new boot
Apply the provided grease inside the boot and around the joint interface as directed by the boot kit. Slide the new boot over the joint and position it correctly for full coverage. Ensure the boot opening aligns with the joint housing.
Tip: Avoid sharp folds; smooth out any creases to prevent leaks. - 7
Secure the boot with new clamps
Position the clamps and secure them according to the kit’s instructions. Tighten using the tool specified by the kit, ensuring a leak-free seal without pinching the boot. Double-check that the boot sits evenly around the joint.
Tip: If your kit uses C-clamps, ensure they are seated properly before tightening. - 8
Reassemble and torque components
Reinstall any removed components, including wheel hub parts and the axle nut. Use a torque wrench to reach manufacturer specifications. Handle any alignment features so the axle spins freely without interference.
Tip: Consult the manual for exact torque values and sequence. - 9
Test installation
Lower the vehicle, perform a careful test drive, and listen for abnormal noises. Recheck clamps and boot position after a short drive and inspect for leaks or grease seepage.
Tip: If leaks or rubbing appear, stop immediately and re-evaluate the boot seating. - 10
Final verification
After the test drive, recheck all fasteners and the boot. Confirm there is no grease on nearby components and that the boot remains seated. Document any maintenance notes for your records.
Tip: Keep a record of the work for future maintenance.
Got Questions?
Do I need to remove the axle to install a CV boot?
In many cases you must remove the axle from the hub to access the CV joint and boot. Some vehicles allow partial access, but removal is common for a clean install cv boot. Always refer to the service manual.
Usually the axle needs to be removed to access the boot properly.
Can I reuse old clamps or boot?
Reuse of torn clamps or the old boot is not recommended because contaminated grease and stretched clamps can fail. Use the kit’s new clamps and boot for a reliable seal.
No—dispose of old clamps and boots and use new ones.
How do I know if the CV joint is too worn to save?
Look for excessive play, grinding noises, or deep scoring on the joint. If the joint shows signs of significant wear, boot replacement may not restore function and a full CV joint replacement could be necessary.
If you feel or hear grinding, you likely need a joint replacement.
What torque specs should I follow when reinstalling the axle nut?
Always consult the vehicle service manual; torque values vary by model. Use a torque wrench to reach the specified value and follow the correct sequence.
Check your manual for the exact torque, then tighten accordingly.
How long does CV boot installation take?
A typical installation in a garage setting takes about 2-4 hours, depending on vehicle design and access. Allow extra time for stubborn clamps or difficult boot routing.
Most installations take a couple of hours.
What are common mistakes during CV boot installation?
Common mistakes include contamination of the joint, improper boot seating, overpacking grease, and using wrong clamps. These issues lead to leaks and premature wear.
Watch for boot seating and contamination.
Watch Video
Main Points
- Plan boot kit and tooling before starting
- Inspect CV joint for damage; replace joint if needed
- Follow manual torque specs for all fasteners
- Ensure boot sits without twists or pinch points
- Test and recheck after the drive for leaks and fit
