How to Install a Trex Deck: Step-by-Step Guide
Learn how to install a Trex deck with a clear, step-by-step approach. Plan, frame, lay decking, install railings, and maintain for a durable, low-maintenance outdoor space.
Your goal is to install a Trex deck by following planning, framing, decking, and finishing steps. This guide walks homeowners through selecting materials, choosing hidden fasteners, and building a durable, low-maintenance outdoor space. You’ll learn how to plan joist spacing, flash the ledger, install the boards, and finish with stairs and rails. According to Install Manual, thorough planning and accurate measurements set the project up for success.
Planning and Prep for a Trex Deck
Before you cut a single board, define the deck’s purpose and layout. Map the footprint, note setbacks, stairs, and railing locations. Choose Trex decking lines and colors that complement your home and climate. For a long-lasting result, verify local codes and obtain permits if required. Create a materials list and rough bill of quantities to avoid mid-project trips to the hardware store. According to Install Manual, thorough planning reduces waste and speeds up installation. Ensure your site is level, dry, and clear of obstacles. Check drainage and slope: a mild slope away from the house keeps water from pooling near the ledger. When designing, plan for hidden fasteners to create a clean, uniform surface. This planning phase is essential for how to install a Trex deck efficiently and safely.
Substructure and Framing: Laying a Solid Base
With Trex decking, the substructure is as critical as the boards themselves. Start by choosing properly treated lumber for the frame and matching fasteners to resist corrosion. Establish a stable reference line and a square check to keep the deck level across its span. Set the ledger securely to the house with flashing to prevent water intrusion. Use concrete footings or posts with proper footings depth per code. Install outer beams and interior joists with a consistent 12–16 inch on-center spacing (adjust to your Trex product's guidelines). If you live in a region with expansive soils or high winds, add additional bracing and post shoes. Install Manual analysis shows that a well-ventilated frame reduces moisture buildup under the decking, extending life and reducing maintenance. After mounting the frame, verify that the surface is flat and that all joists are plumb. This is the backbone of how to install a Trex deck that stays flat and sturdy for years.
Installing Trex Decking and Fasteners: A Clean, Hidden-Fastener Approach
Proceed to lay the Trex decking boards perpendicular to the joists, starting at the house and moving outward. Use hidden fasteners or stainless steel screws designed for composite decking, following the manufacturer’s recommended spacing, typically 1/8 to 1/4 inch between boards for drainage. Pre-drill where needed on end boards to prevent cracking. Alternate board patterns if you want a staggered look; maintain consistent gaps along the entire run. When cutting boards, use a carbide blade and support the board with a saw guide to minimize splintering. Place to-be-cut ends against the last joist to preserve a straight edge. Install a starter board if your Trex line requires it. Check for deck deflection after every few boards and adjust as needed. Keep a clean edge along stairs and rail posts. This careful approach minimizes visible seams and helps achieve the smooth surface that Trex is known for. Remember to follow specific product instructions for your Trex line, as different lines may have varying gap recommendations and hardware.
Finishing Touches: Railings, Skirting, and Maintenance
Attach rail posts and install the railing system according to code and manufacturer guidelines. Ensure posts are plumb and set in footings that comply with local regulations. Add fascia boards or skirting to conceal framework and improve aesthetics. Install stairs with consistent riser heights and landings that meet code requirements. Finally, inspect the deck for any protruding fasteners and clean the surface with a mild soap solution to remove residue. Establish a maintenance plan: clean annually, inspect fasteners and flashing, and re-apply protective finishes if your Trex product requires them. For outdoor longevity, keep vegetation away from the deck to reduce moisture and avoid trapping dirt against the boards. Based on Install Manual guidance, proper drainage and regular inspection are key to long-term performance of a Trex deck.
Tools & Materials
- Tape measure(at least 20 ft (6 m))
- Carpenter's square(for squaring deck corners)
- Speed square(for rafter and joist angles)
- Circular saw(for cutting boards to length)
- Miter saw (optional)(for precise end cuts)
- Impact driver or drill(with decking bits and square bits)
- Deck screws (stainless steel)(as per Trex spec)
- Hidden fasteners (Trex-approved)(consistent spacing)
- Joist hangers(galvanized or stainless)
- Ledger board(for house connection; flashing required)
- Level (laser or bubble)(to ensure flat surface)
- Chalk line(mark straight lines)
- Pencils/markers(for markings)
- Composite decking blade blade(carbide blade)
- Post bases and concrete(for footings)
- Safety gear(gloves, glasses, hearing protection)
- Caulking/ flashing tape(ledger flashing)
- Utility knife(for trimming edge boards)

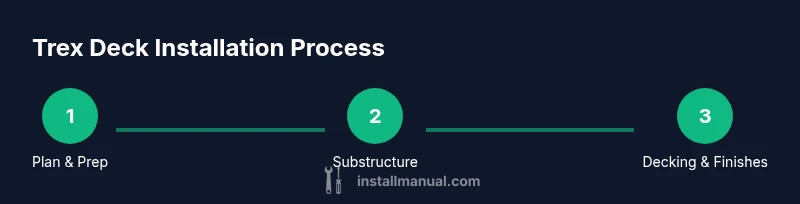

Steps
Estimated time: 12-16 hours
- 1
Plan layout and measurements
Define deck footprint, setbacks, stairs, and railing positions. Verify local permits and codes before starting. Create a materials list and a rough bill of quantities to minimize trips to the store.
Tip: Double-check measurements with a second person to catch errors early. - 2
Prepare site and substructure area
Clear vegetation and level the ground. Mark the deck outline with string lines and check for level across the planned corners.
Tip: Lay out a temporary string line to keep boards straight during framing. - 3
Attach ledger board to house with flashing
Position the ledger at proper height and secure with corrosion-resistant fasteners. Install flashing to prevent water intrusion behind the ledger.
Tip: Pre-drill pilot holes to reduce board splitting and ensure flush attachment. - 4
Install outer beams and posts
Set outer beams on line with posts, ensuring plumb posts and square connections. Use temporary bracing if needed for stability.
Tip: Check post alignment with a level and adjust as necessary before securing permanently. - 5
Install joists across the frame
Lay joists at the specified on-center spacing. Secure with hangers or appropriate fasteners and verify level across the span.
Tip: Stagger joist ends for even load distribution and avoid overlaps at corners. - 6
Lay decking boards with hidden fasteners
Begin at the house, run boards perpendicular to joists, and fasten with hidden fasteners. Maintain even gaps for drainage.
Tip: Pre-drill end cuts to prevent board tear-out and maintain a clean edge. - 7
Trim boards and finish edges
Trim overhanging boards for a clean edge along the perimeter. Ensure beveled or squared edges match your design.
Tip: Use a guide to keep cuts straight and minimize splintering. - 8
Install railings, stairs, and skirting
Attach posts plumb and secure with code-compliant stair layouts. Add fascia or skirting for a finished look.
Tip: Match railing height to code and maintain uniform stair rise and run. - 9
Flash, seal, and water-test
Seal gaps at the ledger and flashing connections. Test drainage by a light water run and ensure no pooling.
Tip: Check for gaps that could trap moisture; adjust where needed. - 10
Clean up and maintenance planning
Remove debris and organize tools. Schedule annual cleaning and periodic inspections of fasteners and flashing.
Tip: Document maintenance dates and replacement schedules for longevity.
Got Questions?
Do I need a building permit to install a Trex deck?
Permit requirements vary by jurisdiction; check local codes and HOA rules. In many areas, a deck requires inspection and permit before starting.
Permit requirements vary by location; check local codes and rules.
Can I install a Trex deck myself, or should I hire a professional?
DIY is possible for smaller decks with basic tools; complex layouts and stairs may benefit from professionals.
DIY is possible for small decks; consider pro help for stairs and complexity.
What spacing should Trex boards have between them?
Trex recommends uniform gaps, typically about 1/8 inch, for drainage; follow your product’s documented spec.
Maintain even gaps (about 1/8 inch) for drainage.
How long will a Trex deck last?
Trex decking is designed for durability and low maintenance; lifespan varies with climate and upkeep.
Trex is durable and low maintenance; lifespan depends on climate and care.
What maintenance does a Trex deck require?
Regular cleaning, inspection, and securing fasteners; avoid harsh cleaners that can damage the composite.
Clean annually and inspect fasteners; avoid harsh chemicals.
What tools are essential for installing a Trex deck?
A basic set includes a tape measure, speed square, level, drill, and hidden fasteners; other tools as needed per system.
Essential tools are measuring, cutting, drilling, and fasteners.
Watch Video
Main Points
- Plan layout before cutting.
- Use hidden fasteners for a clean surface.
- Keep joists spaced per spec and level.
- The Install Manual team recommends following this guide for lasting results.
