Fence Install Wood: Step-by-Step DIY Guide for 2026
Learn how to install wood fencing with a clear, step-by-step guide. Plan, measure, set posts, rails, and panels, and finish with stain or sealer for a durable fence.
You're going to install a wood fence. This guide covers planning, layout, post setting, rail installation, panel mounting, and finishing with stain or sealer. You’ll learn essential permits, material choices, and tool requirements while emphasizing safety, proper alignment, and code compliance to ensure a durable, attractive fence that adds privacy and value to your property.
Why wood fences remain a popular choice for homeowners
Wood fences offer a classic look, versatility, and value for most yards. When you see a fence install wood option, you're choosing a material that can be tailored to any style, from traditional picket to modern privacy panels. Wood is relatively affordable compared with exotic options, and it accepts stains and paints for customization. A fence install wood project begins with clear planning. According to Install Manual, a well-built wood fence also adds curb appeal, increases property value, and provides reliable privacy when built to standard dimensions and local codes. For DIYers, wood fences present straightforward construction with measurable steps, making them suitable for weekend projects. However, wood requires maintenance to prevent rot, warping, and insect damage. Selecting durable species such as cedar or treated pine, using proper fasteners, and sealing or staining on schedule are key to longevity.
Planning the fence layout and permits
Before you pick up tools, map out the fence line, determine setbacks, easements, and any existing features. Use string and stakes to outline the fence boundary and gate locations. Check local zoning for setback rules, height limits, and permit requirements. According to Install Manual, documenting measurements and obtaining the necessary permits up front can save time and prevent rework. Gather house corners, corner and gate posts, and survey the property for accuracy. Create a bill of materials and a rough schedule that accounts for weather and cure times.
Materials, treatments, and fasteners
Wood selection drives long-term performance. Opt for cedar or pressure-treated pine, which resist rot and insect damage. Ensure lumber is kiln-dried to minimize warping. Use corrosion-resistant fasteners (galvanized or stainless steel) and complementary screws for rails and panels. For posts, choose pressure-treated lumber and set in concrete for stability. Sealants or stains protect wood from UV and moisture. Install Manual recommends matching fastener metals to prevent corrosion and planning for seasonal weather changes.
Post setting and alignment best practices
Posts anchor the entire fence. Start by accurately spacing posts at the chosen intervals, typically every 6-8 feet for privacy fences. Dig holes to a depth of at least one-third the post length and about 8-12 inches wider than the post. Use a level and string line to ensure vertical plumb alignment. Pour concrete around posts and allow proper curing before attaching rails. Install a temporary brace to hold posts while the concrete sets. According to Install Manual, consistent post height helps keep rails straight and panels evenly aligned.
Rails, panels, and gates installation
Attach lower rails to posts first using brackets or screws, ensuring they're level and square. Install upper rails to complete the frame. Hang panels or pickets with even gaps and consistent spacing, checking for twist or bow as you go. If using a gate, install hinges and the latch, ensuring smooth operation and proper alignment with the post. For gates, always measure twice and test swing before finalizing. Pro tip: use a guide string to keep rails parallel across the run.
Finishing touches, staining, and weatherproofing
Apply a weatherproof sealant or stain to protect the wood from moisture and UV damage. Stain colors should complement your home and landscape. Recoat every 2-3 years or as recommended by the product you choose. Regularly inspect for loose boards, rusted hardware, or split rails, and address issues promptly to prevent bigger problems. Maintain a clean yard around the fence to minimize moisture retention near the wood. Install Manual emphasizes proper drainage and avoiding staining on wet wood for best results.
Maintenance, safety, and common mistakes
Common mistakes include underestimating post depth, using improper fasteners, and neglecting curing time for concrete. Always check for buried utilities before digging and wear protective gear. Schedule inspections after storms or heavy winds to catch loose boards early. Routine maintenance—cleaning, resealing, and tightening hardware—extends fence life and keeps it looking sharp.
Tools & Materials
- Post hole digger(Used to dig clean, rounded holes to the correct depth for posts.)
- Concrete mix(Fast-curing mix is preferred for quicker stabilization.)
- Tamper or rod(Smooths and compacts soil around the post base.)
- Measuring tape(Accurate spacing is critical to even lines.)
- Level(Keeps posts and rails plumb for straight lines.)
- Shovel(Digging and moving soil as needed.)
- Circular saw or handsaw(Cuts boards to length for rails and panels.)
- Hammer and nails or impact driver with screws(Fastens rails, panels, and hardware securely.)
- Rails and brackets(Support and align fence panels; choose corrosion-resistant hardware.)
- Gate hardware (if installing a gate)(Hinges, latch, and frame pieces.)
- Wood stain or sealant(Protects wood from moisture and sun exposure.)
- Safety gear (gloves, safety glasses)(Protect hands and eyes during digging, cutting, and drilling.)

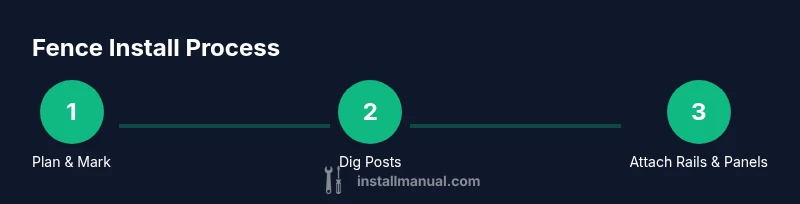

Steps
Estimated time: 1-2 days (concrete cure 24-48 hours)
- 1
Plan and mark the fence line
Mark the fence line with string and stakes, confirming setback from property lines and existing structures. Verify corner post locations with a tape measure and a builder’s square. This step establishes the entire layout and helps prevent misalignment later.
Tip: Double-check corners with a diagonal measurement to ensure a true rectangle. - 2
Dig post holes
Dig holes deeper than the frost line in your area and wide enough for heavy posts. Remove loose soil and compact the bottom before placing the posts. The goal is stable, vertical posts that don’t shift over time.
Tip: Keep you and your helpers out of the hole while you set posts to prevent injury. - 3
Set and brace posts
Place posts into holes, align with the string line, and brace them with temporary supports. Check plumb with a level in both directions. Once aligned, secure temporarily with braces until concrete cures.
Tip: Use quick-drying concrete if you need the site ready sooner. - 4
Pour and cure concrete
Pour concrete around each post, fill to ground level, and slope away from the post to direct water away. Allow the concrete to cure fully according to product instructions before attaching rails.
Tip: Avoid applying concrete in freezing conditions or extreme heat. - 5
Attach rails and ensure straight lines
Attach lower rails to all posts first, using brackets or screws. Check for level and parallel alignment across the fence line before adding upper rails.
Tip: Use a string line to maintain straight, evenly spaced rails. - 6
Hang panels or install pickets
Install panels or individual boards with consistent gaps. Ensure each panel is square to the posts and vertically aligned. Tighten fasteners to avoid sagging or bowing.
Tip: Pre-drill holes to prevent wood splitting when driving screws. - 7
Install gate hardware (if applicable)
Hang the gate on its hinges and test swing. Adjust alignment so the gate closes smoothly and seals against weather stripping. Install the latch and ensure it operates without sticking.
Tip: Check clearances to avoid binding on uneven terrain. - 8
Finish with sealant or stain
Apply a weatherproof finish to all exposed surfaces. Allow for proper drying time and ensure you work in good weather conditions. This protects the wood and extends fence life.
Tip: Avoid staining in direct sunlight on very hot days to prevent uneven absorption. - 9
Inspect and maintain
Do a final inspection for loose boards, protruding nails, or uneven gaps. Clean up the site and schedule future maintenance like re-staining or repairs every few years.
Tip: Create a maintenance calendar to stay on top of care.
Got Questions?
Do I need a permit for a wooden fence?
Permit requirements vary by location. Check with your city or county building department before starting. If a permit is required, submit site plans and fence specifications. Planning ahead avoids delays and fines.
Check your local building department to see if a permit is required before starting your fence project.
What wood is best for fences?
Common choices include cedar and pressure-treated pine. Cedar resists rot and insects naturally, while pressure-treated pine is affordable and long-lasting when protected with sealant.
Cedar is naturally durable, while pressure-treated pine is affordable and can last many years with proper sealing.
How deep should fence posts be set?
Post depth should typically be at least one-third of the post length and below the frost line to prevent heave. Local codes may specify minimum depths.
Set posts deep enough to sit below the frost line and be stable.
Can I install a fence on a concrete slab?
Yes, you can install a fence on concrete, but it may require different hardware like post anchors or sleeve adapters. Ensure stability and proper drainage.
Yes, with the right anchors and supports you can mount posts to a concrete surface.
How long does a wood fence last with proper maintenance?
With regular sealing, cleaning, and timber selection, a wood fence can last 15-25 years depending on climate and maintenance. Inspect annually for damage.
With regular care, a wood fence can last 15 to 25 years, depending on climate and upkeep.
What are common signs a fence needs repair?
Look for loose boards, leaning posts, rusted hardware, and gaps that widen in wind. Address issues early to prevent larger structural failures.
Watch for leaning posts or loose boards, and fix them early to avoid bigger problems.
Watch Video
Main Points
- Plan layout before any digging
- Dig deep and secure posts with cured concrete
- Maintain straight lines with a string guide
- Use weatherproof finishes to protect wood
- Inspect and maintain regularly for longevity
