Install a Whole-House Humidifier: Step-by-Step Guide
A practical, end-to-end guide for homeowners and DIY enthusiasts to install a whole-house humidifier. Learn sizing, safety, step-by-step installation, and maintenance to keep your home comfortable and woodwork protected.
This guide will help you install a whole-house humidifier connected to your HVAC system, improving comfort and indoor air quality. You’ll learn how to size and choose a unit, prepare the furnace and water supply, run the condensate drain, and complete a safe, code-compliant installation with a step-by-step process. Gather basic tools, a water line, and electrical access before you begin.
Why Install Whole-House Humidifier Matters
Maintaining proper indoor humidity (typically 30-50 percent) helps reduce static electricity, prevent wood furniture from cracking, and ease respiratory symptoms. For many homeowners, a whole-house humidifier hooked into the HVAC system provides steady, even humidity throughout the home, rather than spot humidifiers that only affect a single room. According to Install Manual, the biggest payoff comes from integrating the humidifier with your existing furnace and air handler, so humidity is distributed passively via the ductwork. This approach also minimizes water mess and maintenance compared with portable units. In winter, when indoor air dries quickly, a properly sized system can keep you warmer at lower thermostat settings, potentially reducing energy use while protecting floors, doors, and musical instruments. Planning ahead and choosing the right type for your furnace is essential for long-term comfort and efficiency.
How Humidifiers Work in a Home HVAC System
A whole-house humidifier sits on or near the furnace or air handler and adds moisture to the circulating air. Depending on the model, it may route air through a moistened pad (evaporative/bypass), have its own fan (fan-powered), or generate steam (steam humidifier). The humidified air travels through the ductwork so every room receives similar humidity levels. Proper integration with the furnace controls ensures the humidifier runs only when the system is on, preventing excessive moisture. Water quality, drain setup, and electrical connections all influence performance and longevity. Planning for these details during installation helps prevent mineral buildup and leaks that can compromise comfort and safety.
Types of Whole-House Humidifiers
There are several common configurations:
- Bypass humidifiers: rely on the furnace blower to push air through a moisture pad; water supply connects to the cold-water line and returns moisture into the furnace airflow.
- Fan-powered humidifiers: include a built-in fan to push air through the moistened pad, often delivering faster humidity rise with less dependence on furnace speed.
- Steam humidifiers: generate steam via an electric boiler and release it into the ductwork; typically require dedicated wiring and robust water connections.
Each type has pros and cons related to cost, maintenance, and compatibility with your furnace. The best choice depends on home size, existing ductwork, and climate patterns. The Install Manual team recommends matching the humidifier type to your furnace model and local humidity goals for predictable results.
Planning Your Installation: Sizing and Placement
Sizing a whole-house humidifier involves considering home square footage, insulation quality, and climate. A unit too small will under-humidify, while an oversized system can cause excessive moisture and mold risk. Placement should usually be on or near the furnace plenum or air handler so all conditioned air passes through the humidifier. Ensure the unit is accessible for maintenance and that water supply, drainage, and electrical connections adhere to local codes. Before purchasing, review the furnace’s manufacturer guidance and the humidifier’s installation manual to confirm compatibility and recommended mounting locations.
Water Quality and Connection Considerations
Mineral buildup from hard water can reduce efficiency and shorten component life. If your water is hard, consider a water treatment solution or a premium humidifier that includes mineral mitigation features. The water line should be secured with a proper shut-off valve and an appropriate inlet connection to the humidifier. A dedicated condensate drain line must be routed to a drain with the correct slope, and any drainage fittings should be rated for potable-water use. Avoid creating an open-ended drainage path that could leak or freeze, particularly in unheated spaces.
Safety and Code Compliance
Electrical connections should follow applicable electrical codes, and many jurisdictions require a dedicated circuit or a GFCI outlet for humidifier power. Shut off power to the furnace before starting installation, and verify that the control wiring does not pose a shock risk. If you are uncertain about code requirements or electrical work, consult a licensed professional. Always install humidifiers in a way that does not create water exposure hazards to wiring or electrical components, and inspect the installation for any moisture intrusion after the first run.
Maintenance and Filter Care
Regular maintenance is key to long-term performance. Replace pads or filters according to manufacturer recommendations, typically every 6-12 months depending on use and water quality. Periodically flush the water line to prevent sediment buildup, inspect connections for leaks, and monitor humidity levels with a reliable hygrometer. Keeping a maintenance schedule helps prevent mineral deposits, mold growth, and a drop in humidity control accuracy.
Troubleshooting Common Issues
If humidity remains low after installation, check that the humidifier is receiving water and that the water valve and drain are clean and unobstructed. Listen for airflow; if the unit seems quiet or has reduced output, confirm that the furnace blower is cycling properly and that the humidifier control is responding to humidity settings. Leaks or damp spots around connections indicate a failed seal or an improper fitting. In persistent cases, consult the installation manual or contact a professional to verify ductwork compatibility and electrical connections.
Final Checklist Before Turning It On
- Confirm the humidifier is seated and fastened securely to the plenum or air handler.
- Verify water supply valve is open and the drain line is correctly routed with proper slope.
- Ensure electrical connections are correct and safely enclosed away from moisture.
- Set the humidity target to a comfortable range (for most homes) and enable auto-mode if available.
- Test the system for 15-30 minutes, checking for leaks and listening for proper operation. A brief, methodical test helps catch issues before running longer cycles.
What to Expect After Activation
Once the system runs, humidity should rise gradually across living spaces. Check different rooms with a hygrometer to confirm even distribution. If you notice excess condensation on windows or a persistent damp smell, adjust the humidity setting downward to prevent mold growth. With proper sizing and maintenance, you should experience improved comfort and less dry air during heating seasons.
Tools & Materials
- Whole-house humidifier unit (bypass, fan-powered, or steam)(Choose based on furnace compatibility and home size)
- Flexible water supply line(Typically 1/4 inch to 1/2 inch; consult unit specs)
- Shut-off valve and T-fitting(For diverting cold water supply)
- Copper or PEX tubing(If routing through attic or crawlspace)
- Drain line and condensate trap(Ensure gravity drainage to a permit-friendly drain)
- Electrical wiring and circuit protection(Check local codes; may require a dedicated circuit)
- GFCI outlet near installation area(Optional safety enhancement)
- Screwdrivers (Phillips and flathead)(For mounting brackets and covers)
- Drill with appropriate bit(If mounting requires new holes)
- Pipe sealant or Teflon tape(Seal threaded connections)
- Pliers and adjustable wrench(Tighten fittings securely)
- HVAC duct sealant or foil tape(Seal duct connections)
- Water quality test kit (optional)(Check mineral content for maintenance planning)

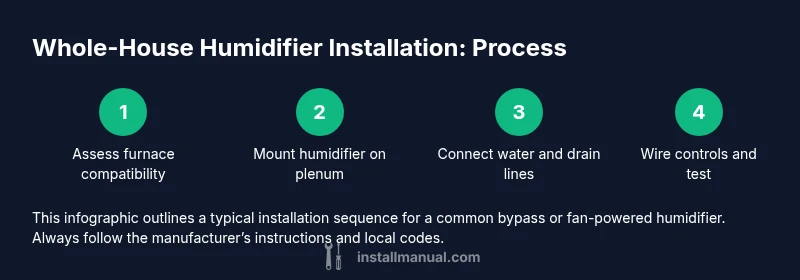

Steps
Estimated time: 2-6 hours
- 1
Verify furnace compatibility
Check the furnace and control board documentation to confirm compatibility with a humidifier type. If unsure, consult the manufacturer’s manual or a licensed HVAC technician before purchase.
Tip: If the furnace is older, a steam humidifier might require more power and a dedicated feed; plan accordingly. - 2
Shut off power and water supply
Turn off the furnace breaker and close the cold-water supply valve to prevent accidental leaks during installation.
Tip: Use lockout-tagout practices if available; double-check power with a multimeter before proceeding. - 3
Mount the humidifier on the furnace plenum
Mount the humidifier bracket to the furnace plenum or air handler according to the manufacturer’s instructions, ensuring a stable, level placement.
Tip: Support the weight of the unit with proper brackets and avoid placing it where water could splash onto electrical components. - 4
Connect the water supply
Install the shut-off valve and connect the flexible water line to the humidifier’s inlet. Ensure all connections are snug and leak-free.
Tip: Use Teflon tape on threaded fittings and verify the line routing avoids sharp bends that restrict flow. - 5
Install the drainage line
Attach the condensate drain line from the humidifier to the building drain, ensuring a proper slope for gravity drainage.
Tip: Do not create a siphon; use a trap if required and route away from any electrical components. - 6
Route electrical wiring
Wire the humidifier to the furnace control circuit as specified in the manual. If necessary, install a dedicated circuit and a protective enclosure.
Tip: If you’re not comfortable with electrical work, hire a licensed electrician; improper wiring can be dangerous. - 7
Seal joints and secure lines
Apply duct sealant or foil tape to joints and secure all tubing to prevent movement and leaks.
Tip: Avoid overtightening fittings; this can damage threads and create leaks over time. - 8
Program humidity settings
Set the humidity target based on your climate and comfort preference; many systems offer auto or manual modes and a setpoint around typical room humidity.
Tip: Start conservative (e.g., 35-45%), then adjust after a few days of monitoring with a hygrometer. - 9
Test for leaks and operation
Power up the system and run the humidifier for 15-30 minutes, checking all connections for leaks and confirming moisture output.
Tip: Listen for abnormal noises and confirm air is carrying moisture evenly through the ducts. - 10
Insulate exposed lines
Insulate any exposed water lines in unheated spaces to prevent freezing and ongoing heat loss.
Tip: Use foam pipe insulation and secure with tape; inspect before winter months. - 11
Document setup and maintenance
Record model, settings, and maintenance schedule; keep this information with home records for future service.
Tip: Set calendar reminders for filter changes and annual inspections. - 12
Return power and perform final test
Restore power to the furnace and run a full system test, verifying steady humidity output across zones.
Tip: If moisture levels fluctuate widely between rooms, reassess placement or consider a different humidifier size.
Got Questions?
Do I need a permit to install a whole-house humidifier?
Permit requirements vary by location. Some homeowners can perform DIY installation, but many areas require a licensed professional for electrical or plumbing work. Check your local building department before work begins.
Permits vary by area. Check with your local building department to confirm whether a pro is required for electrical or plumbing work.
Can I install a humidifier myself, or should I hire a pro?
DIY installation is possible for simple, compatible units with basic plumbing and electrical skills. If your furnace controls or wiring are involved, or you’re unsure about codes, hiring a professional is safer and often cost-effective in the long run.
DIY is possible for straightforward installs, but get a pro if wiring or furnace integration is uncertain.
What size humidifier do I need for my home?
Humidity needs depend on home size, insulation, and climate. Use the humidifier’s sizing guide and your furnace capacity to select a unit that can maintain target humidity evenly across all rooms.
Choose a humidifier that matches your home size and furnace capacity; aim for even humidity in all rooms.
Will a humidifier affect energy costs?
A properly sized humidifier can improve comfort at the same or lower thermostat settings, but extreme humidity can raise cooling costs in hot months. Overall, it’s about balance and efficiency.
If sized correctly and used seasonally, it may not raise energy costs and can improve comfort.
How often should I maintain a whole-house humidifier?
Inspect and clean the unit annually, replace pads or filters per manufacturer guidance, and flush the water line to prevent mineral buildup.
Clean annually, replace filters as directed, and flush the line to prevent mineral buildup.
Can a humidifier cause mold or condensation issues?
If humidity is set too high or ventilation is poor, condensation and mold can develop. Use a humidity monitor and adjust settings if you notice dampness on windows or walls.
Yes, too much humidity can cause mold; monitor and adjust humidity levels as needed.
Watch Video
Main Points
- Size the unit to your home and furnace capacity.
- Securely connect water, drain, and electrical lines.
- Program a comfortable humidity target and test thoroughly.
- Inspect for leaks and schedule routine maintenance.
- When in doubt, consult a professional to ensure code compliance.
