Install Ductless Mini Split: Step-by-Step Home Guide
Learn how to install a ductless mini split with a clear, step-by-step approach. This guide covers planning, mounting, wiring, refrigerant safety, and testing for homeowners and DIY enthusiasts.
Installing a ductless mini split lets you heat or cool a space efficiently without ductwork. You’ll size rooms, mount the indoor unit, route the line-set to the outdoor unit, and wire a dedicated circuit. This guide covers planning, mounting, refrigerant basics, and safety to help DIY homeowners complete a proper installation.
Understanding the ductless mini split system
A ductless mini split consists of an indoor air-handling unit, an outdoor condenser, line sets, refrigerant, and control wiring. The system provides zoned heating and cooling with minimal ductwork, which can result in higher efficiency and easier retrofits. According to Install Manual, these systems are especially well suited for retrofit rooms, renovations, or spaces where existing ducts are impractical. A typical installation involves mounting the indoor unit high on a wall, passing a small conduit and line set through a wall to the outdoor unit, and connecting power. Some models include a wireless thermostat for each zone, which lets you tailor comfort without affecting other rooms. When planning, consider room size, insulation, sun exposure, and the desired number of zones. The goal is to achieve even comfort with a balance of cabinet noise, airflow, and efficiency ratings. This overview sets the stage for the practical steps you will take in the rest of the guide.
Sizing and load calculation
Sizing a ductless mini split starts with understanding the space you want to condition. The system capacity is expressed in BTUs or tons, and you will typically choose a unit that matches the square footage, insulation quality, and climate. A too-small unit will struggle to reach setpoints, while an oversized unit will short-cycle and waste energy. Always refer to the manufacturer recommendations and consider a formal load assessment (often called Manual J) for complex spaces. In practice, you will compare the climate zone, ceiling height, window orientation, and occupancy to determine the nominal capacity. For many homes, a multi-zone system permits independent control of each room. The Install Manual approach emphasizes real-world factors like door leakage, sun exposure, and the presence of wall obstructions that can require adjustments to the base recommended size.
Location planning: indoor and outdoor units
Choose a clean, accessible interior location for the air-handling unit with clearances around the back and sides for air flow and maintenance. Typically the indoor unit is mounted 6 feet from the floor, away from direct sunlight and heat sources, and not across from a kitchen stove or bathroom. The outdoor condenser should be placed on a solid pad or mounted to a stable wall, with enough clearance for airflow and service access. Plan line-set routing to minimize long runs and sharp bends. The line set should travel through an exterior wall with a small sleeve or chase, sealed to prevent air and water intrusion. Using a level and a laser measuring tool helps ensure precise alignment and a neat appearance.
Electrical requirements and permits
A dedicated circuit is usually required for a ductless mini split. This means a separate breaker in the electrical panel and appropriate wiring as specified by the manufacturer. In many jurisdictions, a licensed electrician is recommended or required to handle the connection, disconnect, and any conduit work. Check local building codes and obtain any necessary permits before drilling or running wiring. Keep the outdoor unit away from power refrigerators, pool equipment, or other utilities that could create interference or safety hazards. Document all wiring routes and electrical connections for future maintenance.
Mounting the indoor unit and accessing the wall space
Begin by locating a suitable wall with access to a stud for reliable mounting. Use a stud finder to confirm two solid points for the mounting bracket, then secure the bracket with the appropriate screws. The next step is to attach the indoor unit mounting plate, ensuring the unit will be level once it is hung. A level helps prevent gravity related issues with condensate drainage and fan performance. Before removing the front panel, confirm clearance around the unit for airflow and wiring access. Once mounted, you can start routing the line set and electrical conduit toward the exterior. This stage reduces the risk of misalignment during final assembly and ensures clean line routing.
Running line sets, piping, and insulation
The line set connects the indoor and outdoor units. Cut the line set to the measured length, then install copper tubing according to the manufacturer. Route the line set in a protected path through the wall and seal the exterior wall opening to prevent air and water intrusion. Wrap the line set with factory insulation to minimize heat gain or loss and protect against condensation. Refrain from bending the tubing beyond the manufacturer specified bend radii to avoid kinks. Reconnect electrical wiring and ensure all connections are sealed and protected from moisture.
Outdoor condenser mounting and line-set connection
Choose a solid, level surface for the condenser on a concrete pad or wall mount with vibration isolation. Maintain recommended minimum clearances for airflow and service access. Connect the line-set to the outdoor unit, making sure the connection fittings are tight and the line-set is properly insulated. Ground the unit per local codes and secure the service disconnect within sight of the outdoor unit. Verify that the wiring harness and condensate drain are properly routed and supported to prevent strain or leaks.
Vacuuming, charging refrigerant, and testing
Most jurisdictions require a licensed technician for refrigerant handling. If permitted, use a vacuum pump to evacuate the lines to a deep vacuum (typically below 500 microns) to remove moisture. Slowly open the refrigerant valves and verify pressures with a manifold gauge. After charging, test system operation at multiple setpoints, check for leaks, and verify proper thermostat operation and remote control pairing. Confirm the condensate drain is clear and that airflow is balanced across the indoor unit. This step is critical for reliability and long-term performance.
Startup, programming, and maintenance
Power up the system and follow the manufacturer sequence to initialize the control board and remote. Program schedules and adjust cooling and heating modes to suit the space. Replace or clean air filters regularly, inspect line-set insulation, and check outdoor unit clearance for debris. Schedule periodic professional inspections to verify refrigerant integrity, electrical connections, and overall performance. Regular maintenance helps the system perform efficiently for many years.
Authoritative sources
For further reading on ductless mini split installation and safety, consult the following official sources:
- Energy.gov: Ductless mini split heat pumps and energy efficiency recommendations
- ENERGY STAR: Ductless heat pumps product pages and installation guidelines
- NREL: Heat pump technology and performance considerations
Common mistakes and best practices
Common mistakes include improper line-set routing, insufficient wall clearance, ignoring electrical code requirements, and attempting refrigerant work without proper certification. To avoid these, follow manufacturer guidelines, confirm local codes, and verify that the outdoor unit is securely mounted on a stable surface. Always use a dedicated circuit and label all connections. Finally, plan your install with a contingency for parts delays or unexpected wall conditions.
Tools & Materials
- Stud finder(Find sturdy mounting points in wall studs for indoor unit bracket.)
- Drill/impact driver(For fasteners and wall mounting.)
- Hole saw or masonry bit(Create exterior wall passage for line set and wiring.)
- Level (laser preferred)(Ensure indoor unit is perfectly level to prevent drainage issues.)
- Measuring tape(Accurate line-set routing and clearances.)
- Copper line set (factory pre-charged if possible)(Routing between indoor and outdoor units.)
- Insulation sleeves for line set(Minimize condensation and energy loss.)
- Society-grade refrigerant charging kit (gauge, scale)(Only if allowed by local codes and trained personnel.)
- Vacuum pump(Used only if refrigerant work is permitted locally.)
- Manifold gauges(For pressure checks during charging.)
- Electrical wire (per code, conductor size varies)(Dedicated circuit wiring and disconnect per unit specs.)
- Conduit and fittings(Protect and route wiring from indoor to outdoor unit.)
- Silicone sealant(Seal exterior wall penetrations against moisture.)
- Wall mounting bracket and screws(Secure mounting for indoor unit.)
- Outdoor condenser pad or wall mount(Sturdy, level support with drainage clearance.)
- Safety gear (gloves, eye protection)(Personal protection during installation.)

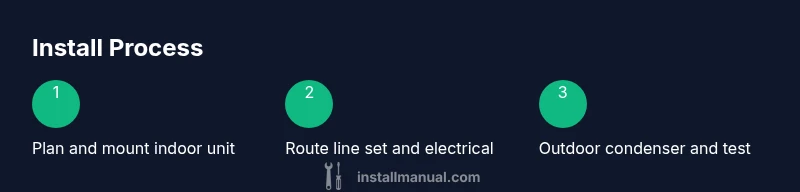

Steps
Estimated time: 3-6 hours
- 1
Verify requirements and permits
Confirm local codes and whether a permit is needed. Review unit specifications for electrical and mounting requirements. Gather the tools and materials you will need before starting.
Tip: Check if refrigerant work requires licensed technician in your area; plan accordingly. - 2
Prepare the installation area
Clear space for mounting the indoor unit and outdoor condenser. Ensure electrical access, drainage, and routing paths are ready. Mark the wall for the indoor unit bracket position and exterior wall for line-set entry.
Tip: Choose a wall with unobstructed airflow and minimal sunlight exposure. - 3
Mount the indoor unit bracket
Attach the mounting bracket to two wall studs using appropriate screws. Use a level to ensure the bracket is perfectly horizontal, then mount the bracket securely.
Tip: Double-check stud locations before drilling. - 4
Drill wall passage for line set and wiring
Create a clean, weatherproof hole through the wall to pass the line set and electrical conduit. Use a wall sleeve if needed for a neat exterior finish.
Tip: Keep holes small and seal with proper flashing and sealant. - 5
Run line set and electrical conduit
Carefully snake the copper line set and wiring through the wall, avoiding sharp bends. Secure with clamps and protect from weather exposure at all exterior interfaces.
Tip: Maintain straight runs and minimize length to avoid pressure losses. - 6
Mount the indoor unit and connect services
Hang the indoor unit on the mounting plate, secure it, and connect the line set, drainage, and electrical conduit to the unit.
Tip: Keep the line set slightly sloped for condensate drainage. - 7
Connect outdoor condenser and line set
Mount the condenser on its pad or bracket, connect the line set, and ensure proper electrical connections per unit specs. Check factory seals and electrical ground.
Tip: Verify outdoor clearance for airflow and service access. - 8
Initial checks and testing
Perform a visual and connection check, then run the unit at low power to verify airflow and temperatures. Confirm condensate drainage and thermostat control function.
Tip: If refrigerant charging is required, use a licensed technician per local rules.
Got Questions?
Do I need a licensed technician to install a ductless mini split?
In many areas, refrigerant work and electrical connections require licensure or permits. Check local codes and consider professional help for safety and compliance.
Yes, in many places a licensed technician is required for refrigerant work and electrical connections. Always check local codes.
Can I install it myself if I have basic DIY skills?
You can perform mounting and wiring tasks if permitted by local codes. Refrigerant charging and certain electrical operations are best left to a licensed professional.
DIY mounting and basic wiring may be allowed, but refrigerant work should be done by a pro where required.
What tools are essential for installation?
A stud finder, drill, level, measuring tape, wall sleeve, line set, insulation, mounting bracket, and appropriate electrical wiring are essential. Always follow manufacturer instructions.
Classic tools include a stud finder, drill, level, line set, and proper wiring. Follow the unit's manual.
How long does installation typically take?
Most jobs take several hours to complete, depending on wall access, routing challenges, and whether refrigerant work is needed.
Expect several hours, more if refrigerant handling is required.
What maintenance is required after installation?
Regular filter cleaning, yearly inspections of electrical connections, and checking drain lines keep the system running efficiently.
Clean filters regularly and have a professional inspect refrigerant and electrical connections yearly.
What size should my mini split be for a room?
Sizing should be based on room area, insulation, climate, and occupancy. Many units come with zone options to tailor capacity per room.
Sizing depends on room size and climate; consult the manufacturer guidelines or a professional.
Watch Video
Main Points
- Plan sizing with climate and space in mind
- Mount indoors and outdoors with proper clearances
- Use a dedicated electrical circuit per unit
- Seal penetrations to prevent leaks
- Refrigerant work may require a licensed professional
