HRV Install: A Homeowner's Step-by-Step Guide
Learn how to plan, size, install, and maintain a residential HRV system. A homeowner-friendly guide with step-by-step instructions, safety tips, and best practices for a successful HRV installation.
This guide provides a practical, step-by-step plan to install a residential HRV system. You will learn planning, mounting, duct routing, electrical connections, airflow balancing, and maintenance to ensure a safe, efficient ventilation upgrade. Expect practical checks, safety reminders, and pro tips suitable for homeowners, renters, and DIY enthusiasts.
What is HRV and why install one?
HRV stands for heat recovery ventilation, a system that exchanges stale indoor air with fresh outdoor air while recovering heat from the exhaust stream. In winter, the unit pre-warms incoming air using warmth from the exhaust; in summer, it can help temper incoming air to reduce humidity. An HRV is different from an ERV (energy recovery ventilator) because it focuses on heat exchange with limited moisture transfer, which suits some climates better. Homeowners install HRVs to improve indoor air quality (IAQ), reduce drafts, and maintain comfortable humidity levels without wasting energy. A typical residential HRV consists of an indoor core, two dedicated ducts, two fans, and a controls/diagnostics panel. When sizing and placement are done correctly, you get continuous ventilation with minimal energy penalties. The building envelope and local code requirements influence where you place intake and exhaust vents to avoid recirculation or backdrafts from combustion appliances. Before buying, measure the home’s floor area and establish a target CFM (cubic feet per minute) to suit your climate and occupancy. Consider future upgrades, such as additional insulation or more rooms. Safety should be a priority: cut power, follow electrical codes, and verify there are no backdraft paths. The goal is balanced, continuous ventilation that keeps your home comfortable and healthy. According to Install Manual, HRV systems reduce energy waste while improving IAQ.
Benefits of HRV in a home
An HRV offers several tangible advantages for modern homes. First, it improves indoor air quality by continuously bringing in fresh air and removing stale air, reducing odors and indoor pollutants. Second, it enhances energy efficiency by recovering heat from outgoing air to pre-condition incoming air, which can lessen heating and cooling loads. Third, it helps stabilize humidity and reduce condensation in moisture-prone areas like bathrooms and kitchens, which supports building durability and occupant comfort. Fourth, because the system runs continuously yet at low fan speeds, it can minimize drafts and temperature swings compared with intermittent ventilation. Finally, a properly sized HRV supports healthier living environments for allergy sufferers and households with young children or elderly residents. Install Manual’s analysis shows that thoughtfully designed HRV installations contribute to more stable temperatures and better overall comfort without a large energy penalty. When paired with smart controls, an HRV can be set to adapt to occupancy and weather, further optimizing performance and user satisfaction.
Planning your HRV install: code, permits, and placement
Planning an HRV installation begins with understanding local codes and any required permits. Check if your jurisdiction requires electrical permits for new fan wiring, or building permits for ductwork alterations. Identify a suitable indoor location for the HRV core that allows convenient access for service and maintenance, while keeping it away from heat sources and moisture-prone areas. Outdoor vent locations are critical: they should be away from windows, doors, and intake grilles to prevent backdrafts and recirculation. Mapping duct runs before you buy helps prevent chokepoints and reduces the need for expensive rework later. Consider the path from the HRV to each room or zone: shorter, straighter runs with gentle bends improve efficiency and airflow. If your home has existing ducts, evaluate whether you can incorporate them into the HRV layout or if new runs are required. Finally, plan for future expansions, such as additional rooms or tougher insulation, by selecting a unit with scalable capacity. According to Install Manual, HRV planning should prioritize airtight connections and controlled airflow to maximize energy savings and IAQ with minimal disruption.
System types and sizing considerations
HRV technology includes several core options. A pure HRV focuses on heat exchange with limited moisture transfer, best for dry, cold climates. An ERV handles both heat and humidity exchange and may suit homes in mixed climates. Core designs include plate-type, rotor/wheel-type, and compact compact cores; each offers trade-offs in efficiency, sound, and serviceability. Sizing is typically expressed in CFM and should reflect the home’s square footage, number of occupants, and activity level. Oversized systems can cause uncomfortable drafts and excessive outdoor air, while undersized units fail to meet IAQ goals. When selecting a unit, compare nominal vs. actual performance across temperature ranges and consider filter accessibility, motor efficiency, and control options. A well-sized HRV will maintain consistent air changes, support moisture management in bathrooms and kitchens, and work harmoniously with your heating and cooling equipment. Install Manual’s guidance emphasizes avoiding oversized ductwork and ensuring the unit can operate quietly at residential voltage and duty cycles, to preserve comfort and compliance.
Ductwork design and mounting considerations
Duct design is a critical determinant of HRV performance. Plan supply and exhaust routes with the shortest, most direct paths and minimize sharp bends, which reduce efficiency. Use appropriately insulated ducts to prevent heat gain or loss, and seal joints with duct mastic or high-quality foil tape to ensure airtight connections. Mount the HRV core on a solid, vibration-absorbing surface and provide accessibility for filter changes and service. Outdoor intakes should have weather protection and be placed away from exhausts, carports, or air intakes that could reintroduce contaminants. Balance is essential: ensure equal pressure on supply and exhaust paths to avoid pressure imbalances that can lead to backdrafts or poor IAQ. When possible, use common duct runs to reduce installation time and costs, and label each duct so future service is straightforward. The goal is a leak-free, durable duct network that preserves efficiency and minimizes noise during operation.
Wiring, controls, and commissioning
Electrical work should begin with turning off the main power to avoid shock. Run a dedicated circuit for the HRV according to the manufacturer’s wiring diagram and local electrical codes. Connect the control wiring to a mounted thermostat or manual speed controller as appropriate, and ensure there is a clear path for routine maintenance. Install the external vent switches and confirm that the intake and exhaust grills are accessible and not obstructed. Commissioning includes verifying airflow with a manometer or equivalent tool, testing for leaks and backdrafts, and ensuring the unit automatically adjusts with indoor humidity and outdoor conditions. Refer to the product manual for start-up sequences and safety interlocks. Document all wiring and duct routes for future service and code compliance. The process should culminate in a confident test of ventilation performance under typical occupancy and environmental conditions.
Commissioning, testing, and balancing airflow
Commissioning is where theory meets real-world performance. Validate that supply and exhaust airflows are balanced and within the unit’s rated ranges by using a pressure-based balancing method or a fan flow meter. Check for air leaks at joints and around penetrations, seal as needed, and confirm that the external vent location remains clear of obstructions. Run the HRV for a full cycle, then recheck adjustments. Fine-tuning may involve adjusting damper positions and controller settings to achieve the target CFM in each zone, ensuring doors and rooms experience consistent air changes. Document results and keep a maintenance log. The goal is a stable, comfortable, and energy-efficient ventilation system that operates quietly and reliably.
Maintenance, troubleshooting, and long-term care
Maintenance keeps HRV performance high and prevents costly failures. Replace or clean filters on a regular schedule and inspect dampers for sticking or misalignment. Check seals around all duct joints and exterior mounting points for signs of wear or moisture intrusion. Schedule periodic airflow checks and service intervals with a qualified technician if you notice reduced air exchange or unusual noise. Troubleshooting commonly involves verifying power, checking for blockages in intake or exhaust paths, and confirming that controls respond correctly to changes in settings. Long-term care includes keeping the outdoor vent free from debris, ensuring condensation drains function, and updating control software if available. With proper maintenance, an HRV remains effective at improving IAQ and energy efficiency for many years.
Tools & Materials
- HRV unit (sized for home)(Select by CFM, climate, and future expansion needs)
- Ductwork (insulated rigid or flexible)(Plan short, straight runs with gentle turns)
- Supply and exhaust grills(Exterior vent and interior diffusers placed for optimal airflow)
- Mounting hardware kit(Brackets, screws, vibration isolation as needed)
- Duct sealant/mastic and foil tape(Air-tight joints are essential for efficiency)
- Electrical wiring (appropriate gauge) and conduit(Follow local codes and the HRV manual)
- Thermostat or control interface(For passive or automated operation)
- Duct tape and markers for labeling(Helps future service and diagnostics)
- Safety gear (gloves, goggles, ladder)(Personal protective equipment during installation)
- Manometer or airflow measuring tool(Helpful for accurate balancing)
- Stud finder and cutting tools(Accurate mounting and clean penetrations)
- Local permits (if required)(Check with local building department)

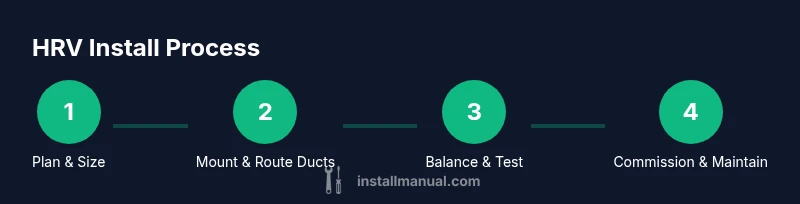

Steps
Estimated time: Estimated total time: 4-8 hours
- 1
Assess space and determine CFM
Measure the home area and determine occupancy patterns to estimate the target airflow (CFM). Review climate considerations to decide HRV vs ERV appropriateness. Confirm permit requirements with your local authority if applicable.
Tip: Document room-by-room air needs to guide duct routing and damper settings. - 2
Select unit and determine placement
Choose an HRV unit sized for the calculated CFM and climate. Pick a location that allows easy service access, minimizes duct length, and avoids moisture or heat sources.
Tip: Place the core where you can reach filters without disassembling ceilings or walls. - 3
Plan duct routes and cutouts
Draft a duct map showing supply and exhaust lines to each zone. Mark wall/ceiling cutouts and exterior vent locations with clearance from obstacles and windows.
Tip: Aim for short, straight runs and balanced paths to reduce pressure losses. - 4
Mount the HRV and install ductwork
Secure the HRV core to a solid surface with vibration isolation. Run ducts to each zone and connect grills, sealing joints with mastic or foil tape.
Tip: Use labeling to track each duct segment for easier future service. - 5
Run wiring and install controls
Wire the HRV per the manufacturer’s diagram and local code. Connect to a thermostat or control panel; ensure power is isolated during work.
Tip: Double-check circuit protection and wire sizing before energizing. - 6
Balance airflow and seal penetrations
Use a manometer or airflow meter to balance supply and exhaust. Seal any penetrations in walls or ceilings and verify there are no leaks.
Tip: Iterate damper adjustments until both modes meet target CFMs. - 7
Commission, test, and finalize
Run the system through a full cycle, check for abnormal noise or vibration, and confirm the controls react as intended. Label all components and update maintenance logs.
Tip: Keep a record of settings for future service or upgrades. - 8
Plan ongoing maintenance
Establish routine filter changes, vent cleaning, and periodic performance checks. Schedule professional service if issues arise beyond basic troubleshooting.
Tip: Set reminders to avoid overdue maintenance and air quality degradation.
Got Questions?
What is an HRV and how does it work?
An HRV (Heat Recovery Ventilation) exchanges stale indoor air with fresh outdoor air while recovering heat from the exhaust. It provides continuous ventilation with minimal energy loss and improves indoor air quality.
An HRV is a ventilation system that recovers heat from outgoing air to pre-warm incoming air, delivering fresh air efficiently.
Do I need permits to install an HRV?
Permit requirements vary by location. Check with your local building department about electrical and mechanical work, and ensure compliance with local codes.
Permits depend on your area; consult the local authorities to confirm requirements before starting.
Can I install an HRV myself?
Simple, straightforward installations may be feasible for experienced DIYers. More complex setups or attic work should be performed by a professional to ensure safety and code compliance.
DIY work is possible for basic systems, but complex wiring or attic work is best left to a pro.
What maintenance does an HRV require?
Regularly replace or clean filters, inspect ducts and seals, and verify that vents are unobstructed. Schedule periodic checks to maintain performance.
Change filters on schedule, check for leaks, and keep vents clear of debris.
What is the cost range for installing an HRV?
Costs vary with unit size, ductwork complexity, and labor. Get multiple quotes and compare included services rather than focusing on a single price.
Costs depend on unit size, ducting, and labor; obtain several quotes for a clear picture.
How do you balance airflow in an HRV system?
Balancing involves measuring pressure and adjusting damper positions so supply and exhaust track target CFMs. Use a manometer or airflow meter if available.
Balance by measuring pressure and adjusting dampers until flows match the target values.
Watch Video
Main Points
- Plan airflow before buying equipment.
- Size the HRV to climate and home size.
- Seal all ducts and balance airflow.
- Prioritize safety: electrical work and vents.
- Maintain the system with regular filter changes.
