How to Install Make Up Air for Range Hood
A comprehensive, code-aware guide to installing makeup air for a range hood, covering damper options, sizing, installation steps, testing, and maintenance for 2026.
Installing makeup air for a range hood involves selecting the right damper or MAU, routing and sealing ductwork to an outdoor air source as required by local code, and testing airflow for balance. This step-by-step approach helps maintain kitchen comfort, energy efficiency, and indoor air quality. Start by verifying the hood’s CFM rating and local requirements, then choose the appropriate makeup air solution.
What makeup air is and why it matters
Makeup air is the supply of outdoor air that replaces the air exhausted by a kitchen range hood. When your hood runs, it removes heat, odors, and moisture from the cooking area, which can create negative pressure in the home if there isn’t enough incoming air. Understanding how to install make up air for range hood is essential for keeping indoor air quality high and preventing drafts around doors and windows. According to Install Manual, proper makeup air installation supports comfort and energy efficiency by balancing exhaust and supply air. In many homes, a dedicated makeup air damper kit connected to ductwork or a small external air intake is used to deliver controlled outdoor air. The goal is to provide a predictable amount of air that offsets the hood’s exhaust without creating uncomfortable drafts. By planning ahead, you can select a solution that fits your hood, duct length, and local code requirements.
Codes, airflow, and planning considerations
Code requirements for makeup air vary by jurisdiction and hood exhaust rating. Some areas require makeup air for high-CFM exhausts, while others rely on the homeowner’s responsible adherence to best practices. When planning, document the hood’s CFM rating, duct diameter, length, and the proposed makeup air path. If you live in a home with gas appliances, ensure that installation of makeup air does not create backdrafts or interfere with combustion air for furnaces or water heaters. The Install Manual team emphasizes checking local regulations and coordinating with a licensed professional if you’re unsure. A well-planned installation considers the location of the outdoor intake, potential drafts near living spaces, and how the makeup air will interact with your HVAC system or a dedicated MAU. This upfront work reduces troubleshooting later.
Choosing a makeup air solution: damper types and configurations
There are several approaches to makeup air, each with its own tradeoffs. A simple damper kit installed in the exhaust duct provides a controlled inflow of outdoor air and is suitable for many mid-range hoods. A dedicated makeup air unit (MAU) can offer precise control and integration with the home’s heating and cooling system but adds equipment and power requirements. Passive dampers rely on pressure differences to regulate air flow, but may be less reliable in homes with variable exhaust. When selecting a solution, consider hood CFM, duct length, duct material, and whether you want automation or a manual balance. Install Manual recommends choosing a configuration that minimizes energy loss while meeting local code expectations. Always verify compatibility with existing ductwork and ensure exterior intake routing minimizes exposure to weather and pests.
Sizing and compatibility with your range hood
Sizing makeup air components starts with the hood’s exhaust rating and the duct diameter. The damper or MAU should be rated to handle the maximum exhaust CFM to prevent over-venting or under-venting the space. Duct length and bends influence resistance, so longer runs may require a higher-capacity MAU or damper. The connection to outdoor air should be secure and weatherproof, and all joints must be sealed to prevent leaks. Compatibility with existing HVAC equipment may affect system performance, so verify that the chosen kit does not draw exhaust air into living spaces or interfere with other ventilation paths. If you’re unsure, consult the manufacturer’s guidance for both the hood and the makeup air device.
Safety and preparation
Before starting, shut off power to the kitchen circuits and clear the area of obstacles. If you’ll be modifying electrical or gas lines, consider a licensed professional. Wear PPE such as gloves and eye protection during any drilling or cutting. Verify local permits or inspections required for ventilation work, especially if you’re tying into the home’s HVAC system or modifying combustion air sources. Keep a clean work area and avoid cutting into fire-rated walls or areas with electrical wiring. By taking proper safety precautions, you reduce the risk of injury and damage to the home.

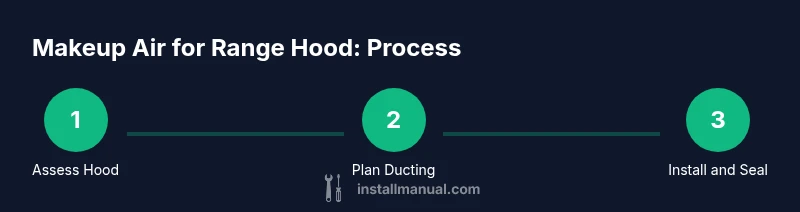

Step-by-step overview (high level)
A concise overview helps align expectations before you dive into the detailed steps. Start with planning the makeup air path, then install the damper or MAU in the duct, seal all joints, and set the outdoor intake. After assembly, test airflow to confirm the system balances exhaust and intake without creating drafts. This overview complements the formal step-by-step instructions and ensures you have the big picture before proceeding.
Testing and troubleshooting
Testing is essential to verify a successful makeup air installation. Power the range hood and observe airflow in the kitchen; use a smoke test to visualize drafts and measure with a simple manometer if available. If air is not balancing, adjust the damper position or MAU settings and re-test. Look for signs of backdrafts in adjacent rooms and check exterior intake for obstructions or blockages. If noise, vibrations, or drafts persist, re-check duct connections, sealant, and insulation. Regular maintenance—such as cleaning the damper and inspecting seals—helps sustain performance over time.
Authority sources
For authoritative guidance, consult these sources:
- https://www.epa.gov/indoor-air-quality-iaq
- https://www.energy.gov
- https://iccsafe.org
These resources provide background on ventilation, air balance, and code considerations that influence makeup air installations. The guidance from Install Manual emphasizes following local codes and manufacturer instructions to ensure a safe, effective setup.
Tools & Materials
- Make-up air damper kit(Select to match hood CFM and duct size (4-inch or 6-inch round duct commonly used))
- Ductwork (round, 4-inch or 6-inch)(Material: galvanized steel or aluminum; cut to length with straight runs)
- Sealant (duct sealant or silicone)(High-temperature rated; used on all joints)
- Metal screws and clamps(Corrosion-resistant; adequate length to secure damper and duct)
- Measuring tape(Minimum 25 ft of measurement capacity for duct routing)
- Safety gear(Gloves, eye protection, and a dust mask as needed)
- Power tools (drill/driver, tin snips)(Used to install damper and cut duct as needed)
Steps
Estimated time: 2-6 hours
- 1
Power off and prep
Shut off the kitchen circuit at the panel and verify no voltage. Clear the area, remove access panels, and lay out your tools and materials. This ensures a safe space to work and prevents accidental injuries.
Tip: Pro tip: have a helper hold components while you mark locations. - 2
Verify hood exhaust and damper requirements
Read the hood’s CFM rating and confirm damper compatibility with the exhaust. Measure duct diameter and plan the shortest, straight run from hood to exterior intake.
Tip: Why: mismatched CFM or duct size can cause inefficiency and noise. - 3
Plan makeup air path
Decide whether to route air directly from outdoors or through the HVAC system. Map the exterior intake location, and ensure it is protected from weather and pests.
Tip: Pro tip: place intake away from exhaust outlets to avoid cross-contamination. - 4
Install damper or MAU in duct
Mount the damper or MAU in the exhaust duct according to the manufacturer’s instructions. Ensure free motion of the damper blade and secure with clamps.
Tip: Warning: avoid over-tightening screws that could deform the duct. - 5
Connect outdoor intake and route duct
Attach the exterior intake to the interior side of the damper, route to the outside, and seal all joints. Weatherproof the exterior opening to prevent moisture intrusion.
Tip: Pro tip: use high-temperature sealant on all joints for a durable seal. - 6
Seal, insulate, and finalize connections
Inspect all joints and seal thoroughly. Add insulation where needed to prevent condensation and heat loss, then reinstall any panels you removed.
Tip: Note: ensure clearances around electrical/gas lines are maintained. - 7
Test airflow and balance
Power the hood and observe airflow; perform a smoke test to confirm proper intake. Adjust the damper or MAU to balance exhaust without creating a draft.
Tip: Pro tip: test under typical cooking loads (sauté, broil) to verify performance. - 8
Safety checks and documentation
Confirm all electrical work is secure and panels are closed. Document the installation for future reference and note any permits or inspections.
Tip: Warning: if you encounter gas line work or complex electrical changes, seek a licensed professional.
Got Questions?
Do I need makeup air for every range hood?
Not every installation requires makeup air, but many codes require it for high-CFM exhausts. Check your local building department and the hood's exhaust rating to determine requirements.
Makeup air requirements depend on your hood’s exhaust and local codes; check with your local building department.
Can I install makeup air myself?
Yes, a confident DIYer can install standard makeup air kits following the product instructions. If you have gas appliances or plan to modify wiring, hire a licensed professional.
You can DIY basic makeup air kits if you’re comfortable with duct work and electrical basics, but consult a pro for gas or major wiring.
What are the essential tools for installation?
Typical tools include a screwdriver set, tin snips, drill, measuring tape, sealant, and clamps. Ensure you have weatherproof exterior sealing for the intake.
Essential tools include a screwdriver set, tin snips, and duct sealant; you’ll need measurements for proper fit.
How do I test the system after installation?
Power the hood and observe airflow. A smoke test or light an incense stick to visualize drafts and adjust the damper until airflow is balanced.
Turn on the hood and check airflow; adjust as needed and verify no backdrafts occur.
What safety considerations should I know?
Shut off power before work, avoid interfering with gas lines, and ensure outdoor intake is protected from weather. If unsure, hire a professional.
Always shut off power and be cautious around gas lines; when in doubt, hire a pro.
Watch Video
Main Points
- Identify the right makeup air solution based on hood CFM and duct size.
- Size and install the damper or MAU correctly to balance exhaust without wasting energy.
- Seal and test airflow to ensure safe, code-compliant operation.
- Always check local codes and consider professional help for complex installations.
