This guide shows you how to install crawl space insulation, covering planning, moisture control, material choices, and a clear step-by-step process. You’ll need protective gear, insulation, a vapor barrier, and proper air sealing to achieve durable, energy-efficient results.
Why crawl space insulation matters
Crawl spaces are often overlooked, but they greatly influence indoor comfort and energy bills. Proper insulation helps keep floors warmer in winter, reduces heat loss through the foundation, and slows moisture migration that can lead to mold and wood rot. If you're wondering how to install insulation in crawl space, start with a plan that focuses on moisture control, air sealing, and selecting materials suited to your climate. This approach minimizes cold bridges around pipes and ductwork, improving overall home performance. The Install Manual team emphasizes that the best results come from a coordinated effort: sealing gaps first, laying a continuous vapor barrier, and then inserting insulation in a way that allows for ventilation only where code requires.
Planning and codes you should consider
Before touching any insulation, check local building codes, energy efficiency programs, and safety guidelines for crawl spaces. Many jurisdictions require moisture barriers at the soil line and proper sealing around rim joists. Determine whether your space will be vented or encapsulated, as this choice drives both materials and installation details. Assess existing moisture problems, sump pits, and drainage, since neglecting these can compromise insulation. Plan for access to plumbing, wiring, and vents, and budget for permits or inspections if needed. A well-documented plan reduces rework and keeps the project on schedule. The Install Manual team recommends documenting measurements, selecting R-values appropriate for your climate, and aligning the work with any HVAC or moisture-control components already in place.
Choosing insulation materials for a crawl space
Your best choice depends on climate, moisture exposure, and budget. Fiberglass batt insulation is cost-effective and easy to cut between joists, but it requires a quality vapor barrier and careful placement to avoid compression. Mineral wool offers better moisture resistance and fire performance but can be pricier. Spray foam creates excellent air seals but usually costs more and requires professional application in many crawl spaces. For most homeowners, a combination approach works well: install batt insulation between joists, add rigid foam board on rim joists or vertical surfaces, and cover the soil with a continuous vapor barrier. Ensure you select an insulation with an appropriate R-value for your climate and maintain a clear air space around any heat-producing equipment.
Preparing the crawl space before insulation
Clear the area of debris, store equipment off the ground, and protect yourself with PPE. Inspect pipes, ducts, and electrical wiring, repairing any leaks or damage before you start. If the space has a dirt floor, lay a durable vapor barrier over the soil to minimize moisture transfer; this barrier should extend several inches up the walls. Address existing moisture by using a dehumidifier or improving drainage, since standing water or high humidity will degrade insulation longevity. Finally, plan how you will seal edges and joints so that insulation remains in place even during seasonal temperature swings.
How to approach the project: air sealing first, insulation second
Effective crawl space insulation begins with air sealing. Close large gaps around rim joists, penetrations where plumbing and electrical lines pass through, and any vent openings if required by code. Next, lay out the chosen insulation, cutting batts to fit between floor joists without compression. When using vapor barriers, place and overlap sheets to cover exposed soil and wall areas, then tape seams to create a continuous envelope. Avoid pinching or bending insulation against ducts or pipes, which reduces R-value and creates gaps for air leakage. Finally, inspect for uniform coverage and re-seal any weak spots before finishing with a final check of humidity and temperature stability in the space.
Safety, myths, and common mistakes
Common mistakes include compressing insulation, leaving gaps near utility penetrations, and neglecting air sealing before installation. Never install insulation without a proper vapor barrier in damp spaces. In cold climates, ensure there is at least minimal venting per code if the space is not encapsulated; otherwise moisture buildup can occur. Wear PPE, including gloves, eye protection, and a respirator, and never handle fiberglass without protective gear. If you encounter mold, rust, or persistent moisture, do not proceed—address these issues first or consult a professional.
The long-term view: maintenance and inspection
After installation, schedule periodic checks—especially after heavy rains or rapid temperature changes. Inspect for torn vapor barrier seams, loose fasteners, or signs of moisture intrusion. Keep humidity levels in check with a dehumidifier if necessary and ensure access openings stay sealed when not in use. Document any repairs and re-check insulation integrity during major home renovations. Proper upkeep helps maintain energy savings and prevents structural damage to joists and insulation components over time.
Tools & Materials
- Protective gear (gloves, goggles, respirator)(N95 recommended; include eye protection.)
- Measuring tape(Minimum 25 ft; helps with long spans.)
- Fiberglass or mineral wool insulation batt/rolls(R-value appropriate to climate.)
- Vapor barrier plastic sheeting (6 mil or thicker)(Cover soil and walls with sealed barrier.)
- Foil tape / duct tape(Seal seams and joints.)
- Staple gun and corrosion-resistant staples(Attach insulation and barrier.)
- Utility knife or insulation knife(Cut batts accurately.)
- Caulk or expanding foam for air sealing(Seal gaps around penetrations.)
- Marker or chalk line(Mark cut lines.)

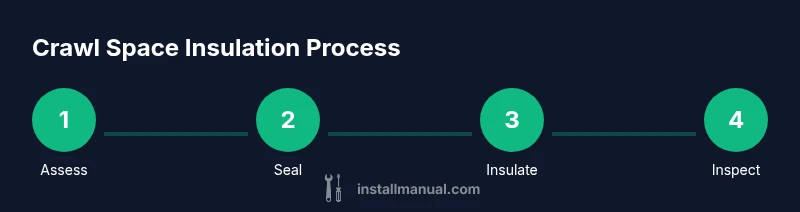

Steps
Estimated time: Estimated total time: 4-6 hours
- 1
Assess moisture and structural condition
Begin by visually inspecting the crawl space for standing water, damp areas, mold, or structural damage. Use a moisture meter if available and note any areas that require remediation before insulation. Remember to turn off power to nearby circuits if you must work near wiring. This step sets the foundation for a durable install.
Tip: Address any water intrusion or mold first; insulating over moisture problems hides underlying issues. - 2
Seal air leaks around rim joists and penetrations
Identify gaps around rim joists, pipe penetrations, and ductwork. Apply caulk or foam to seal large gaps, then use tape or sealant to close seams. A tight air seal reduces heat loss and prevents cold air from bypassing the insulation.
Tip: Focus on corners and where joists meet walls; these are common leak paths. - 3
Select insulation type and determine R-value
Choose insulation suitable for crawl spaces based on climate, moisture exposure, and budget. Fiberglass or mineral wool batt insulation is common between joists, with vapor barriers required in damp spaces. Spray foam offers superior air sealing but higher cost and professional installation in many cases.
Tip: Consult local code for minimum R-values and vapor barrier requirements. - 4
Prepare crawl space and install a moisture barrier
Place a continuous vapor barrier over the soil, extending up the walls. Overlap seams by at least several inches and seal with foil tape. This barrier reduces ground moisture transfer and provides a clean surface for insulation installation.
Tip: Ensure barrier lies flat; avoid tears that can trap moisture. - 5
Cut insulation to fit between joists
Measure the spacing between joists and cut batt insulation to fit without compression. Leave small gaps around pipes and wires to avoid crimping. Dry-fit pieces before final placement to ensure a snug fit.
Tip: Keep your cuts square for easier installation and better coverage. - 6
Install insulation between joists
Place batt insulation neatly between joists with the paper facing (if present) toward the living space. Do not compress; maintain an air gap where ducts run. Slip pieces into place, then adjust as needed to fill all voids.
Tip: Avoid squeezing insulation; compressed R-value drops significantly. - 7
Seal joints and edges
Cover exposed edges with tape and seal any remaining seams. Check around all penetrations and utility openings for gaps and seal again if necessary. A sealed perimeter prevents air from bypassing insulation.
Tip: Double-check behind service boxes or outlets that may trap air. - 8
Seal rim joints and access openings
Apply foam or caulk around rim joists and any access doors to eliminate drafts. If using spray foam, follow manufacturer instructions and cure time. Finish by ensuring the space can be accessed safely for future maintenance.
Tip: Never block access; maintain serviceability for inspections. - 9
Inspect installation and plan maintenance
Conduct a final walk-through to verify coverage, seal integrity, and barrier continuity. Record the date and any observations; set reminders to recheck humidity and moist areas after storms. A proactive maintenance plan extends insulation life and performance.
Tip: Create a simple maintenance calendar for yearly checks.
Got Questions?
What is the first step to insulate a crawl space?
Start by checking for moisture, addressing leaks, and sealing obvious gaps. Then plan barrier coverage before insulation.
Begin with moisture checks and sealing leaks, then plan your barrier coverage before insulation.
Is encapsulating the crawl space better than just insulating between joists?
Encapsulation reduces moisture migration and mold risk in damp climates. Insulation alone can be sufficient in dry climates with good air sealing.
Encapsulation helps moisture control; choose based on climate and budget.
What insulation material should I use for a crawl space?
Fiberglass or mineral wool batts are common; spray foam offers superior air sealing but higher cost. Combine batt insulation with a vapor barrier for most scenarios.
Fiberglass or mineral wool with a vapor barrier works for many homes; spray foam is pricier but seals well.
Do I need a permit to insulate a crawl space?
Permits depend on local codes. Check with your city or county building department to determine requirements.
Check your local building department to see if a permit is required.
Can I perform crawl space insulation as a DIY project?
Yes, for basic batt insulation with proper PPE and safety. Hire a pro for tricky areas or spray foam applications.
You can DIY standard insulation, but call a pro for complex jobs.
How long does crawl space insulation last?
With proper installation and moisture control, insulation can last for decades.
If kept dry and properly installed, it can last many years.
Watch Video
Main Points
- Air-seal gaps before adding insulation
- Choose climate-appropriate insulation and R-values
- Create a continuous vapor barrier over the soil
- Inspect and maintain moisture control after completion
