Geothermal System Install: How to Plan and Complete a Home Installation
Learn how to plan, size, permit, and install a geothermal system for efficient home heating and cooling. This comprehensive guide covers site assessment, loop field options, interior integration, safety, maintenance, and budgeting.
According to Install Manual, a well-planned geothermal system install can deliver efficient heating and cooling by using a ground-source heat pump and loop field. This guide outlines site assessment, sizing, needed tools, and the step-by-step process for safe installation. With careful planning and professional help, you’ll reduce energy use, improve comfort, and lower long-term operating costs.
What geothermal system install is and how it works
Geothermal system install leverages the constant underground temperatures to heat and cool a home. A ground-source heat pump transfers heat between the building and a buried loop field, circulating a heat-transfer fluid through closed loops. In winter, the loop extracts heat from the ground to warm the home; in summer, it rejects heat from the house back into the ground. The result is a highly efficient, predictable source of heating and cooling that reduces reliance on outdoor air for heat exchange. The Install Manual team emphasizes that planning a geothermal installation requires accurate site assessment, appropriate equipment sizing, and careful integration with the home’s electrical and plumbing systems for long-term reliability and comfort.
Core components of a geothermal system
A geothermal system consists of three major components: the heat pump, the loop field, and the distribution system. The heat pump sits outside (or in a mechanical room) and includes an outdoor condenser and an indoor air handler or radiant distribution interface. The loop field can be horizontal, vertical, or open-loop, carrying a heat-transfer fluid to or from the ground. The distribution can be ductwork for forced-air systems or radiant piping for floors. Controls and sensors tie the system together, ensuring efficient modulation based on indoor temperature and outdoor conditions. According to Install Manual, understanding how these parts work together helps homeowners set realistic expectations for performance and maintenance.
Site assessment and system sizing
A successful installation begins with a thorough site assessment that considers soil type, groundwater, available space, and climate. The right loop configuration depends on space, geology, and local codes. Precise load calculations for the home ensure the heat pump is not oversized or undersized, which directly impacts efficiency and comfort. The Install Manual guidelines stress engaging a qualified contractor to perform these calculations and to verify compatibility with existing heating equipment and building insulation. Proper sizing reduces short cycling and wear on components, extending system life.
Loop field options: horizontal, vertical, and open-loop
Geothermal loop fields come in several configurations. Horizontal loops require extensive trenching and are well-suited for homes with ample yard space. Vertical loops use boreholes that go deep into the ground and are ideal when space is limited. Open-loop systems pull groundwater from a well and discharge it back after heat exchange; these require water quality considerations and additional permitting. Each option has different installation costs, soil requirements, and long-term maintenance needs. The Install Manual notes that a site-specific assessment is essential to choose the most reliable option for your climate and property.
Interior distribution and integration
The way you distribute conditioned air or heat into the home matters for comfort and efficiency. A geothermal heat pump can feed ducted systems, radiant floor heating, or a combination of both. Duct design should minimize pressure losses and ensure even temperatures across rooms. Controls — including thermostats, zone valves, and weather-responsive settings — help optimize energy use. The Install Manual emphasizes ensuring that electrical and plumbing work is coordinated with HVAC installation to avoid service interruptions during commissioning.
Permits, codes, and safety considerations
Geothermal installs involve electrical work, plumbing, and sometimes drilling or trenching, all of which typically require permits and inspections. Local codes govern setback distances, backfill methods, and venting requirements for heat pumps. Safety considerations include proper handling of refrigerants, correct electrical disconnects, and lockout/tagout procedures during work. The Install Manual recommends pre-approval with the local building department and clear communication with your contractor about inspection milestones to avoid delays.
Planning, budgeting, and choosing a contractor
Budgeting for a geothermal system requires considering equipment, loop field costs, permitting, and professional labor. Costs can vary widely based on loop choice, soil conditions, and house size, so early planning is essential. When selecting a contractor, prioritize licensed, insured installers with geothermal experience, a clear scope of work, and a detailed warranty policy. The Install Manual team advises homeowners to request references and review past projects to gauge reliability and quality of workmanship.
Operation, maintenance, and efficiency tips
After installation, routine maintenance—such as annual heat pump inspections, refrigerant checks, and loop-field inspections—helps sustain performance. Clear documentation of system design, wiring diagrams, and service history aids future repairs. Regularly inspect intake and exhaust clearances for the outdoor unit, and ensure air paths remain unobstructed. The Install Manual notes that proactive maintenance can preserve efficiency gains and extend the life of the geothermal system.
Authority sources
For further reading and verification, consult authoritative resources on geothermal heat pumps, including U.S. Department of Energy and National Renewable Energy Laboratory guidance. These sources provide detailed information on system performance, loop field options, and best practices for installation and safety.
Tools & Materials
- Ground-source heat pump unit (outdoor condenser + indoor air handler)(Select a unit sized for home load and climate; ensure compatibility with loop field.)
- Loop field piping (HDPE) for horizontal/vertical configurations(Include fittings, manifolds, and backfill materials.)
- Loop deployment equipment or drilling contractor access(Vertical loops require drilling; horizontal loops require trenching or plowing.)
- Piping, fittings, and manifolds for RF distribution(Connects heat pump to loop and to the indoor distribution system.)
- Thermal grout/backfill material(Proper backfill ensures efficient heat transfer and loop integrity.)
- Electrical disconnects and wiring components(Professional electrical work and permits may be required.)
- Safety PPE and testing equipment(Hard hat, gloves, eye protection; leak detectors and pressure gauges.)
- Permits and inspection documentation(Local building and energy efficiency permits as applicable.)
- Site survey tools (Tape measure, level, compass)(Essential for layout planning and verifying distances.)
- Monitoring/diagnostic equipment (optional)(Energy meters or sensor kits for performance tracking.)

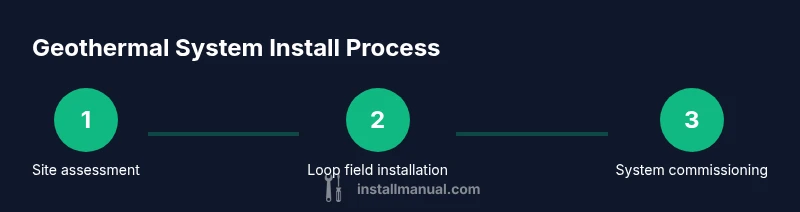

Steps
Estimated time: 4-7 days (excluding permitting time and weather-related delays)
- 1
Assess site and determine system size
Conduct a thorough site evaluation, including soil type, groundwater conditions, available space, and climate considerations. Use a professional to perform load calculations that match the home’s heating and cooling demand. This step sets the foundation for selecting loop field type and heat pump capacity.
Tip: Document site constraints early to prevent rework during installation. - 2
Obtain permits and coordinate with utility
Apply for required permits and schedule inspections with the local building department. Coordinate with the utility or local grid operator if electrical or interconnection approvals are needed. Timely permitting reduces delays during construction.
Tip: Prepare a single package with diagrams, equipment specs, and safety plans for quicker approvals. - 3
Design loop field and select heat pump capacity
Choose the loop field type (horizontal, vertical, or open-loop) based on site constraints and climate. Size the heat pump to the calculated load, considering efficiency targets and backup options. Confirm soil/water conditions support the planned loop design.
Tip: Ask for a written design package and commissioning plan from the installer. - 4
Prepare site and install loop field
Clear the installation area and install trenching or boreholes per the loop type. Place loop pipes with careful burial depth and trench depth, then secure and pressure-test the loop for integrity. Backfill and compact to prevent movement.
Tip: Check groundwater and contamination risks; ensure proper backfill material is used. - 5
Install loop field connections and pressure test
Connect loop pipes to the manifold and heat pump piping. Perform a pressure test to verify there are no leaks and that the field holds the required pressure. Document test results for record-keeping.
Tip: Use leak-detection methods and document results for future service. - 6
Install heat pump and connect to distribution
Mount the outdoor unit and indoor air handler or radiant interface. Connect refrigerant lines, electrical service, and control wiring to the distribution system. Ensure clearances for service access and airflow.
Tip: Keep refrigerant lines insulated and routed away from heat sources. - 7
Electrical connections and controls
Have a licensed electrician handle all power connections, disconnects, and grounding. Install thermostats and zone controls that optimize operation across living areas. Verify safety interlocks and manual overrides.
Tip: Label all circuits and maintain a separate service disconnect near the outdoor unit. - 8
Commissioning and balancing
Run the system through a full commissioning sequence, confirming temperatures, flow rates, and system responsiveness. Balance airflow or loop flow to achieve even comfort across zones. Record all readings and adjust as needed.
Tip: Schedule a post-installation check with the installer to confirm performance targets. - 9
Post-installation maintenance plan
Create a maintenance plan that includes annual heat pump service, loop-field checks, and refrigerant and electrical inspections. Store system drawings and service history for future reference. Set expectations for seasonal checks and potential component replacements.
Tip: Keep a dedicated folder with warranties, manuals, and service logs.
Got Questions?
What is geothermal system install?
Geothermal system install is the process of installing a ground-source heat pump and loop field to heat and cool a home. It includes site assessment, sizing, permitting, loop field installation, and commissioning. Proper planning ensures energy efficiency and long-term reliability.
Geothermal system install means putting in a heat pump and buried loops to heat and cool your home, with planning, permits, and careful setup.
How long does installation take?
Timelines vary by home and loop type, but most residential projects span several days to a week, with permitting adding lead time. A coordinated plan helps avoid delays.
Most home geothermal installs take several days to a week, depending on loops and permits.
What factors influence cost?
Cost depends on loop field type, soil conditions, home size, heat pump capacity, and permitting. Extensions to existing systems and trenching or drilling complexity also affect price. Expect a broad range rather than a fixed number.
Costs vary with loop type, soil, home size, and permitting; there isn’t a single price.
Can I install geothermal system myself?
Geothermal installs involve complex electrical work, drilling, and refrigerant handling, which typically require licensed professionals and permits. DIY installation is not recommended due to safety and code compliance concerns.
It's not advised to install geothermal systems yourself because of safety and code requirements.
What maintenance is required?
Schedule annual heat pump service, check loops for leaks, and inspect refrigerant levels and electrical connections. Maintaining documentation helps with warranties and future repairs.
Annual service, leak checks, and keeping records are key to long-term performance.
Are permits required for geothermal installs?
Most jurisdictions require permits for electrical, plumbing, and sometimes drilling work. Check with your local building department and schedule inspections as part of the project plan.
Yes—permits are typically required for electrical, plumbing, and drilling work.
Watch Video
Main Points
- Define system goals early and set a realistic budget.
- Accurate load calculations prevent under- or over-sizing the heat pump.
- Choose loop field type based on space, geology, and climate.
- Professional installation ensures safe, compliant, and efficient operation.
- Establish a maintenance plan to sustain performance and longevity.
