Ductless Heat Pump Install: A Homeowner's Step-by-Step Guide
Learn to install a ductless heat pump with clear, step-by-step guidance for homeowners and DIY enthusiasts. Planning, sizing, mounting, wiring, and commissioning explained for safer, efficient operation.
By following this guide, you’ll complete a ductless heat pump install safely and effectively, including planning, mounting indoor and outdoor units, routing lines, wiring, charging, and commissioning. You’ll focus on proper sizing, permit requirements, and post-install checks to ensure energy efficiency and reliable operation. This overview is intended for homeowners, DIY enthusiasts, and renters tackling installation tasks, with safety and best-practice guidance in mind.
What a ductless heat pump install is and why homeowners choose it
Ductless heat pumps, commonly referred to as mini-splits, provide heating and cooling without the need for ductwork. The Install Manual team notes that homeowners often select ductless systems for improved zone control, easier retrofits in retrofit-friendly spaces, and higher energy efficiency due to reduced duct losses. In a typical ductless heat pump install, an outdoor condenser connects to one or more compact indoor units that can be mounted on walls or ceilings in individual rooms or zones. This configuration allows precise temperature management without disturbing other areas of the home. While the installation benefits from its flexibility, it also requires careful siting, proper electrical connections, refrigerant piping, drain management, and air sealing to maximize performance. Planning ahead—considering climate, room layout, and future expansion—helps prevent costly modifications later. The Install Manual approach emphasizes safety, code compliance, and best practices to ensure long-term reliability. Expect to coordinate with electrical and, in some regions, building permits. A well-executed ductless heat pump install can deliver steady comfort, better humidity control, and noticeable energy savings when sized and configured correctly.
Planning considerations and prerequisites
Successful ductless heat pump install starts with a solid plan. Before you mount any head or outdoor unit, evaluate electrical capacity and panel space to support the additional load. Check local codes for permit requirements and discharge restrictions, especially if refrigerant line work or electrical modifications are involved. Identify optimal indoor head locations to maximize airflow and minimize hot or cold spots, while ensuring access for maintenance and filter cleaning. Outdoor unit placement matters too: allow adequate clearance for airflow, avoid high-traffic zones, and place the unit on a stable surface with a vibration-dampening pad. Route lines and cables to minimize long, bend-heavy runs and protect them from moisture and physical damage. Budget for insulation of the refrigerant lines and condensate drainage considerations. According to Install Manual, proper planning reduces the risk of leaks, poor performance, and noise complaints, and it also speeds up the actual install when licensed technicians perform critical steps such as brazing and refrigerant charging.
Sizing, zoning, and selecting indoor/outdoor units
Sizing is critical for a ductless heat pump install. Oversized or undersized equipment leads to comfort problems and wasted energy. A correct approach weighs the heating and cooling load of each zone, the number of rooms served, and the thermal characteristics of walls, windows, and insulation. A common strategy is to pair a single outdoor condenser with multiple indoor heads to serve distinct zones, enabling you to tailor comfort and efficiency. Indoor units come in different configurations (wall-mounted, ceiling cassette, or floor-mounted) to suit room geometry and aesthetics. The outdoor unit should be matched to the aggregate capacity of the chosen heads, with attention to refrigerant line lengths and worst-case operating conditions. When selecting components, consider efficiency ratings, warranty terms, and compatibility with existing smart thermostats or control systems. The goal is to balance energy savings, indoor air quality, and long-term reliability without overburdening electrical circuits or ventilation.
Energy efficiency and cost considerations
Ductless heat pumps excel in energy efficiency due to variable-speed compressors and inverter technology, which ramp output to match demand instead of cycling on and off. Higher efficiency ratings typically translate into lower operating costs and quieter performance. While the upfront cost of a ductless heat pump install can be higher than some window units or portable heaters, the energy savings, improved comfort, and zoning flexibility often justify the investment over time. Factors influencing cost include equipment efficiency, number of indoor heads, line length, and the complexity of mounting and routing. Additionally, climate control strategies—such as prioritizing heat pump operation during shoulder seasons and relying on auxiliary heat sparingly—affect annual energy use. The Install Manual perspective emphasizes planning for year-round comfort and considering potential rebates or incentives where available. Energy efficiency also ties into indoor air quality, humidity control, and the system’s ability to maintain stable temperatures with fewer drafts.
Installation sequencing and safety considerations
A ductless heat pump install involves several sequential tasks, and some steps require professional licensing, especially refrigerant handling and electrical work. Start with securing permits (if required) and turning off power to related circuits. Indoor head mounting, line-set routing, and outdoor unit placement should be performed with care to avoid damage to walls, ceilings, or exterior surfaces. Always wear appropriate PPE and follow safe electrical practices; never bypass disconnects or overload circuits. Refrigerant charging, leak testing, and final system performance verification are typically performed by a licensed technician using calibrated tools to ensure compliance with local codes and safety standards. If you are not a trained technician, plan to have the critical refrigerant work and final commissioning completed by a pro, while you can handle the planning, mounting, and line routing under supervision.
Post-install checks and maintenance plan
After commissioning, run a full system check to confirm all zones respond correctly to thermostat commands, and that airflow is balanced across indoor units. Inspect condensate drainage for proper slope and discharge; verify electrical connections are secure and protected from moisture. Schedule periodic maintenance, including filter cleaning or replacement, routine visual inspections of line sets, and heat exchanger cleanliness. Document system settings, warranty information, and any service intervals. A well-documented maintenance plan helps sustain performance over time and makes future troubleshooting easier. The Install Manual guidance highlights keeping a log of seasonal checks to catch minor issues before they escalate.
Common mistakes and troubleshooting when needed
Common pitfalls include improper line-set routing leading to kinks or condenser restrictions, inadequate insulation causing energy loss, and neglecting air sealing around terminal walls which reduces efficiency. Inexperienced installers may attempt refrigerant work without proper equipment, which is dangerous and illegal in many jurisdictions. If you notice persistent ice on the outdoor coil, frequent cycling, or weak heating performance, consult a licensed technician for a refrigerant charge and leak check. Regular maintenance and correct troubleshooting steps can resolve many issues without major repairs. Always refer to local codes and manufacturer guidelines when diagnosing problems, and never bypass safety procedures to rush the install.
Tools & Materials
- Stud finder(Locate studs for mounting indoor unit brackets.)
- Drill/driver(For mounting brackets and electrical connections.)
- Masonry drill bit / hole saw(Create access holes in masonry walls if needed.)
- Level(Ensure indoor head and outdoor unit are perfectly level.)
- Copper refrigerant line set (paired sizes)(Two linesets (liquid and suction) for connections.)
- Flare tools / brazing kit(Connects refrigerant lines to units (professional use recommended).)
- Vacuum pump(Evacuate the line-set before charging.)
- Refrigerant manifold gauge set(Check pressures during charging and testing.)
- Electrical wire (appropriate gauge)(Supply wiring to the outdoor unit and any indoor disconnects.)
- Disconnect box and circuit breaker as needed(Code-compliant disconnect and power supply.)
- Outdoor pad or vibration-dampening feet(Provide level, stable support and reduce noise.)
- Insulation for line sets(Prevent condensation and energy loss.)
- Personal protective equipment (gloves, goggles, etc.)(Protect against sharp edges and refrigerant exposure.)

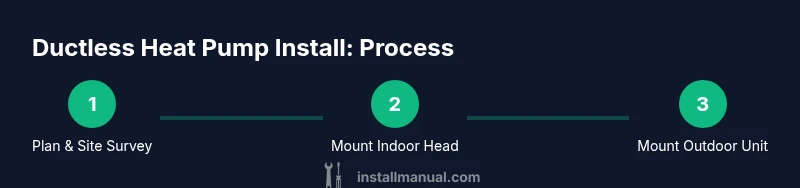

Steps
Estimated time: 8-12 hours
- 1
Assess site and plan layout
Survey the space to determine ideal indoor head locations, outdoor unit placement, and line-set routing. Confirm electrical capacity and local permit requirements. Create a rough schematic showing head positions, line routing, and service clearances.
Tip: Measure doorways and window openings to avoid future conflicts; plan for easy access for maintenance. - 2
Mount indoor unit brackets and heads
Mark mounting points, install brackets level, and mount the indoor units according to manufacturer guidelines. Ensure adequate clearance for airflow and access for filter cleaning.
Tip: Use a laser level to ensure precise alignment; misalignment affects drainage and performance. - 3
Route line set and electrical conduit
Run refrigerant lines and wiring from the indoor unit to the outdoor location. Keep lines protected, avoid sharp bends, and maintain a clean, concealed route where possible.
Tip: Keep bends gradual; sharp angles can trap refrigerant and reduce efficiency. - 4
Mount outdoor unit and pad
Place the outdoor condenser on a stable, level pad with sufficient clearance for airflow. Secure mounting to minimize vibration and noise transmission.
Tip: Avoid placing the outdoor unit in a low-lying alcove or near windows to minimize noise impact. - 5
Connect refrigerant line set and electrical
Make the refrigerant connections and electrical wiring between indoor and outdoor units. This step often requires brazing and electrical skills and should comply with local codes.
Tip: If you’re not a licensed technician, plan to have refrigerant work performed by a pro. - 6
Vacuum, charge, and test
Evacuate the line set, charge with refrigerant to the correct level, and perform leak checks. Run a full system test in heating and cooling modes and verify airflow balance across zones.
Tip: Use a calibrated vacuum gauge; a poor vacuum can introduce moisture and affect performance.
Got Questions?
Do I need a permit for a ductless heat pump install?
Permit requirements vary by locality, but many regions require permits for electrical alterations and refrigerant work. Check your city or county building department before starting. A licensed contractor can help ensure compliance and avoid potential fines.
Permit requirements vary by location; check with your local building department before starting to stay compliant.
Can I install a ductless heat pump myself or should I hire a pro?
Homeowners can handle planning, mounting, and line routing, but refrigerant handling, brazing, and final charging should be performed by a licensed HVAC professional. This ensures safety, code compliance, and proper operation.
Better to hire a licensed HVAC pro for the refrigerant work and final commissioning.
How long does a typical ductless heat pump install take?
A typical install can take a full day or longer depending on home layout, number of indoor heads, and access. Complex retrofits or multi-zone configurations may require additional time.
Most installs take a day or more, depending on zoning and access.
What factors affect the cost of a ductless heat pump install?
Cost varies with the number of indoor heads, outdoor unit size, line-length routing, and whether electrical upgrades or permit costs are needed. Financing options and potential rebates can influence overall cost.
Cost depends on system size, number of zones, and any necessary electrical or permit work.
What maintenance does a ductless system require after installation?
Routine maintenance includes filter cleaning or replacement, keeping outdoor coils clean, and checking line-set insulation and drainage. Schedule annual professional inspections for refrigerant checks and system health.
Clean filters regularly and schedule annual professional inspections.
Are ductless systems compatible with smart thermostats and controls?
Many ductless systems support smart thermostats and zone-based controls, but compatibility depends on the model and control interfaces. Verify with the manufacturer and your thermostat vendor before purchasing.
Most models work with smart controls, but check compatibility first.
Watch Video
Main Points
- Plan thoroughly to avoid costly retrofits later
- Size and zoning drive efficiency and comfort
- Professional refrigerant work improves safety and compliance
- Maintain records for warranties and maintenance
- Schedule regular post-install checks to sustain performance
