Commercial HVAC Install Guide: A Comprehensive DIY Roadmap
Learn how to plan, size, install, and commission a commercial hvac install with practical, safety-first guidance for homeowners, DIYers, and professionals. Includes planning, permits, ductwork, electrical, refrigerant handling, commissioning, and maintenance.
With this guide, you will learn how to plan, size, select equipment, and execute a commercial hvac install in a mid-sized building. It covers permits, ductwork, electrical, refrigerant safety, commissioning, and maintenance. According to Install Manual, thorough planning and professional collaboration reduce errors and ensure reliable performance from day one. This quick overview sets expectations and shows the path to a detailed, safety-first process.
What commercial HVAC installation entails
A commercial hvac install is a complex, multi-discipline project that delivers heating, ventilation, and air conditioning for larger spaces such as offices, retail centers, schools, and industrial facilities. Unlike typical residential systems, commercial installations often require rooftop units or large air handling units, extensive ductwork, Industrial-grade controls, and coordination with multiple trades. The goal is to achieve reliable comfort, energy efficiency, and compliance with local codes. The Install Manual team emphasizes a clear scope, defined responsibilities, and a phased approach to reduce rework and delays. In practice, expect to coordinate with building engineers, project managers, electricians, and sheet metal workers. Planning early, staging equipment, and validating space constraints are essential steps that drive performance and reduce risk on day one.
Pre-install planning and permitting
Before any bolt is tightened, lay out a detailed plan and confirm regulatory requirements. Start with a site assessment, including building envelope, insulation, occupancy patterns, and existing mechanical spaces. Identify required permits (mechanical, electrical, and possibly fire code) and schedule inspections to avoid hold-ups. Create a bill of materials, a rough project timeline, and a risk register. Install Manual analysis shows that early collaboration with stakeholders minimizes changes during construction. Document all approvals, ensure accessibility for service personnel, and align the project with energy codes and local requirements. For reference, consult DOE and OSHA guidelines during planning and safety planning.
Load calculation and system sizing
Sizing is foundational. Accurate load calculations ensure you select equipment with appropriate capacity and efficiency, avoiding oversized systems that waste energy and undersized setups that fail to meet comfort needs. The process typically involves climate data, building envelope assessments, occupancy loads, and internal heat gains from equipment. While there are software tools to assist, a careful double-check of inputs is crucial. The Install Manual approach stresses transparency: keep the assumptions visible, document your methods, and have the calculations reviewed by an engineer if the project’s scale warrants it. Proper sizing also influences duct design, refrigerant charges, and control strategies for consistent performance.
Selecting equipment and components
Equipment selection should balance efficiency, reliability, and lifecycle cost. Choose rooftop or packaged units for efficiency and serviceability, or select air handlers with energy recovery options for large spaces. Consider efficiency ratings (SEER, EER, IEER) and part-load performance for varying occupancy. Remember that compatibility with existing ductwork, electrical service, and building controls matters as much as raw efficiency. The Install Manual team recommends evaluating spare parts availability, warranty terms, and supplier support. Avoid underestimating vibration isolation, access for maintenance, and noise control — all of which impact user satisfaction and long-term reliability.
Ductwork design and airflow considerations
Duct design determines how well air is delivered to every zone. Proper sizing reduces pressure losses, minimizes noise, and improves comfort. Key steps include outlining supply and return paths, selecting appropriate duct materials, and applying friction and Reynolds number considerations to predict performance. Static pressure should be within the system’s design envelope to ensure adequate air volume at each grille. Use SMACNA or equivalent guidelines to determine duct dimensions, transitions, and sealing details. Ductwork should be insulated to minimize heat gain or loss and to reduce energy waste. Close attention to layout helps prevent short-circuiting of air flow and ensures uniform temperatures across spaces.
Indoor air quality and filtration considerations
Indoor air quality (IAQ) is a major focus for commercial installations. Select filtration with appropriate MERV ratings for your space, and consider outdoor air ventilation rates that meet code requirements without overburdening the system. Installing energy recovery ventilators (ERVs) or heat recovery ventilators (HRVs) can improve IAQ while conserving energy. Regular filter changes and access to ductwork for cleaning are essential maintenance habits. The goal is to minimize contaminants, manage humidity, and maintain a comfortable environment for occupants without compromising system performance. For more IAQ best practices, see authoritative sources and industry guidelines.
Mechanical room layout and space constraints
Mechanical rooms must accommodate equipment, service access, and safe clearances. Ensure there is adequate space for installation, future maintenance, and potential expansion. Plan for proper ventilation, clear identification of electrical panels, and safe pathways for refrigerant lines. Adequate structural support, vibration isolation, and temperature control within the room help protect equipment and extend life. The layout should account for service clearances around units, guidelines for equipment access, and safe stowage of tools and spare parts. A well-organized mechanical room simplifies commissioning and ongoing maintenance.
Refrigerant handling and safety
Refrigerant safety is a critical area of focus. Use only approved refrigerants and follow proper handling procedures to minimize leaks. Ensure technicians are trained on leak detection methods, recovery procedures, and recovery equipment operation. All work should comply with environmental regulations and manufacturer service guidelines. Maintain appropriate refrigerant charging documentation and safety data sheets (SDS) accessible on site. The importance of leak prevention cannot be overstated, as leaks can degrade system efficiency, compromise IAQ, and pose safety risks.
Electrical connections and controls
Electrical work requires strict adherence to code and safe practices. Verify that service entrances, breakers, and wiring are sized to support the new equipment. Install and verify disconnects, contactors, and control wiring, ensuring proper insulation, strain relief, and labeling for future maintenance. Integrate building automation and controls in a way that enables simple operation and robust fault diagnostics. If in doubt, engage a licensed electrician to perform critical electrical work and ensure compliance with local electrical codes.

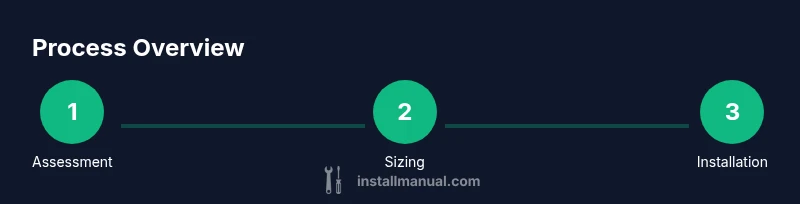

Installation steps overview
A successful commercial hvac install follows a logical sequence: site preparation, sizing validation, duct and electrical rough-in, equipment installation, refrigerant piping, wiring, controls, and commissioning. Document every stage, verify clearances, and check safety measures before energizing systems. This overview reinforces the idea that a well-planned project progresses in stages with clear handoffs between trades. Expect weather and site conditions to influence timing, and plan for contingency in the project schedule.
Commissioning and testing
Commissioning confirms that all systems deliver design performance. Perform leak checks, refrigerant charge verification, airflow balancing, and smoke and duct leakage tests. Test controls, sequence operations, and safety interlocks. Validate energy performance and comfort across zones, then finalize balancing and setpoints. Document results and secure signatures from responsible parties. A thorough commissioning process reduces post-install calls and ensures occupant comfort from the first day of operation.
Maintenance planning and long-term care
Once commissioned, establish a preventive maintenance plan. Schedule filter changes, coil cleaning, belt inspections, and equipment performance reviews. Keep spare parts inventory and service contracts arranged to minimize downtime. Establish a log of maintenance activities and system modifications for traceability. Regular reviews help detect early issues, support warranty requirements, and extend equipment life. This final section emphasizes that proper maintenance is essential for reliability and energy efficiency over the system’s life.
Tools & Materials
- Measuring tools (tape measure and laser)**(For accurate space measurements and ductwork layouts)
- Digital manometer or pressure gauge(Used during pressure and airflow verification)
- Leak detector (electronic or soap bubble method)(Critical for refrigerant system integrity)
- Vacuum pump and micron gauge(Necessary for purging and moisture removal from lines)
- Refrigerant recovery machine(Compliant recovery equipment per local codes)
- Wrench set and nut drivers(For connections on coils, valves, and duct hangers)
- Cordless drill and bits(Routinely used for mounting and fastener installation)
- Sheet metal snips and coping saw(Fabrication and trimming of ducts)
- Sheet metal screws, duct tape, and sealant(Sealing joints and ensuring airtight installations)
- Duct sealing materials (mastic or foil tape)(Minimizes air leakage and improves efficiency)
- Electrical meter and wire strippers(Safe and accurate wiring and verification)
- Personal protective equipment (PPE): gloves, goggles, hard hat(Essential for safety during all phases)
- Ladder or scissor lift(Access equipment and roof installations safely)
- Approved refrigerants and SDS documents(Use only manufacturer-approved refrigerants)
Steps
Estimated time: 4-7 days
- 1
Assess site and plan layout
Survey the building, determine zoning needs, and create a layout plan for equipment placement, duct routes, and service clearances. Confirm that structural support, access, and rooftop or mechanical room locations align with code requirements. Document constraints and key interfaces with other trades.
Tip: Take photos and mark reference dimensions on the plan for avoidable rework later. - 2
Perform load calculation and select equipment
Conduct a building load calculation to determine capacity needs and select equipment accordingly. Review energy efficiency targets and compatibility with controls. Have calculations reviewed by a qualified engineer if the project size warrants it.
Tip: Double-check inputs for occupancy patterns and solar gains to prevent oversizing. - 3
Prepare mechanical space and service access
Clear the mechanical room or rooftop area, verify ventilation, clearance, and safe access for maintenance personnel. Install temporary barriers if the site is active during construction and ensure electrical and gas lines are properly isolated until final connections.
Tip: Label all access doors and ensure floor loads are adequate for heavy equipment. - 4
Rough-in ductwork and air distribution
Lay out supply and return ducts, install main trunks, branches, and takeoffs, ensuring smooth transitions and minimal sharp bends. Seal ducts to minimize leakage and balance pressure losses across zones. Prepare for vibration isolation at rigid connections.
Tip: Keep duct routes level and supported to prevent sagging and noise. - 5
Install equipment and connect refrigerant lines
Mount units and air handlers, connect refrigerant piping with proper support and insulation, and route lines to minimize length and temperature changes. Ensure accessibility for future refrigerant service and prevent line interference with ductwork.
Tip: Use approved brazing practices and verify line insulation integrity before charging. - 6
Electrical connections and controls
Route control wiring and mains connections, install disconnects, and verify power quality. Integrate thermostat and building automation interfaces, ensuring proper labeling and safety clearances. Confirm that controls sequencing matches design intent.
Tip: Lockout/tagout procedures should be implemented during all electrical work. - 7
Install controls sensors and actuators
Place temperature sensors, pressure sensors, and zone actuators as per design. Verify communications with the control system and ensure fail-safe behavior for power loss or sensor faults. Document sensor locations for maintenance.
Tip: Calibrate sensors on-site and test response to setpoint changes. - 8
Pressurize, test, and refrigerant charge
Perform a smoke test or a non-radio leak test to verify joints, then evacuate the system, pull a vacuum, and charge refrigerant to the correct level. Monitor pressures and superheat/subcool for proper operation. Check for leaks after initial charge.
Tip: Always follow manufacturer refrigerant charging procedures and safety data sheets. - 9
Commissioning and airflow balancing
Run the system through all modes, balance airflows across zones, and confirm temperature setpoints are met. Verify compressor and fan operation under normal load and check noise levels. Document measured values and adjust as needed.
Tip: Record as-built duct sizes and final stat settings for future maintenance. - 10
Documentation and permits closure
Compile as-built drawings, equipment manuals, warranty information, and test certificates. Submit commissioning reports and ensure all permits reflect the completed work. Obtain sign-off from the relevant authorities or building owner.
Tip: Keep a single source of truth for manuals and warranties in a central file. - 11
Safety checks and final sign-off
Verify all safety interlocks, combustion safety (if applicable), electrical safety, and fall protection where roofs are involved. Confirm that the system operates safely and meets code requirements before turnover.
Tip: Perform a final walk-through with the owner or facilities team. - 12
Handover and maintenance planning
Provide maintenance schedules, contact information for service, and a warranty summary. Highlight critical operating parameters and how to recognize abnormal performance. Establish a plan for ongoing commissioning checks and energy optimization.
Tip: Give the client a simple troubleshooting guide and a kit of common spare parts.
Got Questions?
What permits are typically required for a commercial HVAC install?
Most projects require mechanical and electrical permits, and possibly a building permit depending on local rules. Always check with your city or county building department early in planning.
Most commercial HVAC installs require mechanical and electrical permits, with possible building permits depending on your location.
How long does a commercial HVAC installation usually take?
Durations vary by building size, system type, and permit timeline. Typical installations span several days to several weeks, incorporating planning, rough-in, commissioning, and handover.
Durations vary, but expect several days to weeks depending on building size and permits.
Do I need licensed professionals for a commercial HVAC install?
Yes. HVAC work, refrigerant handling, and electrical connections require licensed technicians to meet safety standards and code compliance.
Yes, licensed HVAC technicians and electricians are typically required.
What maintenance schedule is recommended after installation?
Schedule professional inspections annually, with quarterly filter changes and periodic coil cleaning. A maintenance plan supports efficiency and longevity.
Typically annual professional checks with regular filter changes.
What are common mistakes to avoid during installation?
Avoid undersizing or oversizing, neglecting duct sealing, skipping testing, and poor refrigerant handling. Poor airflow and leaks reduce efficiency and comfort.
Common mistakes include wrong sizing, leaky ducts, and skipping tests.
How is system capacity estimated for a commercial space?
Capacity is estimated via load calculations that consider climate, occupancy, equipment heat gains, and envelope performance. Don’t guess; verify with engineering review when needed.
Capacity should be based on formal load calculations and engineering review.
Watch Video
Main Points
- Plan early and align trades for a smoother install
- Accurate load calculations prevent over/under-sizing
- Duct design and sealing drive efficiency and comfort
- QA and commissioning minimize post-install issues
- Maintenance planning extends equipment life
- Document everything for compliance and future work
