What is Needed for Tile Installation: A Complete Guide
Learn exactly what is needed for tile installation, from substrates and underlayment to tools, materials, and finishing steps. This guide covers prep, layout, cutting, mortars, grouts, and safe practices for durable, professional-looking tile installations.
If you’re wondering what is needed for tile installation, you’ll need a solid substrate, a compatible underlayment, quality thin-set mortar, grout, spacers, a wet saw or tile cutter, a level, a tile nipper, spacers, and basic hand tools. This guide outlines essential steps, safety considerations, and material choices to help homeowners complete a durable, visually appealing tile project.
Introduction to the Essentials of Tile Installation
What is needed for tile installation is a combination of a sound base, proper materials, and the right tools. The process hinges on understanding the substrate, selecting appropriate underlayment, and using the correct mortar and grout for the tile you choose. According to Install Manual, preparation is as important as placement, because even a small deviation in level or substrate stability can cause cracks and failed grout joints later on. Before you buy anything, assess the room for moisture exposure, traffic, and substrate condition. A clear plan saves time, reduces waste, and increases the likelihood of a professional-looking finish.
Substrates and Underlayment: The Base You Can Trust
Tile life starts with a solid base. The ideal substrate varies by location and tile type, but common options include cement backer boards, layered plywood substrates that are properly prepared, and concrete slabs. In bathrooms and kitchens with moisture exposure, a waterproofing membrane or liquid-applied barrier adds resilience. Underlayment should be chosen to suit the tile and substrate: cement backer boards for floors, appropriate underlayment for walls, and a crack-isolation membrane where joints can transfer movement. Install Manual recommends testing for flatness and moisture before laying a single tile, as moisture-related issues are frequent culprits behind tile failures.
Tools and Materials: The Essential Toolkit
The right toolkit makes tile installation smoother and safer. Before you begin, gather the essentials: tape measure, pencil, chalk line, square, level, notched trowels (commonly 1/4 x 1/4 inch for most ceramic tiles), a wet saw or tile cutter, tile nippers, spacers, a grout float, mixing buckets, a drill with mixing paddle, backer board screws, thin-set mortar, grout, and a waterproofing membrane if needed. Don’t overlook a utility knife, rubber mallet, and sponges for cleanup. The exact products depend on tile type (porcelain, ceramic, natural stone) and substrate, so check tile manufacturer recommendations and local codes.
Layout and Surface Prep: Get the Plane Right
Effective tile installation begins with a precise layout. Dry-lay tiles to verify pattern, edges, and alignment before applying adhesive. Create reference lines with a chalk line and a level to ensure straight rows and square corners. Clean the surface thoroughly, remove old coatings or paint, and address any cracks or deformities in the substrate. If you’re working on a wet area, ensure proper slope toward a drain to prevent water pooling and potential mold growth. Proper layout reduces waste and helps you anticipate awkward cuts.
Mortar and Grout: Choosing and Applying Correct Materials
Thin-set mortar is the adhesive that binds tiles to the substrate, and choosing the right type is critical. Most indoor ceramic tiles use an unmodified or modified thin-set according to tile manufacturer specs and substrate. For natural stone or large-format tile, a polymer-modified mortar provides extra bonding strength. Grout fills the spaces and seals the joint; pick sanded grout for wider joints and unsanded grout for narrow joints. Mix mortars and grouts according to the manufacturer’s instructions, and avoid mixing more than you can use in a short period to prevent slump or premature drying.
Cutting and Fitting Tiles: Precision Without Waste
Cutting tiles to fit around outlets, edges, and corners is inevitable. Use a tile cutter for straight cuts and a wet saw for beveled or diagonal cuts and porcelain tiles. For irregular shapes, tile nippers can provide controlled, small adjustments. Always wear eye protection and follow safety guidelines while cutting. Take your time on intricate cuts and dry-fit portions before applying adhesive to ensure clean joints and consistent grout lines.
Grouting, Sealing, and Maintenance: Finish Strong
Grouting fills joints between tiles and locks the installation into a stable plane. After curing, seal grout in non-sealing joints or in wet environments to prolong life. Clean tiles with a damp sponge during grouting to prevent grout haze. Finally, protect the tile surface during curing, and allow the adhesive to cure fully before exposing the area to water or heavy use. Routine cleaning with a pH-neutral cleaner helps maintain color and finish over time.
Common Mistakes and How to Avoid Them
Rushing layout, using the wrong mortar for substrate, and skipping surface prep are common mistakes. Ensure flatness within 1/16 inch over 10 feet and always follow tile manufacturer guidelines for thin-set and grout. Maintain consistent grout joints and avoid mixing too much grout at once. The right sequence—layout, set, cut, grout, seal—reduces errors and improves results.
Maintenance: Longevity for Your Tile Investment
Regular cleaning with non-acidic cleaners prevents residue buildup. Check grout lines periodically for cracks and reapply grout sealer as needed in high-moisture areas. Protect the tile from heavy impact and use mats in entryways to reduce wear. With proper maintenance, even a DIY tile job can look fresh for years to come.
Tools & Materials
- Tape measure(Minimum 25 ft. Accurate to 1/16 inch.)
- Pencil or erasable marker(For layout marks on substrate.)
- Chalk line(For straight reference lines.)
- Carpenter square(Ensures right angles and straight corners.)
- Level(3- or 4-foot level for floor planes.)
- Notched trowel (e.g., 1/4 x 1/4 inch)(Choose size based on tile texture and size.)
- Tile cutter(For straight cuts on ceramic tiles.)
- Wet saw(Needed for porcelain and complex cuts.)
- Tile nippers(For irregular edges and small adjustments.)
- Spacers(Keep consistent grout joints (typically 1/8 inch).)
- Mixing buckets(For thin-set and grout mixing.)
- Mixing drill with paddle(Ensures uniform mortar consistency.)
- Backer board screws and drill/driver(Secure cement board to substrate.)
- Thin-set mortar (powder form)(Follow tile and substrate specs.)
- Grout (sanded or unsanded)(Choose based on joint width.)
- Grout float(Apply grout evenly and press into joints.)
- Sponge and clean water buckets(Clean haze and wipe surfaces during grout.)
- Waterproofing membrane or sealer (as required)(Use where water exposure is high.)
- Rubber mallet(Light taps to level tiles without chipping.)
- Knee pads(Comfort for long kneeling sessions.)

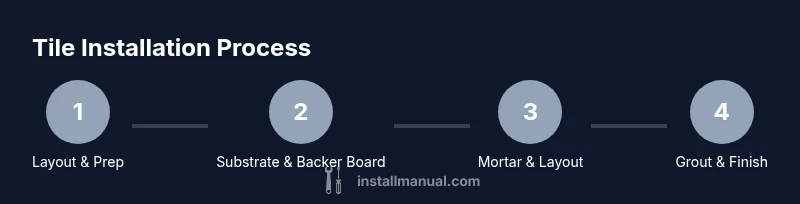

Steps
Estimated time: Total time: 6-8 hours
- 1
Prepare the workspace and verify layout
Clear the area, remove debris, and measure the space. Dry-fit several tiles to validate layout and edge conditions. Mark the reference lines with a chalk line and ensure the substrate is clean and flat before applying any adhesive.
Tip: Double-check doorway clearances and allow for expansion gaps at walls. - 2
Prepare substrate and install backer board
Install the cement backer board or approved substrate according to manufacturer instructions. Use corrosion-resistant screws and seal joints with appropriate tape or mesh. Check for flatness and fix any high or low spots.
Tip: Screw spacing should follow the backing board guidelines; a flat plane prevents lippage. - 3
Mix and apply thin-set mortar
Mix thin-set mortar to the manufacturer’s recommended consistency. Use a notched trowel to comb adhesive and then press tiles into position. Maintain even pressure to avoid air pockets and ensure full contact with the substrate.
Tip: Work in small sections to prevent the mortar from setting before tiles are placed. - 4
Lay tiles in a staggered pattern
Set tiles starting from the center or straight reference line, using spacers to maintain uniform joints. Avoid placing whole tiles at the edges where cuts will be necessary. Periodically check level and alignment across rows.
Tip: Keep consistent joints; dry-fit frequently to catch layout issues early. - 5
Cut tiles to fit edges and around obstacles
Use a wet saw for straight cuts and a tile nipper for curved edges or irregular shapes. Dry-fit cut pieces to ensure proper fit before adhesive sets. Apply adhesive to the back of the cut tile and press firmly.
Tip: Always wear eye protection and cut away from your body. - 6
Grout joints and seal as needed
Allow mortar to cure per guidelines, then mix and apply grout using a grout float. Seal grout joints in moisture-prone areas after curing if required by the grout product. Wipe away excess grout with a damp sponge to prevent haze.
Tip: Avoid over-wetting grout; too much water can weaken the mixture.
Got Questions?
What is the best substrate for tile installation over wood subfloors?
For wood subfloors, install a cement backer board or a suitable underlayment system that provides a rigid, moisture-resistant base. The substrate should be well-anchored and flat to prevent tile lippage and cracking. Always check tile manufacturer guidelines for compatibility.
Use a cement backer board over wood subfloors to create a stable base and prevent cracking. Follow the tile maker’s guidelines for compatibility.
How long does thin-set mortar need to cure before grouting?
Curing times vary by product, temperature, and humidity. Generally, allow the thin-set to cure for 24 hours before grouting in normal conditions, but always follow the manufacturer’s specified cure time.
Wait at least a day for the thin-set to cure, then you can grout, unless the product says otherwise.
Do I need waterproofing for bathroom tile installations?
Waterproofing is recommended in showers, tub surrounds, and any area with direct water exposure. Use a membrane or liquid waterproofing system per tile and substrate guidelines to prevent moisture damage.
Yes, in showers and other high-moisture areas you should use a waterproofing membrane.
Can I install tiles directly on plywood without backer board?
Most manufacturers require a cement backer board or equivalent for tile over plywood substrates to ensure stiffness and moisture resistance. Check tile specs and local codes before proceeding.
Usually not—add backer board to ensure a solid, moisture-resistant base.
What basic tools are essential for beginners?
At minimum, you’ll need a tape measure, tile cutter or wet saw, notched trowel, spacers, level, grout float, mixing bucket, sponge, and safety gear. Starting with these basics helps you complete standard tile projects successfully.
A tape measure, tile cutter, spacers, level, and grout float are great starter tools for beginners.
Watch Video
Main Points
- Plan layout before starting to reduce waste
- Choose substrate and waterproofing appropriate for the area
- Use the correct mortar and grout for your tile type
- Maintain consistent grout joints to avoid lippage
- Seal joints where moisture exposure is high to extend life
