Epoxy Garage Floor Install: A DIY Step-by-Step Guide
Learn how to install an epoxy garage floor with a proven, step-by-step method. This comprehensive guide covers surface prep, epoxy selection, mixing ratios, application, curing, and maintenance for a durable, eye-catching garage surface.
Epoxy garage floor install can transform a dull, dusty concrete slab into a durable, easy-to-clean surface. You’ll prep the floor, select a compatible epoxy system, mix precisely, apply base and top coats, and allow proper cure time with ventilation. Safety gear and following manufacturer instructions are essential. Check ventilation, work schedule, and warranty terms before you start.
Why epoxy garage floors are a smart upgrade
According to Install Manual, a properly installed epoxy garage floor install provides a tough, seamless surface that resists chemicals, oil spills, and abrasion. The epoxy forms a chemical bond with concrete, creating a hard, wear-resistant film that helps shield the substrate from moisture and staining. Install Manual analysis shows that when the surface is correctly prepared and the coating is applied within the recommended temperature and humidity ranges, epoxy floors offer long-term durability with relatively low maintenance. A well-executed epoxy coating also improves safety by creating a non-slip surface and reflecting light to brighten the space. In garages that store cars, tools, and heavy equipment, the right epoxy system can handle impact and traffic better than bare concrete. For homeowners, this upgrade can increase the perceived value of the space and simplify cleanup after messy projects. In short, epoxy garage floors install as a practical, long-lasting solution for concrete garages, especially when you follow the manufacturer’s directions and room conditions. The Install Manual team emphasizes careful prep and a quality topcoat to unlock lasting results.
Planning your epoxy floor project
Before you mix a drop of epoxy, map out the space and set measurable goals. Start by measuring length and width to determine total square footage, then check the floor for cracks or moisture and note areas needing extra attention. A precise plan helps you estimate epoxy coverage, mixing ratios, and cure times. Map out the order of operations—cleaning, etching or profiling, priming, base coat, topcoat—and decide whether you’ll do a single-color finish or add decorative chips. Having a written plan reduces mistakes, speeds up the project, and helps you coordinate with family members who may be helping. Also, check your local garage setup: ventilation, temperature, and humidity influence pot life and cure time. Install Manual's research indicates that working in a dry, warm (but not hot) environment and using fresh materials yields the best results, especially for epoxy garage floor install projects.
Choosing epoxy types and finishes
Not all epoxy coatings are created equal. For a garage floor, you’ll typically choose between solvent- or water-based epoxy resins, 100% solids epoxy, and polyaspartic topcoats. Water-based epoxy is easier to work with and lower in odor, but 100% solids options deliver the thickest, most durable film. Polyaspartic topcoats offer faster cures and greater chemical resistance but can be more expensive. When planning epoxy garage floor install, consider traffic, chemical exposure, and climate. The color and finish also matter: solid colors help reflect light, while broadcast chips provide slip resistance and hide minor imperfections. Always verify compatibility with concrete porosity and moisture tests. Install Manual suggests selecting a system that provides at least 2-3 mils of cured film per coat and a clear topcoat for UV stability.
Surface prep essentials
Concrete must be clean, dry, and structurally sound before epoxy garage floor install. Begin with a thorough cleaning to remove oil, grease, and dust. Degreasing with a commercial cleaner and a stiff brush helps; pressure washing is common but ensure a dry, pore-free surface afterward. Next, profile the concrete to improve adhesion—this could mean mechanical abrasion with a floor grinder or chemical etching. A moisture test (in-situ probe or plastic sheet method) confirms the surface is dry enough for epoxy; if moisture is detected, you must address it or postpone installation. Repair any cracks with a suitable filler and allow it to cure. Finally, vacuum and wipe the area again to remove dust. The goal is a dust-free, sound surface so the epoxy garage floor install bonds correctly and lasts.
Mixing, application, and curing basics
Follow the epoxy manufacturer's mixing ratios precisely. In general, pour the resin and hardener into a clean container and stir for the recommended time, then mix again in a larger batch for uniformity. Do not mix more than your pot life allows. Apply the base coat evenly with a roller or squeegee to avoid puddling, then immediately leave the next pass to maintain a wet edge. After base coat cures, apply the topcoat or decorative broadcast if desired. Maintain room temperature and ventilation during curing, and avoid traffic until the epoxy is fully hardened. The total cure time can vary by product and climate; plan for an overnight period and a longer cure before heavy use.
Common mistakes to avoid
- Skipping surface prep or not addressing oil stains reduces adhesion and can lead to peeling.
- Ignoring temperature or humidity limits shortens pot life and causes improper curing.
- Mixing incorrect ratios or reusing old hardener can yield soft, tacky coatings.
- Applying multiple coats without adequate drying time traps solvents and creates defects.
- Rushing the topcoat on a cool surface may compromise gloss and durability.
Maintenance and long-term care
A properly cured epoxy garage floor install is relatively low-maintenance. Sweep or use a damp mop to remove grit, and clean up chemical spills promptly with a mild degreaser. Avoid abrasive cleaners or steel wool that may scratch the clear topcoat. Place protective mats under heavy equipment and use felt pads on furniture legs to prevent gouges. Periodically inspect for chipping or cracks, and reseal or recoat as recommended by the manufacturer to preserve gloss and slip resistance. Regular care helps epoxy floors retain their visual appeal and functional performance for years.
Authority sources
- OSHA: https://www.osha.gov
- EPA: https://www.epa.gov
- CDC: https://www.cdc.gov
Next steps and getting help
If you’re unsure about the right epoxy system for your climate or garage usage, consider requesting a short consultation from a local contractor or a DIY-focused online community. Following the steps outlined above increases your odds of a durable, professional-looking epoxy garage floor install. The Install Manual team recommends documenting your process, testing adhesion on a small area first, and verifying cure before returning vehicles to the space.
Tools & Materials
- Two-part epoxy kit (base + hardener)(Choose a kit sized for the garage area; check pot life.)
- Concrete cleaner / degreaser(Use a product compatible with your concrete surface.)
- Floor grinder or diamond cup wheel(Needed if mechanical profiling is required for adhesion.)
- Etching solution or concrete etchant(Follow manufacturer directions if not using mechanical profiling.)
- Masking tape and plastic sheeting(Protect adjacent areas and control overspray.)
- Nitrile gloves, safety glasses, respirator (organic vapor)(Protect skin and lungs from vapors.)
- Paint rollers, roller covers, and squeegee(For even application and wet edge maintenance.)
- Mixing cups, stirring sticks, drill with mixing paddle(Accurate mixing and thorough incorporation.)
- Lint-free rags and solvent for final wipe(Optional but helpful for prep and cleanup.)
- Vacuum, dust mop, and broom(Keep the surface dust-free during prep.)
- Moisture meter or plastic sheet test kit(Optional but recommended for moisture-prone slabs.)
- Ventilation fans or portable air movers(Ensure good air exchange during mixing and curing.)

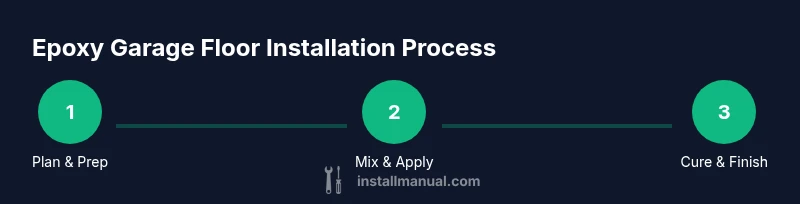

Steps
Estimated time: 24-48 hours
- 1
Measure and plan the layout
Mark the garage area with painter’s tape, record length and width, and calculate total square footage. Note expansion joints and cracks for repair, and decide if you’ll add decorative chips or a solid color. A solid plan minimizes wasted epoxy and ensures uniform coverage.
Tip: Double-check measurements; miscalculations lead to short coats and uneven color. - 2
Clear and protect the workspace
Remove vehicles and move items away from the workspace. Cover walls, cabinets, and drains; line door thresholds with tape to prevent spills. Ensure there is no standing water on the floor.
Tip: Seal off the area to minimize dust and fumes entering living spaces. - 3
Profile the concrete surface
If using mechanical profiling, grind the surface to create a keyed texture. If using chemical etching, apply the etchant per manufacturer instructions to open up pores for better adhesion.
Tip: Test a small area first to confirm adequate profile and adhesion potential. - 4
Repair cracks and anchor joints
Fill cracks with a compatible epoxy or concrete filler and allow it to cure fully before proceeding. For wide joints, install a flexible filler to prevent cracking under the coating.
Tip: Choose a filler that matches your epoxy system for best results. - 5
Mask edges and protect adjacent surfaces
Apply masking tape around walls and any fixed fixtures. Protect drains and sump pits with plastic covers to prevent epoxy from entering.
Tip: Use lower-tack tape to minimize pulling out finish on removal. - 6
Mix epoxy components precisely
Pour the resin and hardener into a clean container and stir for the recommended time. Only mix up enough for your pot life to avoid premature curing.
Tip: Scrape the sides and bottom to ensure complete fusion of components. - 7
Apply base coat evenly
Pour or roll the base coat in a systematic pattern to prevent puddling. Maintain a wet edge to avoid lap marks. Re-wet areas as needed for consistent coverage.
Tip: Work in 2-3 small sections at a time to keep edges wet. - 8
Add decorative chips or topcoat (optional)
If using color flakes, broadcast evenly while the base coat is still tacky. After the base coat cures to a firm, no-tack state, apply the topcoat in even strokes.
Tip: Avoid over-broadcasting chips; too many chips can create an uneven surface. - 9
Cure, ventilate, and return to use
Keep the space well-ventilated as the coating cures. Avoid traffic and loading for the recommended cure time; final full cure can take longer depending on product and climate.
Tip: Plan a 24-48 hour window before light vehicle use; full cure may require longer.
Got Questions?
What surfaces can epoxy garage floor coatings be applied over?
Epoxy coatings are designed for concrete slabs. If you're working with other substrates, consult the epoxy system’s guidelines or consider a suitable primer or substrate modification.
Epoxy coatings work best on concrete; check the product guidelines for other materials or primers.
Do I need to etch or grind concrete before applying epoxy?
Most installations require surface profiling, either via mechanical grinding or chemical etching, to ensure good adhesion. Follow the manufacturer’s instructions for your chosen system.
You typically need to profile the surface with grinding or etching to help the coating stick.
How long does epoxy garage floor take to cure?
Cure time varies by product and climate. Plan for at least 24 hours before light use and longer for full cure; follow the product’s guidelines for specific times.
Expect at least a day before light use; full cure may take longer depending on conditions.
Is epoxy safe for a home garage that houses vehicles?
Epoxy floors are designed to be vehicle-friendly once fully cured. Ensure adequate ventilation during installation and observe curing times before moving vehicles back.
Yes, but wait for cure and ventilate during installation.
Can I add decorative chips or color flakes?
Yes. Broadcast decorative chips while the base coat is tacky, then apply the topcoat after the base cures as directed by the manufacturer.
Decorative chips can be added while the base is tacky, then topcoat after curing.
What maintenance is needed after installation?
Sweep and mop with a mild degreaser as needed. Avoid harsh abrasives; reseal or recoat per manufacturer guidance to maintain gloss and slip resistance.
Clean with gentle products and reseal as recommended.
Watch Video
Main Points
- Plan with precise area measurements and a written workflow.
- Prepare the concrete thoroughly for best adhesion.
- Choose the right epoxy system for traffic and chemistry.
- Follow mixing, application, and curing instructions carefully.
