When installing an adjustable-speed drive it is important to follow best practices
Learn essential steps, safety checks, and documentation for installing an adjustable-speed drive (VFD). This guide covers wiring, motor compatibility, grounding, programming, testing, and compliance with electrical codes to keep people safe and equipment reliable.
Before you begin, ensure the drive matches the motor, supply, and enclosure ratings. Plan for wiring, cooling, and proper grounding, and verify manufacturer instructions. This guide covers essential steps, safety checks, and documentation to help you complete an installation confidently and safely, minimize downtime, and extend the life of the drive and driven equipment.
Why this matters: when installing an adjustable-speed drive it is important to align with electrical codes and safety
Installing an adjustable-speed drive (often called a variable frequency drive or VFD) is more than simply wiring a box to a motor. The stakes include operator safety, motor protection, and long-term equipment reliability. When installing an adjustable-speed drive it is important to start with a clear plan that accounts for motor ratings, supply parameters, enclosure protection, and control wiring. This section explains why this planning matters and how skipping early checks can lead to nuisance faults, nuisance tripping, or hazardous arc flash events. By grounding the process in industry standards and manufacturer recommendations, you reduce downtime and improve performance. According to Install Manual, following a structured, code-compliant process also helps ensure the installation remains compliant with local electrical codes and safety guidelines. A thoughtful start saves time later and makes commissioning smoother for maintenance teams.
- Key takeaway: accuracy at the planning stage prevents downstream errors.
- Related concept: motor nameplate data, enclosure rating, and environment influence drive selection.
Compatibility and planning
A successful VFD install begins with compatibility checks. Verify that the motor nameplate matches the drive’s output ratings (voltage, current, horsepower), and confirm the enclosure is suitable for the operating environment (dust, moisture, temperature). Check the control interface requirements (analog, digital, or fieldbus) and ensure the drive supports the application: constant torque, variable torque, or servo-like control. Plan cable routes to avoid heat sources, heavy vibration, or prolonged exposure to moisture. Document the project scope with a simple block diagram that shows the motor, drive, power supply, and control logic. By planning ahead, you minimize rework during commissioning and improve change-management traceability.
- Pro tip: create a naming convention for wires and labels so future technicians can trace connections quickly.
- Why it matters: mismatched drive and motor or poorly planned routing are common sources of faults.
Electrical fundamentals you must verify
Understanding the electrical fundamentals is essential before wiring a VFD. Confirm nominal supply voltage and frequency match the drive’s input specifications, and ensure the motor’s voltage rating aligns with the drive’s output. Verify available fault protections, such as fusing and circuit breakers, and ensure the service panel can handle the additional inrush during drive startup. Check that the grounding system is solid and meets local codes; proper grounding reduces EMI and improves safety. Review the drive’s manufacturer documentation for required motors, ambient limits, and cooling requirements. This pre-wiring audit reduces surprises during power-up and supports reliable operation under load.
- Pro tip: measure supply voltage in the panel with the system de-energized, then re-check after reconnecting with the main disconnect opened.
- Why it matters: incorrect voltage or grounding can damage the drive or create hazardous conditions.
Wiring and enclosure considerations
Wiring a VFD involves careful attention to motor leads, input power, and control wiring. Use shielded cable for long runs and route control wires away from high-current power cables to reduce interference. Follow color-coding and torque guidelines for terminal connections; loose terminals generate heat and can fail under load. If the installation is outdoors or in a damp environment, select an enclosure with an appropriate IP/NEMA rating and add appropriate condensation control. Grounding and bonding should be verified in both the drive and motor enclosures. Use proper strain relief and grommets to prevent cable damage.
- Pro tip: keep spare conductors for future sensor or feedback wiring so changes don’t require re-pulling cables.
- Warning: never bypass protective covers or expose live conductors during wiring. PPE and lockout/tagout procedures are mandatory.
Programming the drive for safe operation
After wiring, programming the drive correctly is critical for performance and safety. Set basic parameters: motor nameplate data (voltage, current, frequency), acceleration/deceleration rates, and max/min speed limits. Enable safe torque off and verify the drive’s fault and protection logic (overload, short circuit, overvoltage). If the application requires energy efficiency or specific speed profiles, configure the control mode (V/F, vector, or torque control) accordingly. Enable EMC filters if required by your environment to reduce electrical noise. Document all settings and provide change-control notes to maintenance teams.
- Pro tip: test a no-load ramp first, then progressively apply load to verify smooth acceleration without torque hiccups.
- Why it matters: incorrect parameters can cause motor overheating, nuisance trips, or equipment damage.
Protection and EMI considerations
Protective measures are essential for long-term reliability. Ensure proper bonding and shielding to minimize EMI emissions that could affect nearby electronics. Check enclosure grounding and provide suitable fusing for both the drive and motor circuits. Use proper motor protection (Overload, Overcurrent, and short-circuit protection) and verify that thermal monitoring is active. Consider line reactor or dv/dt protection to protect the drive from voltage spikes and reduce harmonic distortion. Implement lockout/tagout practices during any maintenance.
- Pro tip: place the VFD in an area with adequate air circulation and away from heat sources to prevent derating.
- Warning: EMI can affect nearby devices; document mitigation steps and test communication between devices after installation.
Testing and documentation
A thorough test plan ensures the installation behaves as expected. Perform a dry run without a load to verify startup, speed ramp, and fault handling. Check the motor current, drive temperature, and cooling system performance during ramping. Run a light-load test, then gradually increase to the expected operating point while monitoring for unusual noises, vibration, or heat. Capture all settings, wiring diagrams, and test results in a centralized project folder. Maintain a log of commissioning dates, firmware versions, and any field-adjusted parameters for future troubleshooting.
- Pro tip: keep a change-log with who made changes and why, so future technicians can trace decisions.
- Why it matters: documented commissioning reduces misconfigurations during future maintenance or expansion.
Common mistakes and how to avoid them
Common mistakes include underestimating inrush current, wiring control and power cables together, and skipping validation of motor-nameplate data. Another frequent issue is inadequate grounding or neglecting EMC considerations in noisy environments. To avoid these pitfalls, validate all nameplate data, separate control and power wiring, and perform staged testing with clear pass/fail criteria. Review the entire installation against the project checklist and manufacturer installation notes before energizing the system. A disciplined approach pays dividends in reliability and safety over the life of the drive.
- Pro tip: perform a post-installation review with another technician to catch issues you might overlook.
- Note: if any fault occurs, consult the drive’s fault code guide and retrace wiring and parameter steps.
Authority sources
- OSHA electrical safety guidelines: https://www.osha.gov
- National Institute of Standards and Technology (NIST): https://www.nist.gov
- NFPA codes and standards for electrical safety: https://nfpa.org/codes-and-standards
Tools & Materials
- Multimeter(AC/DC voltage and current; verify ranges up to system voltage)
- Insulated screwdriver set(Ph0/Ph1/Ph2 tips; insulated handles)
- Wire strippers and cutters(Senior/precision wire gauges; strip to proper conductor size)
- Torque screwdriver or torque wrench(Follow drive terminal torque specs; prevent over-tightening)
- Cable glands, conduit fittings, and clamps(Secure routing and strain relief for power/control cables)
- Shielded/control cables(Shielded pair for control wiring; keep separation from power runs)
- Grounding strap and bonding wire(Ensure solid equipment grounding per code)
- PPE: safety glasses, gloves(Eye and hand protection; follow site safety rules)
- Schematic/diagram and motor nameplate(Reference during setup and verification)
- Lockout/Tagout kit(For safe power isolation during work)
- VFD manual and motor data sheet(Cross-check model-specific parameters)

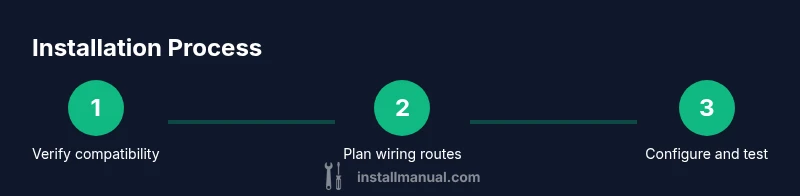

Steps
Estimated time: 2-4 hours
- 1
Verify compatibility
Check motor nameplate data against the drive’s output rating, and confirm the control interface requirements. Ensure the enclosure rating and ambient conditions meet both the VFD and motor specs. Confirm that the required protections are available and configured.
Tip: Document all nameplate data and ensure matching voltage, current, and frequency. - 2
Plan wiring routes
Map power and control cable paths, keeping high-current lines away from signal cables. Decide on enclosure location and cooling considerations, and prepare grounding points. Prepare cable trays or conduits to support clean, code-compliant routing.
Tip: Label all paths and keep spare length for future expansions. - 3
Isolate power and verify voltage-free
Open the main disconnect and verify absence of voltage with a calibrated meter. Use lockout/tagout procedures and confirm that all energy sources are isolated before handling any wires.
Tip: Test twice with the system confirmed de-energized. - 4
Connect motor and input power
Connect motor lead wires to the drive output terminals according to the schematic, and connect supply lines to the drive input. Use shielded cables where appropriate and tighten terminals to the manufacturer’s torque specs.
Tip: Double-check wire colors and terminal numbers before powering up. - 5
Configure basic drive parameters
Enter motor data (voltage, current, frequency) and set acceleration/deceleration rates, speed limits, and control mode. Enable safe-torque-off and verify fault protections. Save a baseline configuration for later reference.
Tip: Start with conservative settings and verify ramp behavior with no load. - 6
Grounding and EMI checks
Verify a solid grounding path for both drive and motor. Check shield integrity and ensure EMI mitigation measures (filters or reactors) are in place if required by the environment.
Tip: Document grounding scheme and any EMI mitigation installed. - 7
Perform test run and document results
Power up with a controlled test, monitor current, voltage, and temperature, and run through a staged load profile. Record measurements and any anomalies, and update the commissioning log.
Tip: Include pass/fail criteria and sign off from a qualified technician.
Got Questions?
What is an adjustable-speed drive and what does it do?
An adjustable-speed drive (VFD) controls motor speed by varying the AC supply frequency. It helps optimize energy use, reduce wear, and match process needs. Proper installation ensures safe operation and reliable performance.
A variable frequency drive adjusts motor speed by changing frequency, saving energy and reducing wear. Proper installation is essential for safety and reliability.
Can I install a VFD in a shared electrical panel?
Yes, but you must analyze panel loading, install proper separation between high-power and control circuits, and comply with code requirements for wiring, clearance, and protection. Obtain necessary approvals and follow manufacturer guidelines.
It’s possible with proper spacing and protection, and you should follow the manufacturer guidelines and local codes.
What are essential safety precautions during installation?
Lockout/tagout, PPE, verify de-energization, and proper grounding are essential. Ensure the area is dry, wires are clearly labeled, and that qualified personnel perform all electrical work.
Always lockout the power, wear PPE, and confirm the system is de-energized.
Do I need to de-rate the motor after installing a VFD?
In some cases, derating is necessary based on cooling, duty cycle, and drive capabilities. Refer to the motor nameplate and drive documentation to determine if derating is required for your load profile.
Sometimes you’ll need to derate depending on cooling and load; always check the motor and drive specs.
What documentation should I keep after installation?
Keep wiring diagrams, parameter sets, test results, and commissioning notes. This helps with troubleshooting, maintenance, and future upgrades.
Maintain a clear set of wiring diagrams, settings, and test results for future maintenance.
What if the drive faults during startup?
Record the fault code, consult the manual, verify wiring and parameter values, then re-test. If issues persist, consult a qualified technician.
If a fault occurs, write down the code and retry after checking wiring and settings.
Watch Video
Main Points
- Verify motor and drive compatibility before wiring
- Maintain clean, shielded control wiring routes
- Document all settings and test results vividly
- Follow lockout/tagout and grounding best practices
- Test with progressive load and log outcomes
