Starlight Headliner Install: A DIY Car Ceiling Lighting Guide
Learn how to install a starlight headliner in your car with a step-by-step guide covering pattern planning, wiring, mounting, testing, and finishing for a professional starry ceiling effect.
According to Install Manual, this guide teaches you how to install a starlight headliner in a car, covering fiber-optic mounting, LED wiring, and a careful test. Gather basic tools, a dry workspace, and a 12V power source. We’ll outline planning, safety checks, layout, installation, and final verification.
What is a starlight headliner and why install it?
A starlight headliner is a decorative ceiling upgrade for vehicles that uses fiber optic strands illuminated by a compact LED light source to create star-like points of light across the headliner. When installed correctly, the result is a subtle, immersive ambiance that can be tailored from faint twinkles to a brighter night-sky effect. This project blends interior design with electrical installation, so it’s important to plan carefully and respect safety guidelines. According to Install Manual, a well-executed starlight headliner not only enhances mood and aesthetics but can also add a touch of personalization that makes daily drives more enjoyable. Before you begin, understand that you’re working with the car’s electrical system and the headliner itself, which is delicate and easily damaged. The goal is a seamless, flush finish where the fibers disappear into the fabric and the LEDs stay hidden behind a fabric diffuser. In short, a successful install looks and feels like a factory feature, not a DIY afterthought.
Planning and prerequisites
Successful starlight headliner installation starts with careful planning. Verify vehicle compatibility, confirm that there’s enough headliner depth to accommodate the LED engine and diffuser, and review the car’s electrical system. Create a rough layout of fiber-optic points, keeping distance between strands to avoid crowding and hot spots. Gather a clean workspace, protective coverings for seats, and a dedicated hand tool set. Check local safety requirements and ensure you have a fire-resistant adhesive suitable for automotive interiors. This phase reduces the risk of reworking later and helps you achieve a professional finish that will last for years.
Electrical considerations and wiring options
Electrical work is the core of a starheadliner project. You have several options: hard-wired to the vehicle’s fuse box with an inline fuse, or a simpler plug-and-play 12V adapter from the cigarette lighter. The choice affects warranty, safety, and the length of wiring you must route. Always use a properly rated fuse close to the power source, route wires away from moving parts and airbags, and conceal wiring behind trim when possible. Use heat-shrink tubing and automotive-grade connectors to minimize vibration wear and corrosion. If you’re unsure about battery drain or surge protection, consult a professional or reference reputable electrical installation guidelines.
Choosing your star fiber kit
A quality starlight headliner kit contains fiber optic strands, a robust LED engine, a diffuser panel, and a control system that lets you adjust brightness and patterns. When selecting a kit, consider strand quantity, brightness level, and color temperature. Higher strand counts create a denser star field but require more power and precise routing. Choose a diffuse cover to hide the light source while ensuring a uniform glow. Read reviews for reliability, ensure compatibility with your headliner material, and verify that adhesives and mounting panels won’t damage the fabric over time.

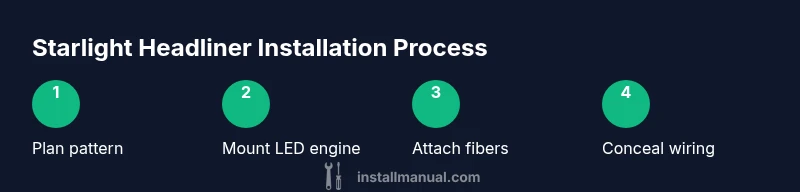

Step-by-step installation overview
Begin with a clear plan: map out the star points, then remove the headliner to access the interior. Install the LED engine in a discreet location, route power wiring, and attach the diffuser. Attach fibers to the headliner at planned points, securing the strands so they won’t shift during reinstallation. Reinstall the headliner, connect the power, and test the system before final finishing. This overview emphasizes alignment, clean routing, and avoiding pinching any fibers.
Mounting and fiber layout planning
Layout is critical for a natural star field. Start with a grid or random pattern, depending on preference, and mark mounting points on the headliner. Plan for fiber lengths to ensure they reach evenly from the LED source to each star point without excessive slack. Use thin, flexible fiber to minimize bulk, and secure fibers with low-profile adhesive patches or heat-activated fabric glue. Keep all fibers underneath the diffuser so your星ry ceiling looks seamless from outside.
Wiring, enclosure, and testing
Route all wiring along factory channels or hidden trims, avoiding areas that heat up or are near airbags. Secure the LED engine and controller in an enclosure that stays cool and is resistant to vibration. After wiring, perform a test before reinstalling the headliner. Check brightness, color consistency, and star point spacing. If any points are dim or misaligned, adjust fiber tension or reposition connectors. This step ensures a durable, reliable installation.
Finishing touches and safety checks
Refit the headliner, avoiding creases or folds that can trap fibers. Clean up stray fibers and reseal any adhesive edges. Reconnect the battery and perform a thorough safety check: ensure all connectors are secure, confirm no wires obstruct airbags, and verify that light heat won’t affect nearby components. Finally, test the system in various lighting conditions to confirm the star field looks natural in day and night driving.
Authoritative sources and safety reminders
For safety standards and practical guidelines related to vehicle electrical installations, consult these sources: the National Highway Traffic Safety Administration (https://www.nhtsa.gov/), the Consumer Product Safety Commission (https://www.cpsc.gov/), and energy-savings best practices from Energy Star (https://www.energystar.gov/). These references help ensure your project remains safe, compliant, and energy-efficient.
Tools & Materials
- Starlight headliner kit (fiber optic strands, LED engine, diffuser, controller)(Choose a kit compatible with your headliner and car model)
- 12V power supply or fused 12V vehicle power source(Inline fuse rated for kit power (check spec sheet))
- Automotive-grade wiring, connectors, and heat-shrink tubing(Ensure heat resistance and vibration tolerance)
- Pry tool set and trim removal tools(Careful headliner removal without tearing fabric)
- Soldering iron and solder (or crimp connectors)(For secure, durable connections)
- Adhesive (heat-resistant if required by kit)(Use automotive-grade adhesive suitable for headliner materials)
- Masking tape and protective covers(Protect seats and trim during installation)
- Multimeter (optional but recommended)(Check voltage and continuity)
- Cleaning supplies (micron cloth, isopropyl alcohol)(Prepare surface before applying adhesives)
Steps
Estimated time: 4-8 hours
- 1
Prepare workspace and safety check
Park the vehicle, disconnect the battery, and lay out protective coverings. Gather all tools and review kit instructions. Verify you have adequate space to work and that the interior is dry and clean to prevent contaminants from sticking to adhesives.
Tip: Always disconnect the negative battery terminal first to prevent shorts. - 2
Remove headliner for access
Carefully pry away trim panels and loosen the headliner, keeping clips intact. Support the panel to avoid sagging or tearing, and place it on a clean work surface.
Tip: Label or photograph clip locations to simplify reinstallation. - 3
Plan star pattern and mark points
Decide on a gentle, random or grid-like star layout. Use a washable marker or chalk to mark fiber attachment points on the headliner.
Tip: Balance density to avoid crowding near edges or corners. - 4
Mount LED engine and route power
Position the LED engine in a discreet location. Route power wires toward a chosen 12V source, keeping cables away from moving parts and hot surfaces.
Tip: Keep the power line away from airbag zones and door mechanisms. - 5
Attach fiber strands to headliner
Secure each fiber strand at its designated point using light adhesive patches or glue, ensuring strands remain straight and pointed toward the diffuser.
Tip: Do not over-stretch fibers; allow slight slack for natural bending. - 6
Connect wiring and test in situ
Connect power and signal wires to the controller, then briefly power on to check brightness and distribution of stars. Identify any dim or misaligned fibers.
Tip: If a strand is misaligned, gently reposition rather than re-cutting. - 7
Reinstall headliner with care
Place the headliner back into the roof and re-secure all clips. Worry about creases; smooth out any fabric as you reinstall trim pieces.
Tip: Take your time to avoid creasing or fabric damage. - 8
Final testing and adjustments
With the headliner installed, perform a full test in dark and light conditions. Tweak brightness and star spacing as needed for a natural look.
Tip: Document settings for future maintenance. - 9
Safety check and finish
Check for loose wiring, verify no wires contact moving parts, and ensure no heat buildup. Clean surrounding surfaces and store tools securely before driving.
Tip: Keep a spare fuse and connectors on hand for quick fixes.
Got Questions?
Do I need to remove the headliner to install a starlight kit?
In most cases, removing the headliner gives better access for fiber layout and wiring. Some kits offer plug-and-play options, but a clean installation typically requires removal to route wires behind trim and avoid dashboard interference.
Usually you’ll need to remove the headliner to lay out fibers and hide wiring for a clean look.
Is a star headliner safe for cars with airbags?
Yes, provided you avoid airbag zones and route wiring away from deployment paths. Follow vehicle-specific safety guidance and use low-heat, automotive-grade components.
Yes, as long as you avoid airbag areas and use proper components.
What power source should I use for the LEDs?
Most kits run on 12V power from the vehicle with a fuse. You can also use a supervised 12V supply or a dedicated power rail with appropriate protection.
A 12V vehicle power source with proper fusing is typical.
How long does installation typically take?
Expect 4-8 hours for a thorough job, including planning, layout, wiring, and reinstallation. Experience can reduce time by a few hours.
About half a day to a full day for most setups.
Can I install a starlight headliner in a rental car?
It is possible but not recommended due to potential damage and restrictions. If you proceed, ensure you can revert the modifications safely and without affecting the car’s resale value.
It’s possible but not ideal; check rental terms and revertibility first.
Watch Video
Main Points
- Plan the layout before removing the headliner.
- Route and secure wires away from airbags and moving parts.
- Test lighting before final assembly.
- Use proper adhesives and heat resistance.
- Reinstall carefully to avoid fabric damage.
