How to Install a Tesla Charger at Home
Learn how to install a Tesla charger at home with a safe, code-compliant process. This guide covers planning, permits, wiring, mounting, testing, and maintenance for homeowners and DIY enthusiasts.
To install tesla charger at home, choose the correct charger model, confirm your electrical service can support a dedicated 240V circuit, and hire a licensed electrician to wire and mount the unit safely. This guide covers planning, permits, mounting, wiring, grounding, calibration, and testing, plus safety checks. If your panel is undersized, expect upgrades and follow local codes and Tesla's installation instructions.
Why install tesla charger at home
Installing a dedicated home charging solution for your Tesla is a practical, value-adding upgrade for any homeowner. The phrase install tesla charger at home captures the goal of moving from occasional public charging to a reliable, convenient, and faster charging option right at your property. When you plan to install tesla charger at home, you balance convenience, safety, cost, and compliance. According to Install Manual, preparing your charging setup ahead of time reduces delays and safety risks. Public charging remains a good backup, but a home charger provides predictable charging speed, better battery management, and the option to take advantage of off-peak rates. The most common setup is a dedicated 240V circuit with a Level 2 EVSE mounted in a convenient location. The Tesla Wall Connector is widely chosen for its seamless vehicle integration, though other Level 2 units can work if properly installed and code-compliant. In many homes, charging at higher amperages is possible with an appropriately rated service panel. Plan for future expansion and potential utility incentives that can influence final configuration. Install Manual analysis shows that homeowners who plan ahead save time and avoid rework later.
Safety and code considerations for home charging
Charging equipment is generally safe when installed correctly, but it involves exposed electrical circuits and high voltage. Before you begin, understand that local electrical codes, NEC guidelines, and your utility requirements govern how you install a Tesla charger at home. Hire a licensed electrician to assess panel capacity, feasible circuit routing, grounding, and weatherproofing. Always de-energize the area before work, use appropriate PPE, and verify voltages with a multimeter. Ground fault protection and proper enclosure ratings are typically required, especially for outdoor installations. The goal is a safe, compliant system that minimizes arc faults or shorts. If you’re unsure about any step, stop and consult a professional. Regular maintenance and periodic inspections help sustain safety over time.
Selecting the right charger and installation pathway
Choosing the right charger means matching your vehicle, driving habits, and electrical service. The Tesla Wall Connector is popular for Tesla owners due to its native compatibility and app-based monitoring, but other Level 2 EVSE units can work if they meet local code and vehicle compatibility. Consider charge rate (amps), cable length, weather resistance, and mounting location when selecting a model. Outdoor installations require weatherproof enclosures and UV-resistant coatings, while indoor setups demand proper cable management and ventilation. The installation pathway should minimize cable exposure, reduce tripping hazards, and keep maintenance simple. Always verify the charger’s warranty terms and ensure the unit supports the maximum available circuit capacity without compromising safety or code compliance.
Electrical capacity, panel upgrades, and permits
A successful home Tesla charger installation starts with the electrical service, panel capacity, and available 240V circuits. Many homes need a dedicated 40A or 60A circuit, with wire gauge matched to amperage (for example, 6 AWG for 40A and 4 AWG for 60A). Assess whether your service panel has spare slots, sufficient bus rating, and room for potential future upgrades. Permits are common in many jurisdictions; an electrician can help prepare and submit the paperwork, arrange inspections, and ensure compliance. If upgrades are required, plan the timeline and budget accordingly, factoring in lead times. This planning reduces the risk of last-minute changes and costly rework.
Permits, scheduling, and inspections
Permits ensure your installation adheres to safety standards and local codes. Work with a licensed electrician who can handle permit applications and coordinate inspections. Scheduling around utility requirements and inspection slots helps avoid delays. Keep copies of all permits, inspection reports, and wiring diagrams for future service or resale. If your area requires an electrical inspection after installation, complete this step promptly to validate the system and maintain coverage under warranties. A well-documented process also assists future upgrades or service calls.
Maintenance, troubleshooting, and staying compliant
Once installed, regular maintenance keeps your Tesla charger operating safely and efficiently. Inspect weatherproof seals, check for loose connections, and verify charging efficiency with occasional test sessions. If you notice tripping breakers, overheating, or degraded cable insulation, contact a licensed electrician immediately. Stay informed about local code updates and manufacturer guidance, as requirements can evolve with new safety standards. Keeping documentation, maintenance records, and calibration notes ready will help during any future inspections or warranties. Remember to monitor the charger’s app for status alerts and use device-specific safety features to minimize risk.
Authoritative sources
- https://afdc.energy.gov/charging-stations/home-charging
- https://www.energy.gov/eere/electricvehicles/charging-at-home
- https://www.tesla.com/support/home-charging-installation
Tools & Materials
- Tesla Wall Connector or compatible Level 2 EVSE(Choose model compatible with your vehicle and local code; ensure it supports the desired amperage.)
- Dedicated 240V circuit breaker(Size to charger amperage (commonly 40A or 60A).)
- Appropriate gauge wiring (e.g., 6 AWG for 40A, 4 AWG for 60A)(Matching wire size to breaker and distance; use conduit as needed.)
- Conduit and fittings(Indoor or outdoor rated; use weatherproof fittings for exterior runs.)
- Ground fault protection and weather-rated enclosure(Code requirements vary; verify with local authority.)
- Voltage tester and multimeter(Verify power is off before work; confirm correct voltages during install.)
- Mounting hardware (brackets, screws, anchors)(Use hardware rated for outdoor use if installing outside.)
- Permits and inspection documentation(Required in many jurisdictions; plan ahead and track approvals.)
- Personal protective equipment (PPE)(Gloves, eye protection, and non-conductive footwear.)
- Electrical tape and wire nuts(Secure terminations and label circuits clearly.)
- Documentation for warranty(Keep manuals, serial numbers, and inspection records.)

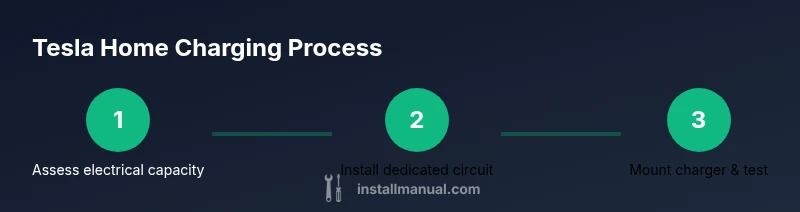

Steps
Estimated time: 4-8 hours
- 1
Assess electrical capacity
Have a licensed electrician evaluate your service panel, existing loads, and whether a dedicated 240V circuit is feasible. They will determine the required feeder capacity and whether any panel upgrades are needed.
Tip: Start with a site plan that shows your panel location, charger location, and route options. - 2
Choose mounting location and route wiring
Select a safe, dry, easily accessible spot near your vehicle’s typical charging area. Plan the cable path to minimize length, avoid moisture, and reduce exposure to physical damage.
Tip: Consider future EVs and potential panel expansions when routing. - 3
Install dedicated 240V circuit
Install the circuit breaker and run the appropriate gauge wire in conduit or raceways. Ensure proper clearance, strain relief, and correct conduit fill.
Tip: Follow NEC guidelines for conductor routing and protection. - 4
Mount the charger and prepare wiring
Mount the EVSE bracket, secure the unit, and pull wires to the charging location. Install strain relief and ensure a clean, accessible connection.
Tip: Leave extra wire length for service adjustments or future relocation. - 5
Make connections and grounding
Connect conductors to the charger terminals and the circuit, attach the equipment grounding conductor, and verify proper grounding and polarity.
Tip: Double-check connections with a voltage tester before powering up. - 6
Configure charger and vehicle integration
Set amperage, enable charging modes via the app or charger interface, and ensure the vehicle recognizes the charger.
Tip: Record settings for future reference and warranty support. - 7
Test, inspect, and finalize permits
Power on, run a test Charge Cycle, and confirm behavior under load. Schedule and complete any required inspections to finalize the installation.
Tip: Keep permit numbers and inspection reports for resale or warranty validation.
Got Questions?
Do I need permits to install a Tesla home charger?
Most jurisdictions require a permit for a dedicated EV charging circuit. Check with your local building department and your utility. An electrician can help you obtain permits.
Yes. A permit is usually required; contact your local building department to start.
Can I install the charger myself?
Electrical work is hazardous and often requires a licensed electrician to meet code and safety standards. Some basic tasks may be allowed in a service panel, but Tesla's installation typically requires a pro.
DIY is not recommended; hire a licensed electrician.
What size breaker and wire do I need?
The charger requires a dedicated 240V circuit sized to its amperage; common configurations are 40A or 60A with matching wire (e.g., 6 AWG or 4 AWG).
You’ll typically use a 40 to 60 amp circuit with appropriate gauge wire.
Is a Tesla Wall Connector the only option?
Tesla offers the Wall Connector, but other Level 2 EVSE units can be used if they meet your vehicle’s charging standards and local codes.
Other Level 2 chargers can work, but check compatibility and code.
How long does installation take?
Time varies with electrical upgrades and permitting, but a typical home install may take several hours to a day.
It can take several hours to a full day depending on upgrades.
Will home charging affect insurance or warranty?
Most policies don’t block charging equipment, but you should notify your insurer and check coverage for electrical work and equipment.
Check with your insurer about coverage for the install.
Can I install outdoors?
Outdoor-rated units and weatherproof connections are required; ensure proper mounting and protection from moisture.
Outdoor installations are possible with weatherproof equipment.
Watch Video
Main Points
- Assess electrical capacity before purchasing equipment.
- Choose a charger model that fits your vehicle and panel.
- Install a dedicated 240V circuit with proper wiring.
- Obtain permits and complete inspections as required.
- Test thoroughly and document all steps for future service.
