Install Recessed Lighting: Step-by-Step Home Guide
Learn how to install recessed lighting safely and efficiently with a step-by-step guide, tool list, safety tips, and troubleshooting from Install Manual.
By the end of this guide, you will successfully install recessed lighting in a living space. You'll plan the layout, choose the right IC-rated fixtures and LED bulbs, run safe wiring, and finish with clean trim and dimmable control. This project requires basic electrical knowledge, a permit where required, and careful attention to safety.
Why Recessed Lighting Is a Smart Choice
Recessed lighting blends with ceiling planes for clean lines, expands lighting in tight rooms, and minimizes glare. It’s ideal for living rooms, kitchens, hallways, and home offices. With LED recessed fixtures, you gain energy efficiency and longer life, reducing hot spots and shadows. According to Install Manual analysis, a well-planned recessed lighting scheme can dramatically improve task lighting and ambiance without bulky fixtures. The result is a versatile, unobtrusive lighting system that supports dimming and scene control. In this guide, we’ll walk through planning, selecting fixtures, and executing a safe installation that respects insulation and air-seal considerations.
As you read, keep in mind that Install Manual prioritizes practical, safety-first guidance for homeowners, renters, and DIY enthusiasts. This article uses plain-language explanations and concrete steps so you can complete the job with confidence.
Planning Your Layout and Zones
Effective recessed lighting starts with a thoughtful layout. Map rooms into lighting zones and avoid placing fixtures where furniture will block illumination. In a typical living space, aim to distribute light evenly across the ceiling with fixtures no more than 4–6 feet apart, adjusting for ceiling height and room function. The Install Manual team recommends planning one or two brighter task zones (e.g., above a kitchen island or reading nook) and softer ambient lighting elsewhere. Mark all proposed can locations on a ceiling plan, then verify clearance from joists, ductwork, and insulation. If you’re unsure about circuits or box fills, consult local codes and consider a licensed professional for the final connection. This planning phase helps prevent hot spots and ensures uniform light distribution across the room.
Fixture Types and LED Considerations
Choose IC-rated housing designed for insulation contact to minimize heat buildup and maximize energy efficiency. For most homes, remodel or new-construction housings are available; select the style that matches your ceiling type. LED modules and retrofit kits offer long life and dimmable options, which are essential for creating scenes and reducing energy use. When selecting trims, consider cone or baffle designs to control glare and direct light where you need it most. Remember to compare lumen output, color temperature, and dimming compatibility so your fixtures harmonize with existing lamps and wall switches.
Install Manual notes that pairing low-profile fixtures with dimmers commonly yields smoother lighting transitions and reduces eye strain. If you’re upgrading from incandescent bulbs, LED options will typically require fewer wattage equivalents to achieve the same brightness, which helps load calculations and energy costs.
Electrical Safety and Code Basics
Before touching wiring, review local electrical codes and permit requirements. In many jurisdictions, simple cosmetic lighting upgrades may not need a permit, but any new circuit or structural modification often does. Plan for proper box fill—each housing and its wires count toward the total—the way code requires. Use a ground fault circuit interrupter (GFCI) in damp areas and ensure all connections use proper wire nuts and strain relief. If you’re unsure about code compliance, consult a licensed electrician to avoid violations or hazards. This section emphasizes safety first, and Install Manual always recommends conservative, code-aligned practices for DIY projects.
Tools, Materials, and Prep (Overview)
Gather a complete list of tools and materials before starting. This section outlines core items you’ll need and why they matter, while the dedicated Tools & Materials block (below) provides a detailed shopping list. Preparation minimizes mid-project surprises and helps you work faster. Also, verify that all LED fixtures and dimming components are compatible to prevent flicker or poor performance. Finally, ensure you have a sturdy ladder and a helper if you’re installing multiple fixtures in high ceilings.
Step-By-Step Overview (High-Level)

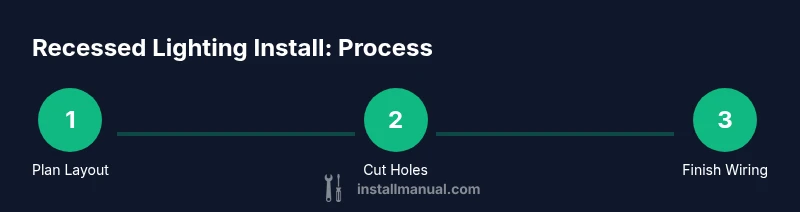

A successful recessed lighting project moves from planning to execution with a clear sequence: verify power, mark locations, cut ceiling holes, run wiring, install housings, connect wires, install LED modules, attach trims, and test. This overview mirrors the detailed STEP-BY-STEP section and provides context for the practical actions you’ll perform next. Throughout, maintain neat wiring routes and avoid pinched cables behind insulation. If you’re new to electrical work, proceed with caution and consult the Safety Notes below.
Troubleshooting, Common Mistakes, and How to Avoid Them
DIY lighting projects frequently stumble on issues like uneven light, dimmers that don’t play well with LED modules, or insulation contact gaps that cause air leakage. Common mistakes include overestimating fixture counts, underestimating circuit capacity, and ignoring trim glare. To avoid these problems, always plan around ceiling height, room function, and dimming needs; test lighting in stages; and verify compatibility of all components. This section also covers how to respond if a fixture hums, flickers, or sits too close to insulation.
Finishing Touches: Inspection, Sealing, and Aesthetics
Finish with a clean, polished look by sealing around can housings where needed and patching drywall with paint to match your ceiling color. If the attic or ceiling cavity is exposed, take care to restore insulation and air sealing to maintain energy efficiency. Staging trim and adjusting light aim can enhance room ambiance and reduce glare. A tidy install not only looks professional but also prevents dust buildup and future maintenance headaches. Always verify that all connections are secure and that the switch operates smoothly.
Authority and Further Reading
For deeper understanding and to corroborate best practices, consider these reputable sources:
- U.S. Department of Energy: https://www.energy.gov
- Occupational Safety and Health Administration: https://www.osha.gov
- National Fire Protection Association (major publication): https://www.nfpa.org These references provide context on energy efficiency, electrical safety, and code-compliant installations. They complement the practical guidance in this article and reinforce safety-first decision making.
Main Topic and Wikidata Lookup
This article focuses on recessed lighting installation, a practical electrical-install topic that improves home ambiance and task lighting while maintaining energy efficiency. For quick reference in data tools, the Wikidata lookup noun phrase is recessed lighting.
Tools & Materials
- IC-rated recessed housing (air-tight)(Choose remodel or new construction type to fit ceiling)
- LED retrofit kit or LED modules(Dimmable compatible with chosen switch)
- LED bulbs (if not integrated)(Color temperature 2700K-3000K for warm ambiants)
- Dimmer switch compatible with LED(Look for compatibility with low-wattage LEDs)
- Electrical wire (14/2 or 12/2 NM cable with ground)(Follow local code for gauge and circuit rating)
- Grounding wire and wire nuts(UL-listed and rated for ceiling circuits)
- Hole saw (diameter matching can size, typically 4 inches)(Use a pilot bit and clamp to prevent wandering)
- Voltage tester / non-contact tester(Confirm power is off before work begins)
- Screwdrivers (flathead and Phillips)(Magnetic tips help with small screws)
- Wire stripper/crimp tool(Prepare wires cleanly for secure connections)
- Stud finder / ceiling joist locator(Avoid joists and ducts when placing cans)
- Ladder or scaffold(Stable platform for safe ceiling access)
- Spackle or drywall mud and paint(Optional for patching holes after install)
- Insulation and air sealing barrier (if needed)(Maintain insulation clearance around IC cans)
Steps
Estimated time: 2-6 hours
- 1
Turn Off Power and Verify
Go to the main panel and switch off the circuit you'll be working on. Use a non-contact voltage tester to confirm the line is de-energized before touching any wires.
Tip: Double-check nearby breakers; a mislabeled panel is common. - 2
Plan Layout and Mark Holes
Measure and mark the ceiling for each can location, using a chalk line or template. Ensure each mark has adequate clearance from joists, ductwork, and existing fixtures.
Tip: Locate joists first with a stud finder to avoid cutting into structural members. - 3
Cut Holes for Housings
Using the hole saw of the correct diameter, cut clean round holes at each marked location. Keep cuts smooth to avoid ragged edges and ensure a good fit for the housing.
Tip: Wear eye protection and keep the drill steady to prevent wandering. - 4
Run Wiring to First Fixture
Feed supply wire from your power source to the first ceiling box along ceiling joists, keeping wires organized and untangled. Use conduit or cable clamps as required by code.
Tip: Avoid sharp bends; use gentle curves to reduce wear over time. - 5
Install Housings and Boxes
Mount the IC-rated housing securely to framing, ensuring insulation clearance. Attach the electrical box per the manufacturer’s instructions and verify stability.
Tip: Check that housing is flush with the ceiling plane for proper trim fit. - 6
Make Electrical Connections
Connect the house wires to the fixture harness with wire nuts (black to hot, white to neutral, green/bare to ground). Tighten securely and push wires neatly into the box.
Tip: Label wires if you’re working with multiple circuits to prevent confusion later. - 7
Install LED Modules and Trims
Insert LED modules into housings and snap on the chosen trims. Adjust alignment for even light distribution and minimal glare.
Tip: Test fit before finalizing to ensure trims don’t rub against insulation. - 8
Wire the Dimmer or Switch
If using a dimmer, wire it in series with the hot lead according to the device instructions. Secure the dimmer in a nearby wall box if required.
Tip: Match dimmer rating to the total wattage of the LED fixtures. - 9
Test, Patch, and Finish
Restore power and test all fixtures for functioning lights and even brightness. Patch any ceiling holes with drywall mud, sand smooth, and touch up paint as needed.
Tip: Test one fixture at a time to identify any flicker or hum early.
Got Questions?
Do I need to hire an electrician to install recessed lighting?
If you’re comfortable with electrical work and understand local codes, a DIY install can be feasible. For complex wiring, multiple circuits, or high ceilings, hiring a licensed electrician is safer and ensures code compliance.
If you're comfortable with electrical work and know the local codes, you can DIY. For complex wiring or high ceilings, hire a licensed electrician to ensure safety and compliance.
Can recessed lights be installed in a finished ceiling?
Yes, using remodel housings designed for finished ceilings. Careful planning and proper hole cutting are essential to avoid structural damage and ensure a good fit.
Yes, remodel housings work in finished ceilings, but you must plan carefully and cut precisely to avoid damage.
What is IC-rated housing and why does it matter?
IC-rated housings are designed to be in direct contact with insulation without risk of overheating, improving safety and energy efficiency in ceiling spaces.
IC-rated housings are safe to use with insulation around them and help keep heat under control.
How many recessed lights should I install in a room?
Number depends on room size, ceiling height, and desired brightness. Plan for even spacing and layer in task lighting for zones like kitchens or reading areas.
The count depends on room size and brightness goals; aim for even spacing and task lighting in key zones.
Can I install recessed lighting without attic access?
It’s possible with remodel housings that don’t require attic access, but working in a finished ceiling can be more challenging. Plan, measure, and proceed with caution.
Yes, but it’s trickier; remodel housings help, and plan carefully.
What maintenance is required after installation?
Regularly check dimmers and connections, replace LED modules as needed, and inspect for any signs of overheating or loose trims.
Check dimmers and connections periodically and replace LEDs as they wear out.
Watch Video
Main Points
- Plan layout before cutting holes.
- Use IC-rated housings and LED modules for efficiency.
- Follow local codes and permit requirements.
- Test thoroughly and finish with clean patches.
