How to Install a Battery Terminal: A DIY Guide
Learn a safe, step-by-step method to install a battery terminal. Identify terminals, disconnect safely, replace clamps, clean posts, reconnect in the proper order, and test for a solid, reliable connection.
You will learn how to safely install a car battery terminal: identify the correct terminal, disconnect the negative lead first, remove the old clamp, clean corrosion, install the new terminal clamp with the correct orientation, reconnect the cables starting with the positive, and test for a solid connection. Follow safety steps and wear eye protection.
Safety and prep
Before touching any battery terminals, ensure the vehicle is off, keys are removed, and the area is well-ventilated. Wear eye protection and gloves; avoid metal jewelry that could short the terminals. If the battery is in a cramped engine bay, use a flashlight to inspect for corrosion. According to Install Manual, proper preparation reduces the risk of sparks, short circuits, and acid exposure. Start by parking on a level surface, turning off the engine, and engaging the parking brake. Then locate the battery terminals; you’ll typically see a red cover for positive and a black or gray for negative. Identify the correct orientation before proceeding. Handling the negative terminal first is a safety habit because it minimizes the chance of a short if your tool touches the chassis.
Why this matters
A secure battery terminal ensures a consistent electrical connection, reliable starting, and long-term post integrity. Neglecting prep can lead to sparks, battery acid exposure, or a loose clamp that loosens over time. This is especially important in climates with high humidity or salt exposure, where corrosion accelerates. By taking a careful, methodical approach, you reduce the risk of accidental shorting and extend the life of your battery system.
Tools & Materials
- Safety glasses(Eye protection)
- Work gloves(Chemical resistance preferred)
- Insulated wrench set(Typically 7mm–15mm for car batteries)
- Wire brush or terminal cleaner(For posts and clamps)
- Terminal cleaner or isopropyl alcohol(Clean posts without leaving residue)
- Terminal grease or dielectric grease(Thin coating to resist corrosion)
- Replacement battery terminal clamp(Compatible with your cable type)
- Rags or paper towels(Dry surface and wipe spills)
- Optional multimeter(For voltage checks after install)

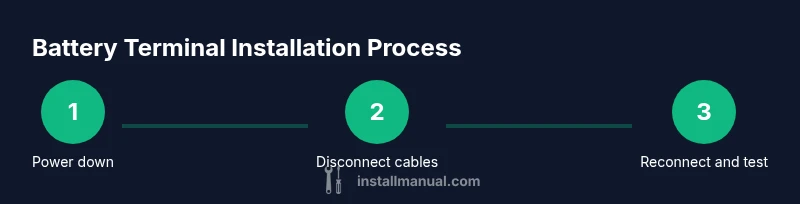

Steps
Estimated time: 25-40 minutes
- 1
Power down and locate the battery
Park the vehicle on a level surface, turn off the ignition, and engage the parking brake. Open the hood and locate the battery terminals, noting which post is positive and which is negative. Ensure you have a clear workspace free of moveable components that could snag tools or cables.
Tip: Keep tools and hands away from metal parts to prevent short circuits. - 2
Disconnect the negative terminal
Loosen the negative clamp with an appropriate insulated wrench and lift the cable off the negative post. Place the cable away from the post to avoid accidental reconnection. Do not touch the other terminal while the wrench is on the clamp.
Tip: Always disconnect ground first to minimize short-circuit risk. - 3
Disconnect the positive terminal
Loosen the positive clamp and remove the cable from the positive post. Move the cable out of the way and avoid letting the wrench touch any grounded metal. Inspect for corrosion as you remove.
Tip: If the clamp is stubborn, apply a small amount of penetrating oil and wait a minute. - 4
Remove the old terminal clamp
Inspect how the clamp attaches to the post and unscrew or lift it away from the cable. If the clamp or post is damaged, you’ll need to replace the clamp and possibly the post hardware. Keep track of screw sizes and orientation for reassembly.
Tip: Take a photo of the clamp setup for reference. - 5
Clean battery posts and clamps
Use the wire brush to remove corrosion from the posts and the clamp contact surfaces. Wipe clean with a rag, then dry the surfaces completely. If posts show heavy corrosion, consider replacing the post connectors.
Tip: Do not reuse corroded metal; clean is fine, but replacement is safer for severe corrosion. - 6
Install the new terminal clamp
Fit the new clamp onto the appropriate post, ensuring the orientation matches the original setup. Hand-tighten the clamp’s fasteners first to align correctly, then snug with the wrench. Check that the clamp sits flat and there is no gap between clamp and post.
Tip: Use the manufacturer’s torque spec if available; avoid over-tightening which can crush the post. - 7
Reconnect cables in the proper order
Reconnect the positive cable first, followed by the negative cable. Ensure the clamps are seated, then tighten to the recommended torque. Inspect for routing that avoids heat sources and moving parts.
Tip: Keep a clean space around the battery to prevent accidental contact with tools. - 8
Test connection and function
Turn on the vehicle to verify a solid connection. If the engine doesn’t start or there are warning lights, recheck the clamps and ensure the terminals are clean and tight. Optional: use a multimeter to confirm voltage is around 12.6V with engine off.
Tip: If there’s a slow crank, recheck for loose connections or alternate posts. - 9
Finish with safety checks and cleanup
Clear tools, wipe away any spilled electrolyte, and ensure the work area is dry. Replace any covers or insulation as needed. Dispose of old clamps and batteries per local regulations.
Tip: Document the work and note any corrosion or wear for future maintenance.
Got Questions?
Is it safe to install a battery terminal without disconnecting the battery first?
No. Always disconnect the negative terminal first to minimize the risk of short circuits. Wear eye protection and work in a ventilated area. If you’re uncertain, stop and consult a professional.
Always disconnect the negative terminal first to minimize risk. If unsure, pause and seek guidance.
What size terminal clamp do I need?
Choose a clamp that matches your battery post type (bolt-on vs. post) and the cable gauge. If the old clamp fits loosely or shows corrosion, replace with a compatible clamp from the same manufacturer.
Pick a clamp that fits the post type and cable size; replace if loose or corroded.
Can I reuse an old battery terminal?
Reusing an old terminal is risky if corrosion is present or post surfaces are damaged. It’s best to replace with a new clamp that fits your cable properly.
Reusing old terminals is risky if corrosion is present; replace when in doubt.
What should I do if the terminal posts are corroded?
If corrosion is heavy, replace the terminal clamps and clean or replace the posts. After replacement, apply grease and check for secure connections.
Heavy corrosion? Replace clamps and posts; clean and protect the surfaces afterward.
Do I need to disconnect the negative terminal first every time?
Yes, as a standard practice, disconnecting the negative first minimizes accidental contact with the chassis and reduces shock risk.
Yes—disconnect the negative first to stay safe.
Watch Video
Main Points
- Disconnect safely before handling any terminals.
- Use the correct terminal clamp and torque.
- Clean posts and protect them from corrosion.
- Test the connection to confirm a reliable circuit.
