Car Alarm System Installation: A Comprehensive How-To
Learn how to install an in-car alarm system with a clear, step-by-step approach. DIY tips, safety checks, and considerations for wireless vs wired kits to protect your vehicle.
This guide shows you how to install a car alarm system, including selecting the right kit, planning wiring routes, and safely connecting sensors, a control module, and a siren. It covers DIY vs. professional installation considerations, required tools, and a thorough testing plan to ensure reliable protection for your vehicle.
What an In-Car Alarm System Does
An in-car alarm system serves as a deterrent to theft and tampering by producing a loud siren, triggering when doors are opened without authorization, or when movement is detected. Modern units include a control module, shock/tilt sensors, a siren, a status LED, and a remote or smartphone interface for arming and disarming. When you install alarm system car components, you create a layered defense that can deter opportunistic thieves and provide early warnings to you or nearby bystanders. Beyond audible alerts, many systems log events and offer immobilizer integration, which can complicate unauthorized driving attempts. The goal is to strike a balance between reliable protection and minimal false alarms, keeping your vehicle safe without annoying neighbors. Planning the layout and choosing a kit with appropriate features helps ensure long-term reliability and ease of maintenance. According to Install Manual, a thoughtful approach to selecting a compatible kit and planning wiring paths reduces installation time and enhances overall performance.
Key considerations include sensor sensitivity, the placement of a siren for maximum effectiveness, and ensuring that power wiring is protected from heat, moisture, and vibration. You’ll also want to account for any existing factory security features, such as immobilizers or anti-theft protections, to avoid conflicts during the install. By understanding the basic function and limits of the system, you can set realistic expectations for performance and maintenance over time.
Throughout the process, maintain clear labeling on wires and connectors, keep spare fuses handy, and test each function in a controlled environment before driving with the system enabled. A well-planned installation reduces unwanted alerts and improves reliability in daily use. The installation workflow emphasizes safety, battery preservation, and long-term maintenance to keep your car secure without interrupting normal operation.
wordCountTitleOnly: null},
Tools & Materials
- Alarm system kit (control module, siren, sensors)(Choose a kit with at least a shock sensor, door trigger, and a remote or app interface.)
- Wiring harness and fuse taps(Prefabricated harnesses save time and reduce splice work.)
- Multimeter or test light(For verifying power and ground connections.)
- Basic hand tools(Screwdrivers, pliers, wire cutters/strippers.)
- Electrical tape and heat shrink(Protects low‑voltage connections and keeps wiring organized.)
- Zip ties and Velcro mounts(Secure cables away from moving parts and heat sources.)
- Silicone sealant or gasket maker(Waterproofs exposed connectors in dusty or wet environments.)
- Drill and bits (optional)(For mounting hardware in non-standard locations.)
- Soldering iron and solder (optional)(Optional; used for clean, durable connections.)

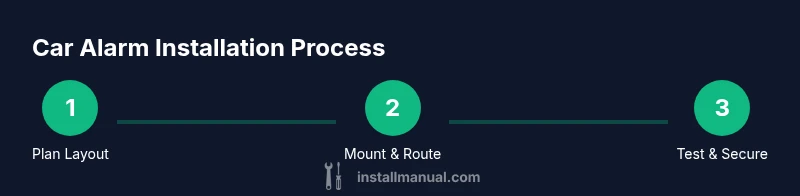

Steps
Estimated time: 2-6 hours
- 1
Plan the installation layout
Assess the vehicle and map out sensor locations, the control module, and the siren placement. Plan wiring routes away from high-heat areas, moving parts, and between wiring harnesses to minimize interference. Create a simple schematic that labels power, grounds, and signal wires.
Tip: Sketch the route on paper first, then double-check clearance under the dash before drilling or mounting. - 2
Disconnect power and remove trim panels
For safety, disconnect the negative battery terminal and wait 60 seconds to discharge capacitors. Remove interior trim panels to access mounting points and wiring channels. Keep track of fasteners and reassemble in reverse order.
Tip: Label panels as you remove them to avoid misplacement during reassembly. - 3
Mount the control module and siren
Secure the control unit in a dry, vibration-free location away from heat sources. Mount the siren where it can emit sound clearly, not muffled by interior panels. Ensure the mounting hardware is tight and that the device won’t contact sharp edges.
Tip: Use foam or padding to dampen vibration and prevent rattling over rough roads. - 4
Run wires and connect the harness
Route power, ground, and signal wires along existing looms where possible. Connect the main power supply to a suitable accessory or battery source per the kit’s instructions. Attach grounds to a clean metal surface; verify a solid ground by checking resistance.
Tip: Avoid tapping into airbags or airbag circuits; this can cause safety issues and warranty problems. - 5
Configure sensors and arming behavior
Set sensor thresholds (shock/tilt) and arming mode (armed by default or auto‑arm after a delay). Program the remote or app interface for lock/unlock, panic, and valets modes. Enable or disable features like silent arming if desired.
Tip: Test each option with a controlled trigger to confirm proper responses. - 6
Test the system comprehensively
Perform a full diagnostic test: arm/disarm sequence, door triggers, hood/trunk inputs, and shock sensor activation. Confirm that the siren sounds clearly and that the alarm disarms with the correct remote/app command. Check for any nuisance alarms and adjust sensitivity.
Tip: Test at different times and conditions (cold, heat, vibrations) to ensure reliability. - 7
Conceal and secure wiring
Bundle wires neatly and secure with zip ties away from pedals, steering components, and moving parts. Use loom or conduit for protection where exposed. Reinstall panels and double‑check that nothing interferes with normal operation.
Tip: Leave a small service access point for future maintenance or diagnostics. - 8
Document settings and provide user instructions
Record the sensor thresholds, arming delays, and remote/app pairing steps. Create a simple user guide for household members and store it with the vehicle documentation. Maintain a copy of the installer’s notes for future reference.
Tip: Include emergency contact information and warranty details in the guide.
Got Questions?
Do I need professional installation for a car alarm?
Not always. Simple, recent model vehicles may be doable as a DIY project, but cars with complex immobilizers or factory security systems often benefit from professional integration to avoid incompatibilities.
DIY can work for basic cars, but professional installation is safer for complex immobilizers.
Can I install a car alarm myself?
Yes, many DIY kits are designed for home installation with clear manuals. It requires basic auto wiring skills, patience, and attention to safety precautions.
DIY is feasible for many kits if you’re comfortable with wiring and testing.
Will installation affect my car warranty?
It depends on your vehicle and the installer. Some dealers prohibit aftermarket modifications, while others allow under certain conditions. Check your warranty terms and document installations.
Warranty rules vary by vehicle; check terms and keep receipts.
What maintenance is required after installation?
Regularly test the system, inspect wiring for wear, and ensure fuses are intact. Recheck sensor thresholds if you notice frequent false alarms.
Test the system periodically and inspect wiring to prevent issues.
How do I test a basic car alarm after installation?
Arm the system, trigger a door or hood sensor, and verify the siren and ignition‑kill features respond correctly. Disarm with the remote or app to confirm quick response.
Arm, trigger, then disarm to confirm proper function.
Watch Video
Main Points
- Plan wiring routes before mounting
- Choose a kit with essential sensors
- Test all features thoroughly before driving
- Secure and label all circuits
- Keep a maintenance log for safety and warranty
