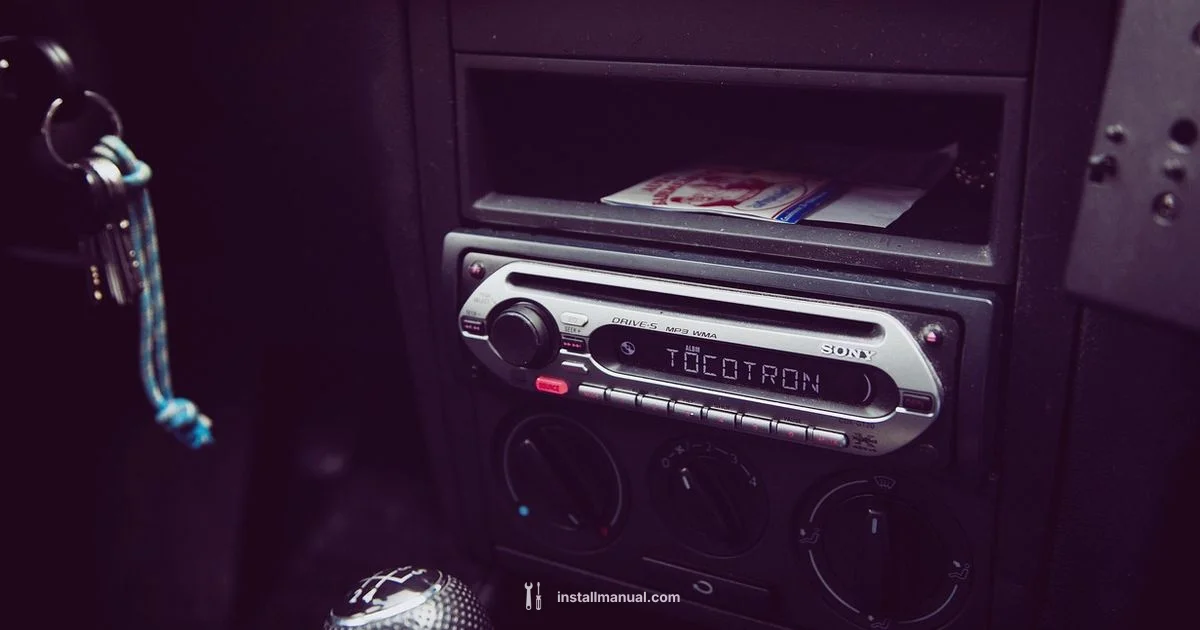

Install Aftermarket Radio: Step-by-Step DIY Guide for Cars
Learn to install an aftermarket radio with a clear, safety-focused, step-by-step approach. This guide covers compatibility, tools, wiring, mounting, testing, and troubleshooting for a clean, professional upgrade.
By the end of this guide you will be able to install an aftermarket radio in your vehicle, including selecting a compatible head unit, gathering the right adapters, and wiring, mounting, and testing the new unit. You’ll preserve safety systems, keep steering-wheel controls functional where supported, and achieve a clean factory-looking finish. A dash kit and harness adapter are essential starting points.
Why install aftermarket radio improves your car audio experience
If you love music while driving, upgrading to an aftermarket radio can dramatically improve sound quality, connectivity, and usability. This section explains the core benefits and what you should expect from a successful install. You’ll learn how an aftermarket receiver can support modern features like Bluetooth, Apple CarPlay, Android Auto, and hands-free calling, while still integrating with existing vehicle systems. Importantly, this guide uses a safety-first approach, emphasizing power-off procedures and proper wiring practices. By understanding the goals of the upgrade, you can plan a tidy, reliable install that looks and sounds professional. You’ll compare head units, adapters, and dash kits to fit your dash and electrical system, ensuring you avoid common pitfalls and optimize audio performance. With the right preparation, you’ll upgrade with confidence and reap improved sound quality, smarter connectivity, and a cleaner overall installation.
Planning and compatibility: head units, adapters, and interfaces
Before you buy any parts, map out what you need for compatibility. Vehicles vary in dash depth, mounting size (single DIN vs. double DIN), and electrical interfaces. Select a head unit that supports your must-have features (nav, Bluetooth, wireless CarPlay/Android Auto) and verify it will fit your dash using a dash kit. You’ll also need a wiring harness adapter that matches your vehicle’s color codes and a dash installation kit that secures the new radio in place. If your car uses steering wheel controls, check for a compatible interface so those controls continue to function. This phase reduces waste and helps you budget accurately for adapters and installation hardware. A careful planning phase also helps you identify any signals you’ll need to test during final verification.
Tools, materials, and safety precautions
As you prepare, gather the essential tools and materials and review safety steps. Essential items include a panel removal tool, screwdriver set, wiring harness adapter, dash kit, antenna adapter, crimp tool or soldering iron, electrical tape, and zip ties. An optional multimeter helps verify power and ground stability. Safety reminders: disconnect the negative battery terminal before starting, work in a well-lit, dry area, and avoid pinching wires behind the dash. Label wires as you disconnect factory harnesses to simplify reassembly. Use the proper dash kit to maintain airbag safety and fitment. This prep stage pays off by making installation smoother and safer. It also minimizes the risk of damaging the vehicle’s electrical system during the upgrade.
Wiring basics: harnesses, adapters, and CAN bus considerations
Wiring is the heart of any radio install. Start by matching the new head unit’s wiring harness to the vehicle harness via a harness adapter designed for your model. Do not cut factory wires directly; adapters preserve safety features and systems. Learn to identify power, ground, illumination, speaker, and accessory wires. In vehicles with CAN bus networks or amplified systems, follow the adapter’s instructions to avoid miscommunication or blown fuses. Keep diagrams handy and consult the vehicle’s service manual if available. A properly mapped harness ensures solid sound quality and reliable operation. If your car uses amplified speakers or a separate subwoofer, plan for additional power wiring and remote turn-on signals as needed.
Mounting options: dash kits, mounting depth, and fit
Mounting a new radio requires choosing a dash kit that matches your vehicle’s mounting depth and bezel style. Confirm whether your dash is single DIN or double DIN, and verify the kit’s trim fit around climate controls and display. Test-fit the head unit before final mounting to ensure there’s enough clearance for wiring, connectors, and ventilation. Secure the unit with the supplied screws and ensure the faceplate sits flush with the dash. If your dash has a curved or irregular surface, consider a universal or vehicle-specific kit to avoid gaps or loose panels. A precise fit not only looks professional but also protects internal electronics from vibrations.
Antenna integration and sound system upgrades
A clean install requires a reliable antenna connection. Use the correct antenna adapter if your vehicle’s connector differs from the head unit’s. Poor antenna connections lead to weak radio reception and dropouts. If you’re upgrading to higher-powered speakers or an external amplifier, factor in power and ground routing from the head unit to the amplifier. Route wires away from hot surfaces and moving parts, securing them with tape or zip ties. For hands-free functionality, consider adding a built-in microphone and routing it to a discreet location near the front dash or A-pillar. This step helps you preserve call quality and overall audio clarity.

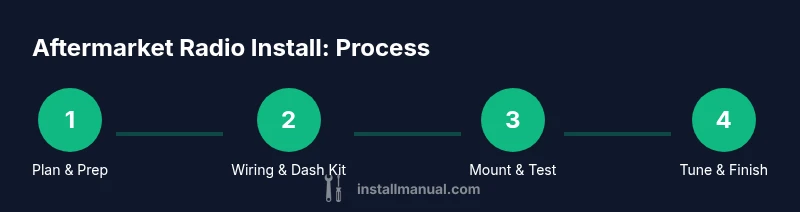

Installation workflow: prep, install, and test
With the harness mapped and dash kit in place, begin the actual installation by connecting the radio to the vehicle harness using the adapter. Mount and secure the head unit, reinstall the dash trim, and connect the antenna. Reconnect the vehicle battery, then power on the system to run a basic check. Test radio tuning, Bluetooth pairing, USB playback, and any installed apps. If steering wheel controls are supported, verify those inputs after the initial boot. Finally, tune the sound by adjusting equalization, crossovers, and gain settings. This workflow ensures a reliable, fully functional upgrade that you can enjoy every day.
Safety, troubleshooting, and common mistakes
Even experienced DIYers run into issues if wiring is misidentified or dash space is cramped. Common mistakes include cutting factory wires, failing to disconnect the battery, neglecting dash clearance, and skipping a test run before reassembly. Always double-check wire color codes, secure all connections with proper crimp tools, and avoid routing wires near high-heat zones or moving parts. If you encounter no power, verify the fuse and power/ground continuity first. If Bluetooth or CarPlay isn’t pairing, re-check the antenna and data lines, and ensure the head unit is set to the correct input. Keeping a clean workspace and labeling wires saves time and reduces risk of miswiring.
Post-install care and maintenance
After installation, keep the area tidy and inspect the wiring periodically for wear or looseness. Check for rattles or dash panel gaps that might indicate mounting issues, and ensure vents remain unobstructed. Update firmware on the head unit when available to improve stability and feature compatibility. If you plan to upgrade components later, store the old parts in a labeled container and document the wiring map you created during the install. Regular checks help maintain sound quality and system reliability over time.
Tools & Materials
- Aftermarket head unit (single or double DIN)(Choose a unit with your preferred features (Bluetooth, CarPlay/Android Auto))
- Wiring harness adapter(Matches your car's factory harness to the new head unit)
- Dash mounting kit (DIN/DIN or double-DIN)(Ensures proper fit and finish in the dash)
- Antenna adapter(Matches the car antenna to the new radio connector)
- Panel removal tool(Prevents damage to trim panels)
- Screwdriver set (Phillips and flat)(For screws in dash and head unit)
- Crimping tool or soldering iron(Secure electrical connections)
- Electrical tape or heat shrink tubing(Insulate splices and protects wiring)
- Quality wire connectors or heat shrink butt connectors(Reliable wire terminations)
- Multimeter (optional)(Verify power/ground and signal integrity)
- Cable ties and zip ties(Route and secure wires neatly)
- Solder/flux kit (if wiring from scratch)(Preferred for permanent connections)
Steps
Estimated time: 60-120 minutes
- 1
Disconnect the battery and prep workspace
Start by disconnecting the negative battery terminal to prevent short circuits. Remove any items from the dash area and set up a clean work surface. This step protects you and your electronics and makes future steps safer.
Tip: Double-check that the car is off and the keys are out of the ignition before beginning. - 2
Remove stock head unit
Use the panel removal tool to carefully pry away the trim surrounding the existing radio. Disconnect the factory harness and antenna connectors, keeping track of where each wire or clip attached. Avoid forcing panels to prevent cracking.
Tip: Take photos of the wiring layout before disconnecting anything to aid reassembly. - 3
Test-fit dash kit and route wires
Dry-fit the dash kit to confirm it aligns with the dash opening and climate controls. Route the new radio wires behind the dash, keeping them away from heat sources and moving parts. Prepare the harness adapter wiring as per color codes.
Tip: Leave extra slack behind the dash so you don’t strain connections when sliding the unit in. - 4
Connect harness and attach antenna
Connect the harness adapter to the vehicle harness and then to the head unit. Attach the antenna adapter and secure all connections with electrical tape or heat shrink. Ensure there are no loose wires that could snag during reassembly.
Tip: Power on briefly (with battery reconnected) to verify basic operation before final mounting. - 5
Mount head unit and reassemble dash
Slide the head unit into the dash kit, secure with screws, and reinstall the trim. Make sure the display sits flush and the unit doesn’t press on any wiring. Reassemble any panels you removed.
Tip: Check for clearance around climate controls to avoid rubbing or overheating. - 6
Test, calibrate, and finalize
Reconnect the battery, power up the unit, and test radio reception, Bluetooth, and any external microphone. Adjust equalization and car-specific settings and verify steering wheel control compatibility if applicable.
Tip: Run a full system check including Bluetooth calls, USB playback, and app integration to confirm stability.
Got Questions?
Will installing an aftermarket radio void my car warranty?
Installing an aftermarket radio does not automatically void your warranty. It depends on the issue and whether aftermarket parts caused damage. Use compatible adapters and avoid modifying safety-critical systems unless you know what you’re doing.
It usually won’t void the warranty unless the aftermarket part caused a problem or you damaged a safety feature.
Do I need a dash kit for installation?
Yes. A dash kit provides the correct mounting interface and bezel so the radio sits flush and securely. It also helps preserve the appearance and avoids panel gaps.
Yes, a dash kit is essential for a clean, secure fit.
Can I keep steering wheel controls working?
Many head units support steering wheel control signals through a compatible adapter. Check your vehicle’s compatibility and install the adapter according to the manufacturer’s instructions.
Often, you can retain steering wheel controls with the right adapter.
What tools do I need for installation?
You’ll typically need a panel removal tool, screwdriver set, wiring harness adapter, dash kit, antenna adapter, crimp tool or soldering iron, and electrical tape. Having a multimeter is optional but helpful.
Common tools include a panel tool, screwdrivers, and a wiring harness adapter.
Is professional installation necessary?
Not always. A DIY install is feasible for straightforward radios, but vehicles with complex CAN bus systems or safety features may benefit from a professional installation.
DIY is possible for many cars, but consider a pro for complex systems.
How do I test the new radio after installation?
Power the unit, verify AM/FM reception, Bluetooth pairing, USB playback, and app connectivity. Check microphone quality and, if available, steering wheel control inputs. Resolve any issues before finalizing the dash.
Power it up and test all functions like Bluetooth and USB before closing up.
Watch Video
Main Points
- Plan compatibility before purchasing parts
- Use official harness adapters for safety and reliability
- Test early and retrace steps if something doesn’t fit
- Secure wiring away from heat and moving parts
- Verify all features after installation
