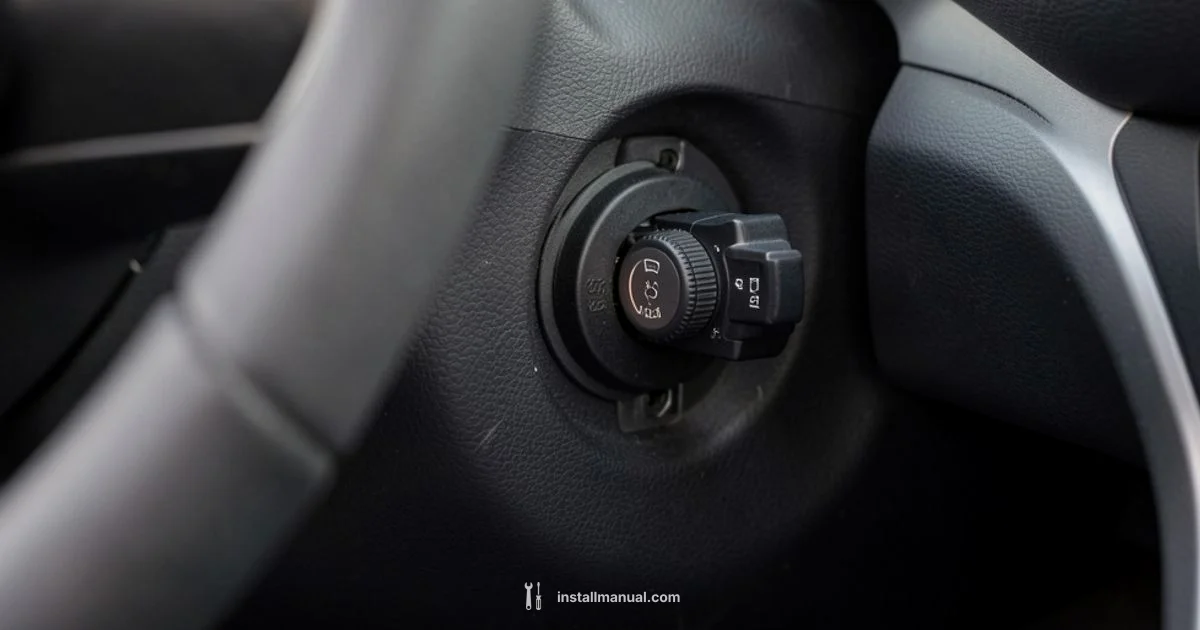

How to Install a 12V Outlet in a Car: A Step-by-Step Guide
Learn how to safely install a 12V outlet in your car with a complete, beginner-friendly guide covering planning, wiring, mounting, testing, and safety.
With this guide, you will safely install a 12V outlet in your car, choosing a suitable location, wiring it to a power source, and protecting the circuit with an inline fuse. You'll learn safety checks, required tools, and a clear, step-by-step process to complete the installation with confidence. This quick answer outlines the goals and safety boundaries before you dive into the hands-on steps.
Safety first: prerequisites and warnings
Before you touch any wiring, prepare your workspace and review safety basics. Automotive electrical work carries shock and fire risks if done improperly. Start by disconnecting the negative battery terminal to minimize the chance of short circuits while you route wires and mount the outlet. Wear eye protection and keep a fire extinguisher within reach, especially if you’re working near the engine bay or under the dash. Plan to work in a dry, well-lit area, and avoid metal jewelry that could accidentally contact live conductors. If your car has airbags or complex airbag modules, treat the airbag system with particular caution; accidental deployment or interference with sensing components can be dangerous. For anything beyond basic routing on a non-airbag vehicle, consult the vehicle’s service manual or a licensed automotive electrician. After wiring, perform a careful double-check: verify polarity, secure fasteners, and ensure there are no loose wires that could snag on pedals or moving parts. Safety is not optional here; it’s the foundation of a successful installation.
Planning your installation: choosing the right outlet and location
Choosing the right outlet and location sets the stage for a clean, reliable installation. Decide whether to install a fixed 12V outlet mounted in a dash or console panel, or to use a portable adapter tucked in a convenient pocket. Fixed outlets typically offer a neater look and more permanent reliability, but require mounting space and careful routing behind panels. Portables can be easier for renters or temporary setups but may lack a tidy finish. Consider proximity to a power source and the fuse panel; avoid routing near hot components like the exhaust or vibration-prone areas behind the pedals. Accessibility is another factor: you want the outlet easily reachable for charging devices without blocking controls. Finally, ensure the outlet you select is rated for automotive use and that it includes robust insulation and weather protection if exposure to humidity or moisture is possible.
Understanding power sources: ignition-switched vs constant power
There are two common ways to power a car accessory outlet: ignition-switched and constant power. Ignition-switched power means the outlet becomes live when the ignition is on, helping prevent battery drain when the vehicle is off. Constant power provides always-on access but requires careful use and possibly a more complex wiring plan to avoid battery discharge. If you expect to power devices only during driving, ignition-switched may be simplest. If you want to keep devices powered for features like dash cameras or sensing modules when parked, you’ll need constant power with a deliberate fuse strategy and a reliable ground. Whichever option you choose, tap the source with a fuse-protected circuit and use a relay if you anticipate higher current draws or long wire runs. Remember to verify the source polarity and avoid sharing a circuit with sensitive electronics unless you’re sure it won’t cause interference.
Wiring fundamentals: gauge, routing, and protection
A safe, durable install uses appropriate wiring, clean routing, and solid protection. Use automotive-grade wire sized for low-voltage DC use and the expected current draw of the outlet, and avoid routing wires over hot surfaces or moving components. Route the wire along structural panels where possible, using grommets to pass through metal and prevent abrasion. Keep runs short to minimize voltage drop and heat, and secure the wire with zip ties and clips at regular intervals. Place the inline fuse within a short distance of the power source to protect against shorts, and install a robust ground connection to the vehicle chassis. Insulate all exposed connections with heat shrink tubing or electrical tape. Finally, avoid tying into airbag circuits or other critical vehicle systems. If you’re unsure about wire gauge or routing, consult an automotive electrician or veteran DIYer.
Mounting considerations: dash, console, or under-dash installation
Mounting the outlet securely is essential for reliability and safety. Choose a location where the faceplate sits flush with the panel and does not interfere with driver controls or air vents. If you’re mounting in a dash or console, use the supplied mounting hardware or a designed panel that fits your vehicle’s interior. Drill only through non-structural areas, and use a metal or plastic spacer to avoid over-tightening and cracking the panel. Seal any penetrations with appropriate sealant if moisture exposure is possible. Ensure the outlet’s face is oriented for easy access and that the cable path to the power source avoids pinch points or seat movement. A neat installation not only looks professional but also reduces the risk of wires snagging on pedals or moving parts.
Preparation and planning: measurement, templates, and shutting down systems
Before you cut or drill, measure carefully and prepare templates. Create a cardboard or paper template of the outlet mounting area to verify fit and clearance. Use manufacturer templates if available to guide hole-cutting and mounting screw placement. With templates in hand, mark the exact drill locations, then re-check that nothing behind the panel will be damaged during installation. When you’re ready, disconnect power from the relevant circuits and remove panels as needed to access mounting surfaces. Keep screws and mounting hardware organized in labeled containers to avoid mix-ups. Once the environment is prepared, you can begin routing wires with confidence, knowing you have built in access for testing and future maintenance.
Routing wires safely: avoiding heat and interference
The path you choose for power and ground wires matters for longevity and safety. Route wires away from heat sources such as the exhaust, engine bay, and hot engine components, and avoid running them across moving parts or into areas where they could pinch or bend excessively. Use grommets where passing through metal panels to prevent abrasion. Secure cables with clips or zip ties at regular intervals, but avoid over-tightening that could damage insulation. Keep the power and ground wires separate from each other to reduce interference. If you need to pass near dashboards or airbags, maintain a clear service loop to allow panel removal without re-running wires. Finally, document your routing with photos or notes so future maintenance is easier.
Wiring and connection details (conceptual): fuse, ground, and switch choices
This section covers how the circuit should be assembled at a high level. The power feed should include a fuse and, ideally, a switch or a kept-on option based on your use case. The ground should be a solid chassis connection, not just a plastic surface. Connect the outlet’s hot lead to the fused power source, and bond the neutral/ground to the vehicle ground. If you plan to draw more current than a small charger, consider adding a relay to manage the load and reduce voltage drop. Use proper connectors and secure all joints with solder or crimp techniques, followed by insulation with heat shrink. Finally, label the circuit and fuse location for future maintenance.
Testing, validation, and common issues
Testing verifies that the installation functions as intended and helps catch problems early. Use a multimeter to confirm voltage at the outlet with the ignition on and off as appropriate. Test the outlet with a known charger or a voltmeter to confirm stable readings and polarity. Check for unusual heat, buzzing, or intermittent operation, which can indicate loose connections or poor ground. If you observe any issues, re-check all connections, inspect routing for pinch points, and verify that the fuse is appropriate for the load. Once testing passes, reassemble the dash panels and tidy cables for a clean finish. Document the installation so that future owners can maintain or modify the setup easily.
Tools & Materials
- 12V automotive accessory outlet (fixed or portable)(Choose a model designed for automotive use; weather resistance if exposed)
- Inline fuse holder with automotive fuse(Select fuse rating based on anticipated device draw; protect circuit)
- Automotive wiring for power and ground(Use wiring rated for 12V automotive use; keep runs short)
- Grounding strap or ring terminal(Solid ground to vehicle chassis)
- Ignition-switched or constant power source tap (pigtail or fuse tap)(Identify source according to planned use (ignition-on vs always-on))
- Wire cutters and strippers(Cleanly strip insulation and prepare ends)
- Crimp connectors or soldering supplies(Insulated crimp connectors or solder joints with heat shrink)
- Electrical tape or heat-shrink tubing(Insulate and protect exposed connections)
- Panel mounting hardware(Optional if mounting in a non-factory panel)
- Multimeter or voltage tester(Used to verify voltage, polarity, and continuity)
- Cable loom or zip ties(Organize and secure wires for a neat finish)
- Safety gloves and eye protection(Personal protective equipment during cutting and wiring)

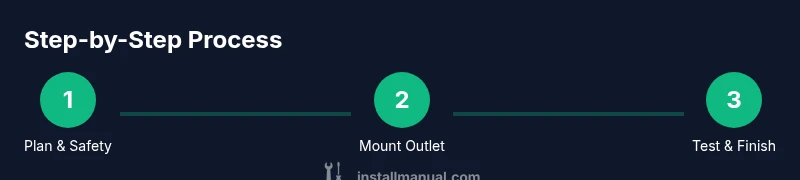

Steps
Estimated time: 90-150 minutes
- 1
Plan the install and select a location
Assess dashboard or console space for the outlet, considering visibility, accessibility, and avoidance of control interference. Decide whether to mount a fixed panel or use a portable setup. Sketch the routing path on paper to visualize clearance and potential obstacles.
Tip: Mark mounting holes with masking tape before drilling to avoid mistakes. - 2
Disconnect the battery
Power down the vehicle by disconnecting the negative battery terminal. This minimizes the risk of short circuits while you work. Wait a minute or two for the system to settle before handling wiring.
Tip: Verify with a multimeter that no voltage is present on exposed wiring before proceeding. - 3
Mount the outlet housing or panel
Secure the outlet in the chosen location using appropriate mounting hardware. Ensure the faceplate sits flush and does not obstruct controls or vents. Use a template or mounting bracket if provided by the outlet.
Tip: Test-fit without wiring first to confirm clearance and alignment. - 4
Route power and ground wires
Plan routes that stay clear of moving parts, heat sources, and pedals. Use grommets when passing through metal panels to prevent abrasion. Secure runs with clips or ties at regular intervals.
Tip: Keep power and ground wires separate for reduced interference. - 5
Tap into a power source
Connect the hot lead to a fuse-protected power source, using a fuse tap or pigtail as appropriate. If you’re unsure which source to choose, select ignition-switched for devices you only use while driving. Verify polarity before finalizing connections.
Tip: Avoid tying into sensitive circuits; choose a clean, governed source. - 6
Ground the outlet
Attach the outlet’s ground to a solid chassis point using a ring terminal or direct bolting. A poor ground can cause intermittent operation and noise on the circuit. Double-check that the ground path is continuous and unbroken.
Tip: Clean paint from the grounding contact to ensure a solid connection. - 7
Install the inline fuse near the power source
Place the inline fuse within a short distance of the power source to maximize protection. Use heat-shrink or insulation to seal exposed terminals. Confirm the fuse is seated properly and will not shake loose with vehicle movement.
Tip: Label the fuse location for easy maintenance. - 8
Make connections and insulate
Crimp or solder all connections securely, then insulate with heat shrink or electrical tape. Avoid exposed conductors that could short against metal. Route wires to minimize snag points and ensure a clean finish.
Tip: Check each connection with a continuity test before powering up. - 9
Test the circuit
Reconnect the battery and test voltage at the outlet with the ignition on and off as appropriate. Try a known charger or a voltmeter to confirm proper operation. Look for heat buildup, buzzing, or irregular readings that indicate a fault.
Tip: If readings are abnormal, re-check all connections and ground paths. - 10
Reassemble and tidy up
Reinstall any panels you removed, route cables neatly, and secure all wiring to prevent movement. Clean up any loose tools and store documentation for future maintenance. Do a final visual inspection to confirm a safe, finished install.
Tip: Take photos of the final wiring layout for future reference.
Got Questions?
Do I need to disconnect the car battery before starting?
Yes. Disconnecting the negative terminal minimizes the risk of short circuits while routing wires and mounting the outlet. Reconnect and test only after you’ve completed all connections.
Yes. Disconnect the battery to reduce risk of shorts while wiring and mounting the outlet.
Can I tap into the cigarette lighter fuse or hot wire directly?
Use a fuse-protected tap or dedicated fused circuit rather than direct wiring to avoid unprotected loads. This helps protect both the vehicle and the accessory.
Use a proper fuse-protected tap; avoid direct hot-wiring without protection.
Where should I mount the outlet for best safety and accessibility?
Choose a location that is accessible to the user, away from controls and moving parts. Ensure the panel is flush and does not block vents or visibility, and avoid airbags.
Mount it where you can reach it safely and keep it away from airbags and controls.
What devices can I power with a 12V car outlet?
Most small chargers, USB adapters, and portable electronics designed for 12V use will work. Check the device’s input rating and never exceed the outlet’s intended load.
You can power small chargers and 12V devices; verify the load matches the outlet rating.
Will installing a 12V outlet affect my car’s warranty?
Warranties vary by manufacturer and vehicle. In many cases, minor electrical installs done correctly won’t void warranties, but consult your owner’s manual or dealer for specifics.
Warranty effects depend on the maker; check your manual or dealer guidance.
Do I need a relay for this installation?
A relay is recommended if you plan higher current draws or want ignition-controlled operation with reduced voltage drop. For small chargers, a direct fuse-protected tap may be sufficient.
A relay is helpful for higher loads; for small devices, a fuse-protected tap might be enough.
Watch Video
Main Points
- Plan placement and power source before drilling.
- Fuse protection is essential for safe operation.
- Secure grounding and tidy routing prevent faults.
- Test thoroughly and document the installation.
