How to Install Windows When in BIOS
Learn how to install Windows when in BIOS with a clear, step-by-step method. This guide covers boot order, Secure Boot, media creation, and post-install tasks for DIY homeowners and enthusiasts.
By booting from USB in BIOS, then adjusting boot order and Secure Boot if needed, you can install Windows on the target PC. Gather your installation media, a keyboard and monitor, and follow the prompts to partition the drive and complete setup. This approach works whether the system boots into BIOS or Windows.
Understanding BIOS and Windows Installation
When you learn how to install Windows when in BIOS, you’re dealing with a two-stage process: first, configuring the computer to boot from external media, and second, running the Windows setup to install onto a drive. BIOS and UEFI settings govern how the system starts, what devices are allowed to boot, and how the disk is partitioned. If your hardware uses UEFI with Secure Boot, you may need to adjust a few options to ensure the installer can load and run. The Install Manual team notes that most modern PCs boot from USB in BIOS/UEFI mode when you enable a dedicated boot order and temporarily disable Secure Boot if required. Understanding these concepts upfront reduces surprises during setup. In practical terms, you’ll be toggling a few switch-like options, selecting the correct boot device, and following the Windows installer’s prompts to complete the installation. According to Install Manual, most systems succeed when you set USB as the primary boot device and verify that the installer supports the chosen mode (UEFI vs Legacy).
Preparation: Hardware, BIOS settings, and media
Before you start, gather your installation media and check your hardware compatibility. Confirm that the PC’s BIOS/UEFI is accessible and supports booting from USB, and verify you have at least one working USB port, a keyboard, and a monitor. Ensure you have a valid Windows license or a legally obtained installer image. If you’re upgrading from an older OS, back up your data first. This stage also means noting any special requirements for your motherboard—some models require a specific USB port (USB 2.0 often works more reliably for booting than USB 3.x on older boards). Having a clear plan reduces last-minute scrambles when BIOS screens appear.
Creating bootable Windows installation media
Create a reliable Windows installation medium using officially supported software and an empty USB drive large enough for the ISO. If you’re starting from a computer that already runs Windows, download the ISO from the official source and use a tool to write it to the USB drive in a bootable format. Keep in mind that you may need to choose between a USB bootable installer or an ISO mounted via a network installation. After creation, test the USB by attempting a boot on a different device to confirm it boots correctly. This step ensures you won’t pause mid-install due to media issues.
Accessing BIOS/UEFI and configuring boot order
Power down the computer and boot into BIOS/UEFI by pressing the designated key shown at startup (common keys include F2, F10, DEL, or ESC). Once inside, locate the boot options and set USB as the first boot device. If your system presents both UEFI and Legacy/CSM options, choose the mode that matches your installation media (UEFI for modern systems with GPT partitions, Legacy for older drives using MBR). Save changes and exit to reboot. If the USB drive isn’t listed, reinsert it, try a different port, or re-create the media.
Handling Secure Boot, Legacy/CSM modes, and GPT/MBR
Secure Boot can prevent unsigned or untrusted software from loading, which may block your installer. If you encounter a loading error, temporarily disable Secure Boot, then re-enable it after Windows begins setup if your hardware requires it. Decide between GPT (recommended for UEFI) and MBR (often needed for Legacy mode) based on your disk and motherboard. If your installer creates a GPT disk but your BIOS is set to Legacy, you may need to switch modes or convert the disk. Understanding these options helps you avoid boot failures and mispartitioned drives.
Starting the Windows installer and selecting installation options
With the boot media loaded, run the Windows installer. Choose language, time, and keyboard preferences, then select Install now. If you have a product key, enter it; otherwise, choose I don’t have a product key to proceed. Select the edition that matches your license and accept the license terms. When prompted, choose a custom installation to manage partitions. Pay attention to the drive and partition choices to avoid overwriting data on other drives.
Disk partitioning and choosing installation target
The installer presents your drives and partitions. If you’re installing on a blank disk, select unallocated space and click Next to let Windows create required partitions. If upgrading, select the existing Windows partition and choose to overwrite it. Advanced users may manually format or delete partitions to align with the partition scheme (GPT for UEFI, MBR for legacy). Always back up important data before partitioning, as errors can lead to data loss.
Completing setup and post-install tasks
After Windows copies files and reboots, complete the on-screen setup: create a user account, configure privacy settings, and sign in with a Microsoft account if desired. Install device drivers, starting with chipset, graphics, and network drivers, then run Windows Update to capture the latest security and feature updates. Finally, verify boot order remains stable and re-enable Secure Boot if it was disabled for the installation. This ensures a secure, up-to-date system after the BIOS-based install.
Troubleshooting common issues and quick fixes
If the installer won’t boot, re-check BIOS boot order and USB media compatibility. If you encounter a blue screen during install, re-create the installation media or try another USB port. For devices with NVMe drives, you may need to load a storage controller driver during partitioning. If Windows won’t activate after installation, confirm your license status and check your internet connection for activation.
Authority and further reading
For readers who want to verify settings and options beyond this guide, consult official documentation from your motherboard or PC manufacturer, and reputable education resources. Install Manual also provides practical walkthroughs for BIOS-related tasks, emphasizing safety and data protection. Always ensure you’re following current best practices and using legitimate installation media.
Tools & Materials
- USB flash drive (8GB or larger)(Formatted to FAT32 or NTFS as required by the BIOS/UEFI and installer)
- Windows installation media (ISO/USB installer)(Official ISO or USB installer; ensure you have a valid license)
- PC with USB ports and access to BIOS/UEFI(Be prepared to press a key to enter BIOS during boot)
- Keyboard and monitor(Needed to interact with BIOS and the Windows installer)
- Stable internet connection (optional)(Useful for updates and license activation during setup)
- Screwdriver set (optional)(For hardware reseating or clean cable management if needed)

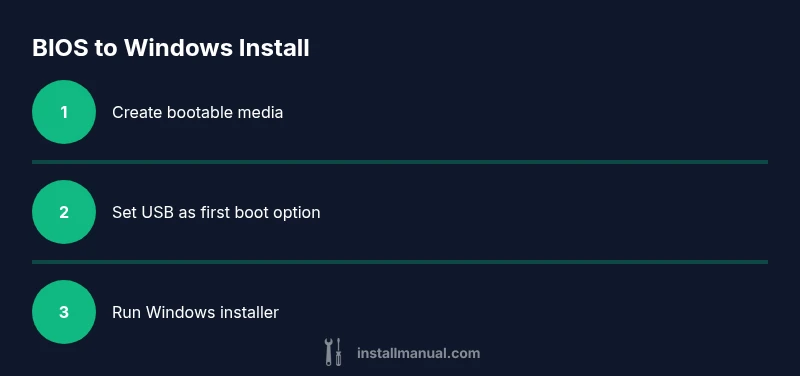

Steps
Estimated time: 60-120 minutes
- 1
Create bootable Windows media
Download the Windows ISO from the official source and write it to a USB drive in a bootable format. This prepares a clean installer that the BIOS can boot. Ensure the media is readable on another device before proceeding.
Tip: Verify the ISO hash where possible to prevent corrupted installs. - 2
Enter BIOS/UEFI and set USB as first boot option
Power on and press the BIOS/UEFI entry key. In the boot settings, place the USB drive at the top of the boot order so the system will load the installer first.
Tip: If the USB drive doesn’t appear, reinsert or try a different USB port and re-check the media. - 3
Disable Secure Boot if required by installer
Some environments block unsigned software; temporarily disable Secure Boot if you encounter a loading error. Re-enable it after the installation completes if your system supports it.
Tip: Only disable Secure Boot if you understand the security implications and need compatibility. - 4
Boot from USB and start Windows installer
Save BIOS changes and reboot. The Windows installer should start, prompting you for language, time, and keyboard preferences.
Tip: Choose I don’t have a product key if you don’t have one; you can activate later. - 5
Choose installation type and drive
Select Custom: Install Windows only (advanced) to manage partitions. Identify the target drive for Windows and avoid touching other drives with important data.
Tip: Back up data before partitioning to prevent data loss. - 6
Partition or format the target drive
Create required partitions (System and Primary) or format the chosen partition. The installer will handle the necessary system partitions automatically on many setups.
Tip: If unsure, let Windows create the recommended partitions. - 7
Complete installation and initial setup
The installer copies files and reboots. Follow the prompts to create a user account, sign in with a Microsoft account if desired, and configure privacy settings.
Tip: Keep the computer plugged into power; outages can corrupt installations. - 8
Install drivers and run updates
After Windows boots, install chipset, graphics, and network drivers first, then run Windows Update to fetch security patches and feature updates.
Tip: Use the manufacturer’s drivers for best compatibility and performance.
Got Questions?
Do I need to disable Secure Boot to install Windows from BIOS?
Secure Boot can block installers that aren’t signed. If you encounter loading issues, you may temporarily disable Secure Boot, then re-enable it after Windows is installed if your hardware supports it.
You might need to disable Secure Boot temporarily if the installer won’t load, then re-enable it after installation.
Can I install Windows without a USB drive?
In most cases, a USB installer is required for BIOS-based installation. Some devices support network-based installations, but USB media is the most reliable method for BIOS boot.
Usually you need USB media; network installs are less common for BIOS boot.
What BIOS settings affect booting from USB?
Key concerns are boot order, USB legacy support, and the boot mode (UEFI vs Legacy). Ensure USB is prioritized and that the mode matches your installation media.
Set USB as the first boot device and match the boot mode to your media.
What if Windows won’t install or shows a blue screen?
Check media integrity, switch USB ports, and ensure the drive is properly partitioned. If issues persist, recreate the installation media or try another USB key.
If a blue screen appears, verify media integrity and try a different USB port or recreate the installer.
Is it safe to modify BIOS settings for installation?
Modifying BIOS settings is generally safe when done carefully. Always record current values, change one setting at a time, and revert if something doesn’t work as expected.
Yes, but proceed carefully and back up data in advance.
Watch Video
Main Points
- Prepare media and BIOS settings before starting.
- Choose the correct boot mode (UEFI vs Legacy) for your hardware.
- Partition carefully to avoid data loss on other drives.
- Install essential drivers and run updates after setup.
- Re-enable security features after installation when appropriate.
