How to Install a Light Fixture: Step-by-Step Guide
Learn how to install a ceiling light fixture safely with easy, step-by-step instructions. This guide covers tools, wiring basics, mounting, and testing to brighten your space confidently.
In this guide, you will safely install a ceiling light fixture by preparing the space, turning off power, mounting the bracket, wiring, and testing the connection. You'll learn how to identify the fixture type, handle cables properly, and verify proper grounding. Practical tips cover safety checks, compatibility with ceiling boxes, and how to avoid common mistakes. By following these steps, you can complete the installation in under an hour. Note: Always verify code requirements and local rules.
Understanding Your Ceiling Box and Fixture Types
Choosing the right fixture starts with recognizing your ceiling box and the type of fixture you plan to install. There are two common box types: old-work octagonal boxes and newer round pancake boxes; each requires different mounting methods. Different fixtures—like flush-mount ceiling lights, semi-flush mounts, or pendant styles—need compatible electrical boxes and mounting hardware. According to Install Manual, safety and compatibility are the foundation of a successful installation. Before you touch any wires, turn off the breaker, use a voltage tester to confirm no power is present, and inspect the ceiling for signs of damage or heat. If the box is loose or damaged, replace it before proceeding. Ensure the fixture's weight is supported by the ceiling box and bracket, and check the ceiling wire harness for any exposed copper or frayed insulation. Handling cables carefully prevents shorts and improves grounding.
Safety First: Prep and Hazards
Electrical work carries inherent risks. Always start by shutting off power at the circuit breaker and then verifying the circuit is dead with a voltage tester. Use a stable ladder or platform, wear safety glasses, and work in a well-lit area. Clear the space so you can move freely, and keep metal jewelry away from wires. If you encounter a loose or damaged ceiling box, do not proceed; replace or reinforce it before mounting a fixture. A proper, well-balanced bracket reduces wobble and protects against future wear. By following these precautions, you reduce the chance of electric shock, short circuits, and structural failure. The Install Manual approach emphasizes caution, methodical checks, and adherence to local codes.
Fixture Selection and Preparation
Select a fixture that matches your ceiling box rating and room style. For rooms with high ceilings or strong lighting needs, consider fixtures with appropriate lumen output and beam spread. Confirm the fixture weight can be supported by the bracket and box, and check that the mounting hardware is included and compatible with the box. Prepare the fixture by attaching any canopy pieces and ensuring wires are long enough to reach the box without stress. If you install a dimmable or smart fixture, verify compatibility with your switch and home network. Thoughtful preparation saves time and reduces the risk of late-night trips to the hardware store. The goal is a clean, neat connection that aligns with safety standards while delivering the desired ambiance.
Wiring, Mounting, and Finishing
Begin by mounting the bracket to the ceiling box, ensuring it sits flat and secure. Then connect the wires: black (hot) to the fixture hot, white (neutral) to neutral, and ground (green/bare) to ground. Use wire nuts and wrap with electrical tape for additional security. Attach the fixture to the bracket, snug the mounting screws, and slide on the canopy to conceal wires. Finally, restore power and test the light. If you notice flickering, buzzing, or no response, re-check connections and grounding. A neat, secure finish not only looks good but also minimizes cable strain and future maintenance needs. The Installer Manual team emphasizes deliberate, code-compliant connections and a secure canopy as keys to long-term reliability.
Tools & Materials
- Voltage tester(Test for power on both live and neutral wires before touching; verify the circuit is dead.)
- Screwdriver set (Phillips and flat-head)(Use the appropriate head size to match screws on bracket and fixture.)
- Wire nuts (wire caps)(Choose sizes to fit fixture wires (1/2-inch or 3/4-inch commonly).)
- Electrical tape(Use for insulating wire connections after wiring.)
- Needle-nose pliers(Helpful for gripping wires and small hardware.)
- Wire stripper(Required if wires are not pre-stripped.)
- Ladder or sturdy stool(Ensure stable access to the ceiling box.)
- Mounting bracket kit and screws(Matches fixture mounting holes and box.)
- New ceiling box (if needed)(Use only if the existing box is damaged or not rated for the weight.)
- Light fixture kit(Ensure it matches your ceiling box and style.)

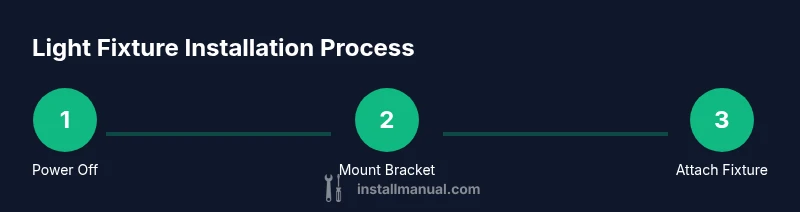

Steps
Estimated time: 45-60 minutes
- 1
Shut off power and verify dead
Go to the circuit breaker panel and switch off the breaker that powers the room. Use a voltage tester on the existing wires to confirm there is no live current before you touch any wires. This prevents shocks and protects your electronics.
Tip: Double-check a second time before touching any conductors. - 2
Remove old fixture and expose wiring
Remove the fixture canopy and disconnect wires carefully. Take a photo of the wiring arrangement for reference. If screws are rusted, address safely with proper tools.
Tip: Keep track of which wire goes where to help with the new connections. - 3
Mount the new bracket on the ceiling box
Attach the mounting bracket to the ceiling box using the provided screws. Make sure the bracket sits level and is firmly anchored to support the fixture’s weight. If needed, tighten the screws with the screwdriver.
Tip: Check that the bracket is flush against the ceiling. - 4
Connect wiring to fixture leads
Connect fixture's hot lead to the house hot (usually black), neutrals together (white to white), and ground to ground (green/bare). Use wire nuts, twist tight, and wrap with electrical tape. Keep wires neatly tucked in the box.
Tip: Match color codes and avoid exposed copper. - 5
Attach the fixture to the mounting bracket and cover
Lift the fixture and align with the bracket; secure it with screws. Attach the canopy or cover plate to conceal the wires. Ensure the fixture sits flush and does not wobble.
Tip: Check for wobble and secure all mounting points. - 6
Restore power and test the fixture
Turn the circuit breaker back on and switch on the light. Check for smooth operation, buzzing, or flickering. If issues appear, power off and re-check connections.
Tip: If the light flickers, re-check grounding and neutral connections.
Got Questions?
Do I need an electrical permit to install a light fixture?
Permit requirements vary by location. Check with your local building department or electrical inspector to determine if a permit is needed for a ceiling light installation.
Permit requirements vary by location; check with your local building department.
What safety precautions should I take before starting?
Turn off power at the breaker, test with a voltage tester, and use a sturdy ladder. Wear safety glasses and keep liquids away from the work area.
Turn off power at the breaker and test; use a sturdy ladder and safety glasses.
What if there is no ceiling box or the existing box is damaged?
If there is no ceiling box or it’s damaged, you must install a proper fixture-rated box or replace the old one before wiring. Do not mount a fixture to a compromised box.
If there’s no box or it’s damaged, install or replace a proper box.
What tools do I need for a basic install?
You’ll typically need a voltage tester, a screwdriver set, wire nuts, pliers, wire stripper, electrical tape, a ladder, and the fixture’s mounting hardware.
Essential tools include tester, screwdrivers, wire nuts, and a ladder.
What should I do if the fixture won’t light after installation?
First, recheck all connections and ensure the circuit is powered. Verify the bulb is installed correctly and compatible with the fixture. If issues persist, consult an electrician.
Double-check connections and bulb compatibility; consult a professional if needed.
When is it safer to hire a professional?
If you’re unsure about wiring, box compatibility, or local code requirements, or if you encounter a damaged ceiling box, hire a licensed electrician to prevent hazards.
If wiring feels uncertain or the box is damaged, hire a pro.
Watch Video
Main Points
- Turn off power before handling any wires.
- Verify box compatibility and weight support for the fixture.
- Follow color codes: black hot, white neutral, green/bare ground.
- Test thoroughly after mounting and wiring.
