How to Install a Hot Water Tank Electric: A Step-by-Step Guide
A comprehensive, safety-focused guide for homeowners and DIYers on installing an electric hot water tank, covering planning, permits, tools, step-by-step installation, testing, and maintenance.
You're about to learn how to install a hot water tank electric and ensure reliable hot water while following safety and code requirements. This guide covers planning, permits, tool lists, step-by-step actions, and post-install checks. Expect to verify a dedicated electrical circuit, proper water connections, and a safe expansion/relief setup. If you lack electrical experience, hire a licensed professional.
Understanding the electrical basics and safety considerations
Electric water heaters run on a dedicated 240-volt circuit and require correct sizing, grounding, and proper overcurrent protection. Before touching a single wire, understand the electrical basics: a zone of the home where the heater's branch circuit will reside, the panel's available spaces, and the protections required by local code. According to Install Manual, the safest approach begins with a full power-off at the main breaker and a confirmed absence of voltage at the water heater's junction box. Use a tester to verify that circuits feeding the area are de-energized. De-energizing lines reduces the risk of shock when removing the old heater and when installing the new one. Keep a log of the circuit breakers and labels in your service panel; this makes future maintenance easier and safer.
Next, consider the heater's location: ensure enough clearance for servicing, proper drainage, and a level mounting surface. A unit that sits on a sturdy base with vibration isolation minimizes noise and extends lifespan. Plan for a discharge drainage path for the T&P valve and for the pan beneath the heater if installed indoors. Electrical and plumbing work should meet local and national codes; if you are uncertain, consult a licensed professional. The goal of this stage is to establish secure boundaries and a plan so the subsequent steps proceed smoothly and safely.
Pre-installation planning and permits
Before breaking ground, inspect local requirements for installing an electric water heater. Some jurisdictions require building permits and electrical inspections, while others rely on contractor-based approvals. Start by selecting the right size and type for your home’s hot-water needs, then identify an appropriate mounting location with level support and room for future maintenance. Coordinate with your utility or local building department to obtain any required permits and to schedule inspections. Prepare a plan that includes water shut-offs, drainage, and a safe access path. If the existing tank is in a restricted area, consider relocation to a more open space with proper ventilation. Finally, ensure that the electrical panel has an available space for a dedicated 240V circuit and that the feeder wires, disconnect, and overcurrent protection meet code requirements. The Install Manual team emphasizes documenting permits and retaining receipts for future reference.
Sizing, location, and clearances
Choosing the right tank involves more than capacity; it includes insulation, recovery rate, and space. Select a location with adequate clearance around the unit for service and for the expansion tank and discharge piping. The area should be ventilated and protected from freezing temperatures in cold climates. Ensure the floor is level and capable of bearing the unit’s weight, and verify that nearby outlets, switchgear, and gas lines (if any) are properly routed away from heat sources and water lines. Plan for a proper drain pan and a safe discharge path for the relief valve. The distance to the cold-water supply and hot-water outlet should be short yet accessible for maintenance. Finally, ensure you have a dedicated 240V circuit with appropriate overcurrent protection and that the panel labeling clearly identifies the new heater circuit.
Tools and materials overview
You’ll need a concrete plan and a curated set of tools and materials before starting. Gather protective gear (gloves, safety glasses), electrical testing tools, pipe fittings, heat-transfer sealants, and the heater’s mounting hardware. Confirm you have copper or PEX piping matched to your existing plumbing, along with flexible water heater connectors. Include an expansion tank, a T&P relief valve with discharge piping, and a pan or tray if installed indoors. Dielectric unions help prevent corrosion between metal components. Keep your notes and manufacturer instructions on hand to confirm model-specific requirements. Having everything ready minimizes trips to the hardware store and speeds up the project.

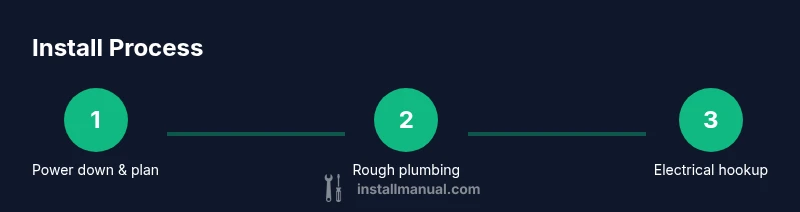

Step-by-step overview (high-level)
This section outlines the main phases of the installation so you can plan your work sequence. Begin with power-down and water shut-off, then remove the old heater if replacing. Install and position the new unit, connect cold inlet and hot outlet lines, install the expansion tank and relief valve, and finally address the electrical connections through the panel with a dedicated circuit. After plumbing and wiring are secured, fill the tank, purge air, test for leaks, and restore power. A final safety check should verify that everything is functioning correctly and that there is no leakage—then tidy the work area.
Electrical connections and code compliance
Electrical work should conform to national and local electrical codes. A dedicated 240V circuit sized for the heater, proper disconnecting means, correct wiring, and a properly sized overcurrent device are essential. Do not bypass required wiring protections or panel interlocks. If you are not experienced working with live circuits, hire a licensed electrician. Always verify power is off before work and use a non-contact voltage tester to double-check. Label the circuit, keep a clean junction box, and ensure grounding and bonding meet code standards.
Plumbing connections and expansion considerations
Install copper or PEX water lines with appropriate fittings, using Teflon tape on threaded connections and pipe dope where applicable. A dielectric union helps prevent corrosion when connecting dissimilar metals. Install the expansion tank to accommodate thermal expansion and prevent tank damage during heating cycles. Route discharge piping from the T&P valve to an appropriate drain location, ensuring it slopes slightly for drainage and does not create a backflow hazard. Finally, connect the cold-water inlet and hot-water outlet carefully, ensuring the flow direction is correct and that all connections are secure and leak-free.
Testing, leaks, and commissioning
With plumbing and wiring in place, slowly fill the tank while watching for leaks. Purge air from the lines, then bring power back online and test the burner or element operation. Check all joints for leaks, inspect the T&P valve operation, and confirm that the system reaches the expected water temperature. If leaks appear, depressurize and re-tighten fittings, or replace faulty components. Document readings and ensure the first flush includes a momentary water surge test to verify pressure stability.
Post-installation maintenance and safety reminders
Schedule a yearly maintenance check that includes inspecting the T&P valve, flushing mineral buildup, and testing performance under typical household loads. Keep emergency shutoffs accessible and labeled, and store spare parts and tools in a safe area. Never bypass the pressure relief valve or the electrical disconnect. Regular maintenance helps extend the life of the heater and protects against unexpected failures. The Install Manual team reminds homeowners to review the unit’s manual for model-specific maintenance guidelines.
Authoritative sources
- U.S. Department of Energy: Water heating energy efficiency and safety tips: https://www.energy.gov/energysaver/water-heaters
- OSHA Safety and Electrical Standards: https://www.osha.gov
- NFPA: National Fire Protection Association - National Electrical Code (NEC) guidance: https://www.nfpa.org/
Tools & Materials
- Personal protective equipment (gloves and safety glasses)(ANSI-rated PPE; keep spare pair)
- Non-contact voltage tester(Verify power is off at the service panel)
- Adjustable wrench(For fittings and connectors)
- Pipe wrench(Grip and turn larger water fittings)
- Pipe cutter and deburring tool(Cut copper or PEX and deburr edges)
- Teflon tape and pipe thread sealant(Seal threaded connections)
- Copper or PEX piping and fittings(Match your home plumbing)
- Dielectric unions(Prevent galvanic corrosion between metals)
- Expansion tank(Accommodate thermal expansion)
- Water heater connectors (flexible hoses)(Match inlet/outlet sizes to heater)
- Electrical panel and dedicated circuit breaker(Appropriately rated per local code)
- Conduit and strain relief kit(Protect and secure wiring)
- Drain pan and discharge piping(Contain leaks and direct discharge to safe location)
Steps
Estimated time: 2-6 hours
- 1
Power down and verify
Shut off power to the location at the main service panel and use a non-contact tester to confirm the circuit is de-energized. This prevents shock while handling wiring and mounting the new heater.
Tip: Double-check both the panel main and the specific circuit breaker before touching any wiring. - 2
Shut water and drain
Close the cold-water supply and drain the existing tank or the locale where the new heater will sit. Draining reduces pressure and minimizes spills during removal and installation.
Tip: Place a bucket and towels and have a helper ready for large tanks. - 3
Remove old heater or prepare location
If replacing, detach old unit carefully, preserving mounting hardware where possible. If installing in a new location, ensure the surface is level and there is a clear path for connections.
Tip: Take photos of existing connections for reference. - 4
Mount and position new heater
Position the new tank on a level surface or wall bracket, ensuring room for service and drainage. Install any required mounting hardware and verify that the unit sits level.
Tip: Use a level and consider vibration isolation pads. - 5
Connect water lines
Attach cold-water inlet and hot-water outlet using appropriate fittings. Apply Teflon tape to threaded connections and tighten securely without over-tightening.
Tip: Install a shut-off valve on the cold-water line if not present. - 6
Install expansion tank and relief valve
Mount the expansion tank according to manufacturer instructions and connect the T&P relief valve with discharge piping to a safe location. Ensure the valve operates freely.
Tip: Ensure discharge piping slopes downward and terminates above a drain. - 7
Run electrical connections
Install the dedicated 240V circuit, route wiring through conduit, and connect to the heater's electrical junction box with the proper disconnect. This step may require a licensed electrician.
Tip: Never bypass the disconnect or overcurrent protection. - 8
Fill, purge air, and test
Slowly fill the tank while checking for leaks. Purge air from lines, then restore power and test operation at a safe temperature setting.
Tip: Keep a lookout for any leaks around fittings and valve seals. - 9
Final checks and cleanup
Verify all connections, test relief valve operation, and ensure the area is dry and clean. Record serial numbers and setup details for future reference.
Tip: Document the installation for warranty and maintenance.
Got Questions?
Can I install an electric hot water heater by myself?
DIY installation is possible for experienced homeowners, but electrical work often requires a licensed professional and permits. Always consult local codes before starting.
DIY electric water heater installation is possible for experienced homeowners, but check local codes and consider hiring a licensed professional for the electrical work.
What safety gear should I use?
Wear protective gloves and safety glasses, and ensure the power is off before handling electrical components. Use proper PPE when cutting and lifting heavy equipment.
Wear gloves and safety glasses, and turn off power before you begin.
What permits or inspections are typically required?
Permit and inspection requirements vary by locale. Check with your local building department and utility provider before starting.
Check with your local building department to determine permit and inspection requirements.
How long does installation take?
A typical install can take several hours to a full day depending on existing plumbing and wiring, plus any permit processes.
Most installations take several hours to a day depending on conditions.
What maintenance is required after installation?
Annually inspect the T&P valve, flush mineral buildup, and check for leaks. Follow the manufacturer’s maintenance schedule.
Do regular maintenance: check the relief valve and flush the tank yearly.
Watch Video
Main Points
- Verify a dedicated electrical circuit is used.
- Plan for expansion and relief valve drainage.
- Test thoroughly for leaks after filling.
- Follow local codes and permits for installation.
