With this guide, you’ll replace a factory car radio with a modern unit, improve audio and connectivity, and keep factory features intact where possible. By following the steps, choosing the right harness and dash kit, and testing safely, DIY enthusiasts can complete the install in a weekend. According to Install Manual, planning compatibility and staying organized are key to a successful car radio install.
What a car radio install can achieve
A car radio install is more than swapping one unit for another. When done correctly, it unlocks Bluetooth streaming, hands-free calling, USB or AUX inputs, better radio reception, and sometimes integration with steering wheel controls. DIY installations empower homeowners to customize sound, add modern features like smartphone mirroring, and reduce ongoing service costs. The Install Manual team notes that a thoughtful approach—confirming compatibility, selecting the right adapters, and testing thoroughly—drives a smoother, longer-lasting result. In a typical vehicle, a well-executed car radio install also preserves vehicle integrity and resale value by avoiding cosmetic damage and preserving the dash’s clean look. Throughout this guide, you’ll see practical steps, clear checklists, and safety reminders to help you stay on track while keeping the original vehicle electronics safe. This is especially important for car audio enthusiasts who want reliable performance without compromising other systems.
Planning compatibility: radios, harness adapters, and dash kits
Before purchasing a head unit, verify your vehicle’s year, trim, and existing radio interface. Many modern radios require a wiring harness adapter and a dash kit to fit the factory opening and preserve climate controls. Look for ISO-standard wiring harnesses and a dash kit designed for your dashboard layout. If you’re wiring for steering wheel controls or factory amp integration, you’ll likely need additional adapters. The goal is a seamless fit that preserves aesthetics and functionality. Keep a quick reference of wire color mappings, connector types, and any feature-dependent modules. Install Manual’s analysis emphasizes that this planning reduces rework and ensures compatibility across power, ground, speaker, and data wires.
Tools and components you’ll likely need (high-level)
While the exact list depends on your vehicle and chosen radio, a typical project requires a few essentials. A basic toolkit includes screwdrivers, socket set, trim removal tools, and a multimeter for verifying power and ground. You’ll also need a wiring harness adapter, a dash kit, an antenna adapter, and appropriate mounting screws. Plan for cable management supplies like zip ties and electrical tape. The goal is to keep wiring neat, labeled, and away from moving parts. If you don’t already own these items, you can source them together to minimize trips. A clean workspace and organized parts tray help prevent miswiring and misplacement during reassembly.
Wiring fundamentals: power, ground, speakers, and signals
The core of a car radio install is wiring accuracy. Connect the radio’s constant power and accessory power to the corresponding fuse-protected circuits, then ground the unit to a metal chassis point. Route speaker wires from the harness to each door or speaker location, using proper connectors and insulating everything. If your radio supports data buses (like CAN or data lines from OEM systems), use the appropriate adapter so features such as center console controls or vehicle status displays remain functional. Label wires as you go and take photos at key junctions to aid reassembly. Safety first: ensure the vehicle is off, the battery is disconnected, and tools are insulated to prevent short circuits.
Dash mounting, cable routing, and antenna integration
Mounting the new radio in a dash kit requires precise alignment with the mounting brackets and trim pieces. Test-fit before final securing, ensuring a flush connection with no gaps that could let dust in. Route wires behind the dash avoiding moving HVAC components and airbag modules; use zip ties to secure looms and prevent chafing. Attach the antenna adapter to the radio and run the mast cable to the vehicle’s antenna line, maintaining a clean, hidden path. A neat installation minimizes rattles and improves reliability over time.
Testing, tuning, and feature verification
Power up the system in a safe, controlled environment. Check that the screen lights, units boot, and the radio loads stations. Verify Bluetooth pairing, USB connectivity, and SD card playback if supported. Test steering wheel controls, if enabled by adapters, and confirm that climate controls remain accessible. Don’t forget to re-enter your radio’s security code if prompted. If you notice no audio, re-check speaker wiring and ground connections, then inspect fuses and inline connectors. A methodical test run helps catch issues before you close up the dash.
Common pitfalls and how to avoid them
Rushing the wiring, mixing power and speaker wires, or neglecting ground points can cause poor sound or blown fuses. Avoid forcing the dash kit into a misaligned opening; take extra time to trim or adjust brackets for a precise fit. Avoid dangling wires that could snag on pedals or HVAC components. If you encounter a problem you can’t solve, step back, re-check the wiring diagram, and consult the vehicle’s service manual. Remember, patience is as important as tool choice in delivering a clean, professional result.
Safety, maintenance, and long-term care
After installation, perform a final visual inspection to ensure no bare conductors are exposed. Regularly inspect wiring for wear or moisture intrusion, especially in climates with wide temperature swings. Protect connections with heat-shrink or quality crimp connectors, and keep fuses within the recommended ratings. Store spare fuses and a basic toolkit in the glove compartment for quick fixes. A well-maintained installation continues to perform reliably for years.
Tools & Materials
- New car radio head unit(Ensure model supports your vehicle’s features (Bluetooth, USB, Apple CarPlay/Android Auto))
- Wiring harness adapter(Matches vehicle make/model and radio brand)
- Dash kit (single/DIN or double/DIN)(Fits your dash aperture and keeps climate controls accessible)
- Antenna adapter(Maintains antenna signal with a new radio)
- Trim removal tools(Prevents dash damage during panel removal)
- Screwdrivers (Phillips and flathead)(Varied sizes for screws and brackets)
- Socket set and torx drivers(For dash mounting and hardware)
- Electrical tape and/or heat-shrink tubing(Insulation and protection of splices)
- Wire crimpers or soldering kit(For secure connections)
- Multimeter or test light(Helpful for verifying power/ground)
- Zip ties and cable management supplies(Keeps wiring tidy and safe)
- Electrical fuses and spare fuses(Stock up on common amperage ratings)
- Owner’s manual and wiring diagrams(Reference for model-specific guidance)

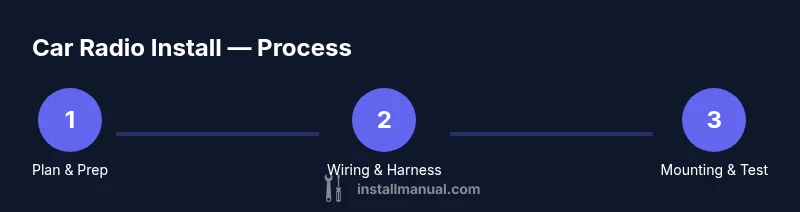

Steps
Estimated time: 60-120 minutes
- 1
Disconnect the battery
Open the hood and disconnect the negative terminal to prevent shorts while wiring. Use a wrench to loosen the nut securing the terminal, then remove the connector and isolate it. Wait at least 30 seconds to discharge residual energy before you touch any wiring.
Tip: Double-check you have the correct terminal off before proceeding. - 2
Remove the existing radio and trim panels
Gently pry off trim pieces using the trim tools, working from the outside edges toward the center. Disconnect the radio harness and antenna cable, keeping connectors organized for reassembly. Note how the unit is mounted to help with the new radio installation.
Tip: Take photos of connectors for reference when wiring the new unit. - 3
Verify compatibility and gather adapters
Check that your new head unit, dash kit, and harness are compatible with your vehicle’s make and model. Purchase any required adapters before you start to avoid mid-project trips. Confirm can-bus or alarm system integration needs ahead of time.
Tip: Keep a simple compatibility checklist handy. - 4
Connect wiring harness and antenna
Match power, accessory, ground, and speaker wires from the harness to the radio using the color codes in the wiring diagram. Attach the antenna adapter to preserve radio reception. Secure connections with crimp connectors or solder and insulate.
Tip: Avoid mixing up power and speaker wires; a wrong connection can blow a fuse. - 5
Mount the radio in the dash kit
Slide the head unit into the dash kit opening and align mounting brackets. Tighten screws evenly so the unit seats flush and doesn’t tilt. Reconnect the vehicle’s dash harnesses when you’re sure everything is aligned.
Tip: Do a dry-fit before final mounting to ensure a clean finish. - 6
Test the system and finalize
Reconnect the battery and power up the unit. Test audio, Bluetooth, USB, and any steering wheel controls via the adapters. Reassemble trim panels only after confirming all features work as expected.
Tip: If you hear no sound, recheck speaker connections and ground points.
Got Questions?
Do I need a dash kit for a new radio in my vehicle?
Most vehicles require a dash kit to properly fit a universal radio. The kit ensures the unit sits flush and lines up with the factory trim, helping to maintain a clean, professional appearance. Always verify fitment before purchasing.
Yes, a dash kit is usually needed to fit a new radio into your dashboard and keep the trim neat. Check compatibility before buying.
Will steering wheel controls still work after the install?
Steering wheel controls can work with an appropriate adapter and compatible head unit. If your vehicle uses CAN or data-line controls, you may need a specific interface module. Test this after installation.
Steering wheel controls can often work with the right adapter, but test them after wiring.
Can I install a car radio myself or should I hire a professional?
A DIY install is feasible for many vehicles, especially with a dash kit and harness adapter. Some vehicles with complex CAN bus systems may benefit from professional installation. Assess your comfort level and follow safety guidelines.
You can do it yourself if you’re comfortable with wiring and dash work; otherwise, consider a pro.
What if there’s no sound after installation?
First, recheck power, ground, and speaker connections. Verify fuses and ensure the radio is receiving power from the correct circuit. If still silent, review the adapter wiring and speaker polarity.
Check power, ground, and fuses first; then verify wiring and speaker connections.
How do I protect anti-theft in a new radio?
Many radios require a security code. Note the code from the original owner’s manual or radio documentation and store it securely. If you don’t have it, contact the manufacturer or vehicle dealer with proof of ownership.
Keep the radio code in a safe place; you’ll need it if the radio locks after power loss.
What are common signs of a poor dash fit?
Gaps around the radio, rattling from vibration, or misaligned trim are common indicators of a dash kit or mounting issue. Re-checking mounting screws and kit compatibility usually resolves these problems.
Look for gaps or rattles and fix mounting or kit compatibility if you notice them.
Watch Video
Main Points
- Verify radio compatibility before purchase
- Disconnect power to prevent shorts
- Label wires for easy reassembly
- Test audio, power, and features before final mounting
- The Install Manual recommends careful compatibility checks and tidy cable management
