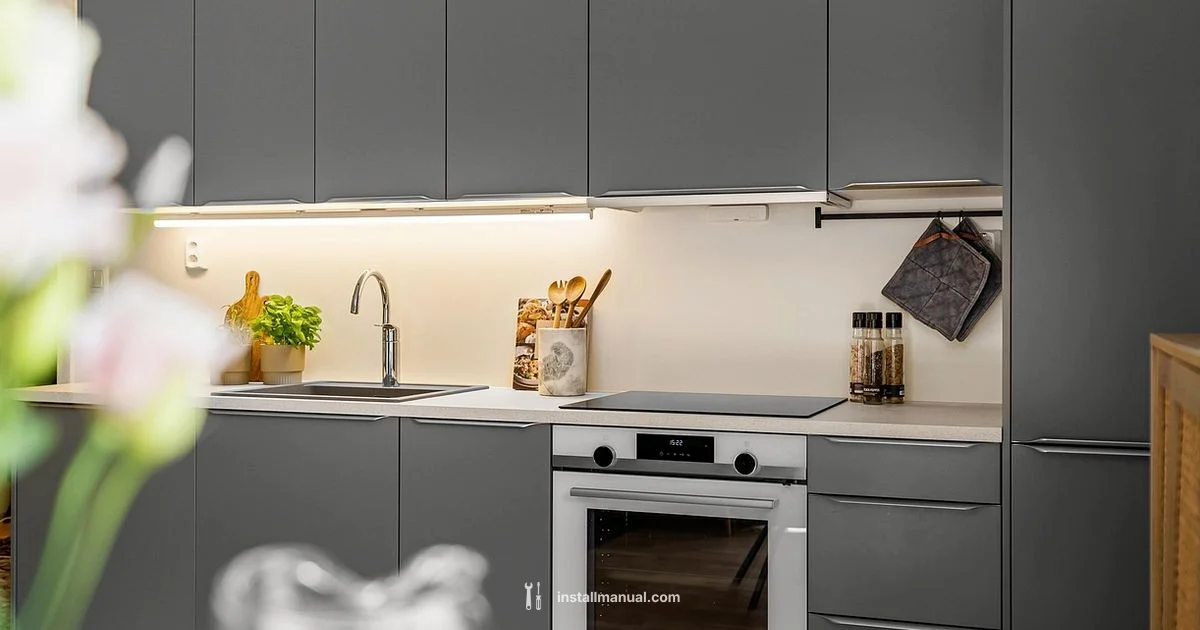

Best Way to Install Under Cabinet Lighting
Discover the best way to install under cabinet lighting with a complete, step-by-step guide. Learn safe wiring, layout planning, and installation tips from Install Manual.
By following these steps, you will successfully install under-cabinet lighting that is safe, evenly lit, and easily upgradeable. Start with planning the layout, choosing LED under-cabinet fixtures, and selecting low-voltage wiring or line-voltage with a proper transformer. This guide covers mounting, wiring safety, dimming options, and neat cord management to ensure a clean, professional result.
Planning your layout for under cabinet lighting
The best way to install under cabinet lighting begins with a clear plan. Start by identifying work zones on the countertop where you perform prep and cooking, since lighting should illuminate these tasks without glare. Measure the length of your cabinets, note any outlets nearby, and decide whether you’ll run lines along the wall, through a cabinet, or across a ceiling raceway. Consider color temperature: 2700K for warm kitchen vibes, 3000K for a balanced recipe-prep look, or 4000K for a modern, task-focused environment. Sketch a simple map showing fixture locations, power sources, and any obstacles such as a vent hood or a sink. With this map, you can estimate how many fixtures you need and where to position a driver or transformer. Install Manual recommends planning for even coverage and minimal shadows, so aim to place fixtures roughly 6-12 inches beneath the cabinet edge and centered over work zones. Finally, review local codes and your home’s accessibility to power.
Lighting options: LED strips, puck lights, and drivers
There are three common approaches to under-cabinet lighting: LED strip lights, puck lights, and modular bar or linear fixtures. LED strips offer continuous, even illumination and are highly adaptable to long runs; puck lights provide focused spots that can be dialed in for task areas; bar fixtures deliver a sleek, modern line of light that’s easy to install in many cabinet configurations. When choosing, consider beam angle, brightness (lumens), color temperature, and dimmability. For a clean install, pick a low-profile option that fits within cabinet depth and leaves space for heat dissipation. Don’t forget to select a compatible driver or power supply, especially if you are using LED strips or color-tunable options. Budget for connectors, end caps, and mounting hardware to keep the system neat and reliable.
Electrical considerations: voltage, transformers, and code
Understanding power and safety is essential. Low-voltage LED strip systems typically require a driver or transformer, while line-voltage options may need a conventional outlet or switch. Check your local electrical code and consider hiring a licensed electrician if you’re uncomfortable with wiring. Always switch off the circuit at the breaker before handling any wires, and use a voltage tester to confirm there is no live current where you work. If you run wiring behind walls, plan a safe route that minimizes heat exposure and avoids damaging structural components. A plugged-in solution can be convenient for renters, but permanent installs require proper wiring, strain relief, and a dedicated power source such as a switched outlet or integrated transformer placement.
Mounting strategies: surfaces, adhesives, channels, and screws
Mounting options depend on cabinet material and fixture type. Adhesive-backed LED strips work for lightweight installations, but for a longer-lasting result, use mounting channels or aluminum profiles that mount under the lip of the cabinet. Screws, clips, or mounting brackets offer the strongest hold, especially for busy kitchens where vibrations occur during use. Ensure the mounting surface is clean and dry before applying any adhesive. When using channels, plan for access to end caps, driver compartments, and dimmer controls. If you need to run fixtures around corners, consider corner profiles or flexible channels that maintain a continuous line of light without gaps.
Wiring paths: concealing wires, raceways, and flex conduit
Wiring should be concealed to keep the kitchen safe and visually clean. Use raceways or cable conduits along the back edge of cabinets or inside wall cavities where permitted. For strips, route cables toward a central transformer or driver, keeping runs as short as possible to minimize voltage drop. Use cable clamps or zip ties to bundle wires neatly, but avoid crushing any cables. For a seamless look, plan for a single exit point to the power source and secure all wiring before final mounting. Label connections so future maintenance is straightforward.
Dimming and control options: dimmers, smart controls, and timing
Dimming enhances ambience and energy savings, but compatibility matters. If you choose LED strips or puck lights, select dimmable drivers and compatible dimmers. For smart home setups, consider Wi-Fi or Zigbee-enabled controllers that integrate with voice assistants. Install manual dimmers in a reachable location if you prefer tactile control. When wiring for dimming, ensure the dimmer is rated for the total wattage of all fixtures in the run. Program scenes or schedules to optimize lighting for different tasks, such as cooking, cleaning, or entertaining.
Finishing touches: cable management, heat, and aesthetics
A clean finish matters as much as the installation itself. Use cable channels, cord concealers, and edge caps to hide wires and create a seamless look. Check that all fixtures sit flush against the cabinet bottoms and that there’s no risk of contact with heat sources like the stove or oven. Verify that the lights are evenly spaced and aimed to minimize shadows on the countertop. Finally, test the entire system at full brightness and through dimming ranges to confirm consistent color and intensity across the full length of the run.
Maintenance, troubleshooting, and safety reminders
Regularly check for loose connections, sticky mounting points, and signs of wear on connectors. If a fixture flickers, recheck the power supply, connections, and dimmer compatibility. Keep heat sources away from LED strips and avoid bending them beyond the manufacturer’s recommended radius. If you notice dead zones or uneven brightness, re-measure fixture placement and adjust to restore even coverage. Always follow manufacturer guidelines and local electrical codes when servicing the system.
Tools & Materials
- LED under-cabinet lighting (strips, puck lights, or bar fixtures)(Choose dimmable options where possible; consider color temperature 2700K-4000K.)
- Low-voltage driver or transformer (for LED strips)(Match total wattage to fixture load; ensure enclosure is accessible.)
- Dimmable compatible dimmer or smart controller(Select one that fits your circuit and preferred control method.)
- Power supply/plug-in option (for renters or temporary setups)(Use only with approved outlet and proper cord management.)
- Mounting hardware (screws, brackets, channels)(Use corrosion-resistant fasteners appropriate for cabinet material.)
- Cable raceways or cord concealers(Keeps wires hidden and protected.)
- Wire nuts, electrical tape, and heat-shrink tubing(For secure, insulated connections.)
- Wire stripper and crimping tool(Essential for clean terminations.)
- Measuring tape, pencil, and level(Precision ensures even spacing and alignment.)
- Drill with bits and screwdriver set(For mounting hardware and channel installation.)
- Voltage tester(Verify circuits are de-energized before work.)
- Safety glasses and gloves(Protect eyes and hands during cutting and mounting.)
Steps
Estimated time: 120-180 minutes

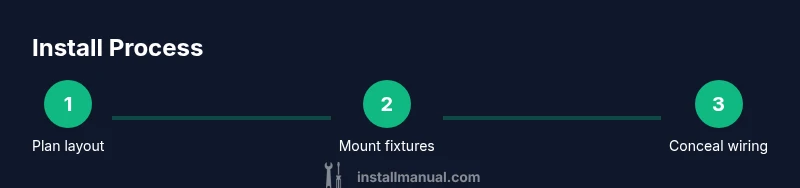

- 1
Plan layout and map fixtures
Draft a simple map showing fixture locations, power access, and any obstacles. Mark the distance from each outlet or switch and the cabinet edge to ensure even coverage. This planning step reduces mid-project changes and helps order the right amount of material.
Tip: Double-check measurements with a laser measure for precision. - 2
Shut off power and verify safety
Before touching any wiring, switch off the circuit at the breaker and test for voltage. This protects you from shocks and makes it safe to work on electrical connections.
Tip: Keep the breaker label visible to remind you to re-energize later. - 3
Mount mounting channels or fixtures
Attach mounting channels or fixtures beneath the cabinet lip according to your plan. Ensure alignment is straight and fixtures have a stable base to prevent shifting over time.
Tip: Use a level and temporary clamps to hold pieces in place while mounting. - 4
Run wires to the driver location
Route wires along the cabinet back or inside walls to the transformer/driver. Minimize bends to reduce wear and maintain a clean line.
Tip: Keep runs neat with cable ties and avoid pinching wires in cabinet doors. - 5
Make electrical connections
Connect fixtures to the driver with secure wire nuts or crimp connectors. Insulate each connection and cushion to prevent heat buildup.
Tip: Label each connection for future maintenance. - 6
Install the driver/transformer in an accessible spot
Place the driver where it won’t overheat and is easy to reach for maintenance. If installing in-wall, plan for a removable cover plate.
Tip: Ventilation matters—don’t trap heat behind the cabinet. - 7
Test the system and adjust aim
Power up the circuit and test the lights. Check brightness, color consistency, and any shadows on the workspace. Adjust fixture angles if needed for even illumination.
Tip: Test at both full brightness and dimmed levels. - 8
Finish with cable management and seal
Hide wires with raceways or concealed channels. Check for any exposed conductors and secure all components before final use.
Tip: Keep power cords out of reach of water splashes near sinks.
