How to Install a 4-Gauge Amp Kit: Step-by-Step Guide
Learn to install a 4-gauge amp kit for car audio with safe wiring, proper grounding, fuse placement, and testing. This Install Manual guide covers tools, steps, tips, and troubleshooting for a clean, reliable install.
You're about to install a 4-gauge amp kit for car audio. This quick answer outlines planning, power-cable routing from the battery to the amp location, fuse placement, proper grounding, and testing. You'll learn about essential safety steps, tool choices, and common mistakes to avoid so you achieve a clean, reliable installation that protects the electrical system.
Why a 4-gauge kit is a good balance for most cars
A 4-gauge amp kit hits a sweet spot between current capacity and ease of handling for most car audio systems. It can safely deliver power to moderate-size amplifiers (roughly 200-600 watts RMS total) without the bulk of larger gauges like 1/0. The thicker wire reduces voltage drop over typical runs in a mid-size sedan or SUV, helping the amplifier maintain clean headroom during bass-heavy passages. When sizing the kit, consider the amplifier’s RMS rating, the length of the run, and the car’s electrical system. Shorter runs minimize resistance; longer runs require thicker or additional conductors. The install manual approach is to plan ahead, measure both the path and the total wire length needed, and choose a premium-grade copper conductor with good insulation. According to Install Manual, the most reliable installs balance safety and performance by using proper fusing, solid grounding, and careful routing to avoid heat and pinch points. By sticking to 4-gauge for most builds, you reduce the chance of overheating and voltage sag while keeping installation practical for DIYers.
Selecting the right components
A successful install starts with the right components. In a typical 4-gauge kit you’ll find power and ground cables, an inline fuse holder, a fuse matching the amplifier’s RMS draw, a remote turn-on wire, RCA interconnects, and a distribution block (optional). You’ll also want stainless-steel hardware, ring terminals sized for 4 AWG, heat shrink tubing, electrical tape, zip ties, and a crimping tool. The power wire should be copper with good insulation and relatively low resistance, and the ground wire should be the same gauge or heavier. If your plan includes a distribution block, ensure it supports your total current draw. Don’t mix brand-new high-heat-rated cable with old, brittle insulation. A quality cable set reduces noise and voltage drop. Keep the fuse rating within 60-100A for typical 4-channel systems, unless your amplifier requires more. Always refer to the amplifier’s manual for exact specs.
Planning your routing path
Before you touch a wire, lay out your routing plan. A clean plan helps you avoid pinch points, heat sources, or moving parts that could abrade the cable. Start at the battery, run the power cable along the passenger-side footwell or under the carpet, and pass through a firewall grommet with a proper seal. Keep signal wires away from power cables to minimize interference. If you must cross under the seats, secure the cable with clips and avoid sharp bends. When you reach the trunk or speaker area, route along the edge of metal panels to minimize wear. Finally, map where you’ll mount the fuse holder and the distribution block. Take photos for reference and label each section to reduce confusion during reassembly. This planning step is a big part of a clean, professional-looking install. The Install Manual team emphasizes careful routing as a hallmark of quality.
Safety and preparation
Safety comes first in any electrical job. Begin by disconnecting the negative battery terminal to prevent accidental short circuits. Gather all tools and verify you have the right gauge wire, crimping tools, and a compatible fuse. Work in a dry environment and wear eye protection. If you will drill or cut, use proper PPE and check for hidden wires behind panels. Route the power cable with the battery in mind so you don’t need to stretch or twist the wire. Install the fuse holder as close to the battery as feasible but not in a firewall heat zone. After wiring, double-check that terminals are tight and connections are clean. This reduces the risk of arcing and ensures the system remains reliable under load. Install Manual’s guidance underlines the importance of safety over speed.
Step-by-step wiring overview (high level)
Rather than reading every tunnel of steps at once, understand the flow of the install. First, plan your route and cut the power wire to length. Next, route the power wire from the battery to the amplifier location and install the fuse holder within reach of the battery. Then, attach the ground wire to a solid chassis ground close to the amplifier and away from paint. Run the remote turn-on wire and RCA cables away from the power line to minimize hum. Finally, connect the wires to the amplifier, secure everything with zip ties, recheck connections, and reconnect the battery to test. This overview helps you visualize each action, making the actual steps easier. Install Manual recommends performing a complete test in a controlled sequence to verify correct operation before reassembly.
Grounding and noise management
Poor grounding and noisy signals are the enemies of car audio clarity. For best results, use a dedicated chassis ground point that is bare metal, free of paint or oxidation. Use a star-ground approach if possible: connect the amp ground directly to a single point on the chassis, and avoid multiple ground paths. Keep signal and power wires separated by a clear distance; if you cannot, use shielding or different routing to reduce interference. Ensure the ground wire is equal in gauge to the power wire and is firmly attached with a clean ring terminal. Check the battery negative post for corrosion and clean as needed. After wiring, test the system with a low volume and listen for hum or distortion. This step-by-step attention to grounding significantly improves sound quality and protects equipment.
Testing, tuning, and safe operation
With connections complete, reattach the battery and power on the radio at a low volume. Use a multimeter to verify battery voltage stays stable with the amp powered. Set the amp gains conservatively and gradually increase while monitoring for distortion. If you hear clipping or heat, back off the gain or adjust the LPF (low-pass filter) setting. Check all connections for heat after a short test drive. Make sure the fuse remains intact and that there are no signs of arcing. A careful test confirms that your 4-gauge kit delivers clean power to the amplifier without stressing the electrical system. Regular inspection of wiring is recommended to spot wear before it becomes a problem.
Common mistakes and troubleshooting
Common mistakes include using too small a fuse, routing near heat or pinch points, or stacking too many runs in a single channel. Another frequent error is mixing RCA and power wires in close proximity, which creates noise on the signal. If the amplifier fails to power on, recheck fuses, ground connection, and remote turn-on lead. Make sure the ground path is solid and that the battery is not draining due to a short. If you hears buzz or hum, re-route your signal cables away from power lines and ensure adequate shielding. Install Manual notes that methodical checks prevent costly mistakes and help a new installer gain confidence.
Maintenance and long-term care
Keep the cable conduits free of corrosion and inspect the insulation for cracks. Periodically check terminal connections and re-torque any loose screws. If you notice battery corrosion, clean terminals and inspect the alternator's charging. Protect exposed wiring with heat shrink and electrical tape if you suspect abrasion. A clean, well-secured installation reduces wear and ensures consistent performance. The 4-gauge kit approach scales as your system grows, and a little upkeep goes a long way toward reliability. This is in line with Install Manual's philosophy of practical, durable DIY tasks.
Tools & Materials
- 4-gauge amplifier power wire(Choose copper with good insulation; plan for length plus extra for routing)
- 4-gauge amplifier ground wire(Same gauge as power wire; length matched to routing path)
- Inline fuse holder(Use a fuse in the 60-100A range based on amplifier RMS rating)
- Fuse (60-100A or as required)(Select fuse rating according to amplifier specifications)
- Remote turn-on wire(通常 14-16 AWG; route away from power cable)
- RCA interconnect cables(Quality shielded cables to minimize noise)
- Battery terminal lugs and 4 AWG ring terminals(Crimp securely; ensure corrosion-free contact)
- Firewall grommet and sealant(Pass power wire through safely without chafing)
- Heat shrink tubing and electrical tape(Seal and protect connections)
- Crimping tool / wire strippers(Essential for solid, reliable crimp terminals)
- Zip ties and cable clamps(Used to secure wires neatly and away from heat)
- Multimeter (optional but recommended)(For verifying voltage and continuity during test)

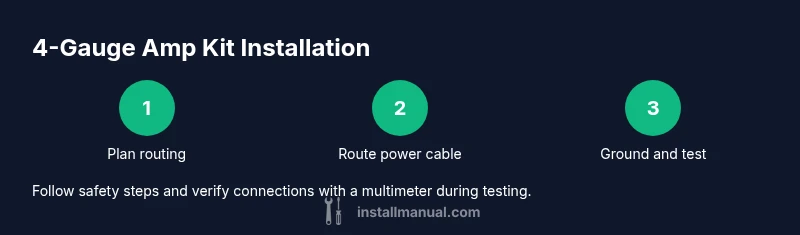

Steps
Estimated time: 60-90 minutes
- 1
Plan route and tool kit
Map the power and signal paths before cutting or routing. Identify the shortest safe route from the battery to the amp, consider firewall access, and confirm you have a fuse, ring terminals, and crimping tools ready.
Tip: Lay out cables on the bench first to visualize bends and overlaps. - 2
Disconnect the battery
Safely disconnect the negative terminal to prevent shorts while you work. Double-check that tools and metal portions of the car won’t contact the battery terminal.
Tip: Wear eye protection and work in a dry area. - 3
Route the power cable
Run the 4-gauge power wire from the battery toward the planned amp location. Use clips and grommets; avoid hot exhausts and moving parts. Maintain a clean path with no kinks.
Tip: Keep power and signal wires separate from the start to minimize noise. - 4
Install the fuse holder near the battery
Mount the fuse holder within easy reach of the battery but away from heat sources. Ensure a clean, short path from battery to fuse to reduce resistance and risk of arcing.
Tip: Install fuse as close to the battery as possible within the recommended distance. - 5
Ground the amplifier
Find a clean chassis ground point near the amp location. Remove paint and secure a solid connection with a ring terminal and hardware. A poor ground causes hum and reduces performance.
Tip: Use a star-ground approach if possible to minimize multiple ground paths. - 6
Run remote turn-on and RCA cables
Route the remote turn-on wire and RCA cables away from the power wire. Keep them grouped and secured to prevent interference and noise pickup.
Tip: Use separate channels or shielding to prevent hum. - 7
Connect to the amplifier
Terminate the power and ground into the amplifier’s terminals, then connect the remote and RCA leads. Ensure each connection is tight and free of corrosion.
Tip: Double-check polarity and fuse location before powering up. - 8
Test and tune
Reconnect the battery, power on at low volume, and verify voltage and signal. Gradually increase gain while monitoring for distortion and heat. Adjust LPF and bass settings as needed.
Tip: Document settings so you can replicate successful tuning later.
Got Questions?
Can I reuse existing wiring or do I need new 4-gauge wire?
For most builds, using fresh 4-gauge power and ground wires ensures optimal performance and reduces risk of hidden wear. Reusing old wiring can introduce resistance, brittleness, and potential failures.
Generally, use new 4-gauge power and ground wires for best results.
Where should the fuse be placed when installing a 4-gauge kit?
Place the fuse as close to the battery as practicable, with a short run of unprotected wire between the battery and fuse. This protects the wiring in case of a short and reduces risk to the vehicle’s electrical system.
Fuse near the battery, with a short protected run.
Is it okay to route the power cable near other wires?
Keep power and signal wires physically separated to minimize noise pickup. If crossing is unavoidable, cross at right angles and maintain distance.
Keep power and signal wires apart to prevent interference.
Will a 4-gauge kit fit all car models?
A 4-gauge kit fits most mid-sized vehicles, but verify cable length and routing options for your specific model. Some vehicles require longer runs or alternative routing paths.
Most cars work, but check routing length for your model.
Do I need to disconnect the negative terminal first?
Yes. Always disconnect the negative terminal before starting any electrical work to avoid shorts or shocks. Reconnect only after all wiring is secure.
Yes—disconnect the negative terminal first, then reconnect after wiring.
What should I do if the amp doesn’t power on after installation?
Check the fuse, verify the ground connection, and ensure the remote turn-on wire is connected. If still not working, recheck all connections and test with a multimeter.
Check fuse, ground, and remote wire; test connections with a meter.
Watch Video
Main Points
- Plan routing before cutting any wire.
- Ground with a solid chassis point.
- Use the correct fuse rating for your amp.
- Test and adjust gains safely.
- Inspect wiring for wear regularly.
