What You Need to Install a Dishwasher: A Homeowner’s Guide
Learn exactly what you need to install a dishwasher, including tools, materials, step-by-step guidance, safety tips, and maintenance advice from Install Manual.
If you’re planning to install a dishwasher, the quick answer is: you’ll need a clear space, a dedicated power supply, a reliable hot water line, a proper drain, and the right mounting hardware. In this guide from Install Manual, we outline exactly what you need to install a dishwasher, plus steps to verify connections and start a safe setup.
What do you need to install a dishwasher
Installing a dishwasher starts with a clear understanding of space, power, water, and drainage needs. If you’re asking what do you need to install a dishwasher, the answer centers on a cabinet opening that accommodates a standard unit, a dedicated electrical circuit, a reliable hot water supply, and a safe, code-compliant drain connection. In this Install Manual guide, we break down each requirement, explain why it matters, and outline practical checks you can perform before you buy or move a unit. Having this foundation reduces mistakes and helps you decide whether a DIY installation is feasible or if you should hire a licensed professional.
Assessing space, opening, and current connections
Before you bring a dishwasher home, measure the cabinet opening: width, height, and depth must align with the unit you plan to install. Confirm that your plumbing lines, waste line, and electrical outlet are in the right place or can be relocated with minimal disruption. If any connection is strained or mismatched, plan for adapters or a different model. The goal is a snug fit that allows easy access for service and routine maintenance. Install Manual recommends checking that the valve is accessible and that the drain path leads to a proper trap to prevent sewer gas from entering the kitchen.
Tools and materials you will need
A smooth installation requires a focused set of tools and materials. Essential items include a measuring tape, adjustable wrench, screwdriver set, level, and a drill with bits appropriate for wood and metal. You’ll also need a flexible braided stainless steel water supply line, a drain hose with the appropriate diameter, an electrical cord or outlet kit compatible with your dishwasher, and mounting brackets or anti-tip devices. Optional but helpful are an air gap or high-loop kit for backflow prevention, silicone sealant, and shims for leveling. Keeping a clean workspace and a helper nearby can prevent dropped units or damaged tile edges during installation.
Electrical and plumbing considerations
Power supply and grounding are critical. Most dishwashers require a dedicated 15- or 20-amp circuit, protected by a GFCI in many kitchens. Check local codes and ensure your outlet is properly grounded. For plumbing, connect to a hot water supply line with a properly rated connector, and attach the drain hose to an air gap or a direct connection to the sink drain with a trap. Use secure fittings and avoid overtightening, which can crack hoses. If you’re replacing an old unit, verify the pipe sizes match the new appliance and that the shut-off valves function correctly.
Drainage and venting: what to know
The dishwasher’s drain must have a secure path to the household waste line. Most installations use a drain hose that runs either to a disposal or to the sink drain via an air gap or high-loop method. Ensure the hose has a gentle upward path to prevent backflow and clogs. Venting is typically not required for standard residential dishwashers, but local codes may demand an air gap device in some jurisdictions. Plan the routing to avoid sharp bends that can trap debris and reduce drainage speed.
Safety, permits, and codes to check
Always turn off power at the circuit breaker before touching outlets or wiring, and shut off the water supply while connecting hoses. If you’re unsure about wiring or venting, consult a licensed electrician or plumber. Check your local building codes or the national electrical code for dishwasher installation requirements, including whether a permit is needed. Following manufacturer installation instructions is essential to warranty coverage and safe operation.
Opening the cabinet and preparing the installation
Clear the opening and remove any shelves or obstacles that hinder a clean fit. Dry-fit the dishwasher to confirm alignment with cabinetry and flooring. Adjust leveling feet to ensure the unit sits flush; a tilted dishwasher can damage seals and cause leaks. Mark stud locations for securing brackets if the unit requires anti-tip devices. Have a helper stabilize the dishwasher as you make final connections so you don’t pinch hoses or cables.
Final checks, testing, and maintenance tips
With connections in place, run a test cycle without dishes to check for leaks, unusual noises, or poor drainage. Inspect around hoses, fittings, and the base for any moisture. If you notice drips, tighten fittings gradually and re-test. Once the run is successful, re-load with dishes and monitor performance for a few cycles. Regular maintenance, including cleaning filters and checking seals, will extend the life of your dishwasher and keep it running efficiently.
Tools & Materials
- Dishwasher(Ensure unit width matches opening (standard 24 inch width); check height and depth)
- Electrical outlet (dedicated 120V circuit)(GFCI protected where required; confirm grounding)
- Water supply line (flexible braided stainless steel)(3/8 inch compression or 1/2 inch depending on unit)
- Drain hose(Appropriate diameter; avoid kinks; length adequate)
- Air gap or high-loop kit(Optional for backflow prevention per code)
- Mounting brackets/anti-tip device(Secures unit and prevents tipping)
- Screwdriver set (Phillips and flat)(For panel screws and bracket mounting)
- Adjustable wrench(For hose fittings and valves)
- Measuring tape(Verify opening dimensions)
- Level(Dial in precise leveling to avoid leaks)
- Silicone caulk(Seal edges around the toe-kick if needed)

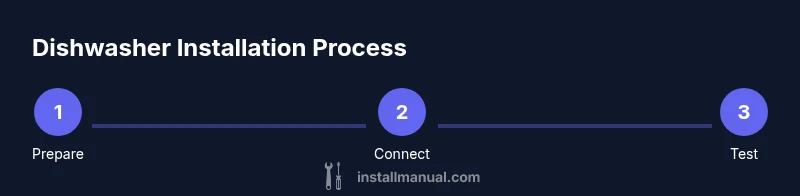

Steps
Estimated time: 90-120 minutes
- 1
Prepare the space
Clear the area, remove obstructing shelves, and dry-fit the opening to ensure enough clearance. Confirm the cabinet interior is clean and dry, and verify the floor is level. Bring the dishwasher to the opening to evaluate fit before disconnecting any utilities.
Tip: Have a helper hold the unit during dry-fit to avoid accidental damage. - 2
Shut off water and power
Turn off the home water supply to the dishwasher’s valve and switch off power at the circuit breaker. Confirm no residual power by testing the old outlet with a non-contact tester. This prevents shocks and leaks during connections.
Tip: Label breakers if multiple circuits serve the kitchen to avoid confusion later. - 3
Disconnect existing connections
If you’re replacing an old unit, disconnect both supply lines and drain hose. Cap the water line to prevent drips and keep the area clean. Remove the old mounting brackets and clear debris from the opening.
Tip: Take photos of old connections for reference during reassembly. - 4
Move the dishwasher into the opening
With an assistant, slide the appliance into the cabinet opening, ensuring the water supply and drain lines align with the back of the unit. Do not bend cords or hoses sharply. Check that the unit sits close to the cabinet face for a flush finish.
Tip: Protect tile edges with a piece of cardboard during movement. - 5
Connect water supply line
Attach the flexible braided line to the hot water valve using the correct adapter. Hand-tighten first, then give a quarter-turn with a wrench. Avoid overtightening to prevent leaks or valve damage.
Tip: Always use Teflon tape or thread sealant where specified by the manufacturer. - 6
Connect drain hose
Route the drain hose to the sink drain or disposal, using an air gap or high-loop as required by code. Secure clamps and verify there are no kinks. Ensure the hose slope supports gravity drainage.
Tip: Avoid long, sharp bends that can cause clogs and slow drainage. - 7
Secure unit and level it
Adjust the leveling feet until the appliance is perfectly plumb and front edges sit flush with the cabinet face. Once level, secure anti-tip brackets according to the manufacturer’s instructions.
Tip: Check level again after pushing the unit fully into place to catch settling. - 8
Test run and inspect for leaks
Plug in or reconnect power and run a short empty cycle to check for leaks around water inlets, hoses, and the drain connection. If leaks appear, tighten fittings gradually and retest. Do not load dishes until the unit runs smoothly.
Tip: Keep towels handy to quickly catch any moisture during testing. - 9
Finalize and document
Return any removed shelves, seal gaps with silicone if needed, and document the installation steps for future reference. Record the model number and date of installation for warranty purposes and future service.
Tip: Photograph connections for your records and future service visits.
Got Questions?
Do I need a licensed professional to install a dishwasher?
Not always; a competent DIYer with basic plumbing and electrical knowledge can install a dishwasher if you follow manufacturer instructions and local codes. However, if you’re unsure about wiring, venting, or gas lines, hire a professional.
You can DIY if you’re comfortable with plumbing and electrical tasks; otherwise, hire a pro.
What is a standard dishwasher opening size?
Most standard dishwashers fit a 24-inch-wide opening, with around 34 inches in height and 24 inches in depth; always measure your cabinet opening to confirm.
Most openings are 24 inches wide and 34 inches tall. Measure yours to be sure.
Is venting required for a dishwasher?
Dedicated venting is usually not required; the unit drains into the sink or disposal. Some local codes may require an air gap depending on regional rules.
Dishes don’t typically need a vent, but follow local rules about air gaps.
How long does installation typically take?
A straightforward install often takes about one to two hours, with longer durations if plumbing or electrical work is needed.
Typically one to two hours, depending on complexity.
What maintenance is advised after installation?
Regularly clean the filter, inspect hoses for wear, run empty cycles to dry seals, and check for leaks during the first few uses.
Regular maintenance includes cleaning filters and checking hoses for wear.
Watch Video
Main Points
- Plan space and confirm connections before buying.
- Use a dedicated circuit and proper drainage.
- Level the unit to prevent leaks and sealing issues.
- Test thoroughly and maintain regularly.
