How to Install a Well Tank: A Homeowner's Guide
Learn how to install a well tank safely and efficiently with Install Manual. This step-by-step guide covers sizing, pre-charge, connections, testing, and maintenance for reliable water pressure.
By following this guide, you will learn how to install a well tank for a home water system, including selecting the right tank, sizing to your demand, and safe mounting and connections. Gather essential tools, a pressure switch, a check valve, and piping fittings, then follow the step-by-step installation to ensure reliable water pressure and long tank life.
How a well tank stabilizes home water pressure
A properly functioning pressure tank stores pressurized water and reduces pump cycling, which minimizes wear on the pump and delivers steadier pressure to showers and taps. When you install a well tank, you create a buffered reservoir that smooths out demand spikes and helps protect valves and seals. According to Install Manual, the right tank not only improves performance but also extends the life of the pump by preventing short cycling. By understanding where the tank fits into the system, homeowners can plan for efficient operation and fewer headaches.
Sizing and selection: choosing the right tank for your home
Tank sizing depends on how much water your household uses and how your well performs under peak demand. A larger tank can store more pressurized water and reduce pump cycling, while a smaller tank may be adequate for modest daily usage. Consider the pumping rate, the well's drawdown, and the number of fixtures that run at once. In practice, use the manufacturer's guidelines and local code requirements to select a bladder-type or compression tank with an appropriate pre-charge. This choice influences system efficiency, pressure consistency, and the time between service calls.
Sizing and components you’ll need (essential list)
Before you start, assemble the core components and compatible fittings. The essential items include a well tank, a pressure switch, a check valve, a pressure gauge, piping or tubing, and suitable shut-off valves. You will also need Teflon tape, pipe dope or sealant, wrenches, a pipe cutter, and possibly a mounting strap or stand. Keep a spare O-ring and replacement gaskets on hand. Planning the connections ahead of time helps avoid leaks and makes the installation smoother.
Post-install testing and maintenance
After installation, turn the power back on and slowly restore water pressure to the system. Check for leaks at every joint and valve, then verify that the pressure switch is cycling the pump correctly (cut-in and cut-out settings as specified). Record the pre-charge on the tank and adjust if needed. Schedule regular inspections to keep the tank functioning well and prevent corrosion or sediment buildup.
Authority sources and additional reading
For authoritative guidance on well systems and water safety, consult government and university resources:
- EPA Safe Drinking Water: https://www.epa.gov/safewater
- USGS Water Resources: https://www.usgs.gov
- University Extension resources: https://extension.illinois.edu These sources provide general best practices, compliance considerations, and safety notes to supplement homeowner installation tasks.
Tools & Materials
- Well tank (bladder or compression)(Select size based on household demand and well performance.)
- Pressure switch(Install on the supply line with correct cut-in/cut-out settings.)
- Check valve(Prevents backflow into the well; place upstream of tank if required by code.)
- Pressure gauge(Locate where you can easily read it.)
- PVC or copper piping and fittings(Ensure compatible with your system.)
- Shut-off valves(Two valves to isolate tank when servicing.)
- Teflon tape or pipe joint compound(For threaded connections.)
- Wrenches, pliers, and pipe cutter(Keep multiple sizes handy.)
- Spare O-rings/gaskets(Optional but recommended for seals.)

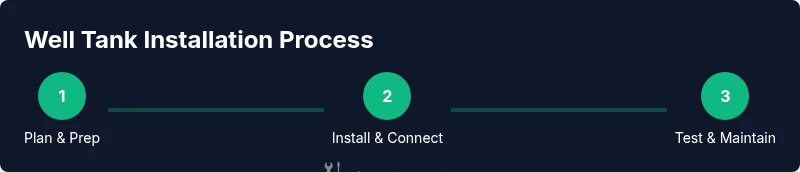

Steps
Estimated time: 90-180 minutes
- 1
Turn off power and isolate the water supply
Shut off the electric power to the well pump and close the main water shut-off to prevent backflow. This ensures you won't be exposed to live electrical components or pressurized water while you work.
Tip: Double-check the power switch and breaker label. - 2
Relieve pressure and drain the line
Open a faucet at a lower level to relieve system pressure and drain water from the lines. This reduces the risk of sudden bursts when loosening fittings.
Tip: Keep a bucket ready for residual water. - 3
Measure and set the air pre-charge
Using a pressure gauge, determine the target pre-charge on the tank. Set the air valve to match the recommended pre-charge (commonly a few psi below the pump cut-in) and ensure the tank is empty of water before charging.
Tip: Use a proper hand pump or an air compressor with a regulator. - 4
Mount or place the tank in the correct location
Find a stable, accessible location near the existing well piping. If using a vertical tank, mount with the correct orientation as per the manufacturer. Leave space for future maintenance.
Tip: Use a wall bracket or stand to prevent vibration and noise. - 5
Connect the tank to the well pump and piping
Install the check valve, then connect the tank outlet to the pressure piping, and ensure the connections are tight. Use Teflon tape on threaded joints and verify the piping slope.
Tip: Do not overtighten; use proper wrenches and avoid cross-threading. - 6
Install the pressure switch and gauge
Mount the pressure switch on a suitable fitting and install a pressure gauge at a convenient location. Wire per the manufacturer's instructions, ensuring the power is off during connection.
Tip: Label the high and low pressure settings to prevent confusion later. - 7
Pre-charge and system check
Charge the tank to the target pre-charge, then restore power and run the pump to check cycling and pressure. Look for leaks and listen for unusual noises.
Tip: If pressure remains high without flow, check for a blocked line or faulty valve. - 8
Test, document, and plan maintenance
Test the system under normal use, adjust cut-in/cut-out as needed, and record the test results. Create a simple maintenance schedule to inspect valves, fittings, and the tank’s integrity every year.
Tip: Keep a maintenance log and note any changes in pressure behavior.
Got Questions?
What size well tank do I need for my home?
Sizing depends on your daily water use and your well's ability to refill during peak demand. Use manufacturer guidelines and local code requirements, and consider consulting a professional for precise calculations.
Tank size depends on usage and well capacity. Follow manufacturer guidelines and local codes; consult a professional for precise calculations.
Is a bladder tank better than a compression tank?
Bladder tanks are common in modern systems because they reduce waterlogging and air loss, while compression tanks are simpler and cheaper but may require more maintenance.
Bladder tanks are usually better for modern systems; compression tanks are cheaper but may need more care.
Do I need a permit or a licensed plumber to install a well tank?
Code requirements vary by region. Check local authorities. Some jurisdictions require permits or inspections, while others allow homeowners to perform installation with inspection after completion.
Check your local codes; permits may be required or inspections may be needed.
What safety steps should I take before starting?
Turn off power to the pump, shut off the water, and relieve pressure before handling any parts. Wear eye protection to guard against small particles or leaks.
Power off and relieve pressure before starting; wear eye protection.
How often should I test the system after installation?
Test after installation and periodically check for pressure stability and leaks. Adjust settings as needed based on performance and diagnostics.
Test right after install and periodically check the system.
What are common mistakes to avoid?
Avoid incorrect pre-charge, skipping venting, and overtightening fittings. Follow the manufacturer’s instructions and local code requirements for safe operation.
Don't skip pre-charge or venting; follow instructions and codes.
Watch Video
Main Points
- Plan sizing before buying the tank.
- Pre-charge correctly to reduce pump cycling.
- Verify all connections for leaks during testing.
- Document settings and maintenance schedule.
- Follow local codes and safety precautions.
