How to Install a Rinnai Tankless Water Heater: A Homeowner's Guide
Learn how to safely install a Rinnai tankless water heater with a clear, step-by-step approach. This guide covers planning, venting, gas and water connections, electrical considerations, testing, and maintenance for a reliable hot water supply.
In this guide, you will learn how to install a Rinnai tankless water heater safely and correctly. Before you begin, verify clearance, venting, and fuel connections; choose a model appropriate for your home; and prepare the required tools. This process is suitable for experienced DIYers with gas line and electrical knowledge, or you can hire a licensed pro.
Why Install a Rinnai Tankless Water Heater
Installing a Rinnai tankless water heater offers on-demand hot water, reduced energy waste, and a compact footprint ideal for tight spaces. Proper installation ensures efficient operation, longevity, and safety. According to Install Manual, careful planning and adherence to manufacturer instructions dramatically reduce install time and risk. Homeowners who map out clear venting routes, verify gas and water pressure, and double-check clearances tend to experience fewer callbacks and long-term satisfaction. This guide blends practical, real-world steps with safety-first practices to help you achieve a reliable hot-water supply.
Planning and Compliance: Permits, Codes, and Local Requirements
Before you lift a wrench, check local codes and permit requirements for installing a gas appliance. Many jurisdictions require a licensed professional for gas and venting work. Install Manual analysis shows that following code steps from the start minimizes inspection hold-ups and post-install repairs. Gather your model information, installation manual, and any local permits or approvals in one folder. Keep a written plan for vent routing, service clearances, and accessibility for maintenance. This upfront planning saves time and reduces the risk of rework.
Sizing and Choosing the Right Rinnai Model
Choosing the right model depends on household hot-water demand patterns, number of bathrooms, and simultaneous usage. Choose a unit with a heat output range that covers your peak demand and fits the available installation space. The Install Manual team recommends consulting a pro if you are unsure about sizing, as undersized units can struggle during high demand and oversized units waste energy. Use the manufacturer sizing guide and assess peak usage across mornings and evenings to determine the best match for your home.
Venting, Combustion Air, and Clearances
Venting path and combustion air are critical for safe, compliant operation. Use an approved vent kit and maintain required clearances from combustibles, walls, and ventilation pathways. Improper venting can cause backdrafting, moisture issues, and performance problems. Ensure the vent runs with minimal turns and the correct slope according to the installation manual. If venting outdoors, plan for condensation management and weather-tight penetration through exterior walls.
Water and Gas Connections: Safe Practices and Leak Prevention
Shut off the main water and gas supplies before disconnecting the old appliance. Use proper piping materials and sealants rated for gas and potable water, and apply thread seal tape or sealant where appropriate. Test all connections for leaks with a soapy-water solution before returning the system to service. This step reduces the risk of gas leaks and water damage, and aligns with best-practice safety protocols that Install Manual endorses for homeowner installations.
Electrical Considerations and Power Supply (If Applicable)
Some Rinnai models require a dedicated electrical circuit for control systems or ignition. Verify voltage, amperage, and dedicated circuit requirements in the installation manual. If you do not have electrical knowledge, consult a licensed electrician. Do not tie the unit into lighting circuits or improvise connections. Correct electrical sizing helps prevent nuisance trips and ensures reliable ignition.

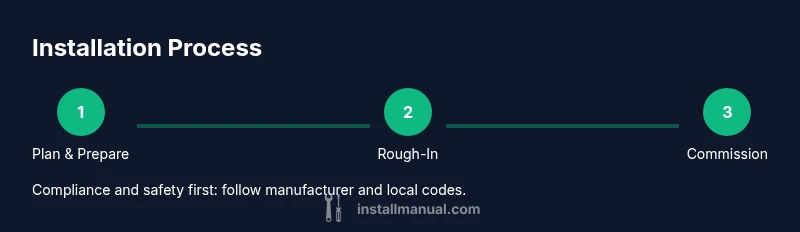

Step-by-Step Overview: From Mounting to Commissioning
This section provides a high-level workflow from mounting to commissioning, followed by detailed, step-by-step instructions in the dedicated STEP-BY-STEP block. Plan for safe handling of heavy equipment, use appropriate mounting hardware, and keep a log of steps completed and tests performed for future service. Always refer to the manufacturer’s manual for model-specific instructions and safety warnings.
Testing, Commissioning, and Common Issues
After installation, perform a full leak test on gas, water, and vent connections. Purge air from the lines and verify the cold-water isolation valve’s performance. Start the unit and monitor for proper ignition, flame stability, and hot-water delivery. Common issues include vent leaks, improper gas pressure, or air in the water lines; address these promptly following the troubleshooting guide in the installation manual. This is where careful testing prevents callbacks.
Maintenance and Long-Term Care
Schedule annual inspections of venting, gas lines, and safety devices. Flush the system periodically to remove mineral buildup and verify scale protection if your unit includes it. Keep a maintenance log for filter changes, service intervals, and any part replacements. Regular maintenance helps sustain efficiency and extend the lifespan of your Rinnai tankless unit.
Authority Sources (References for Further Reading)
- U.S. Department of Energy: Tankless water heaters overview and efficiency considerations
- Consumer Product Safety Commission: Gas appliance safety guidelines
- Local code authority or utility-sponsored installation guidelines
Note: Always verify URLs and access dates when citing sources in your region.
Tools & Materials
- Adjustable wrench(Do not overtighten fittings to avoid leaks)
- Pipe wrench(Use for large-diameter gas/water connections)
- Teflon tape (PTFE)(Gas-rated if used on gas connections)
- Pipe cutter(Copper or PEX piping as applicable)
- Pipe dope or thread sealant(Gas-rated for gas joints; avoid on potable water lines where prohibited)
- Gas line pressure regulator (if model requires one)(Check local code; may be included with unit)
- Venting kit (approved for model)(Follow manufacturer-specified vent length and layout)
- Drill/hole saw set(For vent through wall or ceiling penetrations)
- Non-contact voltage tester(Confirm power is off before electrical work)
- Leak-detection solution (soap bubbles)(Test for gas leaks after connections are made)
Steps
Estimated time: 2-6 hours
- 1
Verify permits and plan
Check local codes and obtain required permits before starting. Review the model’s installation manual to confirm venting requirements, clearances, and service access. Create a simple task checklist so you can verify each condition as you progress.
Tip: Document permit numbers and inspector contact details for easy reference. - 2
Shut off utilities and prepare the space
Turn off the gas supply, electrical circuit, and water valve feeding the old unit. Disconnect and remove the old water heater. Prepare the wall and mounting location, ensuring a level installation with room for service access.
Tip: Keep shutoffs clearly labeled and accessible in case of emergency. - 3
Remove old unit and mount bracket
Carefully detach the old unit, remove any venting remnants, and mount the new unit’s wall bracket at the correct height. Use a level to ensure straight alignment before securing.
Tip: Use a helper or shoulder strap to hold the weight during mounting. - 4
Connect cold/hot water lines
Attach supply and distribution lines to the unit using approved fittings. Use pipe sealant where needed and ensure hot water path is correctly identified. Check for proper slope on drainage lines to avoid standing water.
Tip: Pressure-test water lines before sealing penetrations. - 5
Install venting and intake
Secure the vent kit according to the manufacturer’s layout. Ensure air intake is properly located to avoid backdrafts and comply with clearance requirements.
Tip: Do not cut corners on vent length or fittings; improper venting voids safety protections. - 6
Connect gas line and verify pressure
Connect the gas supply using approved hardware and verify there are no leaks with a soapy-water test. Install any regulators required by the model as per the manual.
Tip: Only perform gas work if you are qualified; missteps can be dangerous. - 7
Electrical connections (if required)
If the unit needs power for ignition or control, connect to a dedicated circuit with proper gauge wiring and a dedicated breaker. Use a GFCI if directed by code.
Tip: Never splice or piggyback on existing circuits. - 8
Fill, purge air, and test startup
Open the water valves to fill the system and purge air. Ignite the heater and confirm steady flame, proper fuel-air mix, and that hot water reaches taps within expected time.
Tip: Bleed air from hot water lines at farthest fixture first. - 9
Leak test and final checks
Perform a final check for gas and water leaks, verify venting operation, and confirm the unit’s settings meet your home’s needs. Create a service log with model, serial, and installation date.
Tip: Document any deviations from the manual and consult the manufacturer if needed.
Got Questions?
Do I need a permit to install a Rinnai tankless water heater?
In many areas, permits are required for gas appliance installation and venting. Check your local building department and the installation manual for specific requirements. Hiring a licensed pro ensures compliance with codes.
Check local codes for permits; consult a pro if unsure.
Can I install the unit myself, or must I hire a professional?
If you have gas line, venting, and electrical experience, a capable DIYer can install a tankless heater using the manufacturer’s instructions. For complex venting or gas work, hiring a licensed professional is safer and often required by code.
It depends on your experience; when in doubt, hire a pro.
What common mistakes should I avoid during installation?
Skipping venting requirements, improper gas connections, incorrect water piping, and failing to purge air can cause operational problems or safety hazards. Always follow the manual and verify all connections with leak tests.
Avoid skipping venting and leak tests.
Is venting always required for a tankless unit?
Most Rinnai models require proper venting for safe combustion and exhaust. Indoor installations must have an approved venting path and combustion air. Outdoor installations may have different requirements.
Yes, venting is usually required.
What should I test after installation before putting the unit into service?
Test for gas leaks, purge air from water lines, verify hot water delivery, and ensure the unit ignites properly. Keep a log of tests and settings for future service.
Test for leaks and ensure proper ignition.
Watch Video
Main Points
- Plan permits and codes before starting
- Choose the correct model and venting for your home
- Verify all gas, water, and electrical connections before startup
- Test for leaks and log installation details for future service
- Maintain the unit regularly to sustain efficiency
