Install Electric Water Heater: Step-by-Step Guide
Learn how to safely install an electric water heater with a step-by-step approach, covering sizing, permits, wiring, connections, testing, and common pitfalls for a durable, efficient setup.
By following this step-by-step approach, you can safely install an electric water heater in a typical home. Start by sizing the unit and securing required permits, then shut off power and water, remove the old tank, mount the new unit, connect cold and hot lines, wire to a dedicated 240V circuit, and test for leaks and proper operation.
Safety and Planning Essentials
Installing an electric water heater is a substantial project that touches electricity, plumbing, and building codes. Before you buy a unit, verify local requirements and whether a permit is needed. According to Install Manual, planning and permits are essential for any electrical water heater install. Failing to secure permits can delay your project and affect insurance coverage. Always wear PPE, shut off power at the main panel, and depressurize the line before you begin. Understanding your home’s water usage patterns helps select a tank size and configuration that meet daily demands without excessive standby losses. This planning phase also includes checking available space, ventilation (if applicable), and clearances around the heater for service access. If the space is shared with storage or mechanical equipment, consider relocation or an alternate mounting method. The goal is to minimize future service interruptions and make maintenance straightforward.
Sizing, Types, and Location
Choosing the right electric water heater rests on household demand, space, and efficiency goals. Most homes use standard whole-home residential options such as 40- or 50-gallon tanks, though you may opt for smaller or larger tanks based on peak hot-water needs. When space is tight, a compact horizontal unit or a tankless electric model might fit better, but these choices often come with higher upfront costs and different installation requirements. Consider the location of cold-water inlets and hot-water outlets, as well as the proximity to major fixtures like bathrooms and the kitchen. If wiring or plumbing routes cross through finished walls, plan for neat, accessible connections and future upgrades. Elevation, level mounting, and ensuring a stable base reduce vibrations and extend life. The right placement also facilitates proper venting if required by code and enables easier inspection by building staff during compliance checks.
Electrical and Plumbing Preparations
Electric water heater installation centers on safe, code-compliant electrical work and leak-free plumbing hookups. Start by verifying that your electrical panel can handle a dedicated 240V circuit with adequate amperage for the heater’s wattage rating. Have a licensed electrician confirm circuit capacity and grounding requirements; do not improvise with undersized breakers or mismatched conductors. Plumbing prep includes shutting off the water supply, draining the system, and removing the old unit. Clean, deburred pipe ends and tight, leak-proof connections reduce the risk of future drips. Install a new T&P relief valve and discharge pipe, following local code requirements, to protect against overpressure. A properly sized expansion tank is often recommended to absorb thermal expansion in closed-loop systems. Remember to use approved pipe fittings and sealants to prevent corrosion and leaks.
Tools, Materials, and Safety Gear
As you gear up for the installation, assemble essentials and confirm all safety measures. Required tools include safety goggles, work gloves, a set of wrenches, screwdrivers, a pipe cutter, deburring tool, Teflon tape, pipe joint compound, a voltage tester, and a multimeter. Essential materials consist of the water heater itself, two flexible water connectors, copper or PEX supply lines, a properly rated 240V circuit breaker, wiring connectors, the expansion tank (if required by the unit), and the T&P relief valve with discharge pipe. Keep a drain pan and bucket handy to manage any spills, plus a sturdy ladder if your heater is mounted higher. Always verify manufacturer requirements and local codes before you start.

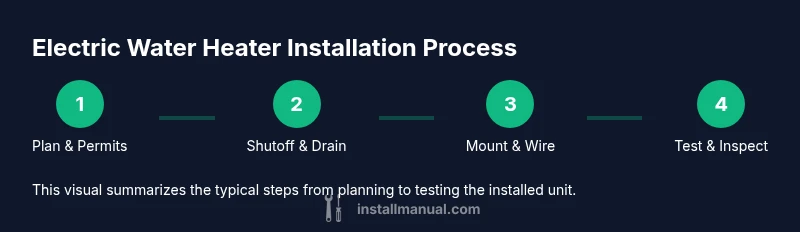

The Installation Workflow (Overview)
A well-planned installation sequence minimizes downtime and avoids rework. Expect to shut off utilities, remove the old unit, prepare the mounting space, install the new heater with secure brackets, connect the cold inlet and hot outlet piping, attach the T&P valve and discharge line, route and secure electrical wiring, fill the tank, purge air from the lines, and perform a leak and pressure test. Familiarize yourself with the heater’s manual for any model-specific steps—models differ in inlet/outlet sizing, valve placement, and electrical connection methods. If anything seems off (noise, unusual vibration, or inconsistent water temperature), pause and reassess before energizing the unit.
Authority & References
This guide references established safety and installation standards to help you perform a responsible electric water heater install. For safety considerations, consult Occupational Safety and Health Administration (OSHA) guidelines on electrical work, and for energy and efficiency context, rely on U.S. Department of Energy materials and the ENERGY STAR program. These sources provide general best practices and remind readers to obtain local permits and inspections where required. Always verify local amendments and code interpretations with your municipal building department. The Install Manual team emphasizes safety first and recommends professional assistance for electrical wiring and testing when uncertainty exists.
Verdict (Final Recommendation)
The Install Manual team recommends prioritizing safety, code compliance, and professional assistance when wiring and pressure-testing a new electric water heater. If you are not completely confident in electrical work or plumbing connections, hire a licensed electrician and a licensed plumber to perform or supervise the critical steps. A properly installed unit with compliant connections reduces the risk of leaks, electrical faults, and energy waste, ensuring reliable hot water and long-term performance.
Tools & Materials
- Safety goggles(ANSI-rated protection for eyes)
- Work gloves(Grip and cut resistance)
- Adjustable wrench(For coupling nuts and fittings)
- Pipe wrench(For tight water connections)
- Pipe cutter(Cut copper or PEX cleanly)
- Screwdrivers (Phillips & flat)(Mounting bracket and terminals)
- Teflon tape(Pipe threads to seal leaks)
- Pipe joint compound(Optional where warranted)
- Voltage tester(Verify power is off before wiring)
- Multimeter(Check continuity and voltage if needed)
- Copper or PEX supply lines(Right size and length)
- Flexible water heater connectors(Contain anti-kink design)
- 230-240V circuit breaker(Match heater rating and panel capacity)
- Wire nuts and electrical tape(Secure and insulate connections)
- T&P relief valve and discharge pipe(Code-compliant installation)
- Expansion tank(Use if recommended by local code)
- Draining pan and bucket(Catch water during draining)
- Ladder(Access for high mounting height)
- Permits and inspection documents(Have paperwork ready for inspection)
Steps
Estimated time: 2-6 hours
- 1
Assess permits and shut off utilities
Check local codes to determine permit requirements. Turn off the main power and the cold-water supply, then relieve system pressure by opening a hot water tap momentarily.
Tip: Verify the main panel shows no voltage on the grounding circuit before touching any wiring. - 2
Drain and remove the old tank
Place a drain pan under the heater drain valve, connect a hose, and open the valve to drain the tank. Disconnect power, then detach water lines and remove the mounting bolts.
Tip: Keep the drain valve closed when not actively draining to prevent spills. - 3
Prepare mounting area and connections
Inspect the wall or stand, ensure level mounting, and check clearances. Clean and deburr pipe ends, plan routing for cold/hot lines, and install the T&P valve if missing.
Tip: Position valve outlet to drain into a safe location away from electrical components. - 4
Mount the new water heater
Secure the heater to the wall or stand with appropriate brackets. Ensure it is level and firmly supported to reduce vibration and noise.
Tip: Use anti-tip brackets if mounting high. - 5
Connect water supply lines
Attach cold inlet and hot outlet with flexible connectors or rigid piping as appropriate. Use Teflon tape and pipe sealant where required and ensure no cross-overs or kinks.
Tip: Always purge the cold line first to avoid introducing air into the system. - 6
Install T&P relief, discharge, and expansion tank
Install the Temperature & Pressure relief valve and route its discharge pipe to within 6 inches of the floor. Add an expansion tank only if code or manufacturer requires it.
Tip: Do not block the discharge path; ensure slope away from the heater. - 7
Wire the heater to a dedicated circuit
Connect the heater to a properly rated 240V circuit. Use approved wire gauge and secure all conductors. Ground the unit and verify continuity.
Tip: If you’re unsure about wiring, hire a licensed electrician. - 8
Fill, bleed, and test
Open the cold-water supply, fill the tank completely, and bleed air from the lines. Restore power and test for proper operation and leaks, then schedule an inspection.
Tip: Listen for hissing sounds that may indicate air pockets or leaks.
Got Questions?
Do I need a permit to install an electric water heater?
In many jurisdictions, a permit is required for electrical and plumbing work. Check your local building department and follow code requirements.
A permit is often required for electrical and plumbing work; check with your local building department.
Can I install this myself or should I hire a professional?
While some homeowners can handle basic tasks, electrical work and proper pressure testing should be done by a licensed professional to ensure safety and compliance.
Electrical work is risky; hiring a licensed professional is usually the safest route.
What size water heater do I need?
Most families use a 40- to 50-gallon tank, but size should be based on peak hot-water usage and the number of fixtures.
Most homes use a 40-50 gallon tank depending on usage.
How long does installation take?
With proper planning, quiet spaces, and no major surprises, expect several hours to a full day depending on plumbing and wiring complexity.
Plan for several hours up to a full day.
Is an expansion tank required?
An expansion tank helps prevent pressure buildup in closed systems; follow the unit’s specs and local code.
Expansion tanks reduce pressure; check local code and manufacturer's guidance.
What are common mistakes to avoid?
Skipping permits, using incorrect pipe sizes, or improper grounding can create leaks or safety hazards.
Avoid skipping permits and ensure proper grounding and leak checks.
Watch Video
Main Points
- Verify local permits before starting work.
- Shut off power and water before any disassembly.
- Ensure proper venting and expansion considerations per code.
- Test for leaks and secure all electrical connections before startup.
- When in doubt, consult a licensed professional.
