How to Install Backsplash Tile: A DIY Guide
Learn to install backsplash tile with a clear, step-by-step approach—from planning to grouting—for a professional kitchen backsplash.
With this guide, you will install backsplash tile in a kitchen or bathroom, achieving a clean, durable finish. Start by planning layout, selecting materials, and preparing the wall; then cut tiles, apply adhesive, set tiles, grout, and seal. Follow precise measurements and leveling for a polished result. This project suits beginners with basic tools.
Preparation and Planning
Before you pull tiles, invest time in planning and measuring to ensure a straight finish and minimal waste. When you install backsplash tile, decide tile size, grout width, and edge treatment near outlets and cabinets. Draft a simple layout on paper or map it on the wall with a chalk line. Dry-lay a row of whole tiles to check alignment and symmetry. Account for outlets, switches, and cabinet heights so the finished edge sits flush with surfaces. According to Install Manual, thorough planning reduces rework and helps you predict material needs. If tiling behind a sink or range, run a dry layout that accounts for fixtures and any curved edges.
Tools and Materials You Need
Gather tools and materials before starting. Essential items include a notched trowel, tile cutter or wet saw, tile spacers, a level, a tape measure, a pencil, a mixing bucket, and a sponge. For adhesives, choose thin-set mortar for most wall tiles, or pre-mixed mastic for small, non-porous tiles. Grout should be sanded for joints wider than 1/8 inch; sealers protect grout in damp areas. Backer board or cement board is recommended behind the tile for a stable substrate. Optional but helpful items include a tile nipper, a speed square, and a helper to steady large tiles during setting. Having everything ready reduces trips to the store and keeps the project moving.
Layout and Design Principles
A clean backsplash relies on consistent gridlines and balanced margins. Start with a true starting line at the first row, ensuring horizontal and vertical lines run parallel to cabinets. Use spacers to keep even gaps and check alignment after setting several tiles. For a professional look, consider patterns such as traditional grid, brick, or herringbone. When selecting tile, keep color and gloss in harmony with cabinets and countertops. The Install Manual approach emphasizes measurement accuracy and cross-checks to minimize lippage and misaligned grout lines.
Surface Prep and Substrate
Surface prep is the foundation of a durable backsplash. Begin by cleaning the wall, removing old caulk, and ensuring the surface is dry and flat. Any hollow spots or high spots will cause tiles to sit unevenly, so fill dips with patching compound and sand smooth. If the substrate is drywall, install a cement board behind the tile for moisture resistance; for damp areas, use a waterproof membrane or backer underlayment as required. Prime only if the adhesive instructions call for it. The goal is a substrate that accepts adhesive firmly and resists moisture.
Cutting Tiles and Fitting Edges
Cutting tiles to fit around outlets and along edges requires precision. Mark tiles with a pencil and cut slowly with a tile cutter or wet saw, checking fit against the wall after each cut. For curved outlets or boxes, score and snap multiple times; use tile nippers for fine adjustments. Dry-fit trimmed pieces before applying adhesive to ensure edge alignment. Always wear eye protection and keep a clean, organized work area to prevent tiles from falling and breaking.
Adhesive Application and Tile Setting
Mix mortar per manufacturer instructions using a clean bucket and a drill with a mixing attachment. Use a notched trowel to comb adhesive onto the wall, then apply a thin, even coat on the tile back (back-buttering) for large format tiles. Press tiles firmly, twist slightly, and verify level frequently. Place spacers between tiles and check alignment with a spirit level. Work in small sections to maintain a wet edge and prevent the adhesive from drying out before tile is set.
Grouting and Finishing
Allow the adhesive to cure as directed before grouting. Mix grout to a workable paste and apply with a rubber float, pressing grout into joints and removing excess at a 45-degree angle. Wipe away grout haze with a damp sponge, rinsing often. After curing, clean the surface and seal if the product recommends it. Follow grout manufacturer guidelines for sealing intervals and cleaning practices to maintain color and prevent staining.
Sealing and Maintenance
Sealing grout helps prevent stains and moisture intrusion; follow the product instructions for curing times and reapplication. Clean spills promptly and use mild cleaners that won’t dull tile glaze. Inspect edges and caulk around the perimeter if needed, and re-seal grout periodically depending on use. A well-sealed backsplash resists staining and is easier to wipe clean, keeping your kitchen looking fresh for years.
Authority Sources and Next Steps
To support this guide, consult safety and installation resources. OSHA guidelines provide safety practices for cutting and dust control, while university extension sites offer substrate prep and tiling tips. These sources enhance safety and give deeper detail on best practices for home improvement projects. The Install Manual team recommends reviewing local building codes and moisture management requirements before starting.
Tools & Materials
- notched trowel(Choose 1/4 x 3/8 inch for most wall tiles)
- tile cutter or wet saw(Needed for accurate edge cuts)
- tile spacers(Maintain consistent grout lines; 1/16 to 1/8 inch spacing)
- level(Check horizontal and vertical alignment)
- tape measure(Measure wall area and tile counts)
- pencil(Mark layout lines on wall)
- mixing bucket(For adhesive preparation)
- sponges(For cleaning excess grout)
- grout float(Apply grout into joints)
- backer board(Optional but recommended behind tiles in damp areas)
- sealant/grout sealer(Optional to protect grout from staining)
- eye protection(Safety first when cutting tiles)
- gloves(Protect hands during work)

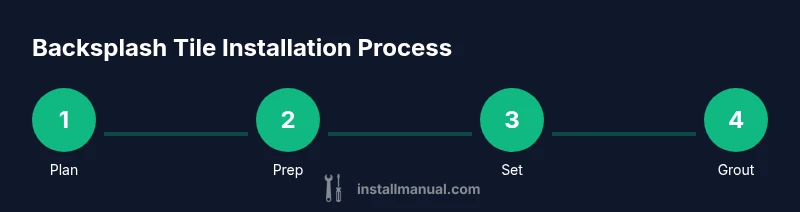

Steps
Estimated time: 2-6 hours
- 1
Measure and plan layout
Begin by measuring the wall area and planning the tile layout. Mark a starting line at cabinet height and use a chalk line to create straight reference lines. Dry-lay tiles to confirm patterns and cutting needs before applying adhesive.
Tip: Double-check starting edge to ensure symmetry across the wall. - 2
Prepare surface
Clean the wall thoroughly; remove old caulk or paint residues. Repair any dents or cracks with patching compound and sand smooth. Ensure the wall is dry and free of dust before applying primer or adhesive.
Tip: A flat, dry surface prevents lippage and improves adhesion. - 3
Cut tiles for edges
Measure and mark tiles that need to be cut for outlets and edges. Use a tile cutter or wet saw for straight cuts and tile nippers for irregular shapes. Dry-fit the cut pieces to verify fit before applying adhesive.
Tip: Cut slightly larger than needed, then trim for a perfect fit. - 4
Mix and apply adhesive
Mix thin-set mortar according to manufacturer directions until you achieve a peanut butter–like consistency. Use a notched trowel to comb adhesive onto the wall, then back-butter tile backs for better contact.
Tip: Work in small sections to keep adhesive from skimming over. - 5
Set first row and check level
Place tiles along the starting line, pressing firmly and checking for level. Use spacers to maintain even gaps. Adjust as you go to prevent misalignment that is hard to correct later.
Tip: Regularly verify horizontal lines with a spirit level. - 6
Continue setting tiles
Proceed row by row, verifying level and alignment. Press and twist each tile slightly for a secure bond. Re-check lines after every few rows to avoid drift toward cabinet edges.
Tip: Work methodically to avoid mistakes that require re-cutting many tiles. - 7
Back-butter large tiles
For large tiles, apply a thin coat of adhesive to the back of the tile as well (back-buttering) before pressing into place. This helps ensure full contact and reduces hollow spots.
Tip: Back-buttering dramatically improves adhesion for heavy tiles. - 8
Grout the joints
Allow adhesive to cure per manufacturer instructions, then mix grout and apply with a rubber float, pressing grout into joints. Wipe excess grout with a damp sponge and let haze dry before buffing.
Tip: Clean as you go to prevent grout crust that’s hard to remove later. - 9
Seal and final clean
If using a grout sealer, apply after the recommended cure time. Clean the surface again to remove any grout residue. Inspect edges and caulk as needed for a watertight finish.
Tip: Sealing protects grout and makes maintenance easier. - 10
Final inspection
Review all edges, corners, and transitions. Ensure grout lines are even and consistent. Recheck for any lippage and adjust as needed before the sealant fully cures.
Tip: A thorough final check saves post-install touch-ups.
Got Questions?
What is the best adhesive for backsplash tile?
For most wall tiles, thin-set mortar provides strong adhesion and longevity. Use a high-quality polymer-modified thin-set for improved bonding and flexibility. For very small or non-porous tiles in dry areas, pre-mixed mastic can be convenient but may not be suitable for damp zones.
Thin-set mortar is usually the best choice for durability; mastic can work for small, dry areas but check tile type.
Do I need to waterproof behind a backsplash?
Waterproofing behind a backsplash is advised if moisture or splashes are likely, especially behind sinks or in busy kitchens. Install a moisture barrier or use cement backer board with a suitable waterproof membrane as required by tile adhesive instructions.
Yes, behind sinks or wet areas, use a moisture barrier and proper backer board.
Can I install backsplash tile myself?
Yes, many homeowners install backsplash tile themselves with basic tools and careful planning. Follow manufacturers' instructions for adhesive and grout, use proper safety gear, and take your time with layout and cutting to avoid mistakes.
Absolutely—careful planning and the right tools make it a doable DIY project.
How long does it take to install backsplash tile?
Time varies with wall size, tile type, and your experience. Plan for several hours of work including cutting, setting, grouting, and sealing, plus additional cure time as required by products.
A few hours for a small area, plus cure time for grout and sealer.
What should I do if a tile is misaligned?
If a tile sits off, gently lift it while still unset, re-align, and reseat. For already-set tiles, you may need to remove and re-cut the tile and re-set the adjacent tiles to ensure straight grout lines.
Carefully lift and re-seat misaligned tiles before the adhesive cures.
Watch Video
Main Points
- Plan layout before cutting tiles
- Maintain level and spacing throughout
- Choose the right substrate and adhesive
- Seal grout to protect against moisture
