How to Install a Fuel Pump: Step-by-Step Guide for Cars
A practical safety-focused guide for installing a fuel pump in your vehicle. Learn the tools, steps, and testing procedures needed for reliable fuel delivery.
By the end of this guide you will know how to install a fuel pump safely in your vehicle, follow a clear, step-by-step process, and perform the essential tests. The approach emphasizes safety, proper tool use, and correct sealing to ensure reliable fuel delivery. Always verify compatibility and consult your service manual for model-specific details.
Safety and Preparation
According to Install Manual, tackling fuel pump installation is a multi-step task with safety as the top priority. The Install Manual team found that most successful DIY projects start with a full safety plan and proper PPE. Before you touch any fuel system components, ensure you have a clear workspace, a fire extinguisher rated for flammable liquids, and a plan to manage spills. Work on a level surface with the parking brake engaged and the engine off. Never smoke or create sparks near the work area, and keep a metal tray ready to catch any fuel that may spill. Wear chemical-resistant gloves and eye protection. When in doubt, unplug the vehicle battery before beginning, and ventilate the workspace to avoid vapor buildup. Record the vehicle’s exact model and year to confirm the correct pump replacement, seals, and locking rings are on hand. Keep rags handy for cleanup and a dedicated container for old fuel. These precautions reduce fire risk and exposure to hazardous vapors while you work.
Understanding the Fuel Pump System
Fuel pumps come in a few configurations, with most modern cars using an electric fuel pump located inside the fuel tank. Understanding whether your vehicle uses a low-profile, side-mount, or submersible pump helps you plan access and replacement. The pump works in concert with the fuel filter, sending gasoline from the tank to the engine under pressure. When diagnosing issues, you’ll check electrical connectors, pump relay or fuse status, and check for fuel pressure within the manufacturer’s specification. If you’re unsure about the exact pump type for your car, consult the service manual or a trusted database. A wrong part can cause poor performance, leaks, or no-start conditions. Safe handling of gasoline and vapors remains essential throughout this process.
Tools and Materials You’ll Need
This section explains why having the right tools matters, and how to prepare for the job efficiently. A clean, organized work area helps prevent cross-contamination of fuel lines and keeps fasteners from getting lost. Gather a metric and SAE socket set, a torque wrench, screwdrivers (flathead and Phillips), and fuel-line disconnect tools. You’ll also need the correct replacement fuel pump kit (including the sending unit, gasket or O-ring, and locking rings), replacement hoses or clamps if the original hoses show wear, a fuel-safe container for draining, and rags for spills. A portable work light and a tray or magnetic dish for bolts help you stay organized. Have a cart with the new pump and essential hardware to minimize trips to the toolbox. Finally, confirm you have a service manual specific to your vehicle for torque specs and sequence.
Accessing the Pump and Removing the Old Unit
Access to the pump depends on your vehicle’s design. In many cars, you’ll access the pump through a rear-seat or trunk panel, while some models require lifting or dropping the fuel tank. Start by disconnecting the negative battery terminal to prevent sparks. Relieve the fuel pressure by removing the fuel pump fuse or relay and starting the engine until it stalls. Place a drain pan beneath the fuel lines and disconnect the electrical connector and fuel lines from the pump assembly. Keep track of which line is which, and note the routing of any hoses. If the tank must be lowered, support it with jack stands, and slowly lower it using proper hardware. Remove the old pump assembly, including the sending unit and gasket, taking care not to damage the float arm or wiring harness. Inspect the tank for rust or debris and clean as needed before installing the new unit.
Installing the New Pump and Seals
Inspect the replacement pump kit to ensure all components are present and undamaged. Install the new sending unit into the tank and fit the new gasket or O-ring in the correct orientation. Reinstall any mounting hardware and verify that the pump sits flush against the tank mounting surface. Connect the electrical connector and fuel lines in their original routing, using new clamps if needed. If your kit includes a new locking ring, torque to the manufacturer’s specification. It’s essential to avoid overtightening, which can crack components or damage seals. Gently secure the pump assembly and reinstall the access cover or rear seating panel as required.
Reconnecting, Testing, and Final Checks
With the pump installed, reconnect the battery and turn the key to the run position to pressurize the fuel system. Listen for the pump prime sound and verify there are no leaks at the lines or seals. Start the engine and allow it to idle; check idle quality and engine performance. If the engine stumbles or stalls, recheck the electrical connections and fuel lines for proper seating. Inspect the area around the fuel tank for traces of fuel and tighten any clamps as needed. If everything looks dry, take the vehicle for a cautious test drive in a safe area to confirm smooth acceleration and consistent fuel delivery. Finally, dispose of any rags and contaminated materials according to local regulations and store leftover parts for future reference.
Common Pitfalls and Maintenance Tips
Even experienced DIYers can slip up when replacing a fuel pump. Common pitfalls include selecting the wrong pump type, reusing an old gasket, or failing to bench-test the system before reinstalling. Pro tips include labeling each connector before removal, keeping the vehicle away from ignition sources, and verifying the correct O-ring size and part number before installation. After installation, perform a leak test by applying a low-pressure scan or soapy water around connections to catch tiny leaks. As part of ongoing maintenance, replace the fuel filter at recommended intervals and periodically inspect the pump area for signs of corrosion or wear. A well-maintained fuel system reduces risk and prolongs pump life. The Install Manual team emphasizes that sticking to a model-specific service procedure yields the best long-term results.
Tools & Materials
- socket wrench set (regular and deep sockets)(Include metric and SAE sizes)
- torque wrench(Use manufacturer specs for mounting bolts)
- screwdrivers (flathead and Phillips)(For removing clamps and covers)
- fuel-line disconnect tool(Specific to your line type and vehicle)
- replacement fuel pump kit (sending unit, gasket/O-ring, locking ring)(Model-matched to your vehicle)
- new hoses/clamps (as needed)(Replace worn hoses)
- fuel-safe containers and rags(Spill management)
- jack and jack stands(Only on a level surface)
- gloves and safety glasses(Protect hands and eyes from fuel and debris)
- fuel pressure gauge (optional)(Helps verify system pressure)
- marker tape or labels(Label connectors for reassembly)
- fire extinguisher (class B/C)(Keep within reach during work)

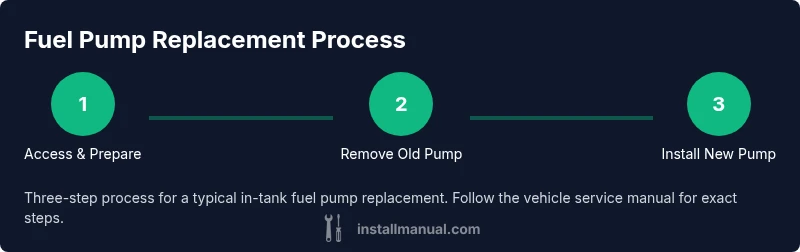

Steps
Estimated time: 2-4 hours
- 1
Prepare the vehicle and safety gear
Park on a flat surface, engage the parking brake, and disconnect the negative battery terminal. Put on gloves and eye protection, and ventilate the area if you’re indoors. Gather all tools and parts, and review the vehicle’s service manual for model-specific safety precautions.
Tip: Take a photo of the original wiring and hose routing before disassembly to ensure correct reassembly. - 2
Relieve fuel pressure and power down
Remove the fuel pump fuse/relay and crank the engine to relieve residual pressure. Do not puncture or cut fuel lines during depressurization. Keep the drain pan ready to catch any fluid that escapes.
Tip: Relieving pressure first prevents fuel spray and reduces risk of injury. - 3
Access the pump and support the tank
Locate the access panel or the fuel tank, and support the tank with jack stands if required. Remove the cover to access the pump mounting bolts. If the tank must be lowered, support it securely and drain any remaining fuel before disconnecting straps.
Tip: Use a secondary support to prevent tank movement while you work. - 4
Disconnect lines and electrical connectors
Carefully detach fuel lines and the electrical connector from the pump assembly. Note line orientation and connectors; attaching them back in the wrong place can cause leaks or misfueling. Cap or bag unused lines to prevent debris entry.
Tip: Use the fuel-line disconnect tool per your vehicle’s design to avoid damaging fittings. - 5
Remove the old pump
Unbolt and lower the pump assembly, taking care with the sending unit and float arm. Inspect the seal surface on the tank and remove any old gasket material. Clean the mounting surface and prepare the area for the new unit.
Tip: Inspect the old pump for signs of wear or contamination; replace if necessary. - 6
Install the new pump and seal
Position the new pump and install the gasket/O-ring in the correct orientation. Secure with mounting bolts to the manufacturer’s torque spec, connect electrical leads and fuel lines in the original routing, and reinstall clamps if provided.
Tip: Do not overtighten bolts; over-compression can damage the seal. - 7
Reconnect, test, and finalize
Reinstall the tank and reattach the battery. Turn the ignition to run, listen for pump priming, and check for leaks with soapy water around connections. Start the engine and verify smooth operation through a short drive, then recheck for anything unusual.
Tip: Leak checks with soap help reveal slow leaks not obvious at first glance.
Got Questions?
Do I need to relieve fuel pressure before removing the pump?
Yes. Relieve pressure first to avoid fuel spray. Use the fuse/relay method and start the engine until it stalls.
Yes. Relieve pressure before removing any lines to avoid fuel spray.
Can I do this myself or should I hire a mechanic?
Many homeowners can replace an in-tank fuel pump with proper tools and a service manual. Complex fuel-delivery systems or difficult tank access may warrant a professional.
You can do it yourself if you have the right tools and manuals; otherwise consider a pro for safety.
Will I need to drop the fuel tank?
Some models require tank access from the top or bottom. Check your manual to determine the mounting location and whether tank support is needed.
It depends on your car—some require dropping the tank, others have an access panel.
Do I need torque specs for mounting bolts?
Yes. Use the manufacturer’s torque specs to avoid leaks or damage. Over-tightening can crack seals, while under-tightening can loosen the assembly.
Always torque bolts to spec; it prevents leaks and ensures a secure fit.
How do I test for leaks after installation?
Perform a careful pressure test or use soapy water around connections while the system is pressurized. Look for bubbles and re-tighten clamps as needed.
Check for leaks with pressure and soap tests after reinstalling.
What safety gear should I use?
Wear chemical-resistant gloves, eye protection, and ensure good ventilation. Keep a fire extinguisher nearby and avoid ignition sources.
Wear gloves and eye protection, and ensure good ventilation.
Watch Video
Main Points
- Prepare safely and relieve pressure before removal.
- Use model-matched parts and correct seals.
- Test for leaks and pressure before road use.
- Follow the vehicle-specific service manual for torque specs.
