How to Install a Gas Filter
Learn a safe, step-by-step method to install a gas filter for your appliance, including safety precautions, required tools, proper connections, leak testing, and maintenance tips.
Goal: Install a gas filter safely for your appliance by isolating the gas supply, selecting the right filter, mounting the housing, and confirming a leak-free connection. You’ll need the correct filter type and tools, plus personal protective gear. Follow manufacturer instructions and local codes; if you’re unsure, consult a licensed professional.
Why install a gas filter?
Gas filters help protect appliances and regulators from sediment, rust, and particulates that can travel through the gas supply. In homes powered by natural gas or propane, debris in the line can cause incomplete combustion, noisy operation, or reduced efficiency. A properly sized inline filter placed at the appliance inlet captures debris before it reaches the burner or valve, extending service life and reducing maintenance. Not all installations require a filter; always consult the appliance manual and your gas supplier’s guidelines. If you’re replacing an old filter, verify the model, filtration rating, and flow direction. When in doubt, prioritize safety and consult a licensed professional. According to Install Manual, aligning filter choice with the specific gas type and pressure rating is essential to avoid leaks and improper sealing. The goal is a clean, match-tight connection that preserves gas pressure and appliance performance.
Safety prerequisites and risks
Gas work carries real hazards, including the risk of leaks, fire, and exposure to escaped fuel. Before touching any gas line, shut off the main gas supply and ventilate the area if possible. Don non-sparking PPE: gloves, goggles, and long sleeves. Keep a working fire extinguisher nearby and avoid sparks from electrical switches or tools. Do not attempt installation if you smell gas or hear a hissing sound; evacuate and contact your gas utility. Verify that your work area complies with local codes and that the filter is designed for your gas type (natural gas vs. propane) and pressure range. If you’re not confident in reading the manufacturer’s installation instructions or the fittings you’ll use, pause and seek professional help. Based on Install Manual analysis, a clean workspace, correct orientation of the filter, and proper gasket seating dramatically reduce the risk of post-install leaks. After completion, never leave tools or rags near open gas lines.
Install Manual perspective and approach
According to Install Manual, a methodical approach reduces common mistakes when installing a gas filter. Start by confirming compatibility with the appliance inlet size, flow direction arrow, and filtration rating. The manual recommends aligning the filter housing with the inlet to ensure a straight, tension-free connection; avoid cross-threading by hand-tightening first and then using a wrench with care. The Install Manual team emphasizes documenting the date of installation and inspecting seals after the first operation cycle. For complex gas systems or elderly appliances, the manual advises consulting the original equipment manufacturer’s instructions and considering a professional service to ensure code compliance and safe operation.
Post-installation checks and maintenance
After installing the gas filter, perform a thorough inspection of all connections for signs of wear or looseness. Recheck the inlet and outlet fittings after the system pressurizes to ensure there are no leaks. Run the appliance for several minutes and observe for abnormal odors, hissing sounds, or reduced combustion efficiency. Replace filters according to the manufacturer’s recommended schedule, and keep spare seals or gaskets on hand. Record installation details and maintenance dates for future reference. Regular checks help protect the appliance and maintain safe gas delivery over time.
Authority sources and further reading
For safety and compliance guidance, consult authoritative sources such as OSHA, Energy.gov, and NFPA. While regulations vary by jurisdiction, these resources provide general best practices for gas installations and hazardous environments. Always verify with your local utility or building authority before starting work. See the linked sources in the Authority section for direct references.
Tools & Materials
- Gas filter housing and compatible inline filter(Ensure correct inlet/outlet size and filtration rating for your gas type (natural gas or propane).)
- Gas-safe thread sealant tape (gas-rated PTFE)(Apply sparingly and follow tape direction to avoid mis-seating.)
- Adjustable wrench or open-ended wrenches(Use appropriate size to avoid rounding fittings.)
- Gas leak detector solution or soapy water(Test all joints for bubbles to confirm a leak-free seal.)
- Safety gloves and eye protection(Protect hands and eyes from sharp edges and accidental leaks.)
- Replacement gaskets or O-rings(Keep on hand in case seals wear during installation.)

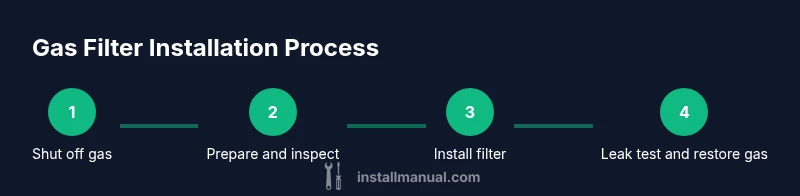

Steps
Estimated time: Total time: 45-60 minutes
- 1
Shut off the gas supply
Locate the main shut-off valve and turn it to the off position. Open a nearby appliance valve to relieve pressure, then wait a few minutes to ensure the line is depressurized before proceeding.
Tip: Verify you do not hear any gas flow or smell gas before continuing; if in doubt, wait longer or call a professional. - 2
Locate the filter housing
Find the inlet side of the appliance where the filter will be installed. Check the orientation arrows on the filter body to ensure correct flow direction. Clean the area around the housing to prevent debris from entering the line.
Tip: Take a photo of existing connections before disassembly to guide reassembly. - 3
Disconnect the old filter
Carefully loosen and remove the existing filter or cap. Disconnect fittings without twisting other lines; support hoses to avoid kinking. Place removed components in a safe area for inspection.
Tip: Do not pry fittings with metal tools; use proper wrenches to avoid damaging threads. - 4
Prepare the new filter
Inspect the new filter and gasket, ensuring the seal orientation matches the housing. Wrap threads with gas-rated tape if required and apply a light sealant where recommended by the manufacturer.
Tip: Do not over-torque; hand-tighten and then give a quarter-turn with a wrench. - 5
Install the new filter and seal connections
Insert the new filter, align the housing, and tighten all fittings evenly. Re-check the seals for even contact, then secure the housing cover according to the manufacturer’s instructions.
Tip: After tightening, run a quick visual check for any misalignment or gap at joints. - 6
Restore gas and test for leaks
Turn the main valve back to the on position and slowly restore service. Apply leak detector solution or soapy water to all joints; watch for bubbles. If a leak is detected, shut off gas and re-seat the connections, then re-test.
Tip: If bubbles appear, stop and reassess; persistent leaks require a licensed professional.
Got Questions?
Is it safe to install a gas filter myself?
Installing a gas filter can be safe for straightforward installations when you follow the manufacturer’s instructions, use proper tools, and observe local codes. If you’re unsure, hire a licensed professional for protection and compliance.
Gas filter installation is safest when you follow the instructions and local codes. If unsure, hire a licensed professional.
What types of gas filters are compatible with home gas lines?
Look for inline or housing-based filters that match your appliance inlet size and gas type (natural gas or propane). Always confirm filtration rating and flow direction in the appliance manual.
Choose a filter that matches inlet size and gas type per the manual.
Do I need a permit to install a gas filter?
Permit requirements vary by location. In many places, a simple filter installation may not require a permit, but always verify with local authorities or your gas utility.
Check with local authorities to confirm permit needs.
How do I know if a gas filter needs replacement?
If you notice reduced gas flow, unusual odor, or debris in the filter, replace per the manufacturer’s schedule and inspect seals for wear.
Watch for reduced flow or debris and replace as recommended.
What should I do if I detect a gas leak after installation?
If you smell gas or suspect a leak, evacuate immediately and call your gas utility or emergency services. Do not operate electrical switches or re-enter until professionals say it’s safe.
Evacuate and call authorities if you detect a leak.
Can a gas filter fix poor gas quality?
A gas filter protects against debris but cannot fix poor gas quality or supply issues. If you suspect dirty gas, contact your utility.
Filters don’t fix gas quality; contact the utility if gas quality is in question.
Watch Video
Main Points
- Shut off gas and ventilate before work
- Choose the correct filter type and size
- Tighten fittings carefully to avoid leaks
- Test for leaks after installation
- Consult a professional if uncertain
