How to Install an Ice Maker: A Complete DIY Guide
Learn how to install an ice maker with a step-by-step approach for under-counter and freestanding models. This homeowner-friendly guide covers water supply, electrical safety, mounting, testing, and troubleshooting to help you add automatic ice production quickly and safely.
How do you install an ice maker? This guide explains the full process for under-counter and freestanding units, including water-supply connections, electrical safety, mounting, and initial testing for leaks. You'll learn required tools, common installation pitfalls, and step-by-step procedures you can complete with basic DIY skills. Following these steps adds automatic ice production with minimal disruption.
Planning Your Ice Maker Installation
If you're asking, how do you install an ice maker, the first step is planning. Start by identifying whether you’re installing an under-counter model or a freestanding unit, as mounting, ventilation, and service clearances differ. Check cabinet dimensions, door swing, and available countertop space to ensure a clean fit. Document the space around it, including any water lines and electrical outlets that might be in the back or side panels.
A successful install hinges on a stable, level mounting surface and a clean, dry work area. The Install Manual approach emphasizes reading the manufacturer’s installation guide for your specific model—some ice makers share a universal mounting kit, while others require a dedicated kit. At this stage, verify that your water supply comes from a cold-water line and that the nearest shut-off valve is accessible. If you’re replacing an old appliance, plan for seamless line routing that minimizes kinks or sagging in the supply hose. Finally, consider drainage for the ice maker’s condensate or overflow features and plan to position a drain or bucket as a precaution.
Choosing the Right Water Connection and Location
Most residential ice makers connect to a standard 1/4-inch or 3/8-inch compression water line, depending on model. Before you drill or route hoses, ensure you have a cold-water supply and a valve within easy reach. Keep the line free from sharp bends; use a short, straight run and avoid running hoses near heat sources or vibration-prone areas. If your home has well water, consider a basic filtration stage to protect ice quality and appliance integrity. Check for a secondary drain or air gap if required by your model. Position the unit where the ice output is convenient—near the main kitchen zone or bar area—without obstructing cabinet doors or drawers. Finally, confirm that the installation location provides adequate ventilation to prevent overheating and that the drainage path won’t pool water under the cabinet.
Electrical Safety and Codes You Should Know
Your ice maker will either plug into a standard 120V outlet or connect to a dedicated appliance circuit. The Install Manual guidelines recommend a dedicated 15-amp or 20-amp circuit with proper grounding and a GFCI outlet in damp locations. Do not share the circuit with high-draw appliances like ovens or dishwashers. If your unit is hardwired, ensure a compliant junction box and strain-relief. Always disconnect power before servicing, and verify that a ground fault interrupter is functioning after installation. Keep the cord away from water and splashes, and secure any loose wiring with approved clamps.
Final Preparations: Mounting, Connections, and Testing
Unpack the ice maker and inspect for shipping damage. Mount the unit according to the manufacturer’s template, using the supplied brackets to secure it to the cabinet or counter. Connect the water line to the shut-off valve with one compression nut and tighten with two wrenches to avoid leaks; apply plumber’s tape as needed. Route the drain line or ensure an internal drain path follows the model’s instructions. Reconnect power and switch on the unit, then run a test cycle to purge the lines and clear air. Check for leaks along all fittings and fittings; wipe up any moisture immediately. Finally, calibrate temperature and ice size as directed, and place a tray or ice bin to collect the first run of ice.
Maintenance, Troubleshooting, and Long-Term Care
After installation, schedule periodic maintenance to keep ice quality high. Replace any inline filters as recommended by the manufacturer, usually every 6-12 months. If you notice fewer ice cubes or unusual tastes, inspect the water line for mineral buildup or blockages and flush the system. Keep the area around the unit clean and dry to avoid corrosion and mold growth. If a leak occurs, shut off the supply immediately and re-tighten fittings, then re-test. Long-term care also includes descaling if your water is hard, and keeping the drain path clear to prevent overflow.
Tools & Materials
- Ice maker unit(Ensure compatibility with 120V/60Hz and check included mounting kit.)
- Water supply line (3/8 inch compression braided stainless steel)(Shortest practical length to minimize bends.)
- Shut-off valve (3/8 inch compression)(Within easy reach of the installation site.)
- Two adjustable wrenches(Use one to hold fittings and one to tighten.)
- Drill with bits and possibly a hole saw(Only if mounting requires new holes in cabinetry.)
- Teflon tape (plumber’s tape)(Seal threads on water connections.)
- Level(Ensure unit sits perfectly level for proper operation.)
- Bucket or towel(Catch any water during connections.)
- Electrical outlet on a dedicated circuit (GFCI preferred)(Ensure compliance with local codes.)
- Silicone sealant or caulk(Optional, for sealing gaps under mounting surface.)
- Soft drill bit brush or vacuum(Clean up debris after mounting.)
- Cleaning cloths(Wipe spills and wipe down connections after testing.)

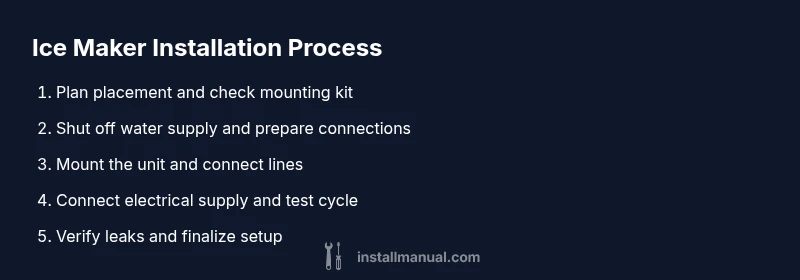

Steps
Estimated time: 60-120 minutes
- 1
Plan placement and compatibility
Determine whether the ice maker will be under-counter or freestanding. Check cabinet clearance, door swing, and space for a drain and power outlet. Confirm model-specific mounting kit requirements before you begin.
Tip: Always check the manufacturer’s template and packaging for mounting screws and brackets. - 2
Shut off water supply
Close the cold-water shut-off valve to prevent leaks as you detach the existing line. Place a bucket under the connection to catch any residual water. If the line is corroded or stiff, consider replacing it with a new braided line.
Tip: Have towels ready and work slowly to avoid splashing. - 3
Prepare the installation area
Clear the space around the mounting location. Remove any drawers or debris that could obstruct mounting or service access. Ensure there’s a level surface and enough ventilation for the appliance.
Tip: Use shims if your cabinet is slightly uneven to achieve a level install. - 4
Mount the ice maker
Use the supplied brackets to attach the ice maker to the cabinet or counter. Check that mounting points align with the template and tighten securely without over-tightening.
Tip: Support the unit as you tighten to avoid flexing brackets. - 5
Drill mounting holes if needed
If the model requires holes for mounting screws, drill carefully using the manufacturer’s pilot holes. Deburr edges to prevent snags in the cabinet. Attach the mounting screws.
Tip: Double-check hole positions before drilling to avoid misalignment. - 6
Attach water supply line to shut-off valve
Connect the braided water line to the shut-off valve using a compression nut. Tighten with two wrenches to avoid cross-threading or leaks. Check that the valve is fully open before continuing.
Tip: Do not overtighten; use plumber’s tape on threads if needed. - 7
Seal and tighten fittings
Apply plumber’s tape to threaded connections if required and snug fittings securely. Ensure there are no cross-threaded joints. Then route the line away from sharp edges or hot surfaces.
Tip: Run the line with gentle bends to prevent kinks. - 8
Connect ice maker water line to appliance
Attach the other end of the supply line to the ice maker’s water inlet. Use a compression nut and tighten with two wrenches. Do a quick check to ensure a snug, drip-free connection.
Tip: Check for alignment to avoid stress on the hose. - 9
Connect electrical supply
Plug the ice maker into a grounded 120V outlet or wire it to a dedicated circuit per the manufacturer’s instructions. Verify that the outlet is within reach and protected by a GFCI if the area is damp.
Tip: If hardwiring, follow local electrical codes and use a proper junction box. - 10
Power on and check clearance
Power up the unit and verify there’s no abnormal noise or vibration. Ensure there’s at least a few inches of clearance behind the unit for airflow.
Tip: Listen for unusual humming that might indicate a mounting issue. - 11
Purge lines and test for leaks
Run a purge cycle to clear air and any debris from the water line. Inspect all fittings for leaks and wipe away any moisture.
Tip: If a leak is detected, tighten fittings gradually and re-test. - 12
Test ice production and finalize
Allow the unit to reach operating temperature, then verify ice production and volume. Adjust ice size and freezing settings as needed. Return any tools to their place and clean the workspace.
Tip: Keep the first batch of ice in a clean container until quality is confirmed.
Got Questions?
Do I need a professional plumber to install an ice maker?
For most standard residential installs, a homeowner with basic plumbing and electrical skills can complete the project. If you’re uncomfortable with plumbing connections or electrical work, hire a licensed professional. Always follow the manufacturer’s instructions.
Most homeowners can install an ice maker themselves, but consider a pro if you’re unsure about plumbing or wiring.
What size water line does an ice maker use?
Most ice makers use a compression connection compatible with common 1/4-inch or 3/8-inch lines, depending on the model. Check your unit’s manual for the exact specification.
Check your ice maker’s manual for the exact water-line size.
Is a dedicated circuit required for all ice makers?
Many units require a dedicated 15- or 20-amp circuit with a grounded outlet, especially in damp locations. Follow the manufacturer’s electrical requirements and local codes.
Most ice makers should have a dedicated circuit and proper grounding.
Why isn’t ice produced after installation?
First, ensure the unit is plugged in and powered. Verify water supply is open and leak-free, and run a purge cycle to clear air. If issues persist, consult the troubleshooting section in the manual.
If no ice forms, check power, water supply, and run a purge cycle.
How often should I clean or replace filters for an ice maker?
Follow the manufacturer’s guidance, typically replacing filters every 6–12 months and cleaning the ice maker interior periodically to maintain ice quality.
Replace filters as recommended and clean interiors regularly.
Watch Video
Main Points
- Plan your installation space before buying
- Use a dedicated circuit and valve
- Check for leaks after each connection
- Test ice production and calibrate settings
- Keep drainage and ventilation clear for ongoing performance
