Electric Car Charger Install: A DIY Home Guide for Beginners
Learn to plan and execute a safe, code-compliant electric car charger install at home. This guide covers charger types, electrical service checks, permits, mounting, wiring, testing, and maintenance.
This guide provides a practical, step-by-step plan for an electric car charger install at home. You’ll learn how to choose between Level 1 and Level 2, assess your electrical service, obtain permits, select a mounting location, run wiring, install the breaker and charger, and test the system for safe operation.

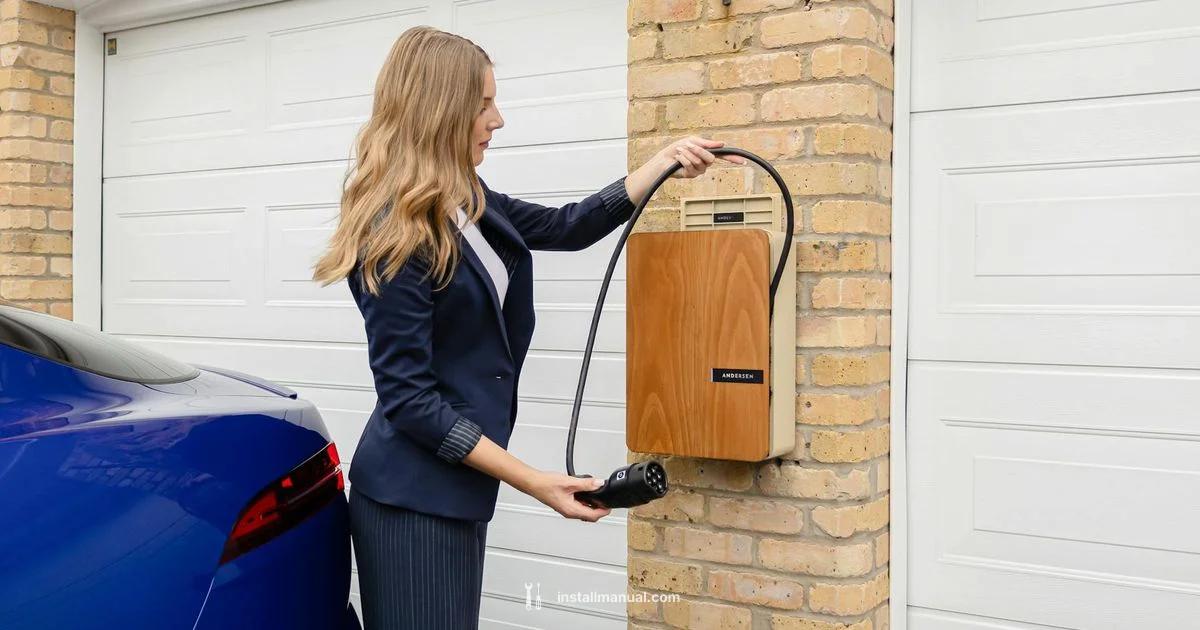

Why installing an electric car charger matters
Installing an electric car charger at home offers convenience, cost savings, and consistent charging for your EV. A properly planned and installed charger reduces the risk of electrical faults and extends the life of your vehicle’s battery by providing reliable, controlled power delivery. According to Install Manual, taking a methodical approach to the install protects you, your home, and your investment. The core idea is to move from a standard wall outlet to a purpose-built charging solution that matches your vehicle’s needs and your home’s electrical capacity. This section explains the why behind the project and sets the stage for choosing the right charger and location. For homeowners, DIY enthusiasts, and renters, a thoughtfully planned install can save time and avoid costly mistakes later on.
Safety and code compliance: the foundation of a solid install
Before you touch a tool, understand the safety prerequisites and code requirements. Electric car charger install projects must address ground-fault protection, proper enclosure ratings, conduit sizing, and correct breaker sizing. Local permits and inspections ensure the installation meets current electrical code and safety standards. The Install Manual team emphasizes documenting all steps, labeling circuits clearly, and keeping documentation for future maintenance. While you may be tempted to bypass inspections, doing so can void warranties, create safety hazards, and complicate resale or insurance claims. Always verify permit requirements with your local authority having jurisdiction (AHJ) before starting work.
Charger options: Level 1 vs Level 2 and plug-in vs hardwired
Charger choice shapes speed, cost, and wiring complexity. Level 1 uses a standard 120-volt outlet and offers slow charging, suitable as a backup or for very light daily use. Level 2 delivers faster charging and typically requires a dedicated circuit; it can be plug-in (NEMA 14-50 outlet or equivalent) or hardwired into a junction box. Consider vehicle compatibility, daily driving range, and available electrical service when selecting a charger. The decision between plug-in and hardwired affects installation steps and future upgrades, so plan for potential upgrades in your load calculations and enclosure choice.
Electrical service capacity and load calculations: what you need to know
A successful EV charger install starts with understanding your home’s electrical service. Most homes have a 100-amp to 200-amp service, with the panel rated for additional loads. A load calculation considers existing circuits, HVAC loads, and the EV charger requirements. Level 2 chargers typically draw between 16 and 40 amps; larger chargers demand larger wire gauges and a higher-capacity breaker. You’ll need to verify wire size (AWG), conduit requirements, and voltage drop considerations for longer runs. If you’re unsure, consult a licensed electrician or your utility for guidance on service capacity, headroom, and safety margins.
Location and mounting considerations: indoor, outdoor, and accessibility
Choose a location that minimizes cord length, avoids trip hazards, and protects the charger from weather that can degrade components. Outdoor installations require weatherproof enclosures, proper gaskets, and a robust mounting surface. Indoor installs should prioritize accessibility for plug-in cords, safe routing away from heat sources, and compliance with building codes. Consider proximity to the vehicle’s typical parking spot and ease of access for daily charging. A well-planned location reduces cord wear and improves user safety.
Wiring paths and protection: routing, conduits, and safety
Plan the wiring path from the main service panel to the charger with attention to protection and future maintenance. Use rated conduit (PVC, EMT, or flexible metal conduit) and appropriate fill for the conductors. All wiring should be protected from physical damage and routed to avoid exposure to moisture or heat sources. A dedicated circuit minimizes interference with other loads and reduces nuisance tripping. Grounding and bonding must follow code requirements, and the installer should verify continuity and insulation resistance before energizing.
Permits, inspections, and electrical work performed safely
Most jurisdictions require a permit for EV charger installations, especially Level 2 and hardwired configurations. Submitting permit applications early helps prevent delays and ensures the work will be inspected for code compliance. Hiring a licensed electrician is often the simplest way to navigate permit processes, ensure correct breaker sizing, and guarantee safe integration with the panel. Document all wiring diagrams, breaker sizes, and device ratings for the inspection package. After inspection, keep the final report with your home records for future maintenance or resale.
Testing, commissioning, and maintenance overview
Testing verifies that the charger delivers the expected current without tripping breakers or overheating. Commissioning involves verifying fault indicators, ensuring the charging cable is properly secured, and confirming the vehicle recognizes the charger. Regular maintenance includes inspecting the enclosure, checking for wear on cables, and keeping outdoor components clean and dry. While some tests can be performed by a confident DIYer, electrical safety is paramount; when in doubt, consult a qualified electrician for final tests and final documentation.
Authority sources and further reading
For deeper guidance, consult authoritative sources such as the U.S. Department of Energy, the National Fire Protection Association (NFPA), and National Renewable Energy Laboratory. These sources provide up-to-date safety standards, code references, and best practices that can inform your planning and implementation. Always cross-check local amendments to the national standards to ensure compliance with your AHJ.
Tools & Materials
- Electric vehicle charger (Level 2 preferred)(Select based on vehicle compatibility and desired charging rate (typical 16–40 A).)
- Dedicated circuit breaker (20–60 A depending on charger)(Match the charger's amperage and wire gauge.)
- Appropriate wiring (AWG size as required by charger and distance)(Use copper or aluminum per code; consider voltage drop for longer runs.)
- Conduit and fittings (PVC, EMT, or steel), plus weatherproof enclosure if outdoor(Protection against physical damage and moisture.)
- Mounting hardware and enclosure(Corrosion-resistant hardware suitable for indoor/outdoor use.)
- GFCI/AFCI protection as required by code(Ensure compliance with local code requirements.)
- Voltage tester and multimeter(For verifying voltage, continuity, and resistance.)
- Wire stripper, screwdriver set, drill, and fish tape(Essential hand tools for wiring and routing conductors.)
- Permitting documents and drawing/diagram tools(Have panel schedule and wiring diagrams ready for AHJ review.)
- Personal protective equipment (PPE): gloves, eye protection(Always wear appropriate PPE when working with electrical systems.)

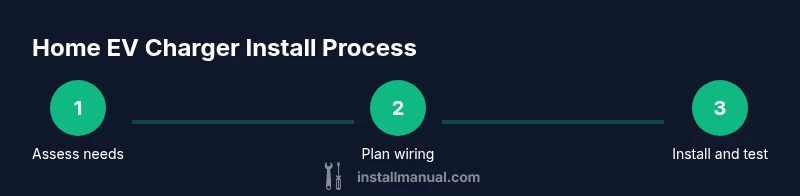

Steps
Estimated time: 6-12 hours
- 1
Check local codes and permit needs
Review your local AHJ requirements and determine whether you need a permit for a Level 2 or hardwired charger. Understanding permit timelines and inspection criteria helps prevent delays and ensures compliance. If you’re unsure, contact the AHJ or a licensed electrician for guidance.
Tip: Start the permit process early to avoid last-minute delays; many jurisdictions offer online applications. - 2
Assess service capacity and charger needs
Evaluate your existing electrical service and panel capacity. Calculate whether you can add a dedicated circuit for the charger without overloading the panel. Consider future additions or upgrades and align your charger amperage with the panel’s available headroom.
Tip: A quick rule of thumb is to size the charger to leave at least 20–30% headroom for other loads. - 3
Select charger type and mounting location
Choose between Level 1 (120 V) and Level 2 (240 V) chargers based on driving habits and vehicle compatibility. Pick a mounting spot that minimizes cord length, protects the unit from the weather (if outdoors), and allows easy daily use.
Tip: If possible, mount near the parking area to shorten cord and reduce exposure to elements. - 4
Plan wiring path and obtain permits
Draft a wiring route from the panel to the charger, noting any required conduit, weatherproofing for outdoors, and access considerations. Submit permit applications with wiring diagrams and panel information to the AHJ for approval.
Tip: Label the planned circuit in the panel and keep copies of diagrams for inspections. - 5
Install circuit breaker and route wiring
Turn off the main power, install the dedicated breaker, run the chosen conduit, and pull wires to the charger location. Ensure secure connections and proper protection against physical damage along the run.
Tip: Never work on live circuits; verify power is off with a tester before handling conductors. - 6
Mount the charger and connect wiring
Attach the mounting bracket to the wall or enclosure, connect the conductors to the charger per the manufacturer’s diagram, and install any required ferrules or wire nuts. Seal weatherproof enclosures and verify strain relief.
Tip: Double-check polarity and ground connections before energizing. - 7
Test, commission, and verify safety features
Power up the circuit and perform basic functional tests. Confirm the charger communicates with the vehicle, check for fault codes, and verify that GFCI/AFCI protection operates correctly.
Tip: Document test results and keep the manual handy for troubleshooting. - 8
Schedule inspection and finalize documentation
Arrange the required inspection with the AHJ and retain all permits, wiring diagrams, and inspection reports for future maintenance or resale. A completed file helps with warranty and safety audits.
Tip: Keep a digital copy of all documentation in a known folder for quick access.
Got Questions?
Do I need a permit to install an EV charging station at home?
Most jurisdictions require a permit for Level 2 or hardwired EV charger installations. The permit process helps ensure the work meets electrical codes and is inspected for safety. Always check with your AHJ before starting the project.
Yes, you’ll likely need a permit for Level 2 installations. Check with your local authority having jurisdiction for specifics.
What amperage should my Level 2 charger be?
Level 2 chargers commonly draw between 16 and 40 amps. The exact rating should match your vehicle acceptance and panel capacity. Consult the charger documentation and consider a conservative headroom approach.
Most Level 2 chargers run 16 to 40 amps; pick a rating that your panel can handle without pushing limits.
Can I install the charger myself, or should I hire a professional?
If you’re comfortable with electrical work and local codes allow, you can perform a basic install. For most homeowners, especially for Level 2 or outdoor installs, hiring a licensed electrician improves safety, ensures code compliance, and streamlines permitting and inspections.
DIY can be feasible for simple setups, but many people hire a licensed electrician for safety and code compliance.
What’s the difference between hardwired and plug-in chargers?
A plug-in charger uses an outlet and a dedicated circuit, offering easier relocation and potentially simpler code compliance. A hardwired charger is permanently connected to the panel, often requiring more robust wiring and enclosure protection but can provide higher reliability and cleaner installation.
Plug-in is easier to relocate; hardwired is more permanent and may handle higher loads with fewer failure points.
How long does an EV charger installation typically take?
Time varies by site complexity, permitting, and electrical service. A straightforward indoor Level 2 install might take a day, while outdoor installations or panel upgrades can extend to several days due to inspections and scheduling.
Expect a day or more for a straightforward install, with longer timelines if permits or panel upgrades are required.
Watch Video
Main Points
- Assess service capacity before purchasing a charger.
- Choose Level 2 for faster charging when possible.
- Obtain permits and plan wiring with safety in mind.
- Outdoor installs require weatherproof enclosures and proper protection.
- Document all steps and keep the inspection records.
