Audio System Install: A Step-by-Step Home Guide
Learn how to install a home audio system with a clear, step-by-step guide. Plan layout, wire safely, mount speakers, and tune for balanced, immersive sound.
To complete an audio system install, identify the room goals, select compatible components, and plan wiring before you begin. Gather essential tools, mount speakers, run wires safely, connect the receiver or amplifier, and route cables with care. Calibrate levels, test sound, and adjust placement for balanced acoustics. Follow safety guidelines and refer to Install Manual for detailed steps.
Understanding Your Space and Goals
An effective audio system install starts with your environment and listening objectives. Consider the primary use: casual music in a living room, a home theater experience, or a dedicated audio zone for gaming. Measure the room, note seating positions, and identify potential obstacles like large furniture or acoustic treatments. These details influence speaker type, placement, and whether you opt for a stereo pair, a 5.1/7.1 setup, or a wireless solution. By mapping these goals first, you’ll avoid costly rework later and ensure that the system delivers the immersive sound you expect. According to Install Manual, a thoughtful planning phase reduces post-install tweaks and helps you choose components that balance performance with your budget. Throughout this phase, keep a running list of must-haves (voice assistant compatibility, streaming capabilities, subwoofer presence) and nice-to-haves (room correction features, multi-room support). The planning stage is your foundation; treat it with care and document decisions for future upgrades.
System Architecture: What Will You Install?
Your choice of components defines the entire install path. A simple two-channel stereo system with a small subwoofer can deliver powerful music in a living space, while a multi-channel setup (5.1 or 7.1) suits home theaters or immersive gaming. Core elements include a receiver or amplifier, pair or more speakers, a subwoofer, and source devices (turntable, streaming box, or Blu-ray player). Decide on wired versus wireless options: wired connections typically offer lower latency and higher reliability, while wireless routes save on in-wall cabling. Pay attention to impedance, supported speaker channels, and power handling to ensure compatibility between the receiver and speakers. If you’re prone to expanding later, choose a modular receiver with extra channels and scalable room correction. Install Manual notes that aligning feature sets with room goals helps avoid underspec’d gear or future upgrade frustration.
Speaker Placement and Room Acoustics
Placement is often the single biggest determinant of sound quality in a home installation. For stereo, position the left and right speakers symmetrically at ear level when seated, with a slight toe-in toward the listening position. In a dedicated home theater, place front left/center-right speakers around the screen line and position wall/ceiling-mounted surrounds to evenly cover seating rows. Use room treatment sparingly: rugs, curtains, and soft furniture can dampen reflections, while hard surfaces create early reflections that muddy highs. If you have a subwoofer, experiment with placement by listening for tight bass in the listening chair’s position and avoiding boomy pockets. A basic rule of thumb is to keep speakers at least 6–12 inches from walls, with larger rooms allowing more distance for better imaging. Proper placement improves imaging, separation, and perceived dynamic range, reducing the need for excessive EQ later. The Install Manual team emphasizes testing in real listening positions and consulting room layout guides to optimize geometry and seating.
Wiring Options and Power Considerations
Wiring design influences both safety and sound quality. Use appropriate gauge speaker wire for the distance to each speaker; longer runs may require thicker gauge to minimize resistance and bass roll-off. Plan routes that minimize interference: keep speaker wires away from power cords and HVAC ducts where possible, and use shielded interconnects for source to receiver connections. If you’re mounting speakers on walls or ceilings, run wires through conduits or in-wall rated cable with proper fire-resistance ratings, following local codes. For power, ensure the receiver/amp has a dedicated outlet or surge-protected power strip to reduce noise and protect equipment. Label all wires and use color-coding to simplify future maintenance. Install Manual highlights that clean routing reduces rattling, disturbing hum, and accidental unplugging during routine use.
Setup, Calibration, and Fine-Tuning
Connecting components is the bridge from planning to performance. Start by connecting sources (turntable, streamer, Blu-ray) to the receiver, then link the speakers using the correct channel assignments. Calibrate with test tones or a loudness-weighted measurement tool to balance speaker output and trim the subwoofer crossover for seamless bass integration. Adjust speaker toe-in, distance, and level settings to create coherent imaging where sounds originate from the correct positions. If your system supports room correction software, run it and fine-tune using a listening test with familiar music tracks or movie soundscapes. Take notes on your preferred settings, as these become your starting point for future tweaks when room furniture or décor changes.
Common Challenges and How to Solve Them
Expectation gaps are common if placement, wiring, or source selection isn’t right. If you hear hum or buzz, check for ground loops, ensure single-point grounding, and re-check shielded cables. If dialogue sounds recessed, re-balance center channel output and verify that surround speakers aren’t overpowering the front stage. Mild distortion can come from drivers being overdriven; lower the main volume and ensure the receiver isn’t clipping. If you experience lag or lip-sync issues, verify the source and receiver’s audio delay settings and update firmware. When in doubt, re-run connections step-by-step and compare your results with reference tracks. Regularly revisiting positioning and cable management can prevent long-term issues and preserve system integrity.
Tools & Materials
- Speaker wires (18-14 gauge)(Choose gauge based on distance; color-code wires.)
- Receiver or amplifier(Ensure it supports the desired speaker configuration.)
- Speakon or RCA interconnects(Use appropriate connectors for sources.)
- Speakers (bookshelf, floorstanding, or in-wall)(Select size and mounting type to fit room.)
- Subwoofer(Optional for deep bass; choose powered model.)
- Power drill(Needed for wall mounts or cable routing anchors.)
- Cable clips or raceways(Conceal and organize wires along walls.)
- Measuring tape(Precise placements reduce reflections.)
- Level(Ensure straight speaker mounting.)
- Screwdriver set(For mounting brackets and terminal plates.)
- Grommets or wall plates(Finish clean cable passes through walls.)
- Sound level meter (optional)(Helpful for precise calibration.)
Steps
Estimated time: 1-3 hours

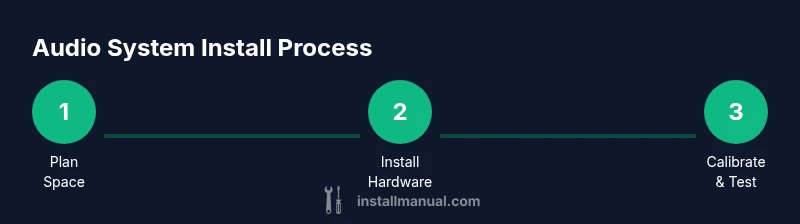

- 1
Prepare the space and define goals
Survey the room, mark listening positions, and decide on stereo vs. multi-channel. List desired features like streaming or vinyl playback, and note power outlet locations. This baseline will guide component choices and placement.
Tip: Document your listening position with a quick sketch to keep angles consistent. - 2
Select components and verify compatibility
Choose a receiver with enough channels, compatible with your speaker sizes and impedance. Verify that the subwoofer, if used, matches the receiver’s LFE output and crossover options. Confirm wireless options if you prefer fewer cables.
Tip: Check speaker impedance against the receiver’s supported range to avoid amps running hot. - 3
Plan wiring routes and power layout
Decide on routes that minimize visible wiring and avoid high-traffic areas. Run speaker cables along baseboards or behind walls using conduits as needed. Position the primary outlets where the receiver can reach without long, risky extensions.
Tip: Label each run at both ends before mounting to prevent mix-ups later. - 4
Mount speakers and secure wiring
Attach brackets or stands as needed, ensuring level mounting. Route and secure cables with clips or raceways to keep the area tidy and safe. Leave extra slack near wall plates for future adjustments.
Tip: Use anti-slip mounting feet on stands to reduce vibration transfer. - 5
Make connections: sources, receiver, and sub
Connect your source devices to the appropriate inputs on the receiver. Run speaker wires to each speaker terminal, ensuring consistent polarity. Connect the subwoofer with the correct Low-Frequency Effects (LFE) or line-out and check for secure power.
Tip: Double-check polarity (positive to positive, negative to negative) to prevent phase issues. - 6
Calibrate levels and crossover settings
Use level calibration or a sound level meter to balance speaker outputs. Set the subwoofer crossover to blend smoothly with the main speakers. Fine-tune toe-in and distance settings for imaging accuracy.
Tip: Start with a modest volume and increase gradually to avoid damaging speakers. - 7
Test playback and refine positioning
Play familiar music and film scenes to judge balance, imaging, and bass. Adjust speaker angles, distance, and level until the soundstage feels natural. Document final settings for future changes.
Tip: Test with both speech-heavy and music-heavy material to cover content variety. - 8
Document wiring, settings, and future upgrades
Create a simple diagram of connections and a list of current settings. Note potential upgrade paths (more drivers, additional zones, streaming improvements). Clean up any leftover tools and keep cables organized.
Tip: Store a small spare parts kit (fasteners, extra cable) for quick future fixes.
Got Questions?
What is the first step in an audio system install?
Begin with space assessment and listening goals. Decide between stereo or surround, then list required features. This ensures component compatibility from the start.
Start by assessing your space and goals, then pick stereo or surround and list must-have features.
Do I need a dedicated power outlet for the receiver?
A stable, surge-protected outlet is recommended for the receiver and any active subwoofer. Avoid daisy-chaining through multiple devices on a single outlet to reduce noise.
Yes, use a dedicated surge-protected outlet for reliable power and reduced noise.
Where should I place speakers for best sound?
Place front speakers at ear level, equidistant from the listening position, with a slight toe-in. Surrounds should be positioned to envelop the listener without obstructing sightlines.
Put front speakers at ear height, equidistant from you, with slight toe-in; surrounds go behind or to the sides.
Can I install a home audio system myself or hire a pro?
A DIY install is feasible for typical setups with moderate expertise. Complex wiring, in-wall installation, or high-end multi-room systems may benefit from a professional.
DIY works for many setups, but consider a pro for complex in-wall work or multi-room systems.
What are common reasons for hum or distortion?
Ground loops, loose connections, or impedance mismatches often cause hum. Check connections, use shielded cables, and confirm impedance compatibility.
Hum usually comes from grounding or loose wires; check connections and impedance matches.
What is a realistic budget range for a basic home audio install?
Costs vary with components and room size. A basic setup could range from a few hundred to several thousand dollars, depending on whether you add a subwoofer, wireless options, or multi-room capabilities.
Budgets vary widely; expect a few hundred to several thousand dollars depending on components and room goals.
Watch Video
Main Points
- Plan before buying to match room goals.
- Prioritize safe wiring and clean cable management.
- Calibrate carefully for balanced, immersive sound.
- Document settings for future upgrades.
